True 4K HDMI Booster (40m 4096 x 2160 @60Hz 4:4:4 up to 20m) with up to 10 levels Cascade


Not in stock
€ 75,14
€ 90,91 incl 21% VAT

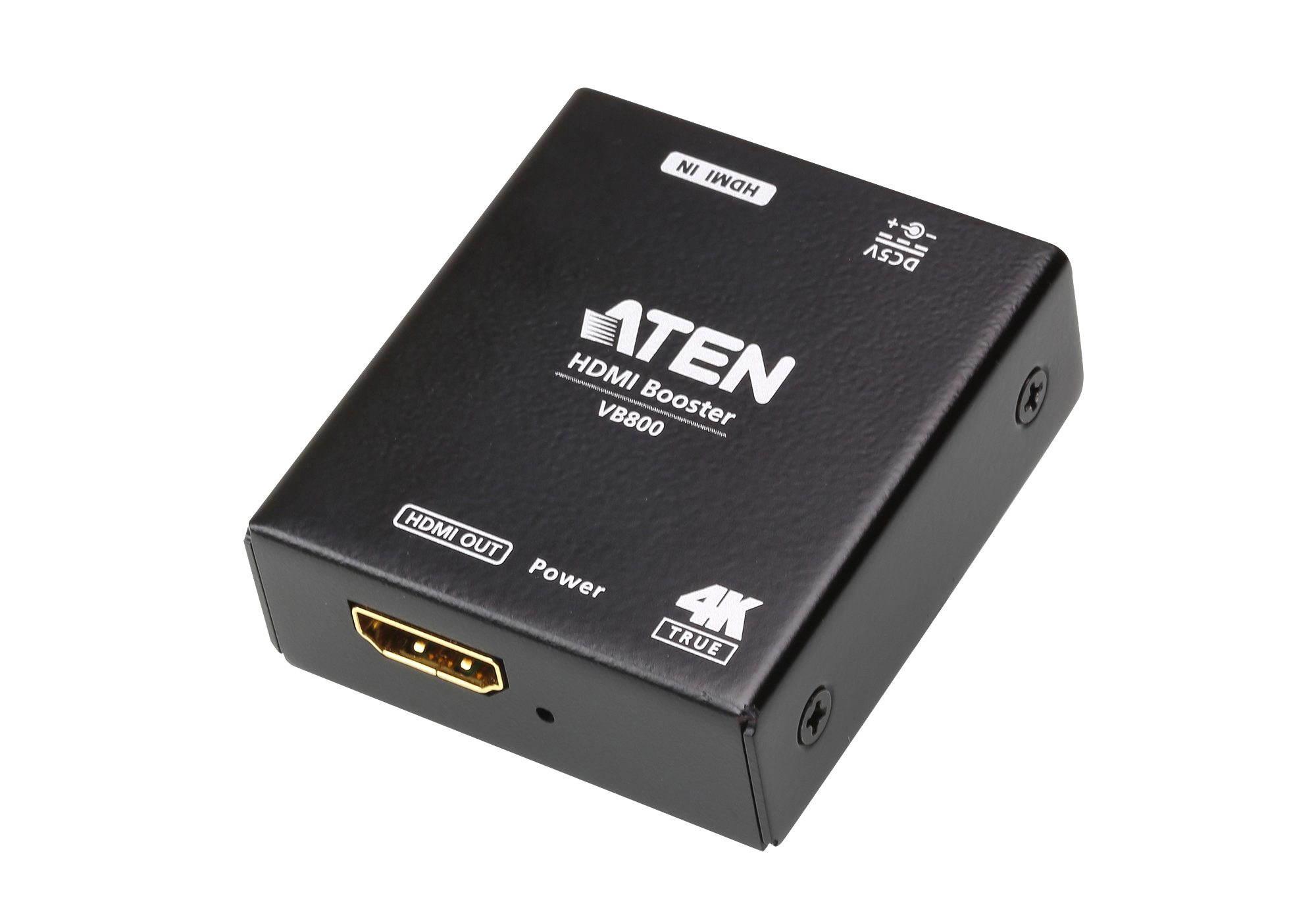

The VB800 is a true 4K HDMI booster providing a solution for long distance transmission. The HDMI booster reliably extends true 4K signals and can be cascaded up to 10 levels, guaranteeing ultimate color and image quality. The VB800 is HDMI 2.0 compliant and supports all HDMI enabled devices. The booster can be rack mounted, offering excellent flexibility for managing both work and home settings.
1x VB800 True 4k HDMI Booster
1x 0AD6-1F05-26EG Power Adapter
1x Rack Mount Kit
1x User Instructions


Product id 795180
Brand Aten
Partnr VB800-AT-G
EAN/UPC code 4719264645396
Type AV transmitter & receiver
Maximum transfer distance 20 m
Plug and Play Y
Supported graphics resolutions 1920 x 1080 (HD 1080)
Bandwidth 18 Gbit/s
Material Metal
Product colour Black
Bandwidth 600 MHz
Ports & interfaces
Connectivity technology Wired
Number of HDMI outputs 1
HDMI in 1
DC-in jack Y
Power consumption (typical) 0.99 W
Operational conditions
Operating temperature (T-T) 0 - 40 °C
Storage temperature (T-T) -20 - 60 °C
Operating relative humidity (H-H) 0 - 80 procent
Weight & dimensions
Width 56 mm
Depth 49 mm
Height 17 mm
Weight 290 g
Packaging data
Package width 59 mm
Package depth 119 mm
Package height 160 mm
Package weight 300 g
Packaging content
Cables included AC
Logistics data
Master (outer) case width 250 mm
Master (outer) case length 325 mm
Master (outer) case height 175 mm
Quantity per master (outer) case 10 stuk(s)
Master (outer) case weight 3560 g
Master (outer) case net weight 2900 g
