True 4K DisplayPort Booster (4096 x 2160 @60Hz 4:4:4 up to 10m) with up to3 levels Cascade

Aten

Not in stock

€ 61,14

€ 73,97 incl 21% VAT

Would you like to ask us a question about this product?

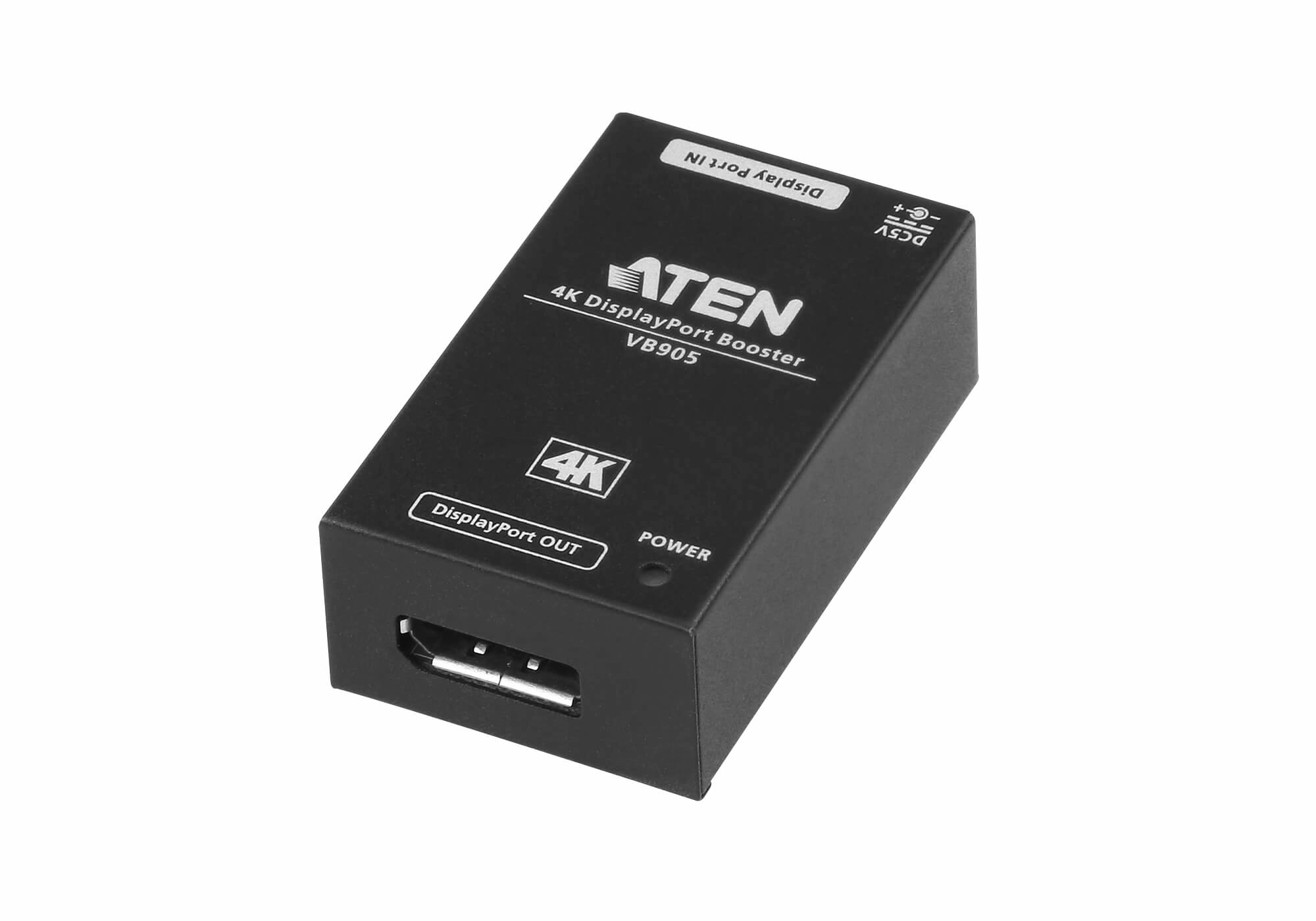

ATEN VB905 extends True 4K signal from a source device to a display up to 5 meters. For long distance transmission, the VB905 can be cascaded up to 3 levels (20 meters), guaranteeing ultimate color and image quality.
1x VB905 True 4K DisplayPort Booster
1x 0AD8-1705-26M1 Power Adapter
1x User Instructions

Specification

Product
Product id	795181
Brand	Aten
Partnr	VB905-AT-G
EAN/UPC code	4719264646461
Features
Type	AV repeater
Maximum resolution	4096 x 2160 Pixels
Maximum transfer distance	20 m
Plug and Play	Y
Rack mounting	Y
LED indicators	Power
HDCP	Y
Material	Metal
Product colour	Black
Ports & interfaces
Connectivity technology	Wired
DisplayPorts in	1
DisplayPorts out	1
DC-in jack	Y
Power
Operating voltage	5 V
Current	2.6 A
Operational conditions
Operating temperature (T-T)	0 - 40 °C
Storage temperature (T-T)	-20 - 60 °C
Operating relative humidity (H-H)	0 - 80 procent
Weight & dimensions
Width	35.3 mm
Depth	58.4 mm
Height	20.6 mm
Weight	170 g
Packaging data
Package width	59 mm
Package depth	119 mm
Package height	160 mm
Package weight	260 g
Packaging content
AC adapter included	Y
Manual	Y
Logistics data
Master (outer) case width	250 mm
Master (outer) case length	325 mm
Master (outer) case height	175 mm
Quantity per master (outer) case	10 stuk(s)
Master (outer) case weight	2920 g
Master (outer) case net weight	1700 g
