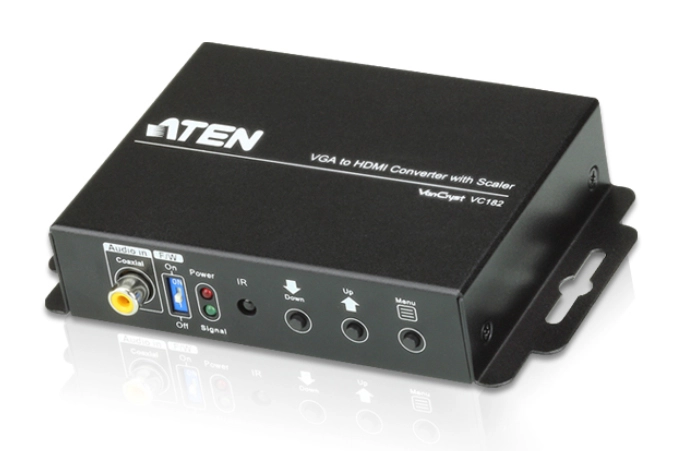

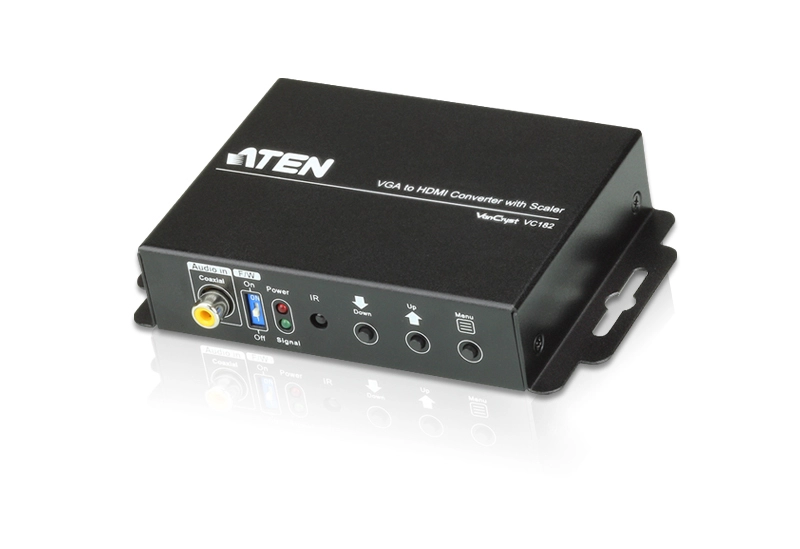

The VC182 VGA to HDMI converter with Scaler offers an easy and convenient way of converting VGA input signals into digital video (HDMI). The VC182 carries a high-performing scaling engine that converts the video resolution to give you the best image quality.

Specification

Product
Product id	478947
Brand	Aten
Partnr	VC182-AT-G
EAN/UPC code	4719264641367
Features
Internal	N
LED indicators	Y
Product colour	Black
Housing material	Metal
Video
Maximum video resolution	1920 x 1200 Pixels
Video resolutions	800 x 600, 1024 x 768, 1280 x 1024, 1280 x 720, 1400 x 1050, 1600 x 1200, 1680 x 1050, 1920 x 1080 Pixels
Supported video modes	480i, 480p, 1080i, 1080p
Supported aspect ratios	4:3, 16:10
Bandwidth	165 MHz
Ports & interfaces
Host interface	VGA (D-Sub)
Output interface	HDMI
DC-in jack	Y
Power
Input voltage	5 V
Power consumption (typical)	1.56 W
Technical details
Harmonized System (HS) code	85176990
Operational conditions
Operating temperature (T-T)	0 - 40 °C
Storage temperature (T-T)	-20 - 60 °C
Operating relative humidity (H-H)	20 - 90 procent
Storage relative humidity (H-H)	20 - 90 procent
Weight & dimensions
Width	110 mm
Depth	83 mm
Height	28 mm
Weight	420 g
Packaging data
Quick installation guide	Y
Quantity	1
Package width	59 mm
Package depth	239 mm
Package height	160 mm
Package weight	590 g
Logistics data
Master (outer) case width	250 mm
Master (outer) case net weight	2100 g
Master (outer) case length	325 mm
Master (outer) case height	175 mm
Quantity per master (outer) case	5 stuk(s)
Master (outer) case weight	3370 g
