VGA Video Extender 150meter



Aten
Not in stock
€ 122,28
€ 147,95 incl 21% VAT

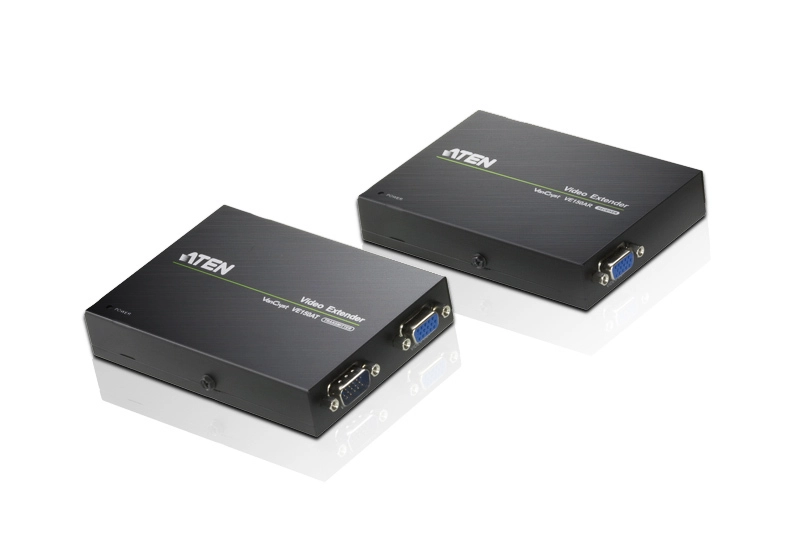

VE150A video extender comprises a local transmitting unit and a remote receiving unit which are connected by standard Cat 5e cables. The distance of both units can be extended up to 150m. It is ideal for factories and construction sites, or any location where the display may need to expose in a risky setting, but you want the system to be kept in a safe location.

1x VE150AT Video Extender (Local unit)
1x VE150AR Video Extender (Remote unit)
2x Power Adapters
1x VGA Cable
1x Mounting Kit
1x User Instructions

Specification

Product
Product id 454911
Brand Aten
Partnr VE150A-AT-G
EAN/UPC code 4710423778894
Features
Type AV transmitter & receiver
Maximum resolution 1920 x 1200 Pixels
Cable types supported Cat5
Maximum transfer distance 150 m
Plug and Play Y
Rack mounting Y
Supported graphics resolutions 1280 x 1024 (SXGA), 1920 x 1200 (WUXGA)
Impedance 75 Ohm
Material Metal
Product colour Black
Ports & interfaces
Connectivity technology Wired
HDBaseT port Y
VGA (D-Sub) input ports 1
Video in 1 x HDB-15
Video out 1 x HDB-15
Power
Power consumption (transmitter) (max) 1 W
Power consumption (receiver) (max) 1.2 W
Operational conditions
Operating temperature (T-T) 0 - 50 °C
Storage temperature (T-T) -20 - 60 °C
Operating relative humidity (H-H) 0 - 80 procent
Weight & dimensions
Weight 970 g
Receiver dimensions (W x D x H) 127.7 x 90.4 x 22.6 mm
Receiver weight 240 g
Transmitter dimensions (WxDxH) 127.7 x 90.4 x 22.6 mm
Transmitter weight 240 g
Packaging data
Quantity per pack 2 stuk(s)
Package width 62 mm
Package depth 283 mm
Package height 173 mm
Package weight 1110 g
Packaging content
AC adapter included Y
Cables included VGA
Manual Y
Mounting kit Y
Logistics data
Master (outer) case width 300 mm
Master (outer) case length 336 mm
Master (outer) case height 194 mm
Quantity per master (outer) case 5 stuk(s)
Master (outer) case weight 5920 g
Master (outer) case net weight 4850 g
