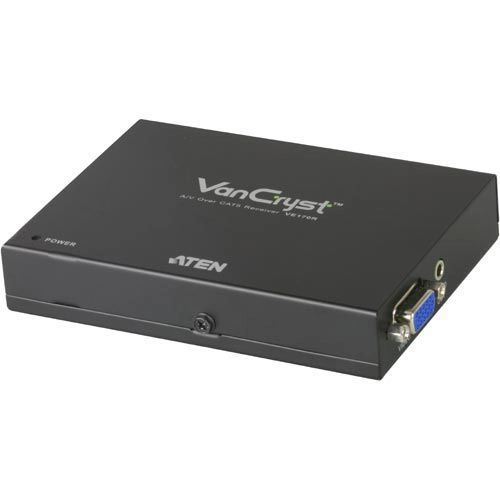

The VE170R A/V Over Cat 5 Receiver connects to a transmitter* to extend signals up to 300m from the source using a Cat 5e cable. It is a cost-effective and efficient solution for sending and receiving high quality audio and video content.

1x VE170R A/V Over Cat 5 Receiver
1x Power Adapter
1x Mounting Kit (1 pc)
1x User Instructions

Specification

Product
Product id	372864
Brand	Aten
Partnr	VE170R-AT-G
EAN/UPC code	4710423777286
Features
Type	AV receiver
Maximum resolution	1920 x 1200 Pixels
Cable types supported	Cat5
Maximum transfer distance	300 m
Maximum refresh rate	60 Hz
Electrostatic Discharge (ESD) protection	15 kV
Electrostatic Discharge (ESD) protection	Y
Rack mounting	Y
Supported graphics resolutions	1024 x 768 (XGA), 1600 x 1200 (UXGA), 1920 x 1200 (WUXGA)
Impedance	75 Ohm
Material	Metal
Product colour	Black
Bandwidth	300 MHz
Ports & interfaces
Connectivity technology	Wired
VGA (D-Sub) output ports	1
Audio output	1
DC-in jack	Y
Power
Operating voltage (receiver)	5.3 V
Power consumption (RX)	3.32 W
Operational conditions
Operating temperature (T-T)	0 - 50 °C
Storage temperature (T-T)	-20 - 60 °C
Operating relative humidity (H-H)	0 - 80 procent
Storage relative humidity (H-H)	0 - 80 procent
Weight & dimensions
Width	127.7 mm
Depth	90.4 mm
Height	22.6 mm
Weight	460 g
Packaging data
Quantity per pack	1 stuk(s)
Package width	59 mm
Package depth	239 mm
Package height	160 mm
Package weight	560 g
Packaging content
AC adapter included	Y
Manual	Y
Mounting kit	Y
Logistics data
Master (outer) case width	250 mm
Master (outer) case length	325 mm
Master (outer) case height	175 mm
Quantity per master (outer) case	5 stuk(s)
Master (outer) case weight	3200 g
Master (outer) case net weight	2300 g
