True 4K HDMI/USB HDBaseT3.0 TransceiverMax. Bandwidth 18 Gbps 100m


Not in stock
€ 530,34
€ 641,71 incl 21% VAT

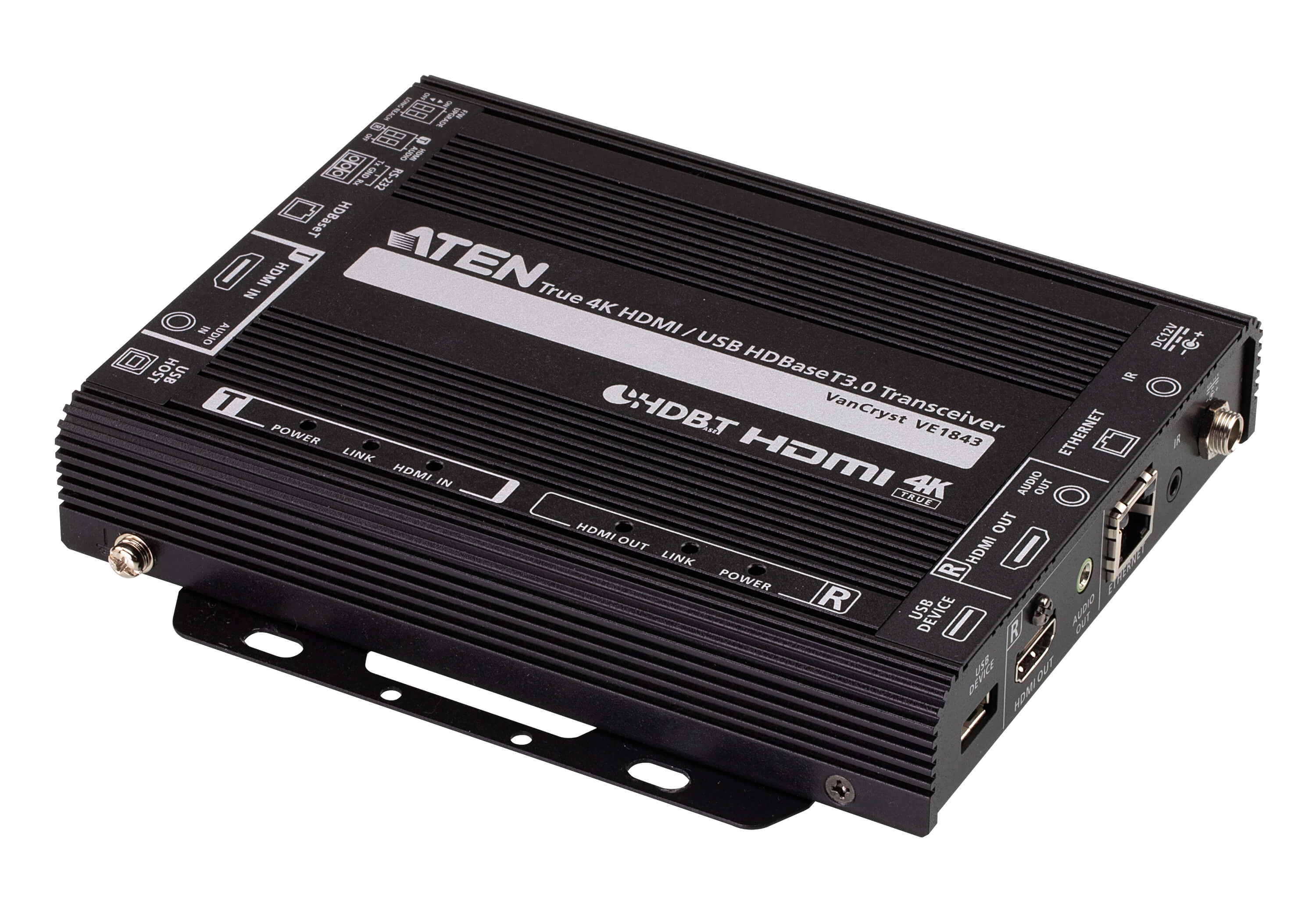

As ATEN ’s first video transceiver, the VE1843 features the latest HDBaseT 3.0 technology, allowing users to easily configure the unit to be a transmitter or receiver depending on the AV solution they need, while enabling uncompressed True 4K HDMI transmission up to 100m/328ft with zero latency via just one Cat 6A cable. With its user-oriented hardware design and enhanced durability, this new model is purpose-built for spaces that require long-distance, yet high-quality, signal transmission with easy installation and non-stop operation, such as conference rooms, auditoriums, banquet halls, and museums.

One Unit, Two Configurations
VE1843 integrates the functions of a transmitter and a receiver into one unit for users to easily set it to the direction (Tx / Rx) required and enjoy more flexible deployment with video matrix switches, splitters, and more.

Uncompressed True 4K HDMI with HDR @100m
Delivering uncompressed True 4K @ 60Hz 4:4:4 HDMI with HDR up to 100m/328ft over a Cat 6A cable with no latency, VE1843 offers superior video quality even when output devices are located far away.

One Cable to Transmit It All
Streamline complex installation and enjoy multi-signal control by using a Cat 6A cable to extend signals including high-quality video, audio, IR, RS-232, Gigabit Ethernet, and USB 2.0 for remotely located equipment management.

HDMI Audio Embedding & De-embedding
VE1843 comes with HDMI audio embedding / de-embedding functions, enabling users to easily embed a separate audio source to video content for applications such as training and education, or de-embed an audio signal from HDMI input source and output to an amplifier or speaker for enhanced sound quality.

Tailored Fanless Fin Heat Sink Enclosure
VE1843 prevents overheating and fan malfunctions, which will shut down operation, ensuring efficient thermal dissipation and non-stop signal transmission, while improving durability.

User-Focused Design in Every Detail
The design of VE1843 elevates its ease-of-use, including the self-explanatory labeling for intuitive port recognition, the built-in brackets for easy mounting, the LED lights for quick diagnosis, and a dedicated space on the front for writing labels to help device recognition / management.

VE1843 is ideal for small / mid-sized video presentation in conference rooms, public areas, and other applications where high-quality signal transmission across up to 100m/328ft is needed.


Product id 810408
Brand Aten
Partnr VE1843-AT-G
EAN/UPC code 4710469341267
Type AV repeater
Maximum resolution 4096 x 2160 Pixels
Cable types supported Cat6a
Maximum transfer distance 100 m
Maximum refresh rate 240 Hz
Front panel control (TX) Y
Front panel control (RX) Y
Infrared (IR) frequency range 30 - 56 kHz
Rubber feet Y
HDCP version 2.2
LED indicators Y
Supported graphics resolutions 640 x 480 (VGA), 720 x 400, 800 x 600 (SVGA), 1024 x 768 (XGA), 1280 x 1024 (SXGA), 1280 x 800 (WXGA), 1400 x 1050 (SXGA+), 1400 x 900, 1680 x 1050 (WSXGA+), 1920 x 1080 (HD 1080), 1920 x 1200 (WUXGA), 3840 x 2160, 4096 x 2160
Impedance 100 Ohm
Bandwidth 18 Gbit/s
3D Y
Material Metal
Product colour Black
Bandwidth 600 MHz
Ports & interfaces
Connectivity technology Wired
Ethernet LAN Y
RJ-45 input ports 1
RJ-45 output ports 1
HDBaseT port Y
Number of HDMI outputs 1
HDMI in 1
USB ports quantity 2
USB version 2.0
USB connector type USB Type-A, USB Type-B
Remote (IR) input 1
Audio output 1
Audio input 1
Serial ports quantity 1
Serial interface type RS-232
DC-in jack Y
Operational conditions
Operating temperature (T-T) 0 - 40 °C
Storage temperature (T-T) -20 - 60 °C
Operating relative humidity (H-H) 0 - 80 procent
Weight & dimensions
Width 150.9 mm
Depth 171.5 mm
Height 30 mm
Weight 640 g
Packaging data
Package width 232 mm
Package depth 500 mm
Package height 283 mm
Package weight 1400 g
Packaging content
AC adapter included Y
Cables included USB
IR emitter included Y
Manual Y
IR receiver included Y
Technical details
Country of origin Taiwan
Logistics data
Quantity per master (outer) case 5 stuk(s)
Master (outer) case weight 7550 g
Master (outer) case net weight 5870 g
