DisplayPort HDBaseT-Lite Transmitter with EU Wall Plate and PoH. 70m



Aten
Not in stock
€ 196,45
€ 237,70 incl 21% VAT

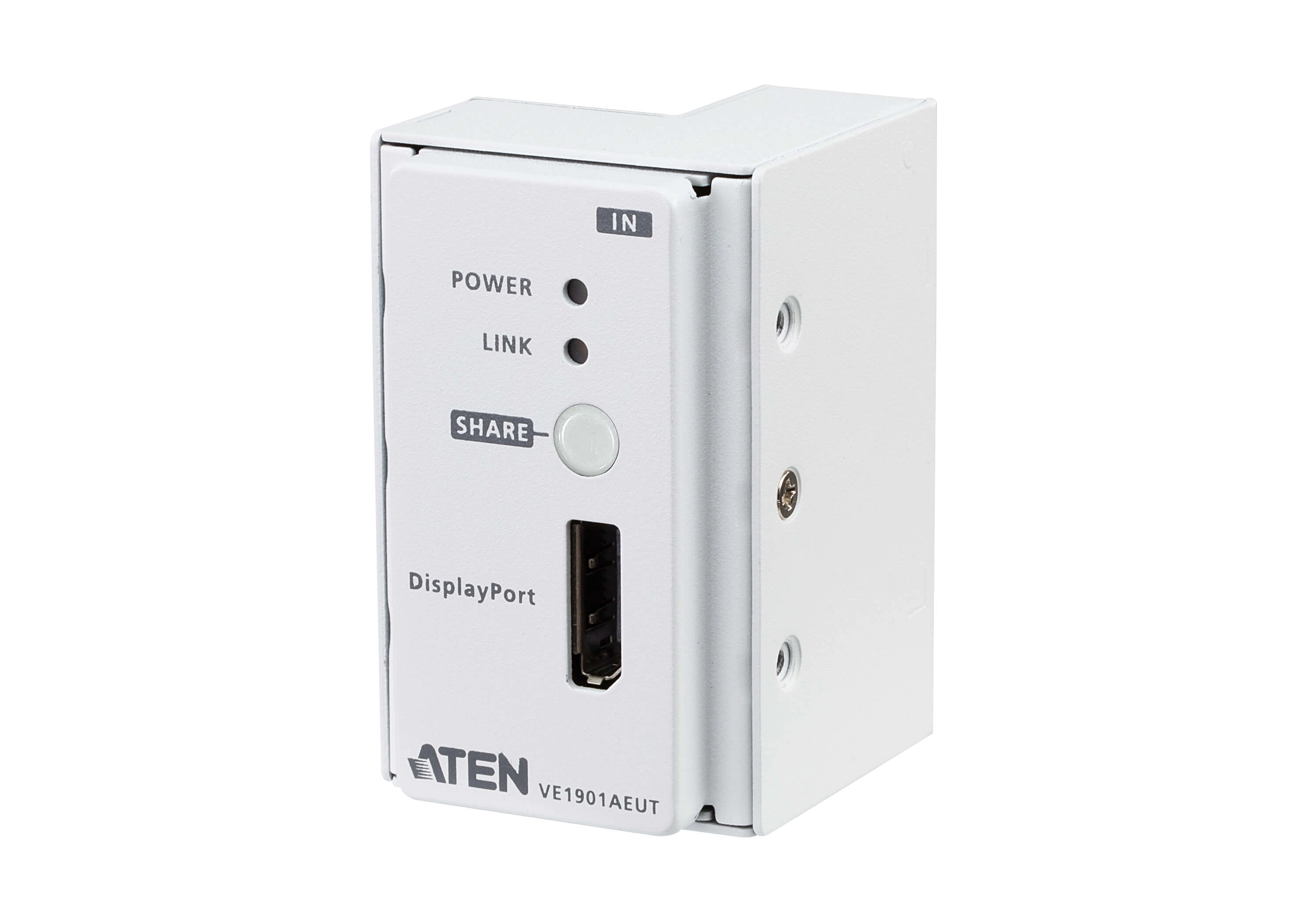

The ATEN VE1901AEUT DisplayPort HDBaseT-Lite transmitter delivers 4K signals up to 40 m over a single Cat 5e/6/6a or ATEN 2L-2910 Cat 6 cable, ensuring users to stabilize DisplayPort signal transmission with support of Deep Color and embedded HD lossless audio formats. During high-quality video transmission, the transmitter can resist signal interference with the equipped HDBaseT Anti-jamming technology and offer a reliable signal extension.

The VE1901AEUT can be easily mounted in a 1-gang junction box with EU wall plate, concealing bulky cable setups and presenting the needed information in sight. In addition, with built-in PoH (Power over HDBaseT) function, the VE1901AEUT receives power supply from a connected PoH PSE (Power Source Equipment) supported receiver and streamlines complex power line deployment.

With the share function, the VE1901AEUT can remotely switch source when connecting to a compatible receiver, e. g. , VP1421, bringing users for more convenient AV extension. This compact transmitter provides a neat and simple installation on walls or tables, enabling users to elegantly immerse their AV applications into any environment. Therefore, the VE1901AEUT is ideal for use in meeting rooms, digital educational environments or any application requiring stable high-quality transmission and effortless installation.

Specification

Product
Product id 810409
Brand Aten
Partnr VE1901AEUT-AT-G
EAN/UPC code 4710469340581
Features
Type AV transmitter
Maximum resolution 4096 x 2160 Pixels
Cable types supported Cat5e, Cat6, Cat6a
Maximum transfer distance 60 m
Wall mountable Y
Plug and Play Y
Electrostatic Discharge (ESD) protection Y
LED indicators Y
Supported graphics resolutions 1920 x 1080 (HD 1080), 3840 x 2160, 4096 x 2160
Impedance 100 Ohm
Bandwidth 10.2 Gbit/s
HDCP Y
Material Metal
Product colour White
Bandwidth 297 MHz
Ports & interfaces
Connectivity technology Wired
RJ-45 output ports 1
HDBaseT port Y
DisplayPorts in 1
Serial interface type RS-232
Operational conditions
Operating temperature (T-T) 0 - 40 °C
Storage temperature (T-T) -20 - 60 °C
Operating relative humidity (H-H) 0 - 80 procent
Weight & dimensions
Width 44.4 mm
Depth 68.6 mm
Height 50 mm
Weight 200 g
Packaging data
Package width 250 mm
Package depth 325 mm
Package height 175 mm
Package weight 590 g
Technical details
Country of origin Taiwan
Logistics data
Quantity per master (outer) case 5 stuk(s)
Master (outer) case weight 17500 g
