4K HDMI HDBaseT Receiver (4096 x 2160 up to 100m Long reach mode 1920 x 1080 upto 150m) with Audio De-Embedding PoH and IR / RS-232 Pass-Through

Aten

Not in stock

€ 325,01

€ 393,26 incl 21% VAT

Would you like to ask us a question about this product?

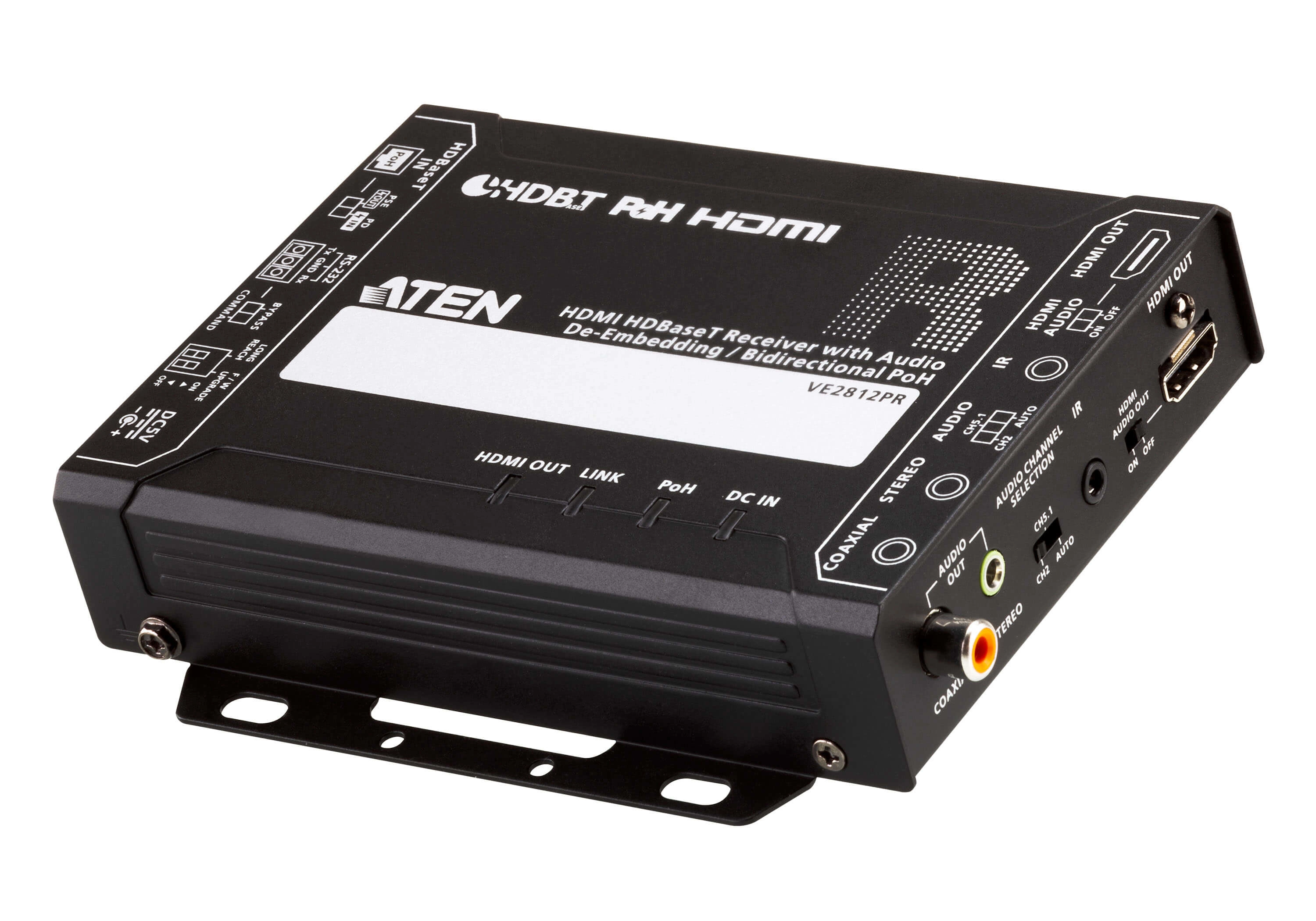

Featuring powerful Class A HDBaseT technology, the VE2812PR is a receiver for 4K HDMI video, audio, and control signals over a distance of up to 100 m via a Cat 5e / 6 / 6a or ATEN 2L-2910 Cat 6 cable. HDMI signal transmission extends further up to 150 m @ 1080p when the HDBaseT Long Reach Mode is enabled.

Designed to optimize flexibility, the VE2812PR ships with 2-way PoH capability, either allowing a PoH PD-enabled Tx (VE2812AT series is recommended) to be remotely powered by the locally powered VE2812PR, or enabling power distribution along the cable from a PoH PSE-enabled Tx (VE1812T is recommended) to the VE2812PR. Speaking of VE2812PR’s audio de-embedding, audio signal can be extracted from the incoming HDMI source and then transmitted through Coaxial or Stereo output to external audio distribution systems. The VE2812PR gives users the extra convenience when it comes to extending control and communication signals via the built-in RS-232 and bi-directional IR ports. Plus, it is HDCP 2.2 compliant and supports HDMI specification features, such as 4K2K, 3D, Deep Color, and CEC for reliable transmission of high-quality uncompressed HDMI content.

With all highlights packed in a compact enclosure, the VE2812PR assures easy and discreet installation, keeping the presentation space tidy. It is ideal for small / mid-sized areas where 4K HDMI and control signal transmission over a long distance is required, such as boardrooms, lecture halls, and digital signage applications.

Specification

Product
Product id	866760
Brand	Aten
Partnr	VE2812PR-AT-G
EAN/UPC code	4710469341199
Features
Type	AV receiver
Maximum resolution	4096 x 2160 Pixels
Cable types supported	Cat5e, Cat6, Cat6a
Maximum transfer distance	100 m
Maximum refresh rate	60 Hz
Electrostatic Discharge (ESD) protection	15 kV
Baud rate	115.2 Kbit/s
Plug and Play	Y
Electrostatic Discharge (ESD) protection	Y
IR pass-through	Y
Rubber feet	Y
HDCP version	2.2
Supported graphics resolutions	640 x 480 (VGA),720 x 400,800 x 600 (SVGA),1024 x 768 (XGA),1280 x 1024 (SXGA),1280 x 800,1400 x 1050 (SXGA+),1440 x 900 (WXGA+),1600 x 1200 (UXGA),1920 x 1080 (HD 1080),1920 x 1200 (WUXGA),4096 x 2160
Impedance	100 Ohm
Bandwidth	10.2 Gbit/s
3D	Y
HDCP	Y
Consumer Electronics Control (CEC) support	Y
Material	Metal
Product colour	Black
Bandwidth	340 MHz
Firmware upgradeable	Y
Ports & interfaces
Connectivity technology	Wired
RJ-45 input ports	1
HDBaseT port	Y
Number of HDMI outputs	1
Digital audio coaxial out	1
Remote (IR) output	1
Audio output	3.5mm
Serial ports quantity	1
Serial interface type	RS-232
DC-in jack	Y
Power
Power source type	DC
Operating voltage	5 V
Power consumption (typical)	5.83 W
External power adapter	Y
Operational conditions
Operating temperature (T-T)	0 - 40 °C
Storage temperature (T-T)	-20 - 60 °C
Operating relative humidity (H-H)	0 - 80 procent
Weight & dimensions
Width	123 mm
Depth	145.3 mm
Height	30 mm
Weight	500 g
Packaging data
Package width	59 mm
Package depth	239 mm
Package height	160 mm
Package weight	760 g
Packaging content
AC adapter included	Y
Manual	Y
Technical details
Country of origin	Taiwan
Package volume	2265.35 cm³
Logistics data
Master (outer) case width	250 mm
Master (outer) case length	325 mm
Master (outer) case height	175 mm
Master (outer) case weight	4190 g
Master (outer) case net weight	3100 g
Master (outer) case volume	14158.42 cm³
