DVI + Audio RJ45 Extender up to 60 meter 1080P

Aten

Not in stock

€ 105,05

€ 127,11 incl 21% VAT

Would you like to ask us a question about this product?

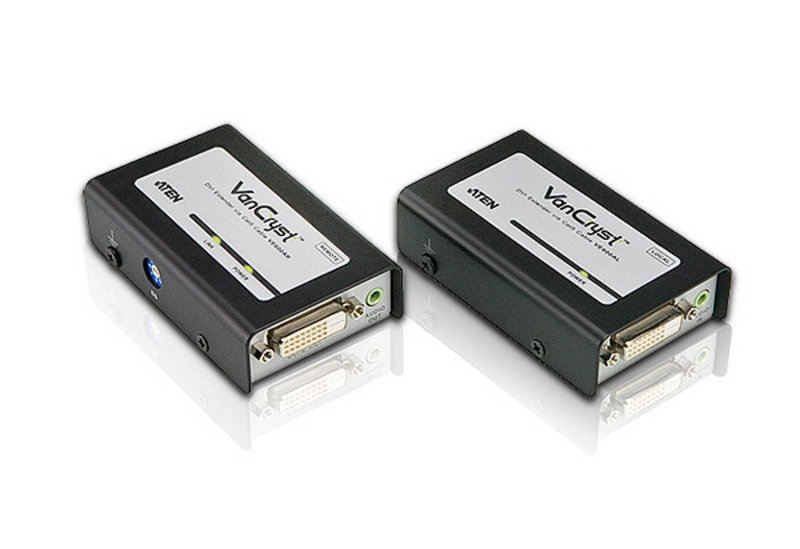

The VE600A DVI Extender with Audio extends your DVI display up to 60 m away from your DVI source using Cat 5e cables. The use of Cat 5e cables provides a simple and reliable connection method that takes advantage of the wiring system in most modern office buildings. The VE600A incorporates ATEN's technology that allows the A/V signal to be transmitted over one Cat 5e cable. If the real EDID is required, simply use a second Cat 5e cable. With stereo audio support and support for popular widescreen formats, the VE600A provides crystal-clear image and sound quality in all installations where remote DVI video displays are required.
1x VE600A DVI Extender with Audio Local Unit
1x VE600A DVI Extender with Audio Remote Unit
2x 0AD6-1605-09EG Power Adapters
1x Mounting Kit
1x User Instructions

Specification

Product
Product id	390705
Brand	Aten
Partnr	VE600A-AT-G
EAN/UPC code	4710423777736
Features
Type	AV transmitter & receiver
Maximum resolution	1920 x 1200 Pixels
Cable types supported	Cat5e
Maximum transfer distance	60 m
Supported video modes	1080i,1080p
Supported graphics resolutions	1920 x 1080 (HD 1080),1920 x 1200 (WUXGA)
Impedance	100 Ohm
Bandwidth	6.75 Gbit/s
HDCP	Y
Material	Metal
Product colour	Black
Bandwidth	225 MHz
Ports & interfaces
Connectivity technology	Wired
Ethernet LAN	Y
RJ-45 input ports	2
RJ-45 output ports	2
DVI input ports	2
DVI output ports	2
Video in	1 x DVI-D
Video out	1 x DVI-D
Audio output	1
Audio input	1
Power
Power consumption (max)	2.05 W
Power consumption (transmitter) (max)	1.56 W
Power consumption (receiver) (max)	0.76 W
Operational conditions
Operating temperature (T-T)	0 - 50 °C
Storage temperature (T-T)	-20 - 60 °C
Operating relative humidity (H-H)	0 - 80 procent
Weight & dimensions
Weight	490 g
Receiver dimensions (W x D x H)	56 x 91.3 x 24 mm
Receiver weight	170 g
Transmitter dimensions (WxDxH)	56 x 91.3 x 24 mm
Transmitter weight	170 g
Packaging data
Quantity per pack	2 stuk(s)
Package width	59 mm
Package depth	239 mm
Package height	160 mm
Package weight	660 g
Packaging content
AC adapter included	Y
Manual	Y
Grounding wire	Y
Mounting kit	Y
Technical details
Sustainability certificates	RoHS
Logistics data
Master (outer) case width	315 mm
Master (outer) case length	490 mm
Master (outer) case height	338 mm
Quantity per master (outer) case	20 stuk(s)
Master (outer) case weight	14020 g
Master (outer) case net weight	9800 g
