HDMI Over Cat5e/6 Audio/Video Extender (60m)

Aten

Not in stock

€ 56,43

€ 68,28 incl 21% VAT

Would you like to ask us a question about this product?

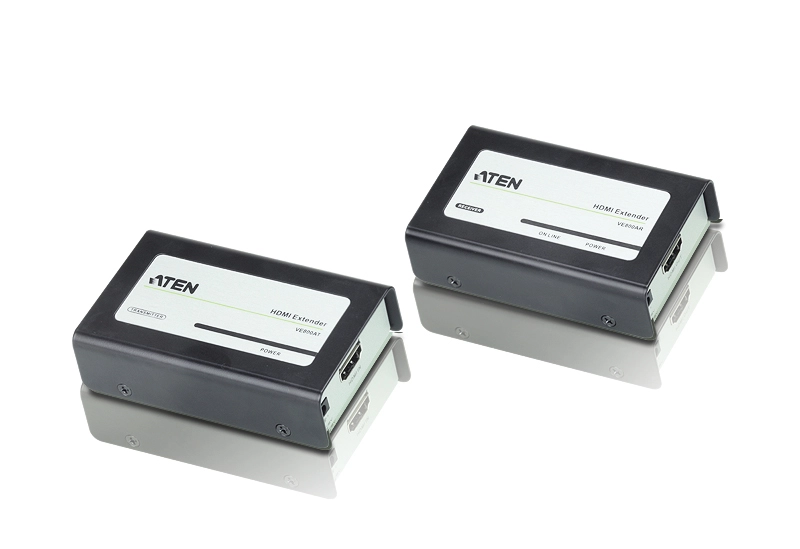

The VE800A HDMI Extender extends your HDMI display up to 60 m away from your HDMI source using one Cat 5e cable. ATEN's VE800A incorporates new technology that allows the A/V signals to be transmitted over a single Cat 5e cable. DDC port is provided for the ability to use the display's EDID by simply connecting another Cat 5e cable. The VE800A supports HDMI features such as 3D and Deep Color to give you the picture perfect viewing experience you desire.
1x VE800AT HDMI Extender
1x VE800AR HDMI Extender
2x 0AD6-1705-10EG Power Adapters
1x Mounting Kit
1x User Instructions

Specification

Product
Product id	538225
Brand	Aten
Partnr	VE800A-AT-G
EAN/UPC code	672792005749
Features
Type	AV receiver
Maximum resolution	1920 x 1080 Pixels
Cable types supported	Cat5, Cat6, Cat6a
Maximum transfer distance	3 m
LED indicators	Y
Bandwidth	6.75 Gbit/s
HDCP	Y
Material	Metal
Product colour	Black
Bandwidth	225 MHz
Ports & interfaces
Connectivity technology	Wired
Ethernet LAN	Y
RJ-45 input ports	2
RJ-45 output ports	2
Number of HDMI outputs	1
HDMI in	1
DC-in jack	Y
Operational conditions
Operating temperature (T-T)	0 - 50 °C
Storage temperature (T-T)	-20 - 60 °C
Operating relative humidity (H-H)	0 - 80 procent
Weight & dimensions
Width	55 mm
Depth	90 mm
Height	22 mm
Weight	484 g
Packaging data
Package width	59 mm
Package depth	239 mm
Package height	160 mm
Package weight	644 g
Packaging content
AC adapter included	Y
Logistics data
Master (outer) case width	250 mm
Master (outer) case length	325 mm
Master (outer) case height	175 mm
Quantity per master (outer) case	5 stuk(s)
Master (outer) case weight	3520 g
Master (outer) case net weight	2420 g
