The VE807 HDMI/Audio Cat 5 Extender with MK Wall Plate is designed to be conveniently mounted in a one- gang junction box. It extends HDMI and audio signals up to 60 meters over a Cat 5e/6 cable and supports widescreen formats ensuring excellent video quality.

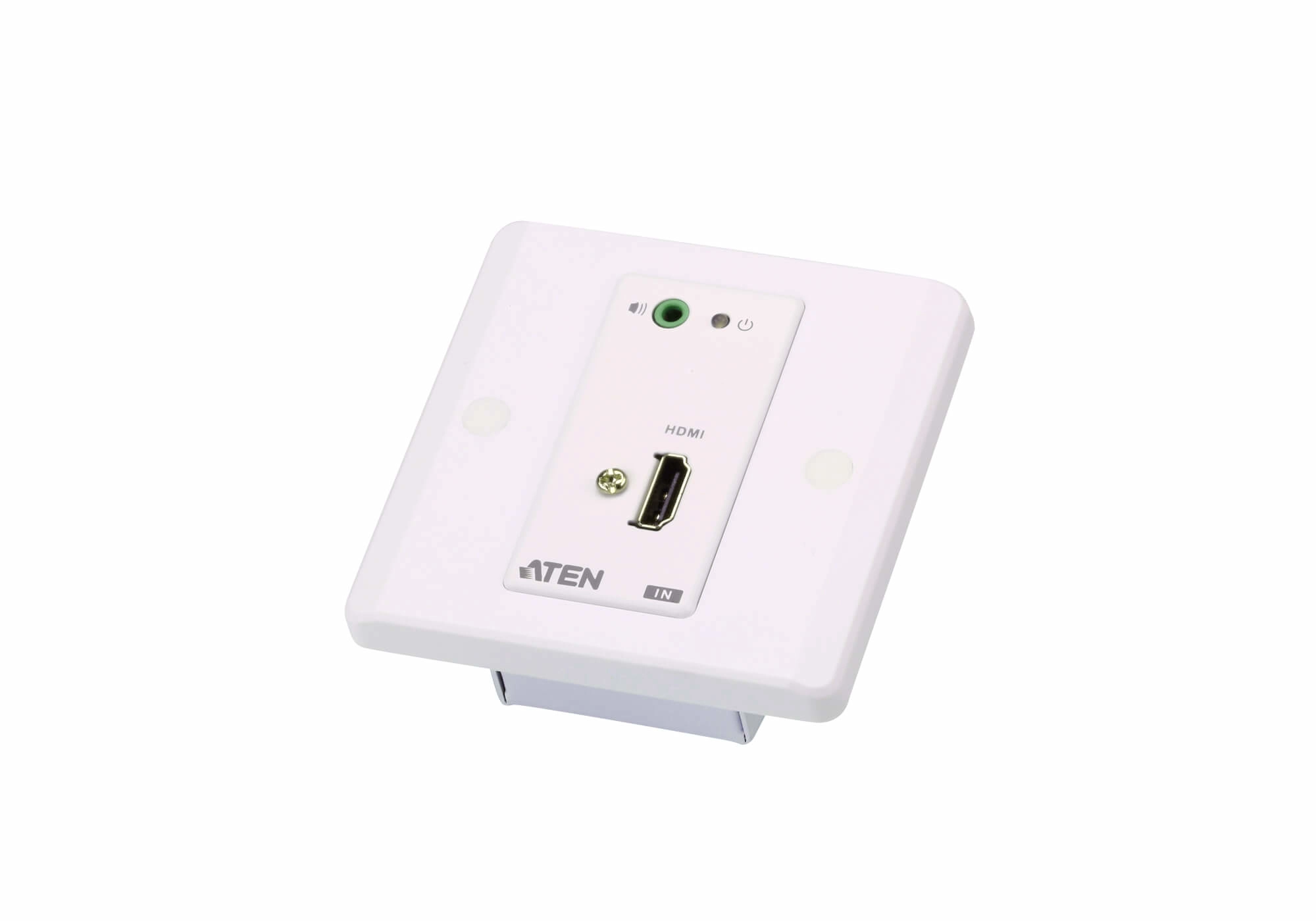

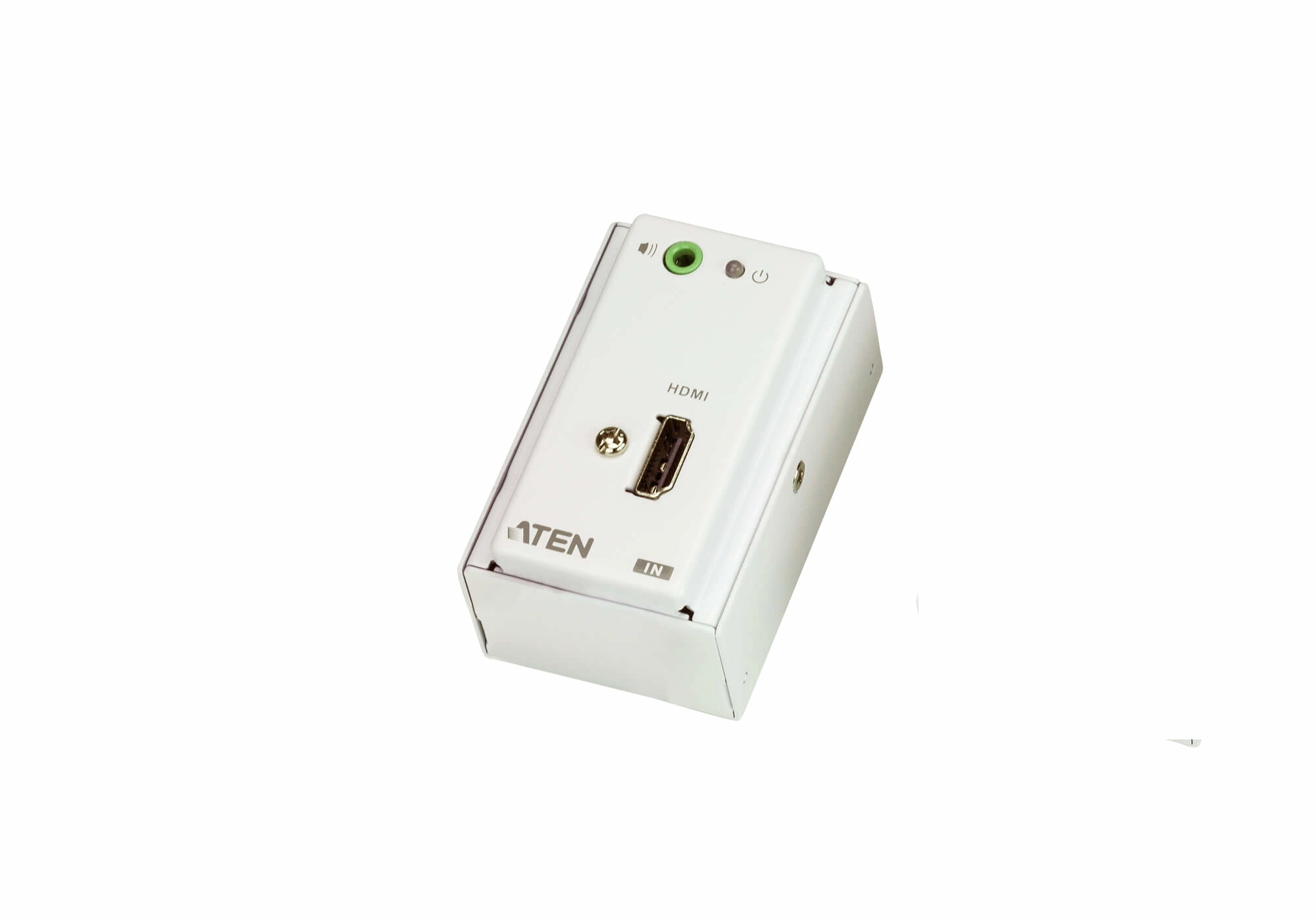

1x VE807 HDMI/Audio Cat 5 Transmitter with MK Wall Plate

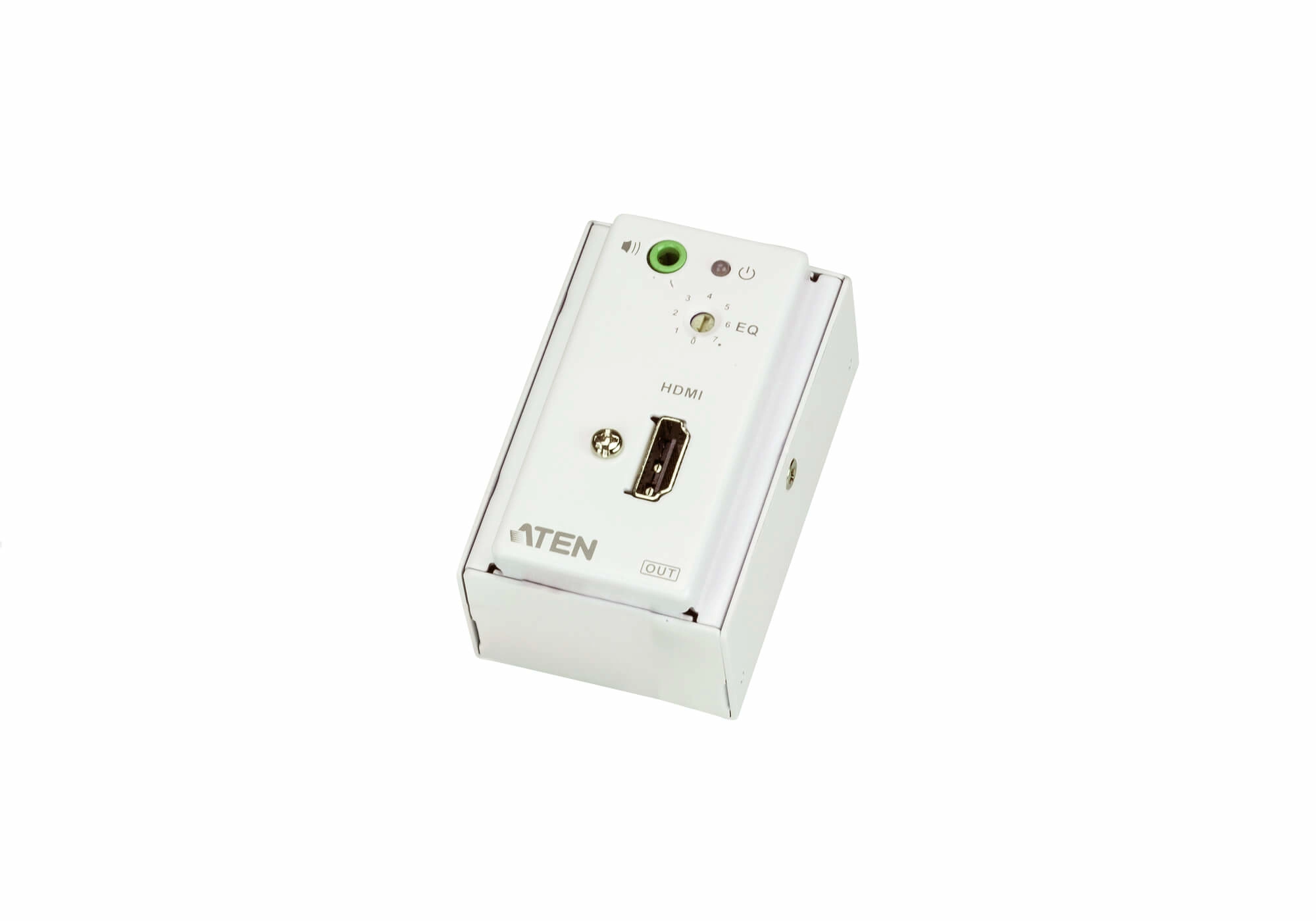

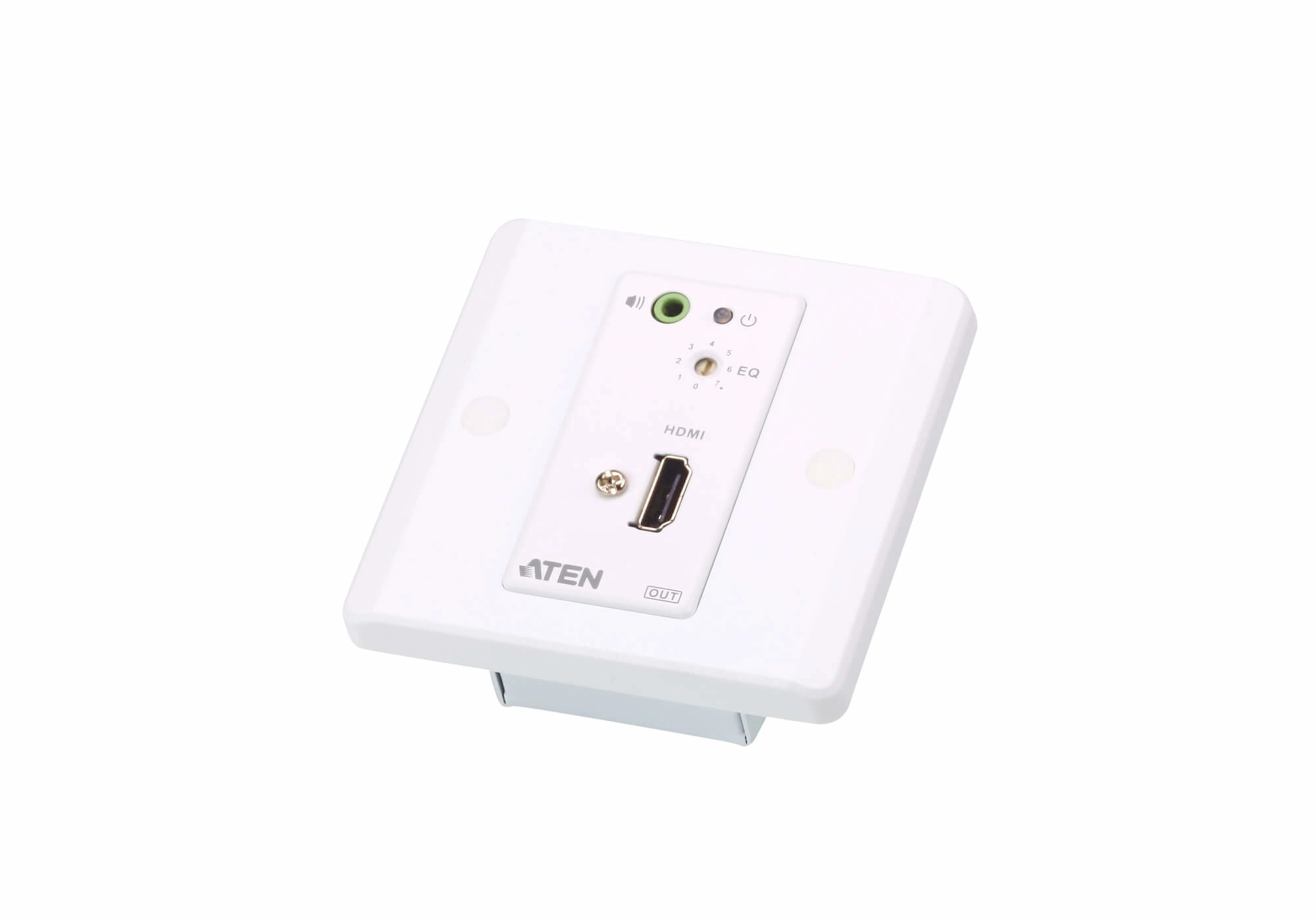

1x VE807 HDMI/Audio Cat 5 Receiver with MK Wall Plate
1x Terminal Block Connector
1x 0AD6-1909-06EG Power Adapter

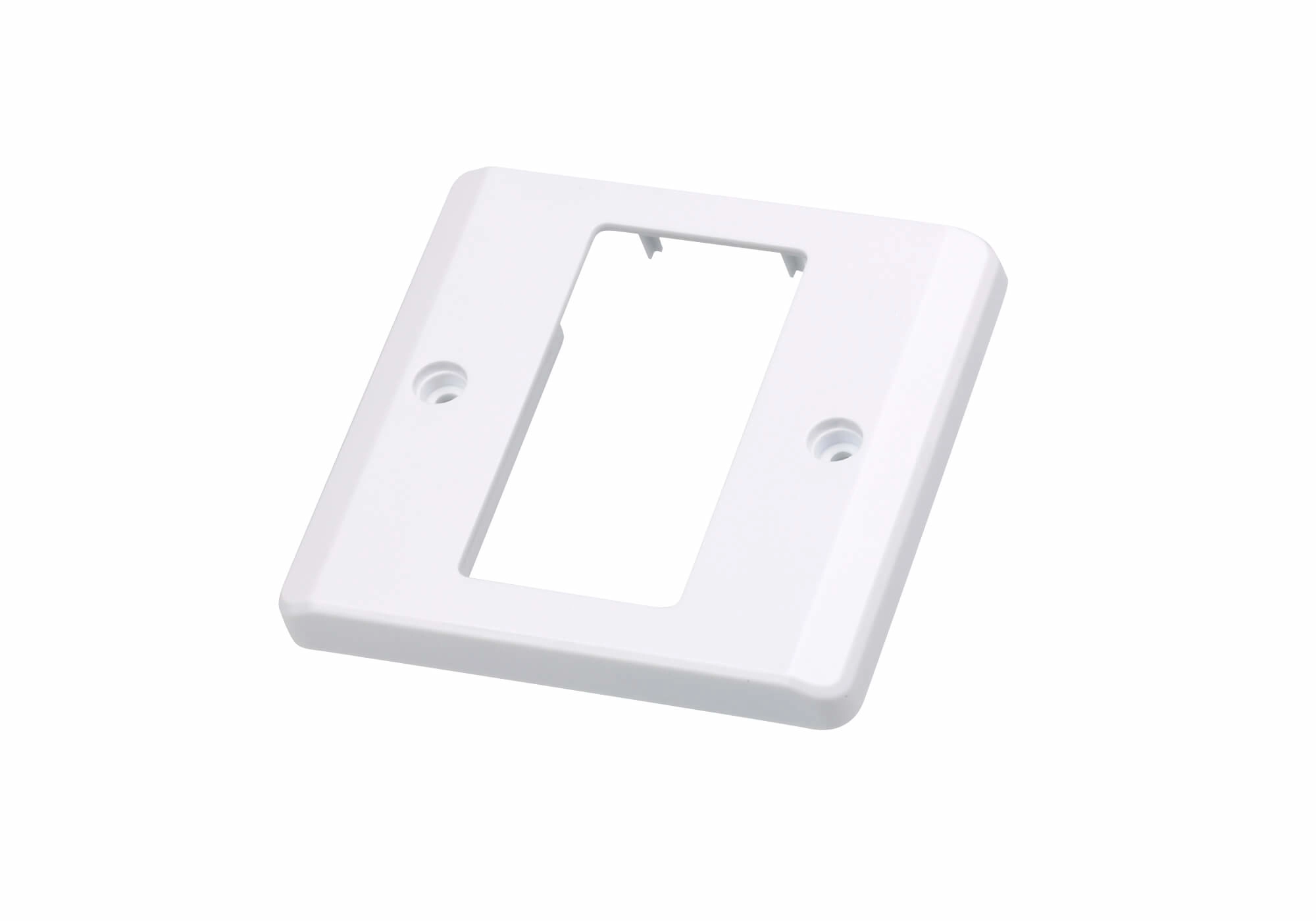

2x MK type Wall Plate Covers
8x Screw Covers
1x Screw kit
1x User Instructions

Specification

Product
Product id	795202
Brand	Aten
Partnr	VE807-AT-G
EAN/UPC code	4719264645716
Features
Type	AV transmitter & receiver
Maximum resolution	1920 x 1200 Pixels
Cable types supported	Cat5e, Cat6
Maximum transfer distance	60 m
Audio system	Stereo
Electrostatic Discharge (ESD) protection	15 kV
Plug and Play	Y
LED indicators	Y
Supported video modes	1080i, 1080p
Impedance	100 Ohm
Bandwidth	6.75 Gbit/s
3D	Y
HDCP	Y
Material	Metal
Product colour	White
Bandwidth	225 MHz
Ports & interfaces
Connectivity technology	Wired
RJ-45 input ports	2
RJ-45 output ports	2
Number of HDMI outputs	1
HDMI in	1
Video in	1
Video out	1
Audio output	1
Audio input	1
DC-in jack	Y
Power
Operating voltage (transmitter)	9 V
Operating voltage (receiver)	9 V
Power consumption (transmitter) (max)	1.35 W
Power consumption (receiver) (max)	0.81 W
External power adapter	Y
Operational conditions
Operating temperature (T-T)	0 - 50 °C
Storage temperature (T-T)	-20 - 60 °C
Operating relative humidity (H-H)	0 - 80 procent
Weight & dimensions
Weight	500 g
Receiver dimensions (W x D x H)	44.4 x 68.6 x 40 mm
Receiver weight	180 g
Transmitter dimensions (WxDxH)	44.4 x 68.6 x 40 mm
Transmitter weight	180 g
Packaging data
Quantity per pack	2 stuk(s)
Package width	59 mm
Package depth	239 mm
Package height	160 mm
Package weight	610 g
Packaging content
AC adapter included	Y
Manual	Y
Technical details
Compliance certificates	RoHS
Logistics data
Master (outer) case width	250 mm
Master (outer) case length	325 mm
Master (outer) case height	175 mm
Quantity per master (outer) case	5 stuk(s)
Master (outer) case weight	3410 g
Master (outer) case net weight	2500 g
