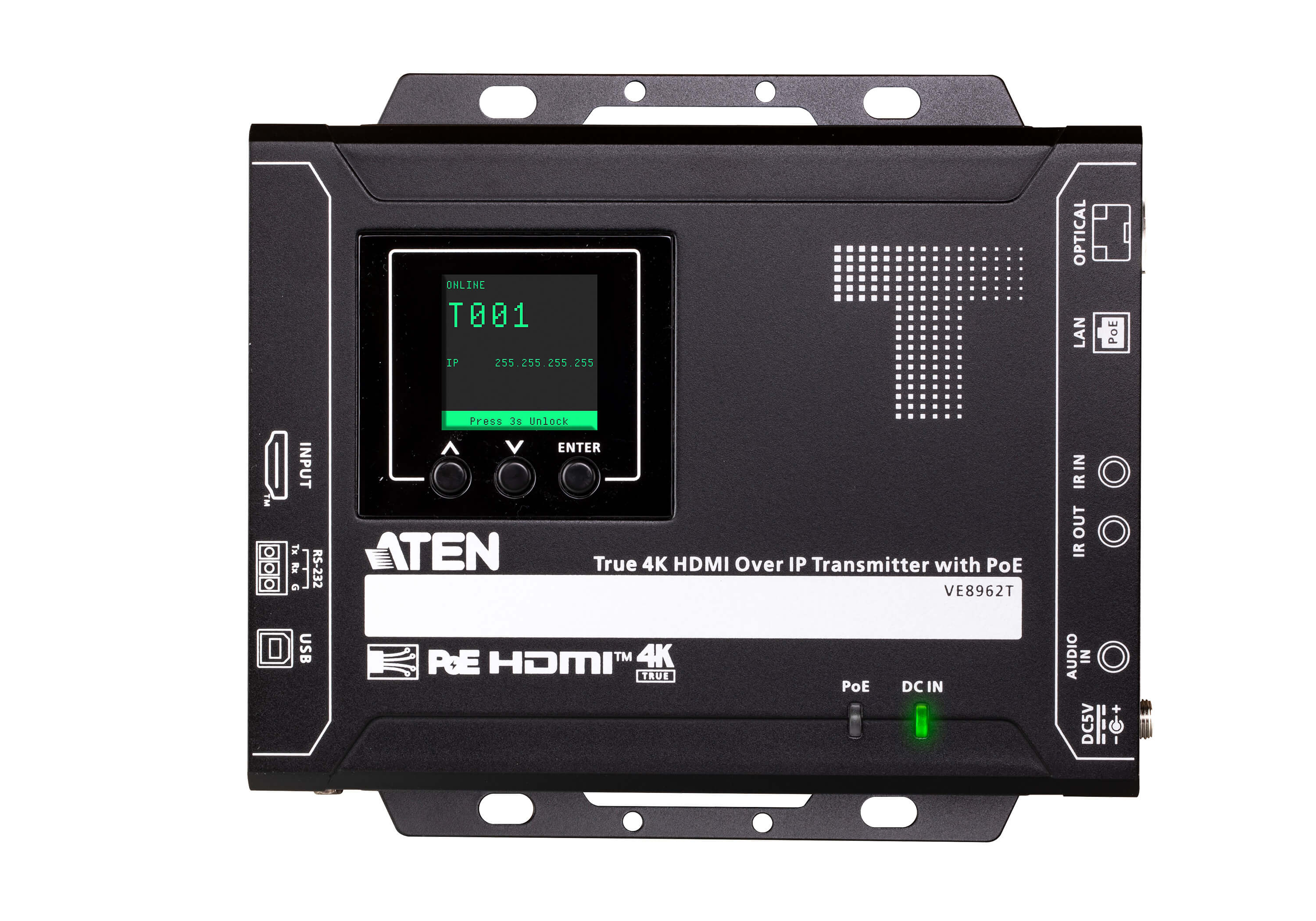

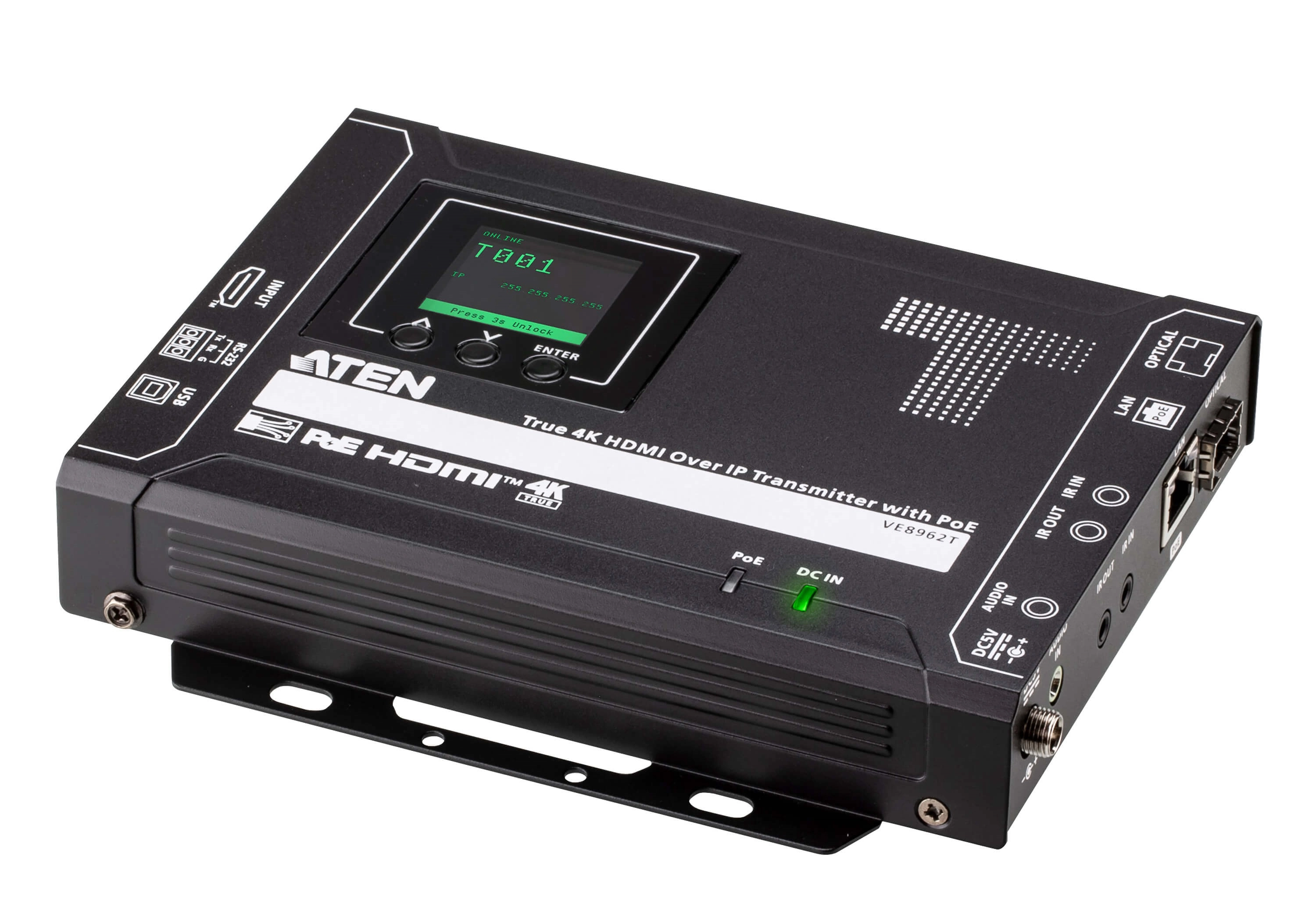

The VE8962 is a flagship HDMI-over-IP video extender that delivers pristine True 4K resolution with ultra-low latency over both Ethernet and fiber optic connectivity, making it ideal for versatile digital signage requirements. Whether in point-to-point or multipoint-to-multipoint installations, the VE8962 integrates seamlessly into existing networks, delivering uncompromised audiovisual content and control signals via HDMI, audio, USB, RS-232, and IR interfaces.

It is also flexibly scalable through daisy-chain deployment without the need for additional network switches, simplifying AV installations with cost, time, and space efficiency. Designed with sustainable service uptime and streamlined AV management in mind, the VE8962 features both network and power redundancy, along with intuitive web-GUI management – delivering a truly high-performance and cost-effective solution for any professional AV deployment.

Network Redundancy to Sustain System Availability
The VE8962 ensures smooth and reliable over-IP AV transmission over long distances via both LAN and optical network connections, maintaining system uptime through connection failover.

Versatile AV Configuration via Embedding / De-Embedding Audio
By embedding audio directly into the HDMI signal, both audio and video streams can be consolidated into a single HDMI connection, simplifying connectivity. Additionally, the audio can also be de-embedded to separate it from the video stream, ensuring compatibility with various audio systems when necessary.

Video Wall Distributions
The VE8962 can integrate easily into any video wall setup for comprehensive, large-scale audiovisual presentations, delivering content across up to 80 displays (e. g. , 8x10 array) in either portrait or landscape orientation (90°/270°).

Local HDMI Input for Real-Time Source Updates
In situations where a timely update is required on the spot, the VE8962’s HDMI input allows plug-and-play connection to a source device for quick content setup at the receiver site. With a remote switch connected to the Contact port, you can easily switch between local and remote content sources as needed.

Streamlined AV Management via Web GUI
What you see is what you get. All audiovisual content is easily managed through the intuitive web GUI, which allows drag-and-drop placement of selected AV sources into customizable display layouts and backgrounds.

Scalable AV over IP Deployment
The VE8962 supports scalable AV over IP deployment with hundreds of endpoints across network infrastructure, enabling both point-to-point and multipoint-to-multipoint installations without distance limitations – offering the flexibility to adapt and expand your AV infrastructure as needed.

Daisy-Chaining Up to 30 Units
The networked AV infrastructure is scalable with up to 30 daisy-chained receiver units streaming video content from a single source, enabling flexible video distribution over the existing network – minimizing the need for additional network switches while maximizing efficiency in cost, time, and space.

Applications
Designed for scalable networked AV deployments with pristine audiovisual clarity in mind, the VE8962 excels in any digital signage application.

Specification

Product
Product id	1007768
Brand	Aten
Partnr	VE8962T-AT-G
EAN/UPC code	4710469349331
Warranty (months)	3 Years
Features
Type	AV transmitter
Maximum resolution	4096 x 2160 Pixels
Cable types supported	Cat5e, Cat6
Maximum transfer distance	10000 m
Fiber optic connector	SFP+
High Dynamic Range (HDR) supported	Y
High Dynamic Range (HDR) technology	High Dynamic Range 10 (HDR10)
Electrostatic Discharge (ESD) protection	15 kV
Extended display identification data (EDID)	Y
Baud rate	19.2 Kbit/s
Electrostatic Discharge (ESD) protection	Y
Daisy chain	Y
Rack mounting	Y
HDCP version	2.2/2.3
LED indicators	PoE, Power
Supported graphics resolutions	640 x 480 (VGA), 720 x 480, 800 x 600 (SVGA), 1024 x 768 (XGA), 1280 x 1024 (SXGA), 1280 x 800 (WXGA), 1280 x 800, 1400 x 1050 (SXGA+), 1440 x 900 (WXGA+), 1600 x 1200 (UXGA), 1680 x 1050 (WSXGA+), 1920 x 1080 (HD 1080), 1920 x 1200 (WUXGA), 3840 x 2160
Impedance	100 Ohm
HDCP	Y
Material	Metal
Product colour	Black

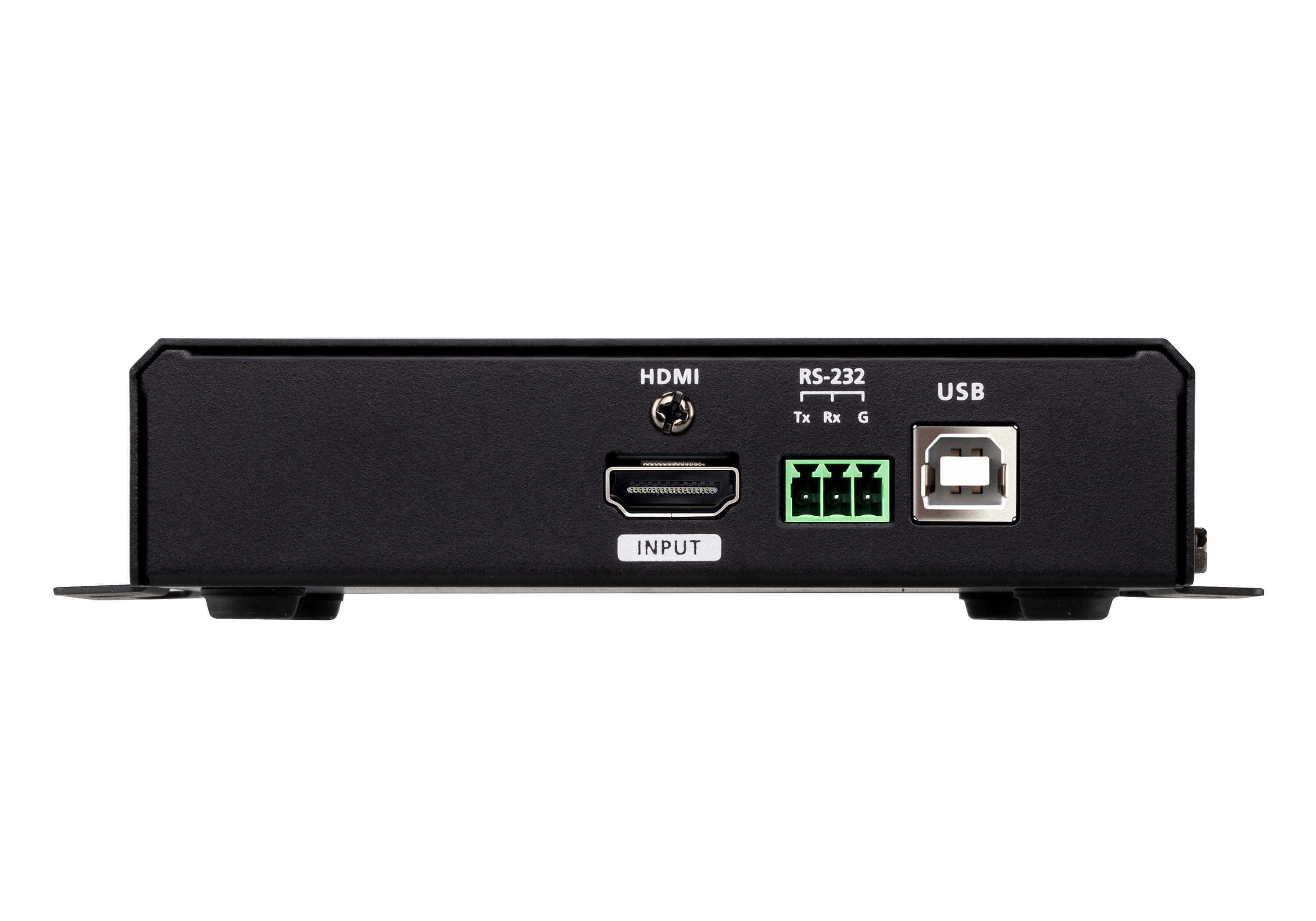

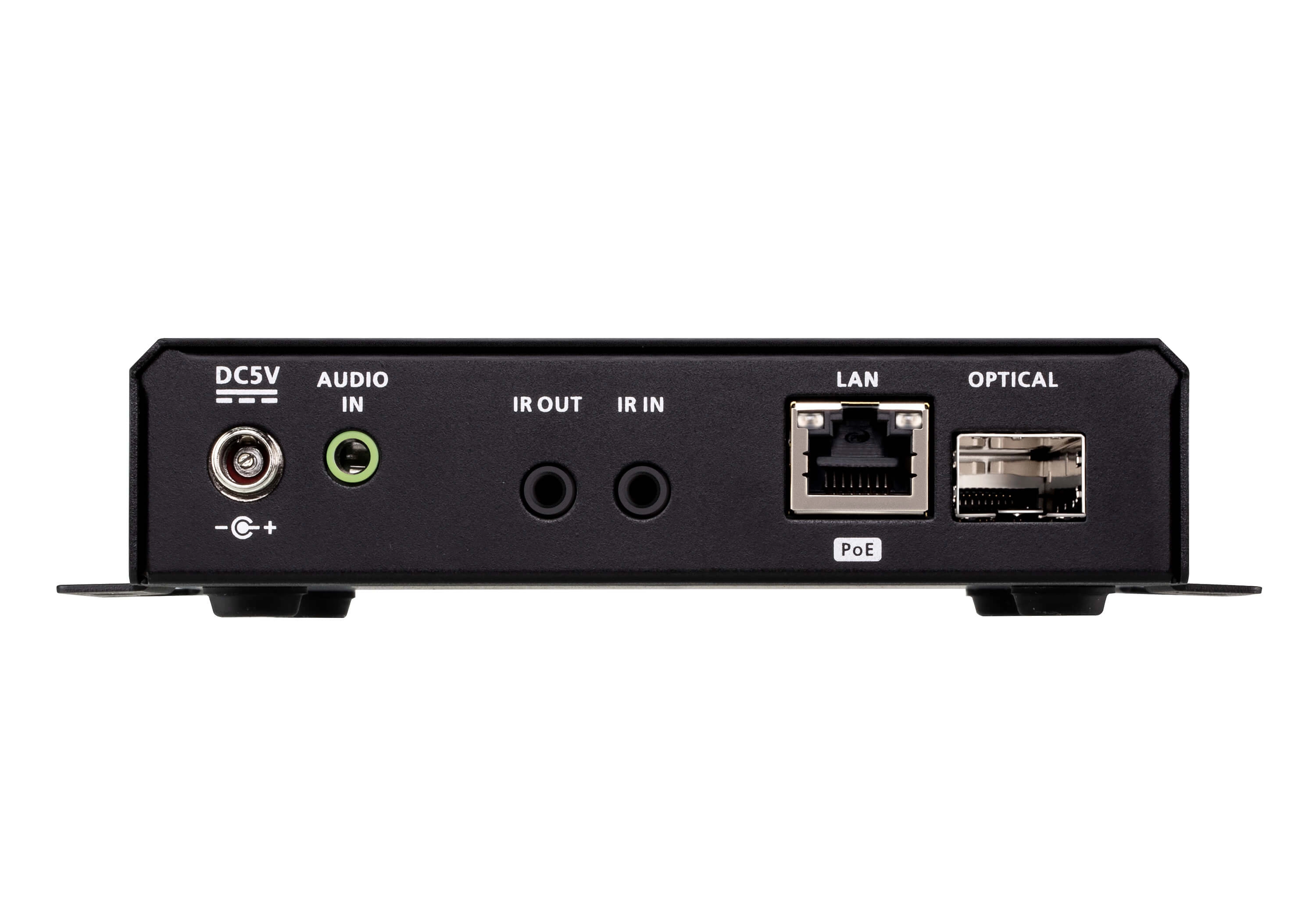

Ports & interfaces
Connectivity technology	Wired
RJ-45 output ports	1
HDMI in	1
USB ports quantity	1
USB connector type	USB Type-B
Fiber ports quantity	1
Remote (IR) input	1
Remote (IR) output	1
Audio input	1
Serial ports quantity	1
Serial interface type	RS-232
DC-in jack	Y
Power
Power source type	DC
Operating voltage	5 V
Power consumption (typical)	4.35 W
Power consumption (max)	5.4 W
Power over Ethernet (PoE)	Y
Operational conditions
Operating temperature (T-T)	0 - 40 °C
Storage temperature (T-T)	-20 - 60 °C
Operating relative humidity (H-H)	0 - 80 procent
Weight & dimensions
Width	146.9 mm
Depth	170.2 mm
Height	30 mm
Weight	730 g
Packaging data
Package weight	1250 g
Packaging content
AC adapter included	Y
Cables included	AC
Manual	Y
Technical details
Country of origin	Taiwan
Package volume	5550.1019 cm³
Logistics data
Master (outer) case width	232 mm
Harmonized System (HS) code	85176200
Master (outer) case length	500 mm
Master (outer) case height	283 mm
Master (outer) case weight	6860 g
Master (outer) case net weight	5350 g
Master (outer) case volume	32819.225 cm³
