4-Port Serial Expansion Box (RS-232/422/485) with PoE


Not in stock
€ 461,63
€ 558,57 incl 21% VAT

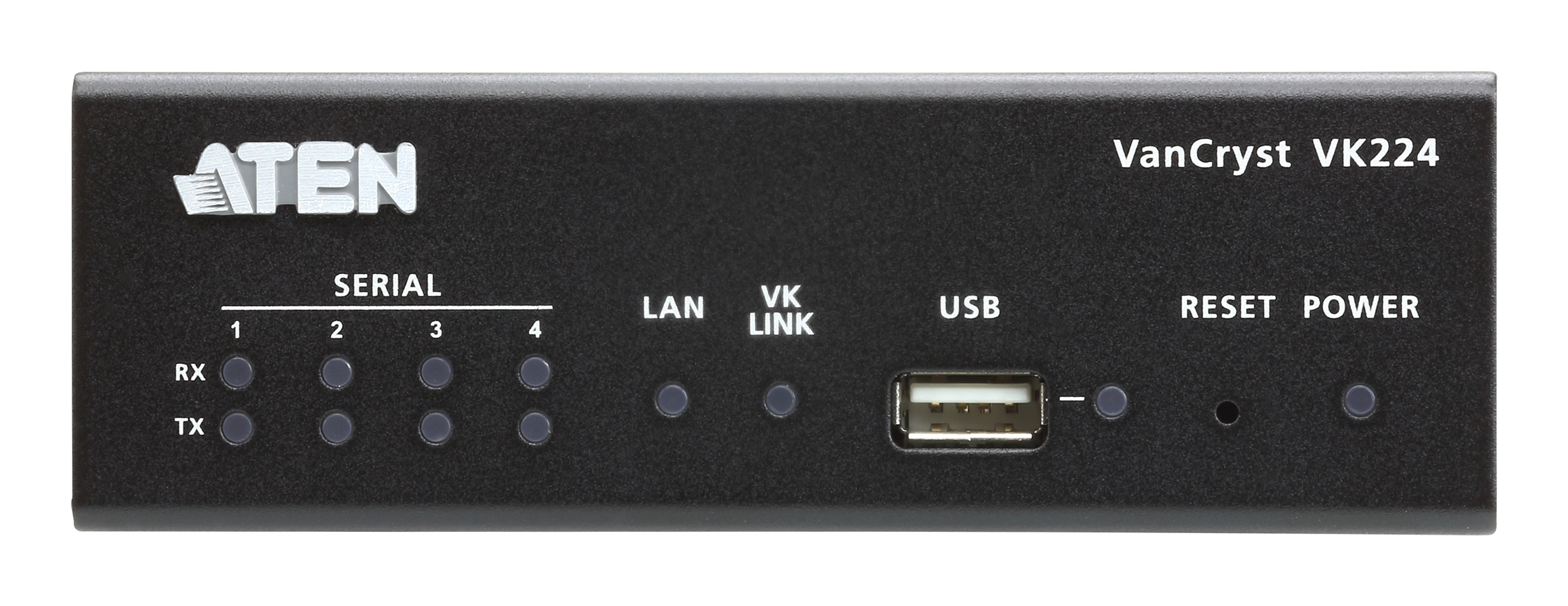

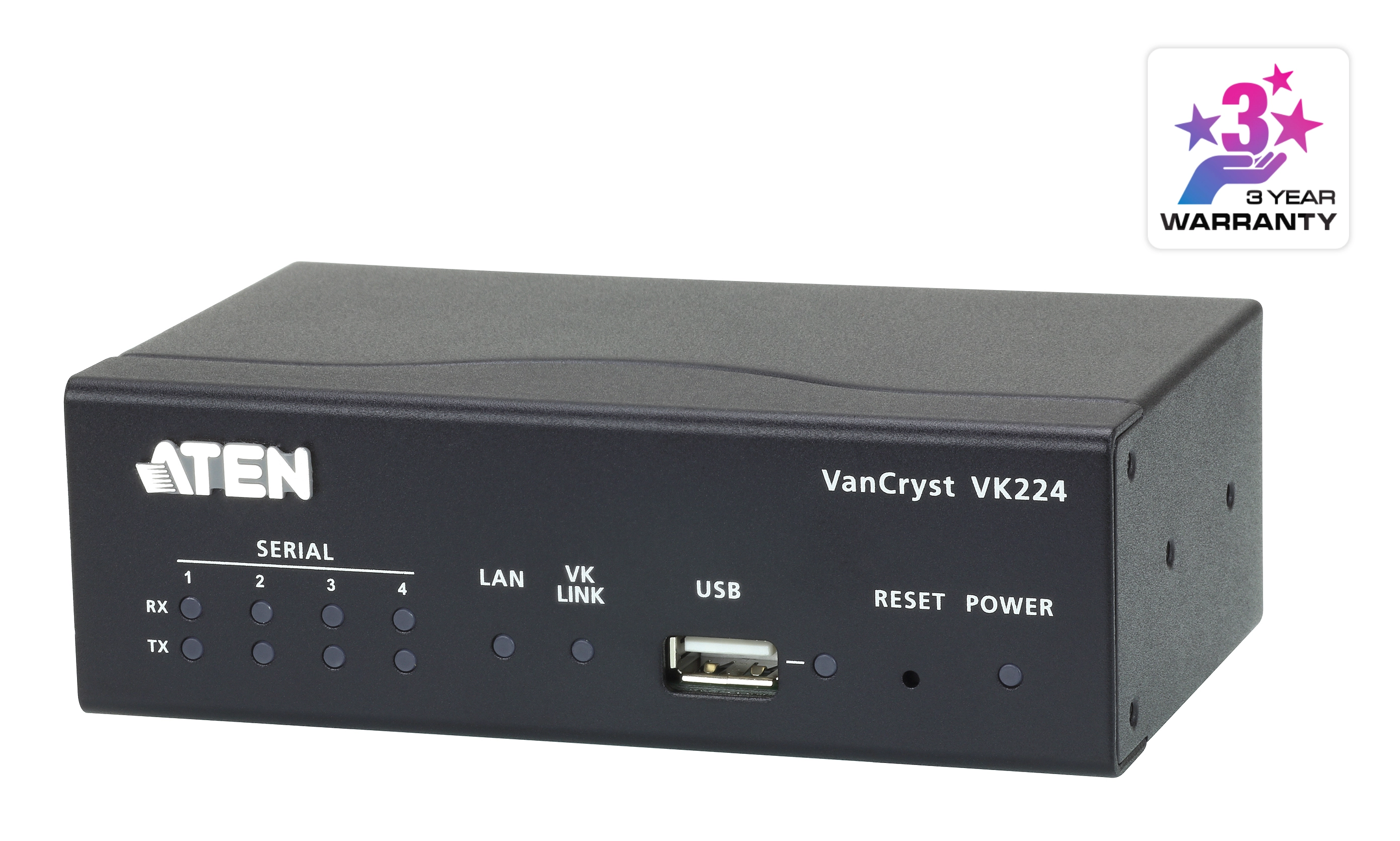

The VK224 4-Port Serial Expansion Box provides four additional bi-directional RS-232 / 422 / 485 serial ports for a flexible expansion of the ATEN Control System. This allows users to control additional serial devices in an environment where more serial devices are required. With the advantage of an Ethernet-based connection, the expansion box can be easily connected to the VK2100 Control Box via a LAN connection from a variety of locations across a network.
1x VK224 4-Port Serial Expansion Box
1x Mounting Kit
1x User Instructions


Product id 795223
Brand Aten
Partnr VK224-AT
EAN/UPC code 4719264643682
Connectivity technology Wired
Technical details
Storage temperature (T-T) -20 - 60 °C
Master (outer) case width 250 mm
Master (outer) case length 325 mm
Master (outer) case height 175 mm
Material Metal
Product colour Black
Package depth 239 mm
Package weight 710 g
Package width 59 mm
Package height 160 mm
Manual Y
Master (outer) case net weight 2750 g
Ports & interfaces
I/O ports 4 x RS-232/422/485, 1 x RJ-45, 1 x USB Type A
Operational conditions
Operating relative humidity (H-H) 0 - 80 procent
Operating temperature (T-T) 0 - 50 °C
Logistics data
Quantity per master (outer) case 5 stuk(s)
Master (outer) case weight 3890 g
Weight & dimensions
Dimensions (WxDxH) 75.8 x 130 x 42 mm
Weight 550 g
