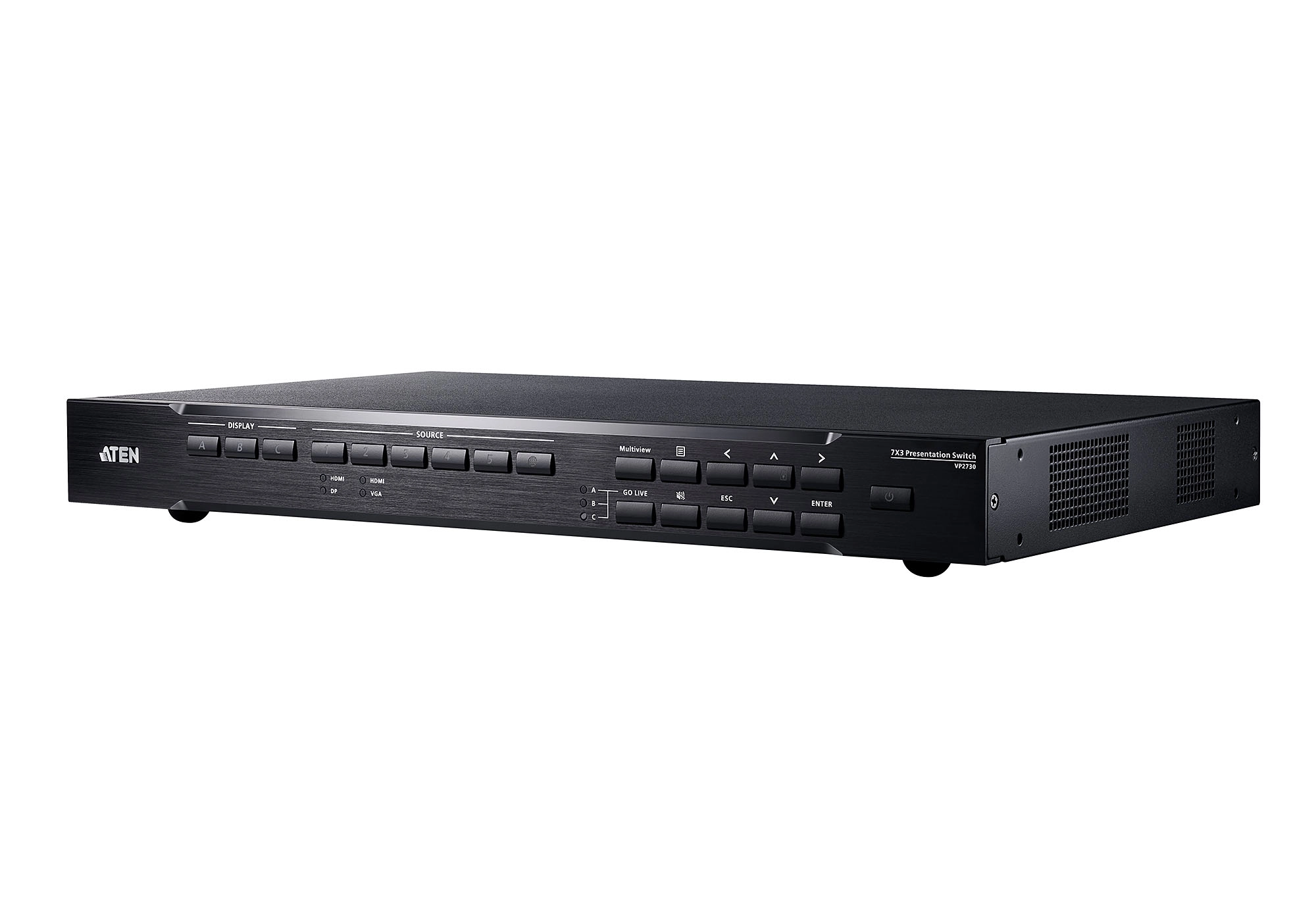

7 x 3 Seamless Presentation MatrixSwitch with Scaler Streaming Audio Mixer HDBaseT and IR / RS-232 / Ethernet (WebGUI) Control

Aten

Not in stock

€ 1.466,18

€ 1.774,07 incl 21% VAT

Would you like to ask us a question about this product?

VP2730 is a multi-in-one presentation switch that integrates video matrix switch with scaler, streaming, audio mixer, HDBaseT extender, and analog-to-digital converter functions into one compact device. With seven multi-format inputs to two HDMI and one HDBaseT high-definition outputs, VP2730 empowers larger meetings and facilitates collaboration between local and remote participants in boardrooms, video conferencing rooms, lecture halls or distance learning classrooms.
1x VP2730 7 x 3 Presentation Matrix Switch with Streaming, HDBaseT
1x IR Receiver
1x IR Remote Control
1x Power Cord
2x Terminal Blocks
4x Foot Pads
1x User Instructions

Specification

Product
Product id	795247
Brand	Aten
Partnr	VP2730-AT-G
EAN/UPC code	4719264646768
Ports & interfaces
Video port type	HDMI
HDMI ports quantity	7
HDMI in	5
Number of HDMI outputs	2
VGA (D-Sub) input ports	1
DisplayPorts quantity	1
Digital audio coaxial out	1
RJ-45 output ports	1
RS-232 ports	1
Features
Product colour	Black
Consumer Electronics Control (CEC) support	Y
Extended display identification data (EDID)	Y
HDCP version	1.4
Remote control type	IR
Built-in speaker(s)	N
Rack capacity	1U
Maximum resolution	1920 x 1200 Pixels
HDCP	Y
Material	Metal
Maximum refresh rate	60 Hz
Rack mounting	Y
Supported video modes	1080p
LED indicators	Y
Power
AC input voltage	100 - 240 V
AC adapter frequency	50/60 Hz
AC adapter input current	1 A
Power consumption (max)	28.5 W
Weight & dimensions
Width	262.8 mm
Depth	432.4 mm
Height	44 mm
Weight	3900 g
Packaging data
Package width	338 mm
Package depth	515 mm
Package height	155 mm
Package weight	5320 g
Packaging content
Quantity per pack	1 stuk(s)
Power cord included	Y
Handheld remote control	Y
User guide	Y
Cables included	AC
Operational conditions
Operating temperature (T-T)	0 - 40 °C
Storage temperature (T-T)	-20 - 60 °C
Operating relative humidity (H-H)	0 - 80 procent
Technical details
Sustainability certificates	RoHS
Logistics data
Master (outer) case width	338 mm
Master (outer) case length	515 mm
Master (outer) case height	155 mm
Master (outer) case weight	5320 g
Quantity per master (outer) case	1 stuk(s)
Master (outer) case net weight	3900 g
