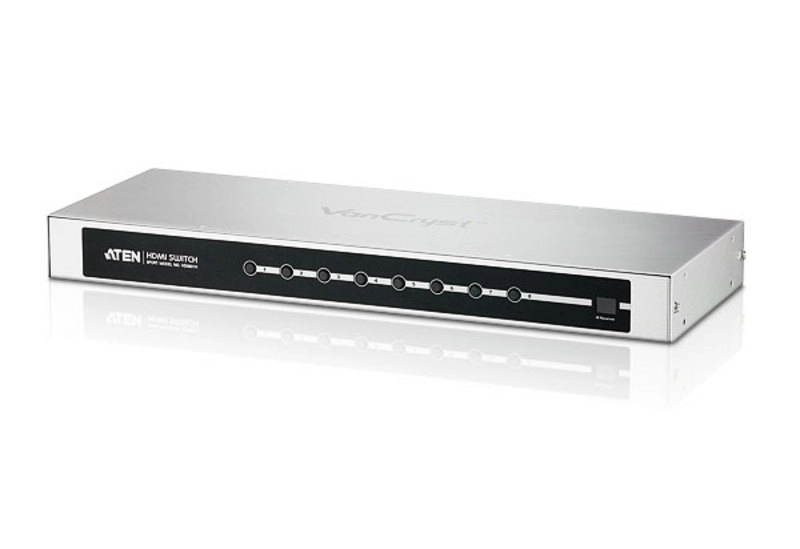

8-Port HDMI Switch

Aten

Not in stock

€ 127,00

€ 153,67 incl 21% VAT

Would you like to ask us a question about this product?

With more and more HDMI devices entering the Home Theater market, the need for simultaneous access to different HDMI A/V sources is becoming increasingly important. Now, the VS0801H 8-port HDMI Switch offers an easy and affordable way to add HDMI capabilities to your home theater system by allowing you to switch easily between up to eight HDMI A/V sources (such as an HD camcorder or satellite box, HD-DVD player, hi-def Blu-ray player, home theater PC, stand-alone streaming media player, gaming console, etc.) that are connected to your HDMI display.

The remote control and convenient front panel pushbuttons allow you to quickly and easily toggle between HDMI sources, while the front panel LEDs indicate the source device at a glance. Furthermore, for complete system and install integration, RS-232 control is standard through the VS0801H's built-in bi-directional RS-232 serial remote port that allows the switch to be controlled through a high-end controller, PC, and/or home automation/home theater software package.

Specification

Product
Product id	372881
Brand	Aten
Partnr	VS0801H-AT-G
EAN/UPC code	4710423776326
Ports & interfaces
Video port type	HDMI
HDMI ports quantity	9
HDMI in	8
Number of HDMI outputs	1
RS-232 ports	1
DC-in jack	Y
Features
Product colour	Black, Silver
Consumer Electronics Control (CEC) support	Y
HD type	Full HD
3D	Y
HDCP version	1.4
Dolby technologies	DTS-HD Master Audio, Dolby TrueHD
Input impedance	100 Ohm
Maximum resolution	1920 x 1200 Pixels
Output impedance	100 Ohm
HDCP	Y
Material	Metal
Maximum refresh rate	60 Hz
Rack mounting	Y
Supported graphics resolutions	640 x 480 (VGA),800 x 600 (SVGA),1280 x 1024 (SXGA),1600 x 1200 (UXGA),1920 x 1080 (HD 1080),1920 x 1200 (WUXGA)
Supported video modes	480p,720p,1080i,1080p
Bandwidth	6.75 Gbit/s
LED indicators	Y
Plug and Play	Y
Bandwidth	225 MHz
Power
Power consumption (typical)	3.73 W
Weight & dimensions
Width	159.8 mm
Depth	437 mm
Height	44 mm
Weight	2000 g
Packaging data
Package width	116 mm
Package depth	540 mm
Package height	233 mm
Package weight	2485 g
Packaging content
Quantity per pack	1 stuk(s)
Mounting kit	Y
Handheld remote control	Y
User guide	Y
AC adapter included	Y
Operational conditions
Operating temperature (T-T)	0 - 50 °C
Storage temperature (T-T)	-20 - 60 °C
Operating relative humidity (H-H)	0 - 80 procent
Storage relative humidity (H-H)	0 - 80 procent
Technical details
Maximum operating distance	15 m
Logistics data
Master (outer) case width	375 mm
Master (outer) case length	565 mm
Master (outer) case height	258 mm
Master (outer) case weight	8144 g
Quantity per master (outer) case	3 stuk(s)
Master (outer) case net weight	6000 g
