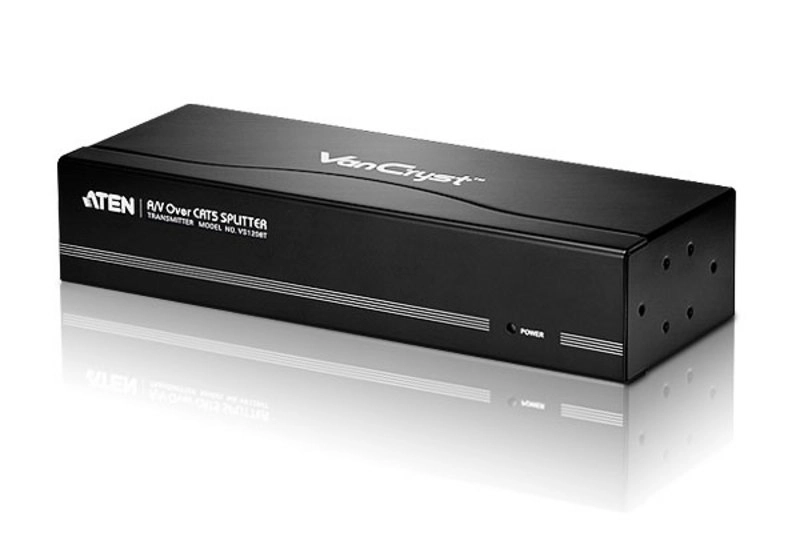

8-Port A/V Over Cat 5 Splitter

The VS1208T A/V Over Cat 5 Splitter is a splitter designed to connect one source to 8 displays over a long distance. Incorporating suggested compatible receivers, the VS1208T A/V Over Cat 5 Splitter can be a complete solution ideal for any professional A/V installation that requires multimedia content to be delivered to multiple destinations located up to 300 m away from the source.


Product id 372884
Brand Aten
Partnr VS1208T-AT-G
EAN/UPC code 4710423777262
Product colour Black
Housing material Metal
Maximum resolution 1920 x 1200 Pixels
Maximum operating distance 300 m
Maximum refresh rate 60 Hz
Bandwidth 225 MHz
Rack mounting Y
LED indicators Y
Number of displays supported 8
Packaging data
Quantity per pack 1 stuk(s)
Package width 59 mm
Package depth 239 mm
Package height 160 mm
Package weight 1130 g
Operational conditions
Operating temperature (T-T) 0 - 50 °C
Storage temperature (T-T) -20 - 60 °C
Operating relative humidity (H-H) 0 - 80 procent
Storage relative humidity (H-H) 0 - 80 procent
Ports & interfaces
Video ports quantity 2
Video port type VGA
Video out VGA
Cable types supported Cat5, Cat5e
Audio ports quantity 2
Ethernet LAN (RJ-45) ports 8
DC-in jack Y
Packaging content
Manual Y
AC adapter included Y
AC input voltage 5.3 V
Power consumption (typical) 7.04 W
Weight & dimensions
Width 75.1 mm
Depth 200 mm
Height 44 mm
Weight 1020 g
Logistics data
Master (outer) case width 250 mm
Master (outer) case net weight 5100 g
Master (outer) case length 325 mm
Master (outer) case height 175 mm
Quantity per master (outer) case 5 stuk(s)
Master (outer) case weight 6100 g
