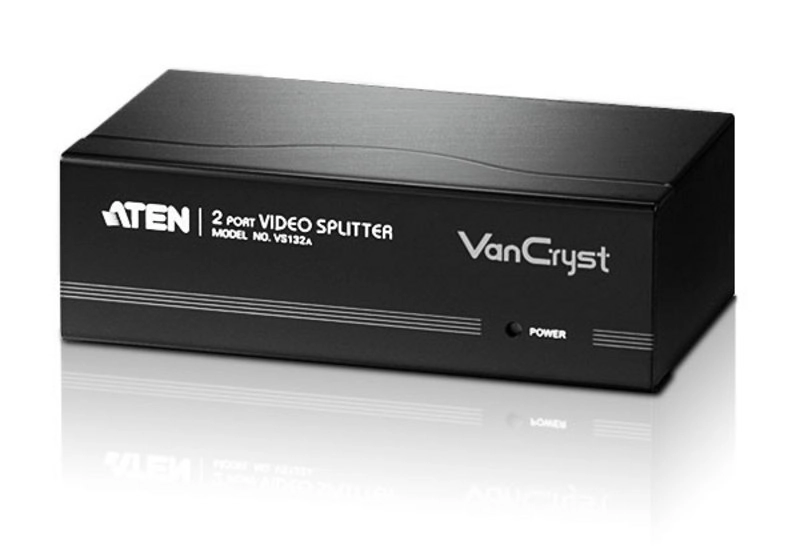

The VS132A Video Splitter is a boosting device that duplicates a video signal from one source to 2 output devices. Cascadable to three levels, the VS132A provides up to 8 video signals, in addition to extending transmission distance up to 30 m, making it excellent for public broadcast systems.
To transmit multiple, high-quality VGA, XGA, SVGA, UXGA, QXGA, WUXGA and multisync video signals over long distance without hassle, the VS132A is your best choice.

Applications include:
- Financial - the remote display of stock market information
- Education - the remote display of lectures and lessons to halls and classrooms
- Business - the remote display of addresses to overflow rooms; video conferencing; and demos

Specification

Product
Product id	372886
Brand	Aten
Partnr	VS132A-AT-G
EAN/UPC code	4710423775947
Features
Product colour	Black
Housing material	Metal
Maximum resolution	2048 x 1536 Pixels
HD type	QXGA
Maximum operating distance	30 m
Bandwidth	450 MHz
LED indicators	Power
Packaging data
Quantity per pack	1 stuk(s)
Package width	59 mm
Package depth	239 mm
Package height	160 mm
Package weight	660 g
Operational conditions
Operating temperature (T-T)	0 - 50 °C
Storage temperature (T-T)	-20 - 60 °C
Operating relative humidity (H-H)	0 - 80 procent
Storage relative humidity (H-H)	0 - 80 procent
Ports & interfaces
Video ports quantity	3
Video port type	VGA
Video out	2x VGA
DC-in jack	Y
Packaging content
Manual	Y
AC adapter included	Y
Power
AC input voltage	5 V
Power consumption (typical)	0.62 W
Weight & dimensions
Width	75.1 mm
Depth	130 mm
Height	44 mm
Weight	513 g
Logistics data
Master (outer) case width	315 mm
Master (outer) case net weight	10260 g
Master (outer) case length	490 mm
Master (outer) case height	338 mm
Quantity per master (outer) case	20 stuk(s)
Master (outer) case weight	14030 g
