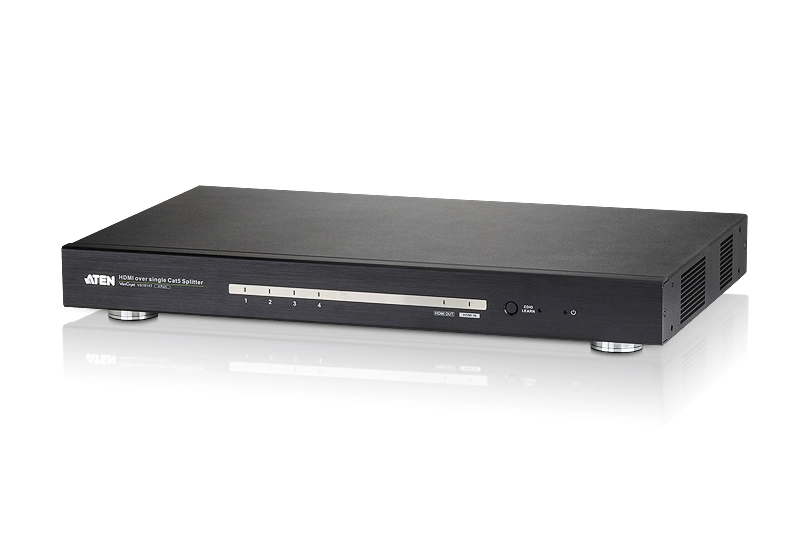

4-Port HDMI HDBaseT Splitter



Aten
Not in stock
€ 826,17
€ 999,66 incl 21% VAT
The VS1814T 4-Port HDMI HDBaseT Splitter provides a fast and efficient way of switching high definition video from one input source to 4 displays. Incorporating suggested HDBaseT receivers*, the VS1814T can be a complete solution ideal for any installation that requires HDMI content to be delivered to multiple destinations, located up to 100m away from the source.
* Suggested Compatible Receiver Units: VE812R HDMI Over Single Cat 5 Receiver

The solution implements HDBaseT extension technology to connect the VS1814T to receiver units over one single Cat 6/6a cable in order to transmit rich HDMI multimedia content in real time. It supports up to 4k2k resolution, and features an EDID selection method to ensure constant and reliable EDID data relay for the HDMI source device to efficiently optimize video resolution.

The VS1814T solution is perfect for a wide range of applications:
- In-store or tradeshow digital signage
- Information broadcasts at public locations (i. e. , news, stations, airline and train schedule and arrival/departure details)
- Sporting events
- Theater and lecture overview rooms
- Classroom and company training facilities

Specification

Product
Product id 687572
Brand Aten
Partnr VS1814T-AT-G
EAN/UPC code 4719264641343
Features
Product colour Black
Housing material Metal
Maximum resolution 4096 x 2160 Pixels
HD type 4K Ultra HD
3D Y
Maximum operating distance 100 m
Maximum refresh rate 60 Hz
Bandwidth 340 MHz
HDCP version 1.4
Rack mounting Y
HDCP Y
LED indicators Y
Dolby technologies DTS-HD Master Audio, Dolby TrueHD
Packaging data
Quantity per pack 1 stuk(s)
Package width 338 mm
Package depth 515 mm
Package height 155 mm
Package weight 5085 g
Operational conditions
Operating temperature (T-T) 0 - 50 °C
Storage temperature (T-T) -20 - 60 °C
Operating relative humidity (H-H) 0 - 80 procent
Storage relative humidity (H-H) 0 - 80 procent
Ports & interfaces
Video ports quantity 2
Video port type HDMI
Video out HDMI
Cable types supported Cat5, Cat6, Cat6a
Ethernet LAN (RJ-45) ports 4
Consumer Electronics Control (CEC) support Y
Serial ports quantity 1
Packaging content
Manual Y
Cables included AC
Power
AC input voltage 110/220 V
Power consumption (typical) 18.2 W
Weight & dimensions
Width 261.1 mm
Depth 432.4 mm
Height 44 mm
Weight 3950 g
Logistics data
Master (outer) case width 338 mm
Master (outer) case net weight 3950 g
Master (outer) case length 515 mm
Master (outer) case height 155 mm
Quantity per master (outer) case 1 stuk(s)
Master (outer) case weight 5085 g
