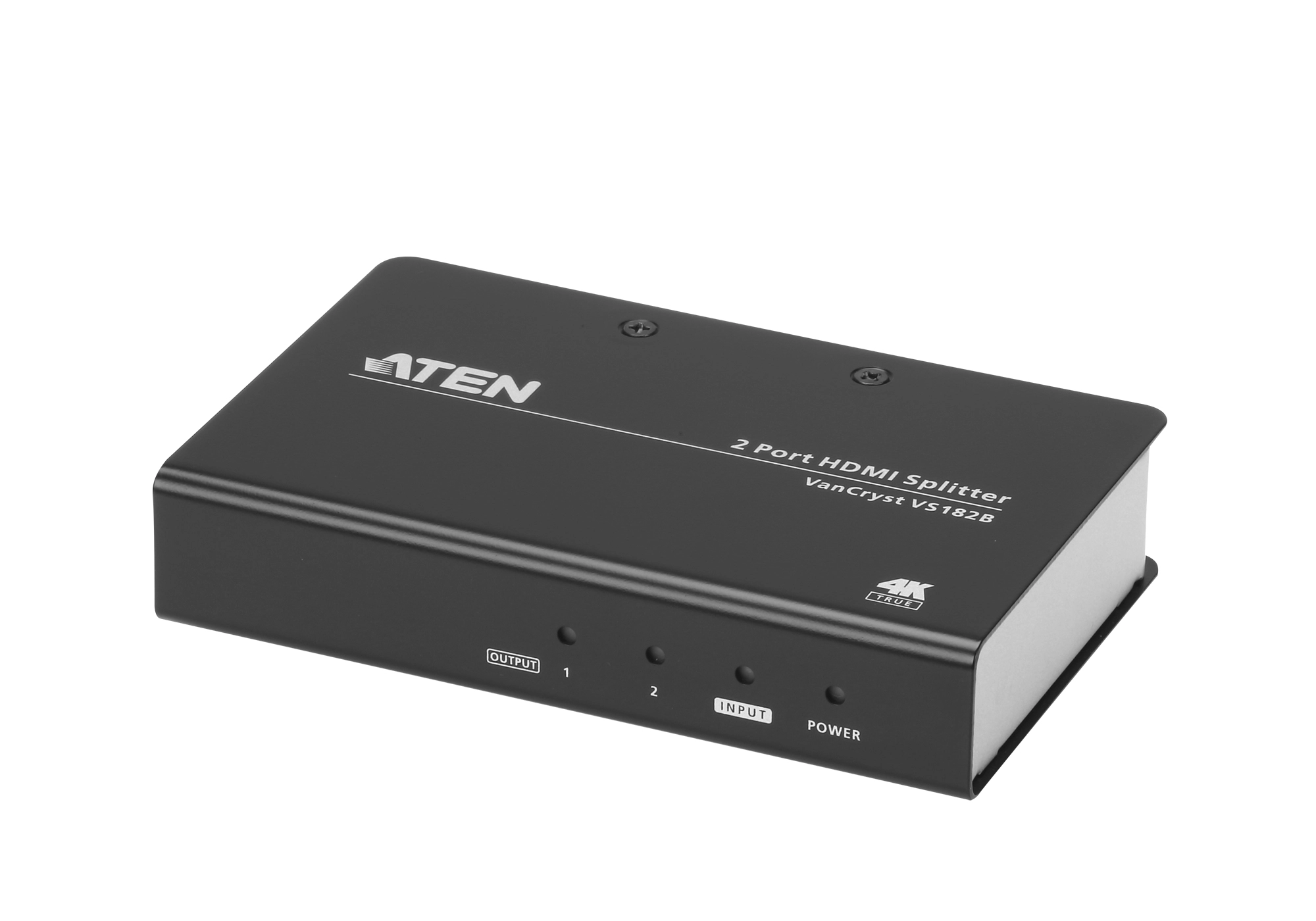

The VS182B True 4K HDMI Splitter is the perfect solution for anyone who needs to send one source of digital high definition video to two displays at the same time. It supports all HDMIenabled equipment, such as DVD players, satellite set- top boxes and all HDMI monitors, displays, projectors, or TVs.

The VS182B True 4K HDMI Splitter is HDMI 2.0 compliant, 4K at 60Hz (4:4:4), and supports multiple streaming audio, making it effective for use with all HDMI displays in home theater applications, as well as in corporate, educational and commercial settings.

Specification

Product
Product id	722001
Brand	Aten
Partnr	VS182B-AT-G
EAN/UPC code	4719264645402
Features
Product colour	Black
Housing material	Metal
Maximum resolution	4096 x 2160 Pixels
HD type	4K Ultra HD
3D	Y
Maximum operating distance	5 m
Maximum refresh rate	60 Hz
Bandwidth	600 MHz
HDCP version	2.2
High Dynamic Range (HDR) technology	High Dynamic Range 10+ (HDR10 Plus)
HDCP	Y
LED indicators	Y
Plug and Play	Y
Supported graphics resolutions	1920 x 1200 (WUXGA), 3840 x 2160, 4096 x 2160
Packaging data
Quantity per pack	1 stuk(s)
Package width	59 mm
Package depth	239 mm
Package height	160 mm
Package weight	670 g
Operational conditions
Operating temperature (T-T)	0 - 40 °C
Storage temperature (T-T)	-20 - 60 °C
Operating relative humidity (H-H)	0 - 80 procent
Storage relative humidity (H-H)	0 - 80 procent
Ports & interfaces
Video ports quantity	3
Video port type	HDMI
Video out	2x HDMI
Audio ports quantity	3
DC-in jack	Y
Packaging content
Manual	Y
Cables included	HDMI
User guide	Y
AC adapter included	Y
Power
AC input voltage	5 V
Power consumption (typical)	4.24 W
Weight & dimensions
Width	80 mm
Depth	125 mm
Height	25 mm
Dimensions (WxDxH)	80 x 125 x 250 mm
Weight	500 g
Logistics data
Master (outer) case width	315 mm
Master (outer) case net weight	10000 g
Master (outer) case length	490 mm
Harmonized System (HS) code	85176990
Master (outer) case height	338 mm
Quantity per master (outer) case	20 stuk(s)
Master (outer) case weight	14380 g
