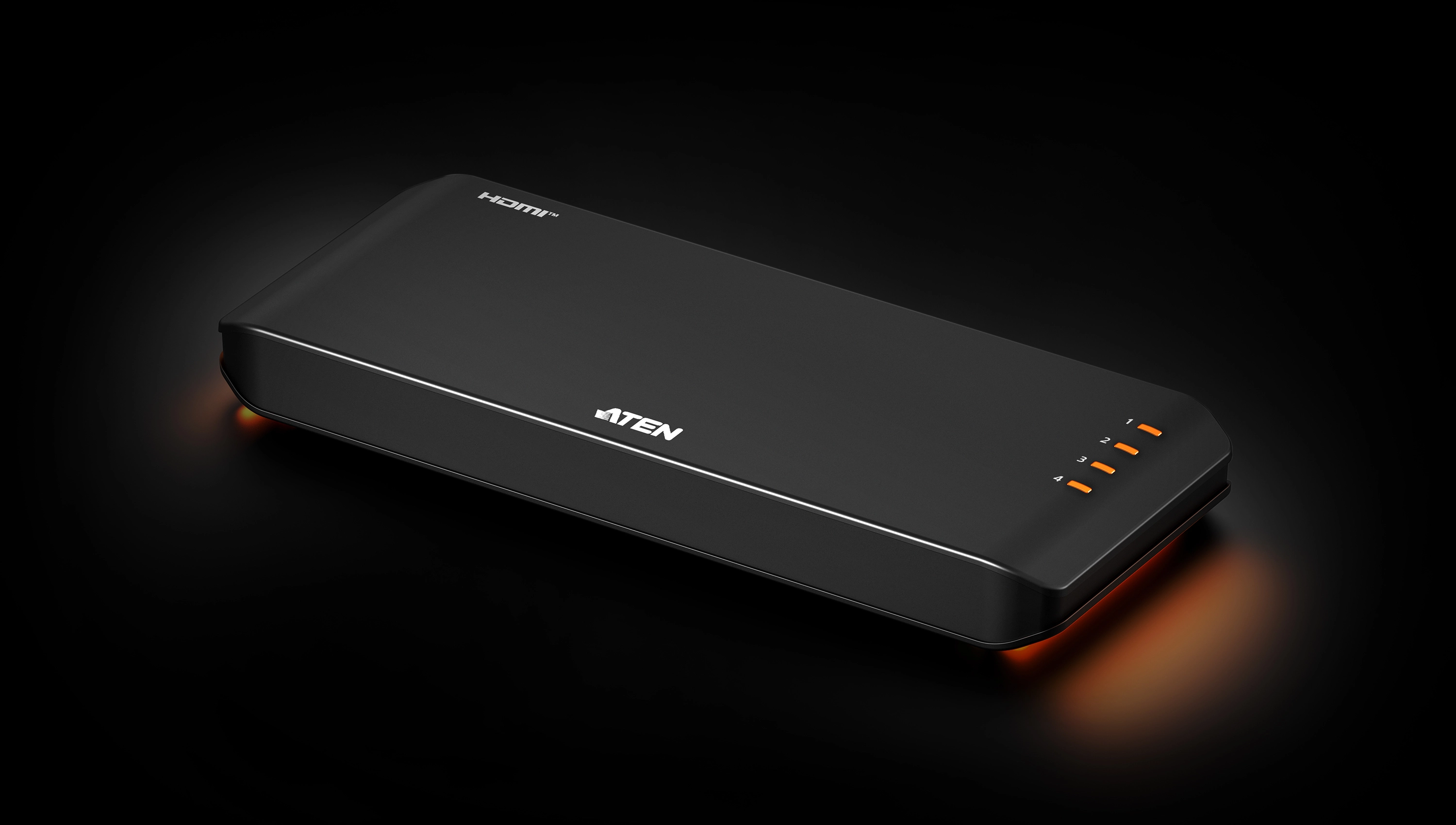

The VS4814 is a 4-Port True 4K HDMI Splitter engineered to meet the highest demands of modern digital signage and commercial display applications. Featuring EDID Sync™, it delivers up to four simultaneous video streams from a single HDMI source, ensuring HDMI and HDCP 2.2-compliant visual excellence at all times. With support for HDR10+, 3D formats, and Deep Color, the VS4814 provides richer contrast and a wider color spectrum for truly immersive viewing experiences.

EDID Sync™ Smart Display Optimization
Automatically optimizes resolutions and prevents display issues for flawless display presentation

True 4K Dual-Display Sharing
Shares one HDMI source across four True 4K displays for maximum visual impact with uncompromised quality

HDMI 3D/Deep Color, HDR10+, HDCP 2.2 Compatible
Guarantees stable performance, broad compatibility, and superior image quality

Master-Class Audio Immersion
Full support for LPCM 7.1, Dolby® & DTS-HD Master Audio™ delivers theatrical-quality surround sound

Aesthetic Compact Form
Slim profile and stylish accent lighting allow integration into any space, perfectly complementing your setting

Specification

Product
Product id	1022801
Brand	Aten
Partnr	VS4814-AT
EAN/UPC code	4711581521605
Features
Product colour	Black
Housing material	Polycarbonate (PC)
Maximum resolution	3840 x 2160 Pixels
HD type	4K Ultra HD
Maximum operating distance	3 m
Maximum refresh rate	60 Hz
HDCP version	2.2
HDCP	Y
LED indicators	Y
Data transfer rate	18 Gbit/s
Country of origin	China
Operational conditions
Operating temperature (T-T)	0 - 40 °C
Storage temperature (T-T)	-20 - 60 °C
Operating relative humidity (H-H)	0 - 80 procent
Storage relative humidity (H-H)	0 - 80 procent

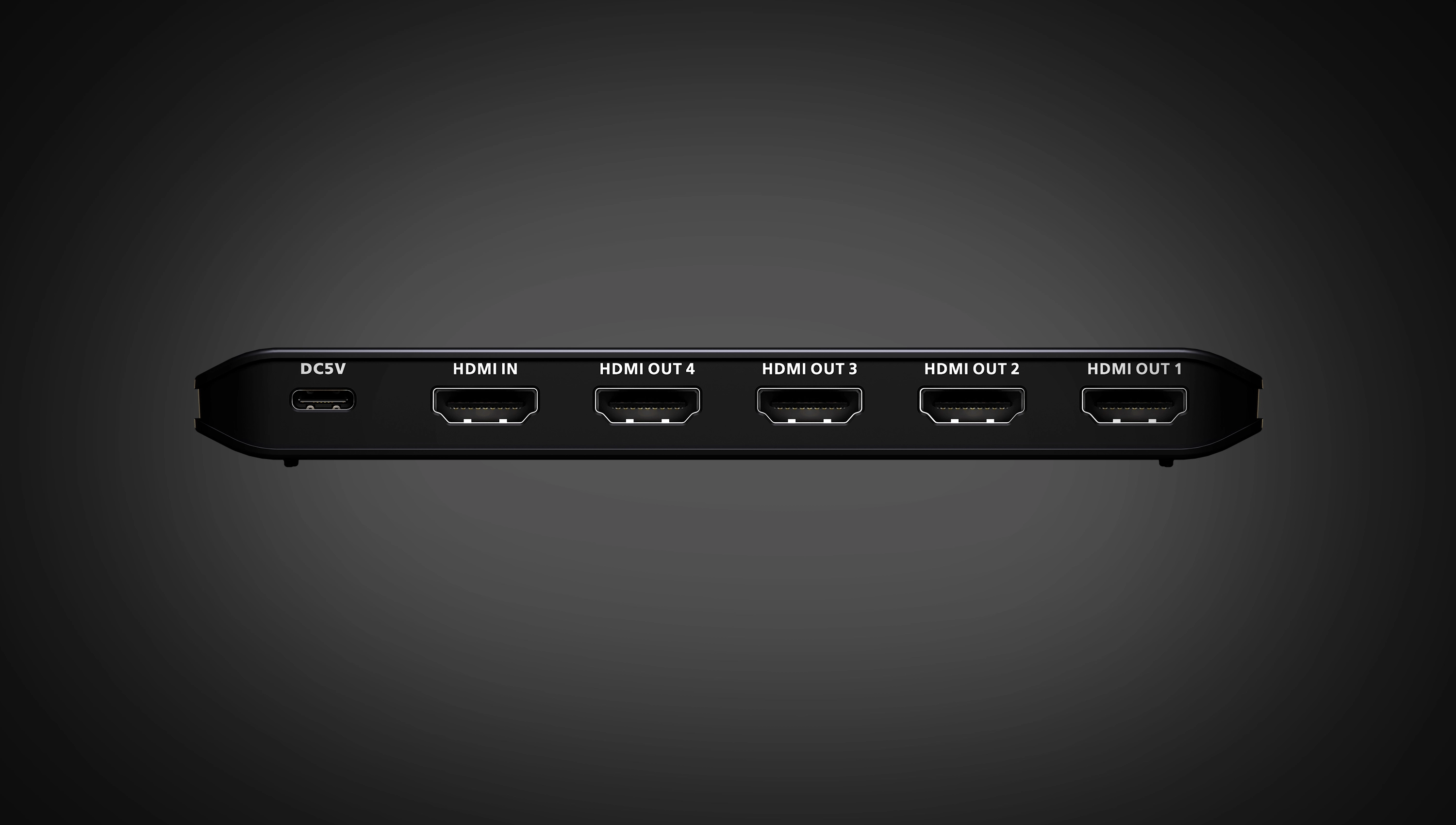

Ports & interfaces
Video ports quantity	5
Video port type	HDMI
Video out	4x HDMI
Packaging content
Cables included	USB Type-A to USB Type-C
Power
Output voltage	5 V
Output current	1 A
USB powered	Y
Weight & dimensions
Width	56.5 mm
Depth	145 mm
Height	15.2 mm
Weight	100 g
Logistics data
Harmonized System (HS) code	85437090
Quantity per master (outer) case	20 stuk(s)
