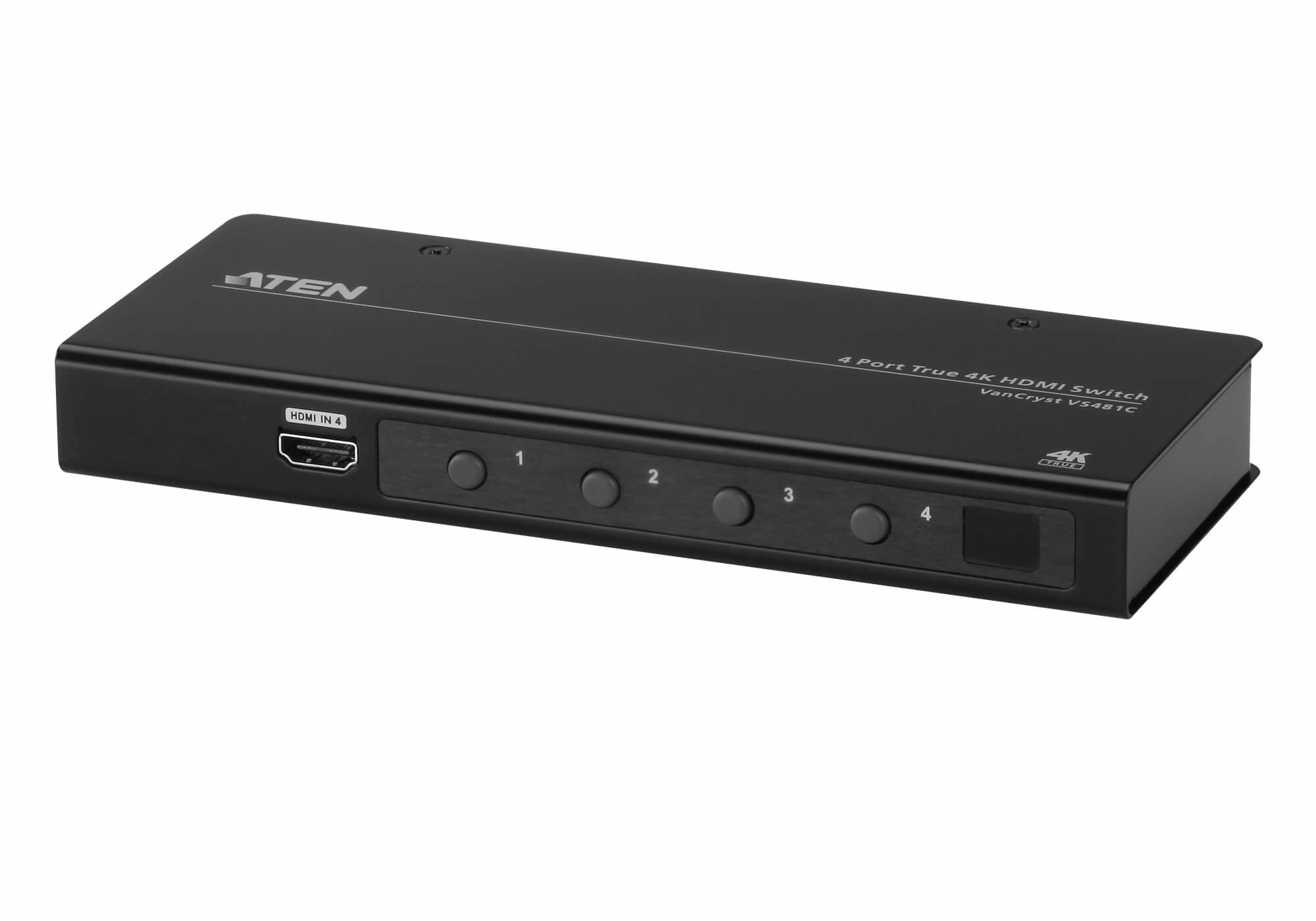

4 port true 4K HDMI Switch


Not in stock
€ 93,05
€ 112,59 incl 21% VAT
The ATEN VS481C is designed for applications that require the routing of 4 sources to one compatible display device. It enables the reliable transmission at video resolutions up to True 4K (4096 x 2160 @ 60Hz 4:4:4), data rates up to 18 Gbps, 3D, Deep Color up to 12-bit, and HD lossless audio formats. Integrator-friendly features include Auto Switching modes for auto port selection, bi-directional RS-232, and IR for remote device control.

Engineered to meet today's demand of True 4K signal transmission and user- oriented design, the ATEN VS481C is a powerful solution for a wide range of settings, such as home theater, meeting rooms, trade shows, and shopping centers.
1x VS481C 4-Port True 4K HDMI Switch
1x 0AD6-1005-10AG Power Adapter
1x 2XRT-0101G IR Remote Control Unit
1x LIN5-19V2-V21G HDMI Cable
1x User Instructions


Product id 713596
Brand Aten
Partnr VS481C-AT-G
EAN/UPC code 4719264646270
Ports & interfaces
Video port type HDMI
HDMI ports quantity 5
HDMI version 2.0
HDMI in 4
Number of HDMI outputs 1
RS-232 ports 1
DC-in jack Y
Product colour Black
Consumer Electronics Control (CEC) support Y
HD type HD
3D Y
HDCP version 2.2
Input impedance 100 Ohm
Maximum resolution 4096 x 2160 Pixels
Output impedance 100 Ohm
Material Metal
Maximum refresh rate 60 Hz
Bandwidth 18 Gbit/s
LED indicators Y
Plug and Play Y
Bandwidth 600 MHz
Power consumption (typical) 0.924 W
Weight & dimensions
Width 82.1 mm
Depth 200 mm
Height 25 mm
Weight 654 g
Packaging data
Package width 59 mm
Package depth 239 mm
Package height 160 mm
Package weight 822 g
Operational conditions
Operating temperature (T-T) 0 - 40 °C
Storage temperature (T-T) -20 - 60 °C
Operating relative humidity (H-H) 0 - 80 procent
Technical details
Maximum operating distance 3 m
Colour depth 12 Bit
Logistics data
Master (outer) case width 315 mm
Master (outer) case length 490 mm
Master (outer) case height 178 mm
Master (outer) case weight 8570 g
Quantity per master (outer) case 10 stuk(s)
Master (outer) case net weight 6540 g
