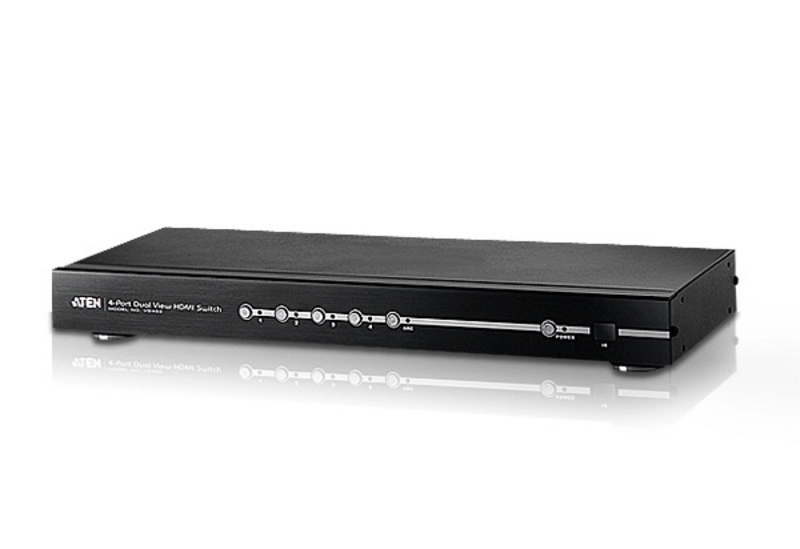

With more and more HDMI devices entering the Home Theater market, the need for simultaneous access to different HDMI A/V sources is becoming increasingly important. Now, the VS482 4- Port Dual View HDMI Switch offers an easy and affordable way to add HDMI capabilities to your home theater system by allowing you to switch easily between up to four HDMI A/V sources that are connected to up to two HDMI displays.

The VS482 supports four HDMI video input sources and two HDMI output displays. It is designed for two HDTV or audio/video receiver (AVR) applications. The VS482 complies with HDMI standards, and is designed to support 3D content, as well as Audio Return Channel (ARC) function. The VS482 also offers instant switching and has OSD display controls for video, audio, system configuration and information.

Specification

Product
Product id	372904
Brand	Aten
Partnr	VS482-AT-G
EAN/UPC code	4710423777750
Ports & interfaces
Video port type	HDMI
HDMI ports quantity	6
HDMI in	4
Number of HDMI outputs	2
Audio (L/R) out	1
Digital audio coaxial out	1
RS-232 ports	1
DC-in jack	Y
Features
Product colour	Black
Consumer Electronics Control (CEC) support	Y
Extended display identification data (EDID)	Y
HD type	Full HD
3D	Y
HDCP version	1.4
Dolby technologies	DTS-HD Master Audio, Dolby TrueHD
Input impedance	100 Ohm
Maximum resolution	1920 x 1200 Pixels
Output impedance	100 Ohm
HDCP	Y
Material	Metal
Rack mounting	Y
Supported video modes	480p, 720p, 1080i, 1080p
Bandwidth	6.75 Gbit/s
Bandwidth	225 MHz
Power
Power consumption (typical)	5.74 W
Weight & dimensions
Width	158.6 mm
Depth	437.2 mm
Height	44 mm
Weight	2370 g
Packaging data
Package width	116 mm
Package depth	540 mm
Package height	233 mm
Package weight	2930 g
Packaging content
Quantity per pack	1 stuk(s)
Mounting kit	Y
Handheld remote control	Y
User guide	Y
AC adapter included	Y
Operational conditions
Operating temperature (T-T)	0 - 50 °C
Storage temperature (T-T)	-20 - 60 °C
Operating relative humidity (H-H)	0 - 80 procent
Storage relative humidity (H-H)	0 - 80 procent
Technical details
Maximum operating distance	15 m
Logistics data
Master (outer) case width	375 mm
Master (outer) case length	565 mm
Master (outer) case height	258 mm
Master (outer) case weight	9600 g
Quantity per master (outer) case	3 stuk(s)
Master (outer) case net weight	7110 g
