4 port true 4K HDMI Switch with dual

Aten

Not in stock

€ 363,27

€ 439,55 incl 21% VAT

Would you like to ask us a question about this product?

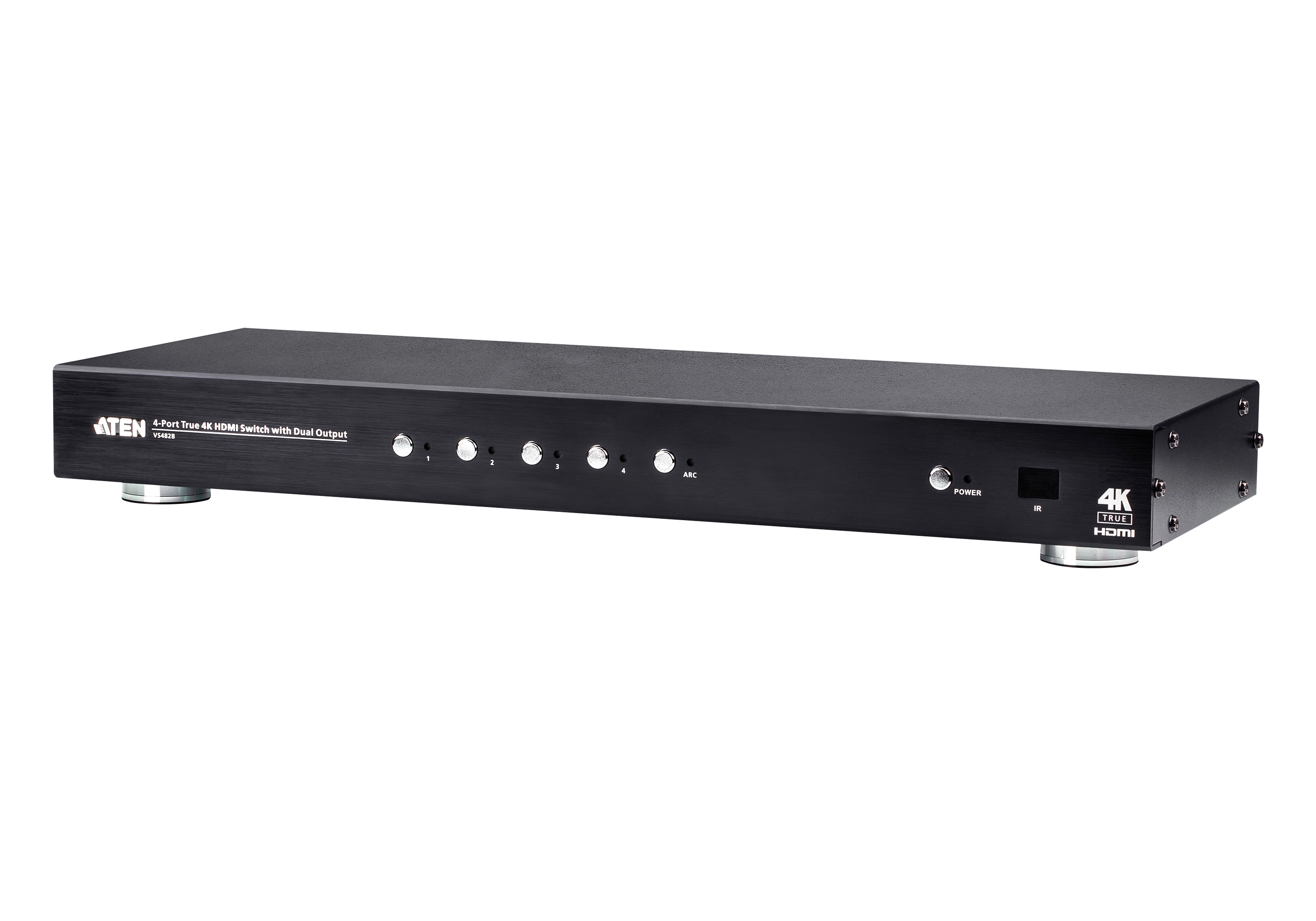

The ATEN VS482B Switch is an ideal solution for application requiring superior video resolution of True 4K when connecting 4 HDMI A/V sources to 2 HDMI displays. Complying with HDMI 2.0 standards, the switch's Audio Return Channel (ARC) function allows users to send audio without having to attach a separate audio cable.
1x VS482B 4-Port True 4K HDMI Switch with Dual Output
1x 0AD8-1005-26M1 Power Adapter
1x 2XRT-0010G IR Remote Control Unit
1x Mounting Kit
1x User Instructions

Specification

Product
Product id	713597
Brand	Aten
Partnr	VS482B-AT-G
EAN/UPC code	4719264649325
Ports & interfaces
Video port type	HDMI
HDMI ports quantity	6
HDMI version	2.0
HDMI in	4
Number of HDMI outputs	2
RS-232 ports	1
DC-in jack	Y
Features
Product colour	Black
Consumer Electronics Control (CEC) support	Y
HD type	4K Ultra HD
3D	Y
HDCP version	2.2
Input impedance	100 Ohm
Maximum resolution	4096 x 2160 Pixels
Output impedance	100 Ohm
HDCP	Y
Material	Metal
Maximum refresh rate	60 Hz
Supported graphics resolutions	3840 x 2160,4096 x 2160
Bandwidth	18 Gbit/s
LED indicators	Y
Bandwidth	600 MHz
Power
Power consumption (typical)	3.29 W
Weight & dimensions
Width	158.8 mm
Depth	437.2 mm
Height	44 mm
Weight	2160 g
Packaging data
Package width	116 mm
Package depth	540 mm
Package height	233 mm
Package weight	2840 g
Packaging content
Mounting kit	Y
AC adapter included	Y
Operational conditions
Operating temperature (T-T)	0 - 40 °C
Storage temperature (T-T)	-20 - 60 °C
Operating relative humidity (H-H)	0 - 80 procent
Technical details
Maximum operating distance	3 m
Sustainability certificates	RoHS
Logistics data
Master (outer) case width	375 mm
Master (outer) case length	565 mm
Master (outer) case height	258 mm
Master (outer) case weight	9274 g
Quantity per master (outer) case	3 stuk(s)
Master (outer) case net weight	6480 g
