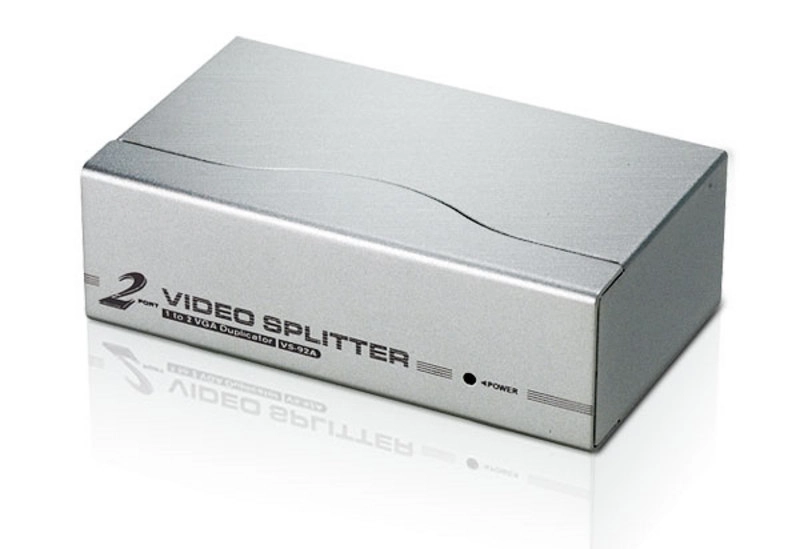

KVM 2 Port Video Splitter Bandwidth: 350MHZ



Aten
Not in stock
€ 24,70
€ 29,88 incl 21% VAT
The VS92A Video splitter duplicates and boosts the video signal from one input to 2 outputs. It provides greater bandwidth and video resolution as well as extends the transmission distance up to 210' making it excellent for public broadcasting. In addition, units can be cascaded to accommodate as many monitors as the installation requires. • One video input to 2 video outputs.
• Cascadable to 3 levels -provides up to 8 and thousands of video Signals.
• Supports up to 350 MHz bandwidth.
• Long distance transmission - up to 65m (210').
• High video resolution - 1920 x 1440.
• DDC, DDC2, DDC2B Compatible (Port 1 only).
• All metal casing.
• Supports VGA, XGA, SVGA, UXGA and multisync monitors.
• OS Support: Windows 2000, Windows XP, Linux, Mac and Sun

Specification

Product
Product id 372907
Brand Aten
Partnr VS92A
EAN/UPC code 4710423770928
Features
Product colour Silver
Maximum resolution 1920 x 1440 Pixels
3D N
Maximum operating distance 65 m
Bandwidth 350 MHz
Handheld remote control N
HDCP N
Power LED Y
Operational conditions
Operating temperature (T-T) 0 - 50 °C
Storage temperature (T-T) -20 - 60 °C
Operating relative humidity (H-H) 0 - 85 procent
Ports & interfaces
Video ports quantity 2
Video port type VGA
Video out 2x VGA
Ethernet LAN N
Connector(s) HDB-15
Packaging content
Manual Y
Power
Power consumption (typical) 0.85 W
USB powered N
Weight & dimensions
Dimensions (WxDxH) 130 x 75 x 45 mm
Weight 420 g
