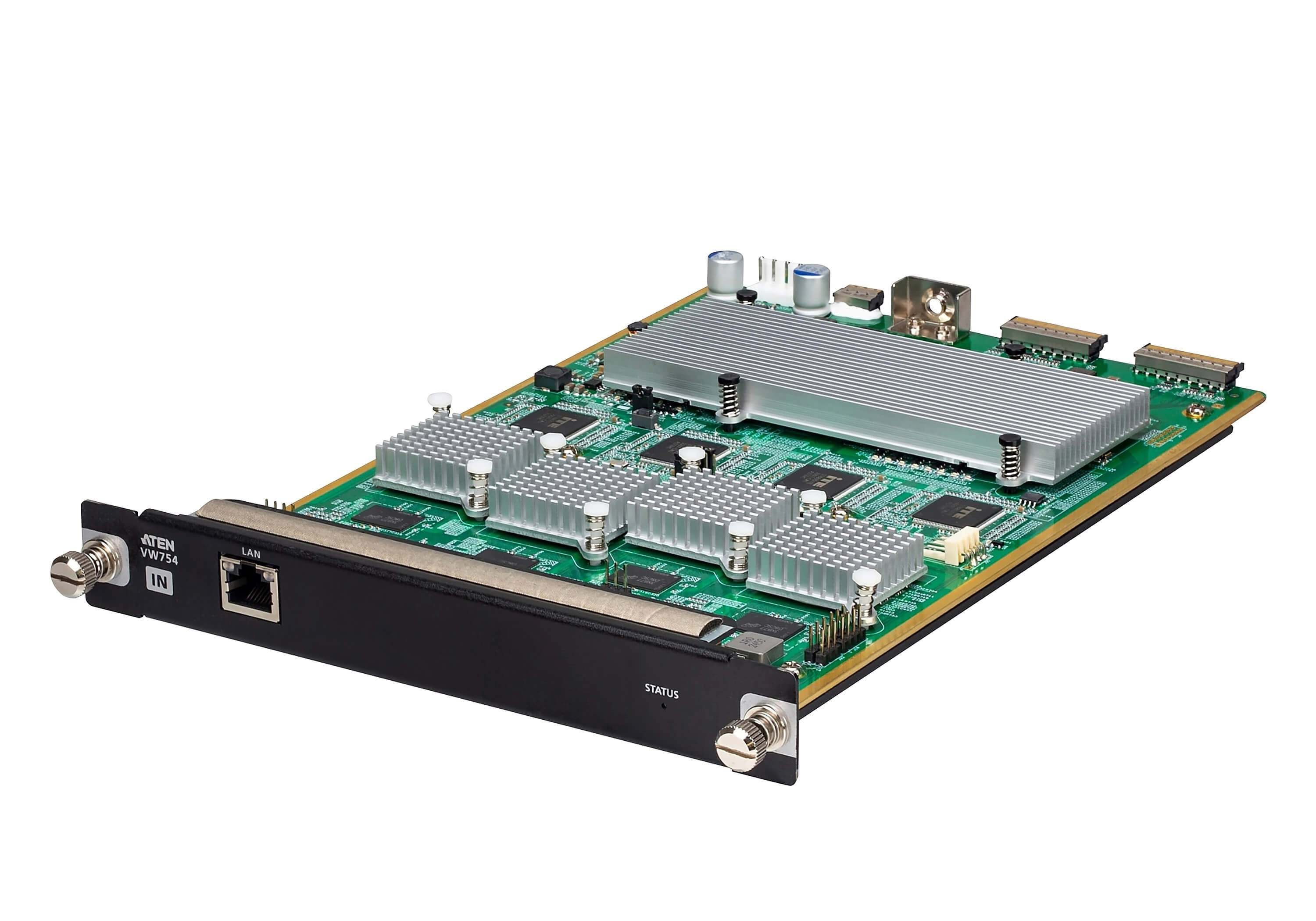

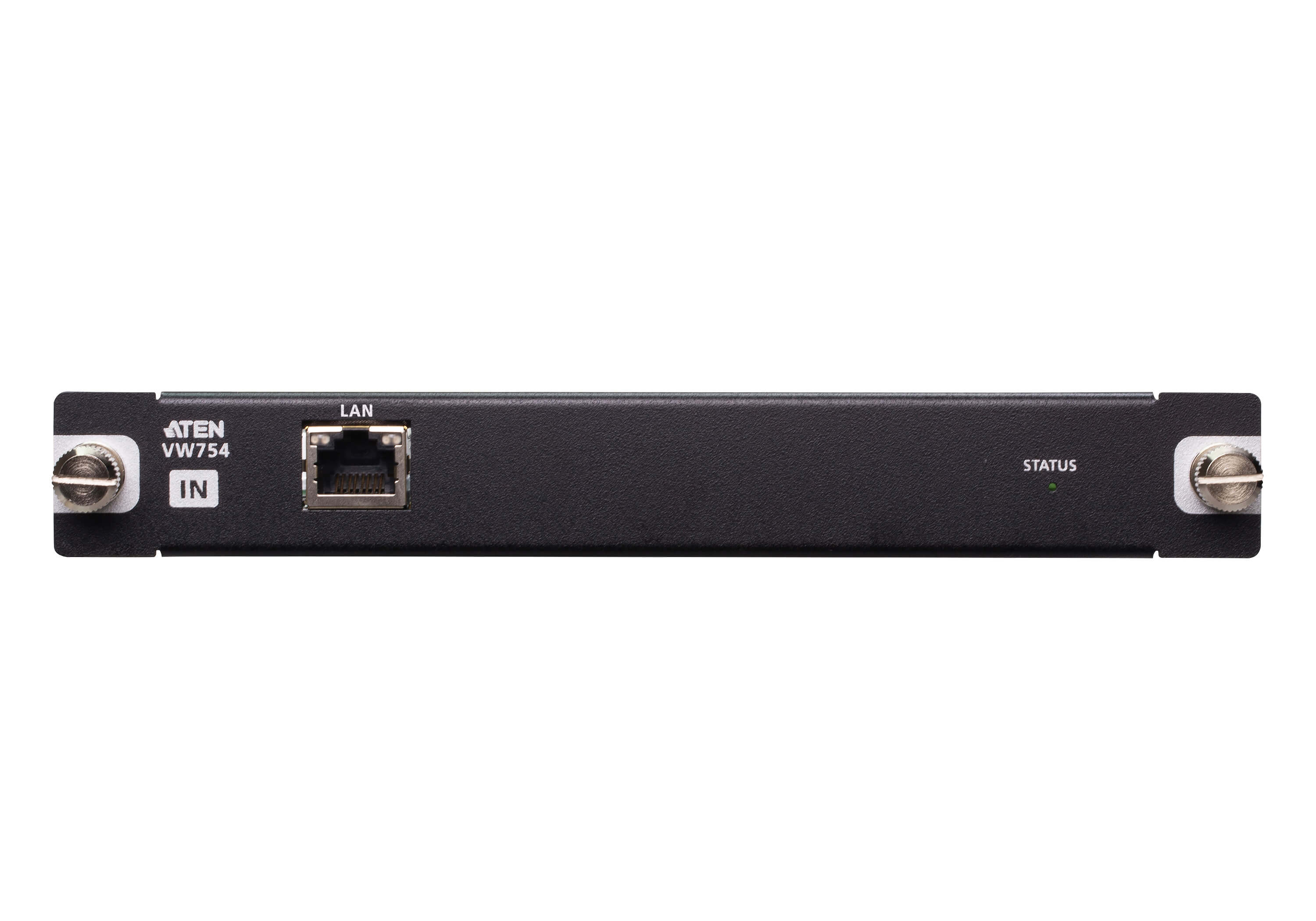

Built to work with ATEN’s VW3620 Modular Video Wall Processor, the VW754 seamlessly accepts H.265/H.264 streams from IP cameras/Network Video Recorders (NVRs) and decodes up to four channels at 4K @ 60 Hz simultaneously. Each decoded stream is assignable to a preferred output channel within the VW3620 configuration*. The VW754 facilitates seamless integration with any mainstream IP-based video system on account of its compliance with ONVIF Profile S and the support for RTSP.

Hot swap capability helps enhance flexibility when it comes to maintenance, especially in critical settings that need constant uptime. These highlights have made the VW754 ideal for mission-critical scenarios that involve multiple IP cameras to improve situational awareness and decision-making efficiency, such as surveillance control rooms, command centers, transportation sites, and even military and government environments.

Specification

Product
Product id	1013033
Brand	Aten
Partnr	VW754-AT
EAN/UPC code	4711581520691
Warranty (months)	3 Years
Performance
Channels quantity	4 kanalen
Maximum video resolution	3840 x 2160 Pixels
Supported video modes	2160p, 1080p, 720p, 540p
Video formats supported	H.265, H.264
Features
Product colour	Black, Green
Housing material	Metal
Network
Supported network protocols	RTSP, Onvif
Ethernet LAN data rates	10, 100, 1000 Mbit/s
Ethernet interface type	Gigabit Ethernet, Fast Ethernet
Cabling technology	10/100/1000BaseE-T(X)
Ports & interfaces
Ethernet LAN (RJ-45) ports	1
Power
Power consumption (max)	26.24 W
Operational conditions
Operating temperature (T-T)	0 - 40 °C
Operating relative humidity (H-H)	0 - 80 procent
Storage temperature (T-T)	-20 - 60 °C
Weight & dimensions
Width	271.2 mm
Depth	193 mm
Height	27.4 mm
Weight	830 g
Package width	253 mm
Package depth	338 mm
Package height	59 mm
Package weight	1108 g
Logistics data
Master (outer) case width	255 mm
Master (outer) case length	350 mm
Master (outer) case height	272 mm
Master (outer) case weight	5080 g
Country of origin	Taiwan
Technical details
Package volume	5040.398693376 cm³
Master (outer) case volume	24267.537529344 cm³
