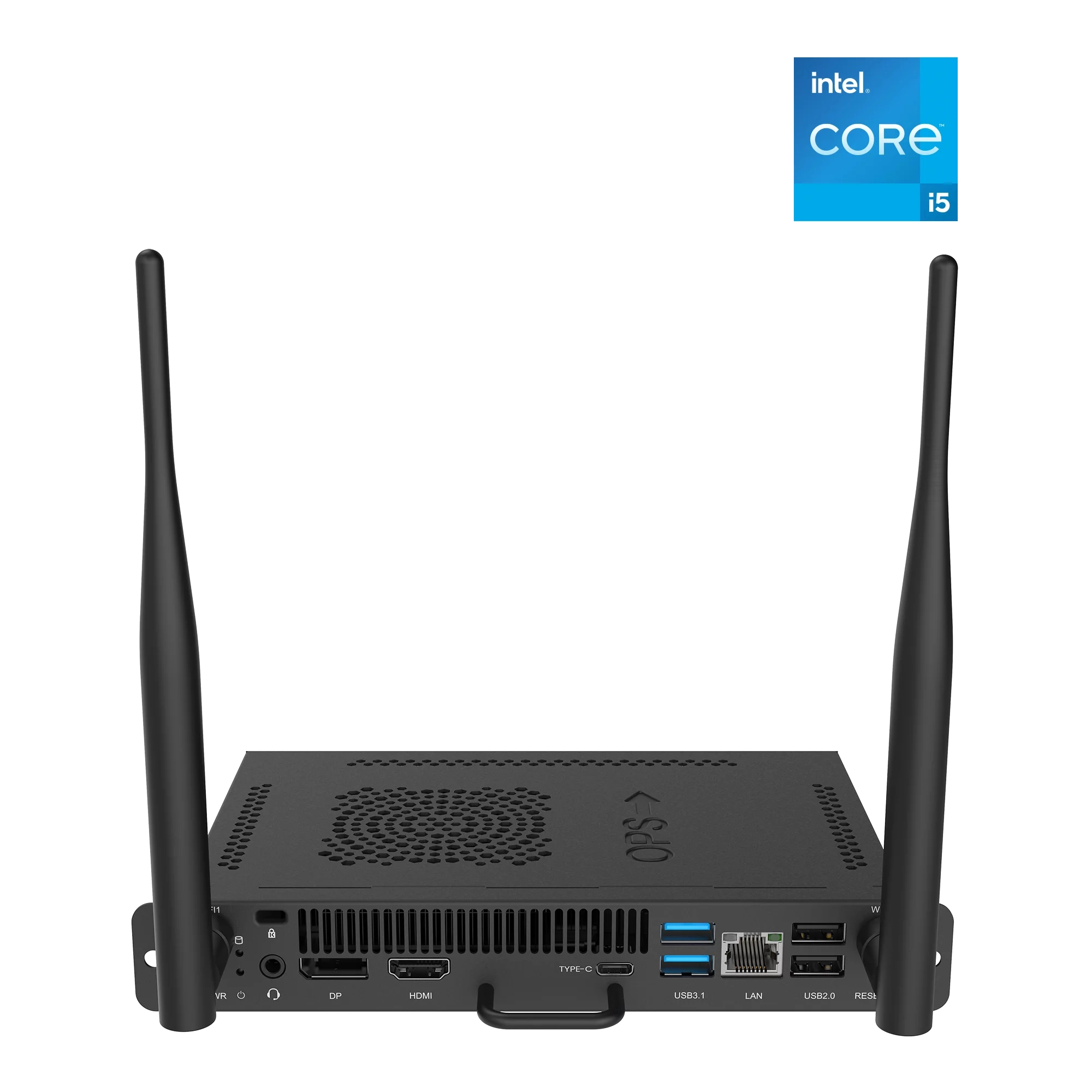

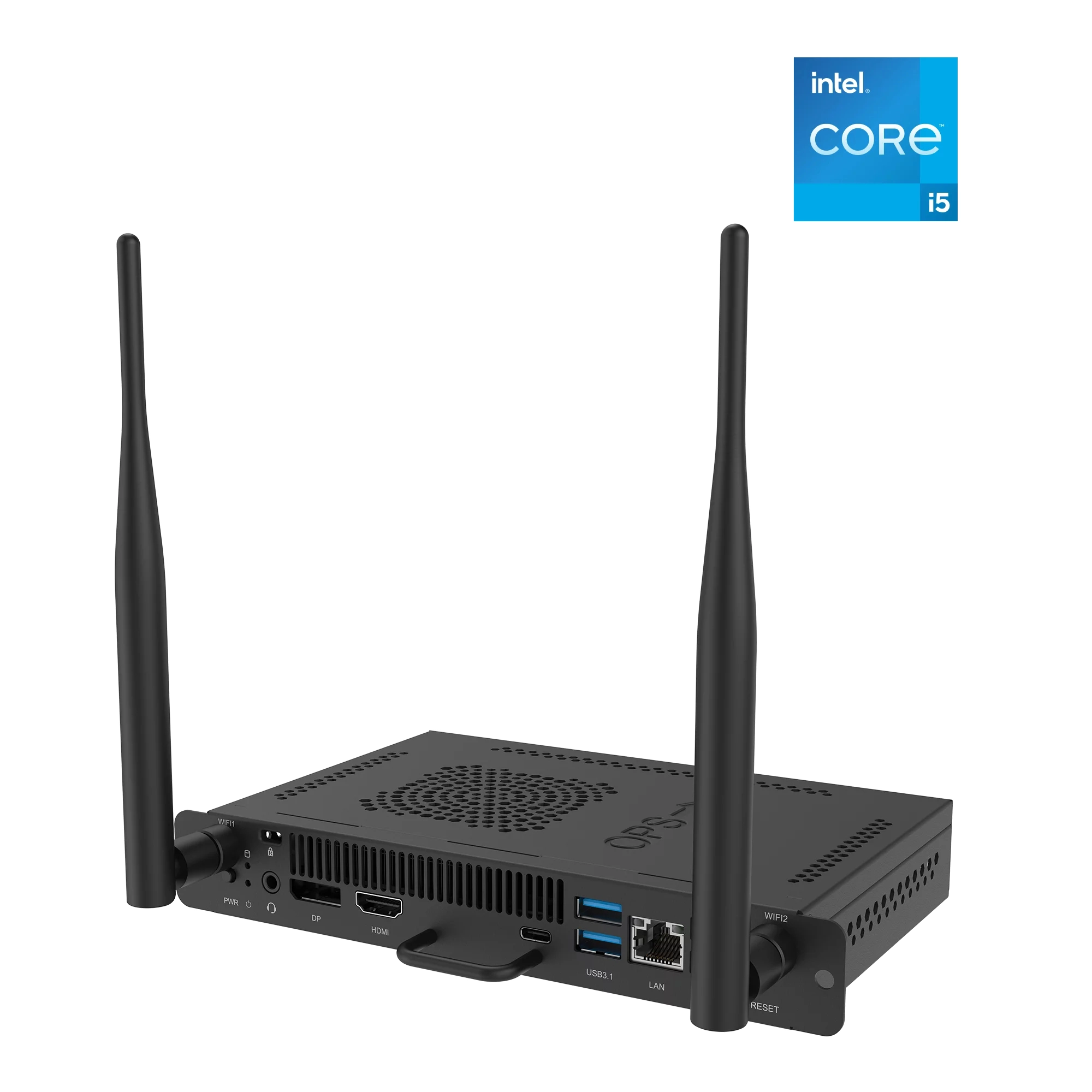

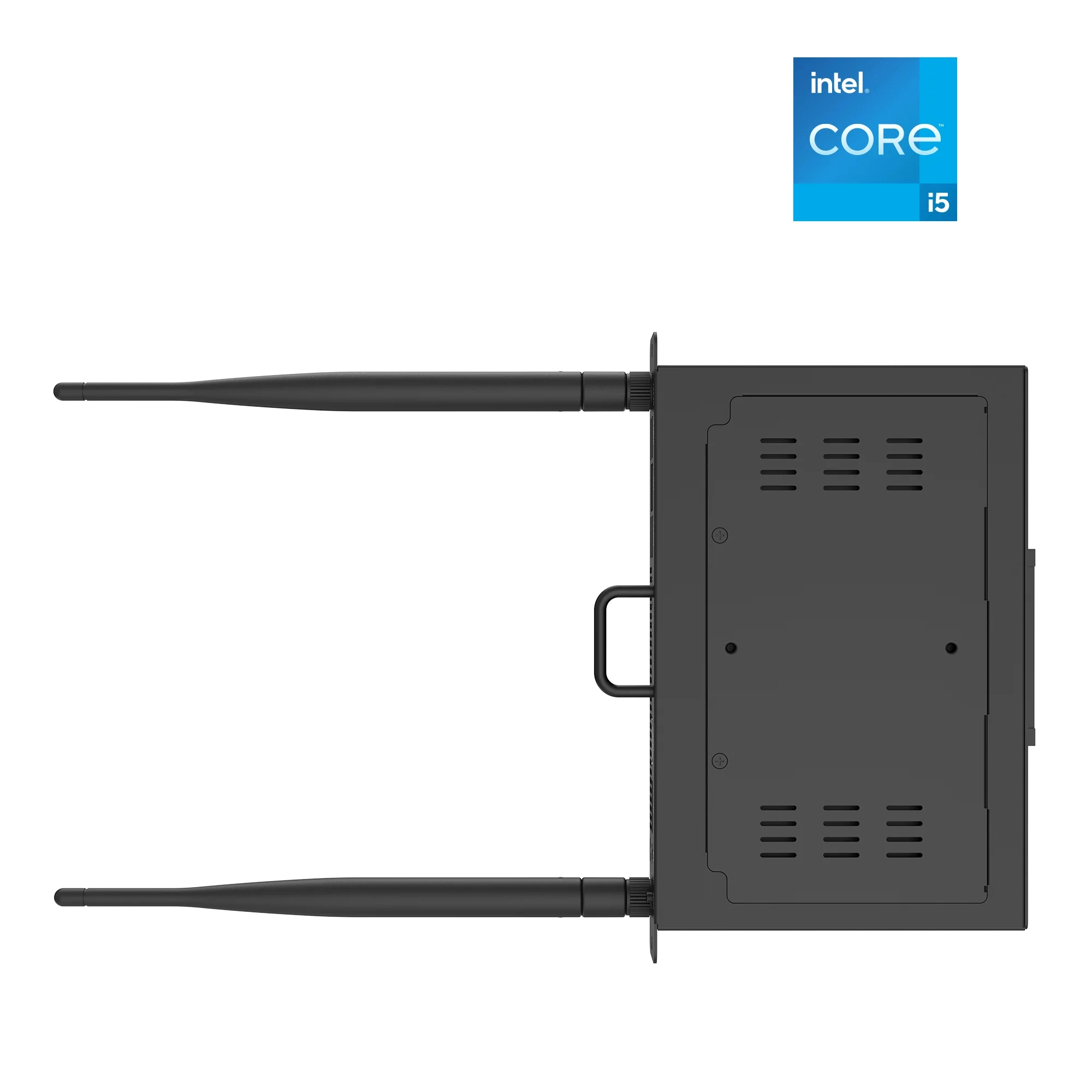

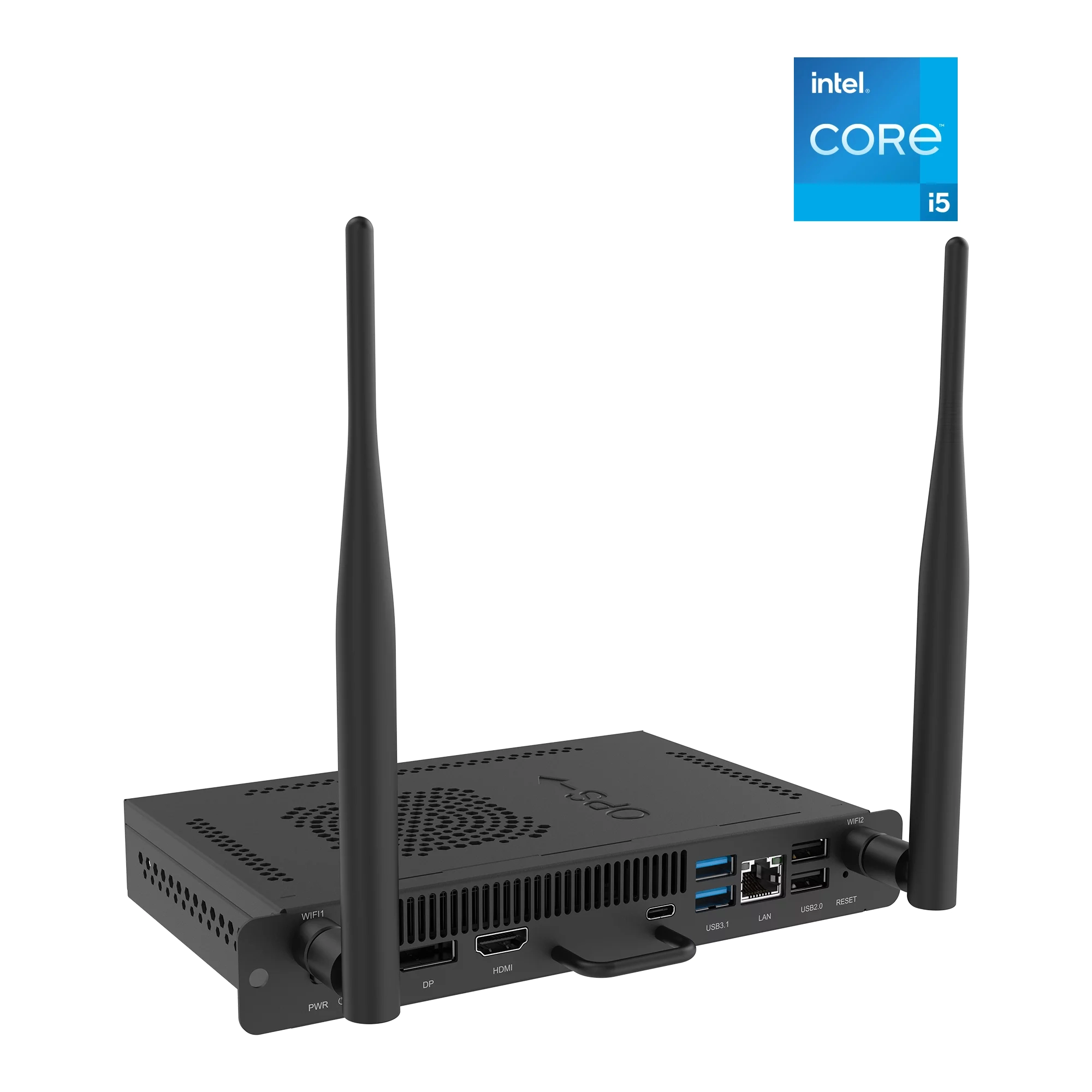

TEY41
The TEY41 slot-in PC delivers maximum performance to your BenQ Board. The Intel 12ᵗʰ Gen Core processor allows you to run Windows by itself or alongside the BenQ Boards Android system, giving you the power of two operating systems.

Same Windows, bigger frame
Teach with Windows on a larger, more collaborative screen. The TEY41 turns your BenQ Board into a powerful Windows device, giving you all the features and functionalities you’re familiar with, but with a lot of space. You can start classes without a laptop.

Two is better than one
Use the TEY41 with the display’s Duo OS mode to pair the built-in EZWrite whiteboard with a fully functional Windows system. This lets teachers simultaneously load and use Windows-based files and apps for more flexible lessons.

Remote lessons at your fingertips
The TEY41 allows schools to install and use their preferred video conferencing and hybrid learning apps. Teachers can easily load them on their BenQ Board and instantly start hosting remote classes.

Enhanced performance with vPro
The Intel vPro chip is designed to meet the needs of the modern classroom, delivering enhanced faster processing times, hardware-based security features, and advanced remote management capabilities.

Optimal data security for Windows
Get an additional layer of protection against security threats. The TEY41 comes equipped with a TPM 2.0 chip that ensures stronger encryption on Windows systems and safeguards login credentials and lesson files from compromise.

Specification

Product
Product id	905243
Brand	BenQ
Partnr	5A.F9630.4F2
EAN/UPC code	4718755092398
Warranty (months)	36 months
Processor
Processor manufacturer	Intel
Processor family	Intel Core i5
Processor generation	Intel Core i5-12xxx
Processor model	i5-1235U
Processor cores	10
Processor boost frequency	4.4 GHz
Performance cores	2
Efficient cores	8
Processor cache	12 MB
Processor cache type	Smart Cache
Processor threads	12
Efficient-core Max Turbo Frequency	3.3 GHz
Performance-core Max Turbo Frequency	4.4 GHz
Number of processors installed	1
Processor base power	15 W
Maximum turbo power	55 W
Memory
Internal memory	16 GB
Internal memory type	DDR4-SDRAM
Memory layout (slots x size)	2 x 8 GB
Storage
Total storage capacity	256 GB
Optical drive type	N
Storage media	SSD
Total SSDs capacity	256 GB
Number of SSDs installed	1
SSD capacity	256 GB
Graphics
Discrete graphics adapter	N
On-board graphics adapter	Y
Discrete graphics adapter model	Not available
On-board GPU manufacturer	Intel
On-board graphics adapter model	Intel Iris Xe Graphics
Network
Ethernet LAN	Y
Ethernet LAN data rates	10, 100, 1000 Mbit/s
Wi-Fi	Y
Top Wi-Fi standard	Wi-Fi 6 (802.11ax)
Wi-Fi standards	802.11a, 802.11b, 802.11g, Wi-Fi 4 (802.11n), Wi-Fi 5 (802.11ac), Wi-Fi 6 (802.11ax)
Ports & interfaces
USB 2.0 ports quantity	1
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity	1
USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity	2
USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity	1
HDMI ports quantity	1
Ethernet LAN (RJ-45) ports	1
Design
Chassis type	Rack-mounted chassis
Product colour	Black
Performance
Product type	PC
Market positioning	OPS
Trusted Platform Module (TPM)	Y
Software
Operating system installed	Windows 11 Pro
Security updates end date	30/06/2026
Weight & dimensions
Width	180 mm
Depth	30 mm
Height	119 mm
Package width	254 mm
Package depth	196 mm
Package height	77 mm
Package weight	1230 g
Packaging content
Display included	N
