BenQ Business Projector
LW555C | 3500 AL WXGA Laser Meeting Room Projector

Direct Connection to BenQ QOTA Cloud
With the optional DM01 dongle, the LW555C becomes a connected projector. The DM01’s enhanced chipset allows seamless connection to the BenQ QOTA cloud, enabling firmware updates directly from the projector without using a PC or USB drive.

Firmware OTA
Support on-device firmware update

Expandable LAN Integration
Compatible with the optional DM01 dongle to provide an external RJ45 port for real-time firmware updates, with added wireless LAN connectivity

One Platform, Total Control

Manage Every BenQ Device with BenQ DMS
Once connected via DM01, monitor and manage all your BenQ devices through the BenQ Device Management System (DMS) software from your administration computer over your company LAN (DMS Local) — and stay connected even outside the office with the DMS App (DMS Cloud *). Gain complete visibility, centralized control, and seamless access from anywhere.

DMS Local
The IT Staff use a computer connected to the company LAN to control and manage all projectors directly within the office network.

DMS Cloud
By activating Agent Mode* in the DMS software, the local DMS system syncs with the DMS Cloud. (*In the future, projectors will be able to connect directly to the cloud without needing an Agent computer. This will enable real-time projector status updates. Stay tuned. )

Total Command
Manage all devices from one dashboard

Actionable Analytics
Monitor BenQ Devices status and performance data to make smarter decisions

Fast Setup
Onboard every BenQ device quickly before your meeting starts

Displayed exactly as intended
Selecting the right color mode ensures crisper, clearer images compared to a single default mode.

Presentation Mode
Optimized saturation for clear communication in slides, reports, and meeting content.

Video Conference Mode
Natural skin tones for a more professional look on camera.

High Detail Mode
Sharper contrast for diagrams, code, and blueprints.

DICOM Simulation Mode
Medical-grade accuracy when displaying digital images, with no loss of detail.

*DICOM Simulation mode is intended for training purposes only and not for medical diagnostic use.

High Reliability, Easy Maintenance
Laser Phosphor delivers up to 30, 000 hours of reliable brightness with no lamp replacement. Durable, efficient, and mercury-free for a more eco-friendly workplace.

Projection Fits for Every Room
Project images larger than 100” from just 3.3m~3.7m away (via 1.1X zoom), enabling easy big-screen viewing in rooms of any size.

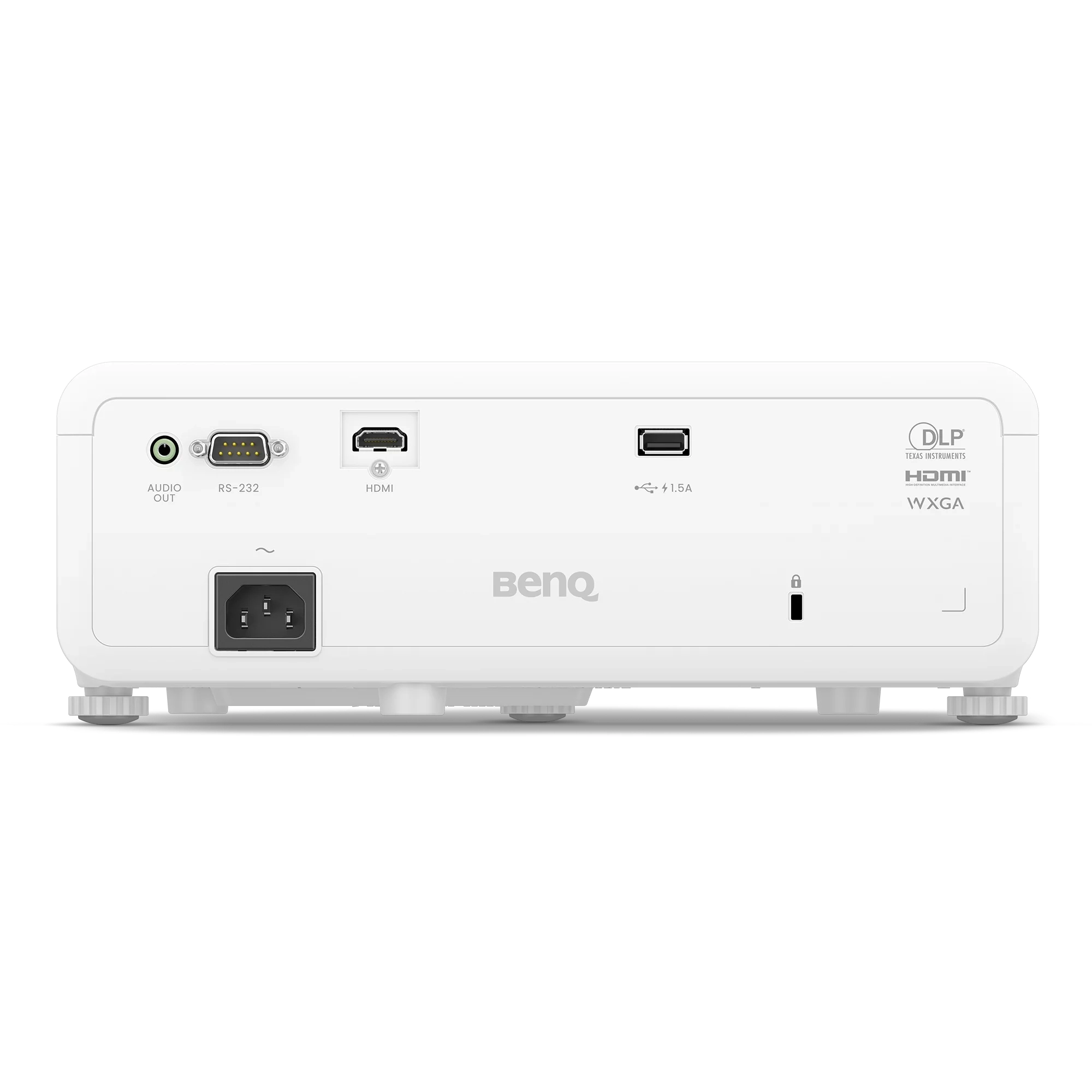

Simplified Connectivity
The LW555C provides essential connectivity with streamlined ports, making setup effortless and ensuring reliable, cost-effective operation.

Specification

Product
Product id	1025786
Brand	BenQ
Partnr	9H.JTY77.13E
EAN/UPC code	4718755098499
Projector
Projector brightness	3500 ANSI lumens
Projection technology	DLP
Projector native resolution	WXGA (1280x800)
Contrast ratio (typical)	20000:1
Native aspect ratio	16:10
Number of colours	1.07 billion colours
Horizontal scan range	15 - 130 kHz
Vertical scan range	23 - 120 Hz
Keystone correction, horizontal	-40 - 40 °
Colour gamut	92 procent
Keystone correction, vertical	-40 - 40 °
Light source
Light source type	LED
Service life of light source	20000 uur
Service life of light source (economic mode)	30000 uur
Lens system
Zoom ratio	1.1:1
Throw ratio	1.55-1.7
Offset	100 procent
Video
Full HD	N
3D	Y
Supported graphics resolutions	640 x 480 (VGA), 1920 x 1200 (WUXGA)
Ports & interfaces
HDMI ports quantity	1
HDMI version	1.4a
DVI port	N
USB 2.0 Type-A ports quantity	1
Headphone outputs	1
Serial interface type	RS-232
Network
Smart TV	N
Ethernet LAN	N
Wi-Fi	N
Storage
Card reader integrated	N
Features
Noise level	31 dB
Noise level (economic mode)	28 dB
HDCP	Y
Preset modes	3D, Bright, Presentation, Spreadsheet, sRGB
Country of origin	China
Multimedia
Built-in speaker(s)	Y
RMS rated power	15 W
Number of built-in speakers	1
Design
Product type	Standard throw projector
Market positioning	Business
Product colour	White
Placement	Ceiling, Desktop
Cable lock slot type	Kensington
Cable lock slot	Y
LED indicators	Y
Display
Built-in display	N
Power
Power source	AC
Power consumption (typical)	200 W
Power consumption (standby)	0.5 W
AC input voltage	100 - 240 V
AC input frequency	50 - 60 Hz
Auto power off	Y
Cord length	1.8 m
Weight & dimensions
Weight	3000 g
Width	303.5 mm
Depth	224.6 mm
Height	112.4 mm
Package width	170 mm
Package depth	410 mm
Package height	340 mm
Package weight	4500 g
Packaging content
Handheld remote control	Y
Batteries included	Y
Manual	Y
Cables included	Power
