Designed for use on a cart or virtually any retail work space, the TD-2120N is among the most compact and fastest 2.2in wide powered desktop/network thermal printers for retail applications. At 203dpi, it prints price, mark-down, product identification, returns and shelf-edge labels quickly at up to 6ips. Also prints tags and receipts for kiosk and POS applications. An innovative drop-in roll, spindle-less design helps make loading easy with existing or standard converted media. Windows Server® 2012/2008R2/2008/2003 and Windows® 8/7/XP drivers, (ZPL II® compatibility,) and SDK's for iOS®, Android® and Windows Mobile® helps with integration into existing retail solutions.

Main Features
Bridges The Gap Between Desktop and Mobile Printers – With the rechargeable battery, these printers become powered desktop thermal printers and operate like a mobile printer with higher media capacity and desktop printer options like a peeler and a touch panel LCD display for use off-line or as a standalone solution
Cut the cords – With an optional Li-ion rechargeable battery and wireless Wi-Fi® or Bluetooth® interface, you can print from a desktop or network thermal printer from virtually any location in the retail store, regardless of having a power outlet and/or network interface port nearby
Wide Range of Printing Solutions – Comes with Windows® network and computer printer drivers for virtually seamless integration with many existing solutions. SDK's available for iOS®, Android® and Windows Mobile® devices
Print On A Cart – Brother™ designed these printers with a compact footprint to help provide the most usable work space on a cart versus nearly all competitive printers in its class. The Li-ion rechargeable battery option does not increase the compact footprint and provides mobility to a desktop thermal printer
Standalone Printing Solution – A touch panel and LCD display option is available for printing labels, tags or receipts off-line or as a standalone printer without a computer or a mobile device. Ideal for on-demand printing of price and "best before" freshness labels right in a food preparation area, or download information from a database and print shelf-edge, price and mark-down tags and labels in-aisle
Small Size, But Big on Performance – Although these printers are among the smallest desktop thermal printers in their class, they also lead in performance over many 203 dpi print resolution desktop thermal printers
Ergonomic Design – Uses an innovative spindle-less design that accepts labels, tags or receipt media with virtually any core size for a true drop-in media roll loading experience on a desktop, cart or even mounted to a wall
High Speed Printing – Prints up to 6ips in 203dpi print resolution
Battery Powered Model – Powered desktop and network thermal printer model configurations are available with a long life rechargeable Li-ion battery and charged by the printer power adapter or optional external 4-bay charger
Print From Mobile Devices – Brother provides iOS®, Android® and Windows Mobile® SDK's to help develop a wireless printing solution from virtually any tablet or handheld device
Print From a Database – Helps save time and increase accuracy by printing labels, tags and receipts linked directly to Microsoft® SQL Server®, Access® or Excel® database files
Easy To Integrate – Comes with Windows Server® and Windows® printer drivers help make integration into existing retail systems seamless and simple
Connectivity Options – Ethernet LAN, USB 2.0, Host USB and Serial RS-232 interface ports comes standard on most models, with the option to add wireless Wi-Fi® WLAN or Bluetooth® interfaces

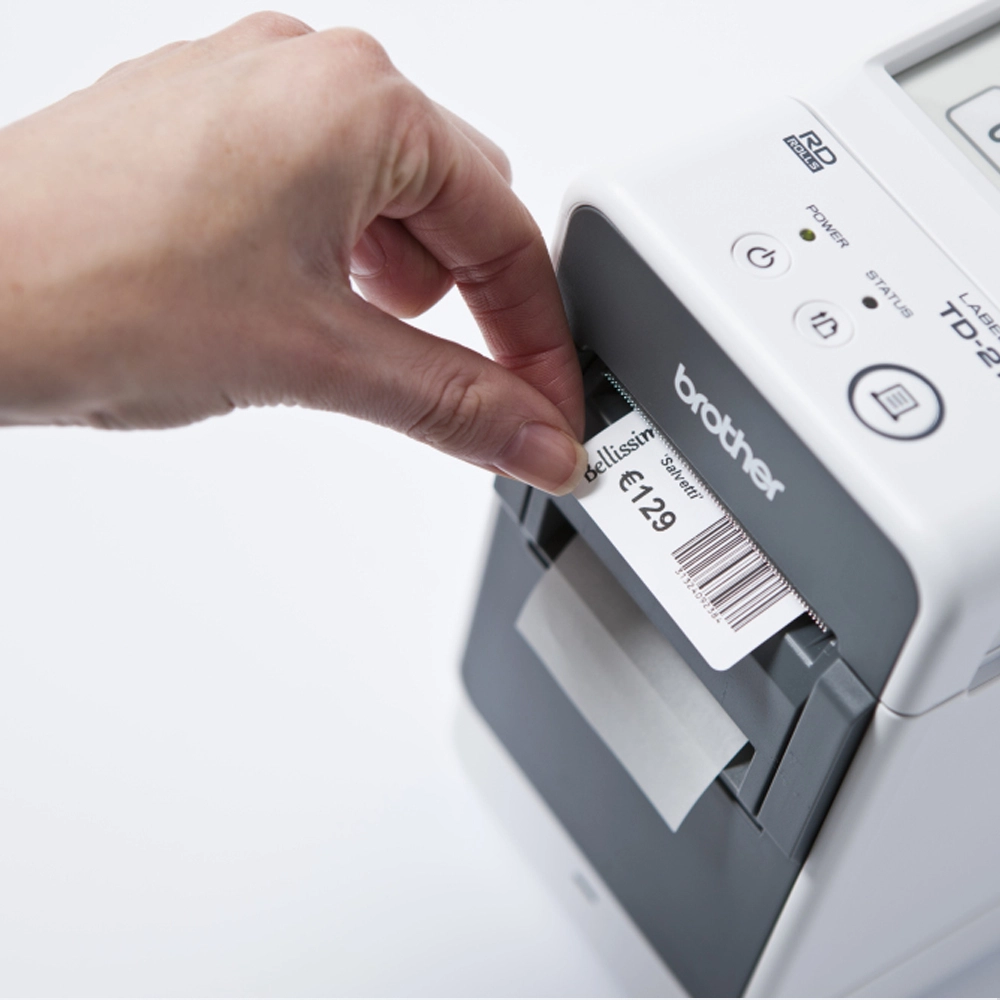

Print & Apply Solution – Optional peeler automatically separates the label from the liner and positions the label to help "pick" the printed label from the printer and apply it using just one hand. Removal of the label allows the next label to print automatically
Adjustable Edge-to-Edge Media Sensor - Flexibility to detect and print on more types of existing thermal media to help avoid converting custom media
Complete Label Printing Solution – Comes with the full version of the Brother P-touch® Editor software application with advanced design tools and printing features
Two Year, "At your side" Limited Warranty – As a commitment to reliability, the entire label printer is covered under a two year limited warranty, including the print head no matter the amount of media you print every day

Specification

Product
Product id	722152
Brand	Brother
Partnr	TD2120NZU1
EAN/UPC code	4977766720496
Warranty (months)	2 years
Printing
Print technology	Direct thermal
Maximum resolution	203 x 203 pixels
Print speed	152.4 mm/sec
Maximum printing width	56 mm
Paper handling
Ribbon length	1 m
Ports & interfaces
Connectivity technology	Wired
Ethernet LAN	Y
USB port	Y
USB 2.0 ports quantity	1
RS-232 ports	1
Optional connectivity	Bluetooth, Wireless LAN
Performance
Page description languages	ESC P
Internal memory	32 MB
Flash memory	16 MB
Built-in barcodes	2D, CODABAR (NW-7), Code 128 (A/B/C), Code 39, Data Matrix, EAN13, EAN8, GS1 DataBar, GS1-128, ITF, MaxiCode, Micro QR Code, MicroPDF417, PDF417, QR Code, UPC-A, UPC-E
Security algorithms	EAP-FAST, 128-bit WEP, 64-bit WEP, EAP-TLS, EAP-TTLS, LEAP, PEAP, SSID, TKIP, WPA-PSK, WPA2-PSK
Design
Product colour	Black, Grey
Display	LCD
Power
AC adapter output voltage	25 V
AC adapter output current	6 A
System requirements
Server operating systems supported	Windows Server 2003, Windows Server 2008, Windows Server 2008 R2, Windows Server 2012
Windows operating systems supported	Windows 7 Home Basic, Windows 7 Home Basic x64, Windows 7 Home Premium, Windows 7 Home Premium x64, Windows 7 Professional, Windows 7 Professional x64, Windows 7 Starter, Windows 7 Starter x64, Windows 7 Ultimate, Windows 7 Ultimate x64, Windows 8, Windows 8 Enterprise, Windows 8 Enterprise x64, Windows 8 Pro, Windows 8 Pro x64, Windows 8 x64, Windows Vista Business, Windows Vista Business x64, Windows Vista Enterprise, Windows Vista Enterprise x64, Windows Vista Home Basic, Windows Vista Home Basic x64, Windows Vista Home Premium, Windows Vista Home Premium x64, Windows Vista Ultimate, Windows Vista Ultimate x64, Windows XP Home, Windows XP Home x64, Windows XP Professional, Windows XP Professional x64
Minimum RAM	128 MB
Minimum storage drive space	70 MB
Operational conditions
Operating relative humidity (H-H)	20 - 80 procent
Storage relative humidity (H-H)	20 - 80 procent
Operating temperature (T-T)	5 - 40 °C
Storage temperature (T-T)	-20 - 60 °C
Weight & dimensions
Width	110 mm
Depth	215 mm
Height	172 mm
Weight	1340 g
Packaging content
AC adapter included	Y
Other features
LED indicators	Y
