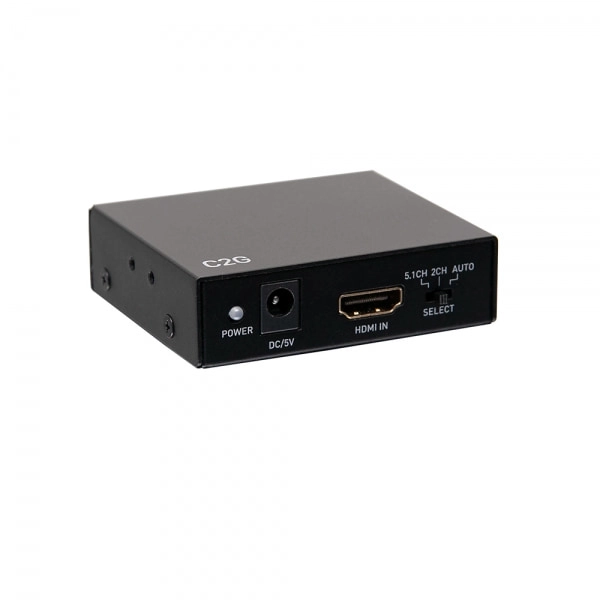

The HDMI Audio Extractor with TOSLINK, SPDIF and 3.5mm extracts the 5.1 audio from the HDMI input source and converts it into either a TOSLINK, S/PDIF, or 3.5mm Stereo audio signal. This device allows you to use separate speakers or an audio system with something that only has one HDMI output.

This HDMI Audio Extractor was designed to extract the digital audio that is embedded in HDMI source devices such as Apple TV®, Google Chromecast, gaming systems, and computers. The digital audio is then output to projectors or any other devices that do not provide an audio output and the system design calls for the use of an amplified audio reinforcement system. This extractor is easy to set up – simply connect the HDMI source to the extractor input, then connect the outputs to the display and amplifier or receiver.

This audio extractor supports HDMI video resolutions up to 4K at 60Hz, 3D formats up to 600 MHz, HDCP 2.2 and 1.4, and can toggle between 5.1CH, 2.0CH, or the toggle can be set to auto. The compact size and optional mounting ears allow the audio extractor to be mounted easily and conveniently for any installation.

Specification

Product
Product id	859919
Brand	C2G Cables To Go
Partnr	C2G41003
EAN/UPC code	757120410034
Ports & interfaces
Video port type	HDMI
HDMI ports quantity	2
HDMI in	1
Number of HDMI outputs	1
3.5 mm (1/8-inch) out	Y
S/PDIF out port	Y
DC-in jack	Y
Features
Product colour	Black
HD type	4K Ultra HD
3D	Y
HDCP version	2.2
HDCP	Y
Material	Metal
Maximum refresh rate	60 Hz
Supported graphics resolutions	1280 x 720 (HD 720), 1920 x 1080 (HD 1080), 3840 x 2160
Supported video modes	720p, 1080i, 1080p
Bandwidth	18 Gbit/s
Bandwidth	600 MHz
Power
AC input voltage	100 - 240 V
AC adapter frequency	50/60 Hz
AC adapter output voltage	5 V
AC adapter output current	1 A
Power consumption (max)	5 W
Certificates
Certification	ROHS
Weight & dimensions
Weight	450 g
Operational conditions
Operating temperature (T-T)	0 - 45 °C
Storage temperature (T-T)	-10 - 80 °C
Operating relative humidity (H-H)	10 - 80 procent
Storage relative humidity (H-H)	5 - 90 procent
Technical details
Harmonized System (HS) code	85176990
