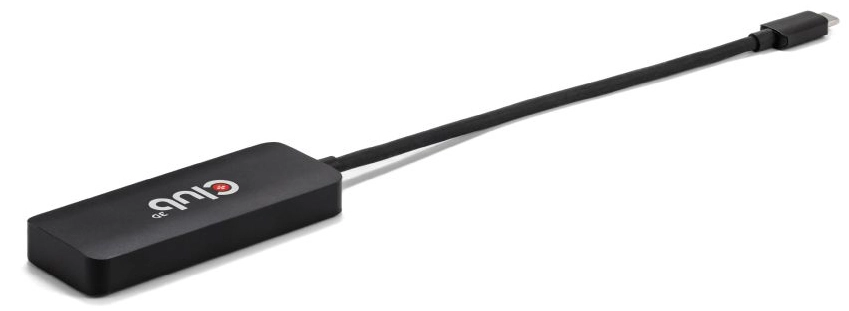

The CSV-1553 is a MST hub to DisplayPort™. This USB-C MST hub is designed to cater for your most versatile connectivity demands, such as Mobile Phone, Tablet, laptop, etc. with a USB Type-C output which supports DP™ Alt-Mode as Host to 3 DisplayPort ports with Ultra High Definition support. It supports DP2.1 AltMode and will allow you to output one Display with max capability of a single 8K30Hz or dual displays of 8K30Hz + 4K144Hz support or triple displays of 4K60Hz Each. It supports on all DisplayPort Alternate Mode supported USB Type-C or Thunderbolt4 compatible devices.

Give your Phone, Ultrabook more displays. Phones, Ultrabooks and notebooks are increasingly becoming more powerful and smaller in the physical form factor. With a single USB Type-C DisplayPort Supported port available you can now drive up to 3x Displayport™ screen simultaneously . All it needs is a free USB Type-C with DP™ Alt-Mode on your Phone, Laptop or Ultrabook to connect to the MST hub and will provide you with unparalleled connection options for Triple 4K60Hz displays. The setup is easy and simple to do, provided your system supports this function.

Specification

Product
Product id	969190
Brand	Club 3D
Partnr	CSV-1553
EAN/UPC code	8719214473174
Ports & interfaces
Ports quantity	3
Host interface	USB Type-C
Hub interfaces	DisplayPort
DisplayPorts quantity	3
USB Type-C DisplayPort Alternate Mode	Y
Features
Maximum refresh rate	144 Hz
Product colour	Black
Supported graphics resolutions	3840 x 2160, 7680 x 4320
High Dynamic Range (HDR) supported	Y
HDCP	Y
HDCP version	2.2
HD type	8K Ultra HD
Power
Power supply type	USB
Technical details
Compliance certificates	RoHS
System requirements
Windows operating systems supported	Y
Mac operating systems supported	Y
Other operating systems supported	ChromeOS
Weight & dimensions
Weight	53 g
Packaging data
Package width	60 mm
Package depth	180 mm
Package height	35 mm
Package weight	103 g
Package type	Hanging box
Other features
Cable type	Round cable
