USB TYPE-C TO TRIPLE HDMI MST HUB 4K60HZ



Club 3D
In stock
€ 47,71
€ 57,72 incl 21% VAT

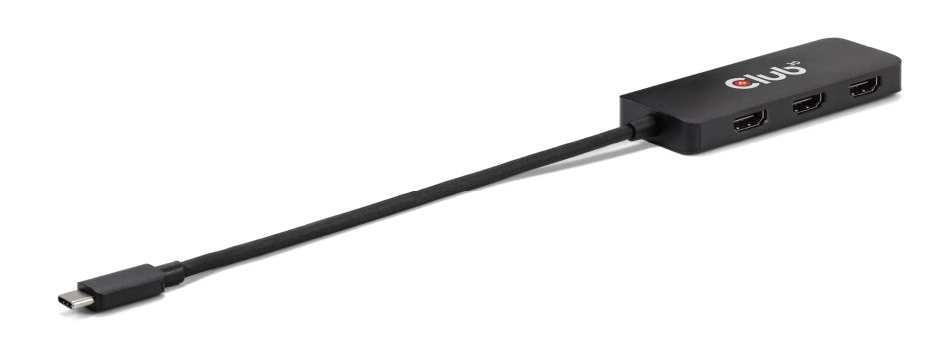

The CSV-1554 is a MST hub to HDMI™. This USB-C MST hub is designed to cater for your most versatile connectivity demands, such as Mobile Phone, Tablet, laptop, etc. with a USB Type-C output which supports DP™ Alt-Mode as Host to 3 HDMI ports with Ultra High Definition support. It supports DP2.1 AltMode and will allow you to output one Display with max capability of a single 8K30Hz or dual displays of 8K30Hz + 4K144Hz support or triple displays of 4K60Hz Each. It supports on all DisplayPort Alternate Mode supported USB Type-C or Thunderbolt4 compatible devices.

Give your Phone, Ultrabook more displays. Phones, Ultrabooks and notebooks are increasingly becoming more powerful and smaller in the physical form factor. With a single USB Type-C DisplayPort Supported port available you can now drive up to 3x HDMI screens simultaneously . All it needs is a free USB Type-C with DP™ Alt-Mode on your Phone, Laptop or Ultrabook to connect to the MST hub and will provide you with unparalleled connection options for Triple 4K60Hz displays. The setup is easy and simple to do, provided your system supports this function.

Specification

Product
Product id 969191
Brand Club 3D
Partnr CSV-1554
EAN/UPC code 8719214473181
Ports & interfaces
Ports quantity 3
Host interface USB Type-C
Hub interfaces HDMI
Maximum resolution (HDMI) 7680 x 4320 Pixels
HDMI ports quantity 3
USB Type-C DisplayPort Alternate Mode Y
Features
Maximum refresh rate 144 Hz
Product colour Black
Supported graphics resolutions 3840 x 2160, 7680 x 4320
High Dynamic Range (HDR) supported Y
HDCP Y
HDCP version 2.2
Number of displays supported 3
HD type 8K Ultra HD
Power
Power supply type USB
Technical details
Compliance certificates RoHS
System requirements
Windows operating systems supported Y
Mac operating systems supported Y
Other operating systems supported ChromeOS
Weight & dimensions
Weight 53 g
Packaging data
Package width 60 mm
Package depth 180 mm
Package height 35 mm
Package weight 103 g
Package type Hanging box
Other features
Cable type Round cable
