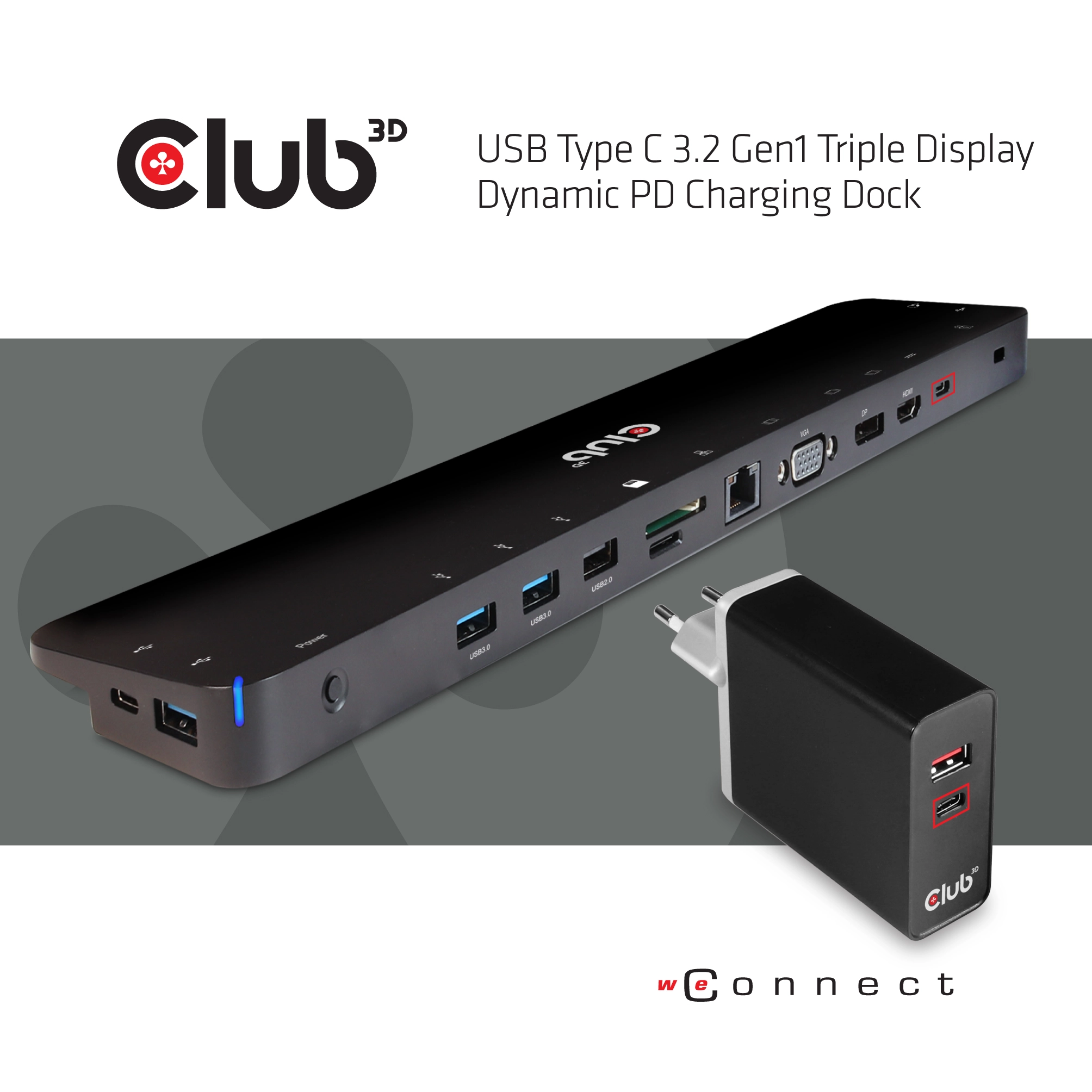

CSV-1564 - The Club-3D USB Type C 3.2 Gen1 Triple Display Dynamic PD Charging Dock is an integrated solution combining Video, Data, Power, Ethernet and Audio especially for frequent travellers. The Three different Video ports(HDMI™, DisplayPort™, VGA) allow you to enjoy 3 different images or videos on 3 different displays simultaneously under MST mode. The USB Type A ports and USB TypeC data port allow you to connect multiple USB devices to the host. The USB Type C charging port allows you to provide power for this Dock and can charge the host PC at the same time by connecting a PD power Adapter, no need to carry your Notebooks Power Supply.

So in general the user is travelling lighter. The Micro SD and SD/MMC ports allow you to read information in the memory card onto the host. The 3.5mm audio port allows enjoying music of the host via a headset. Besides, with the Gigabit Ethernet port, you can enjoy high speed Ethernet on the host. It supports all DP Alt mode supported hosts. (PC, Laptop, Mobile phone, etc. ) Dynamic Current Detection and Power Distribution, the product no longer intercepts the fixed power from the external PD Power Supply, but intercepts it according to the actual power consumed by itself, so that the PC can be dynamically charged more power.

Specification

Product
Product id	653695
Brand	Club 3D
Partnr	CSV-1564
EAN/UPC code	8719214472108
Ports & interfaces
Connectivity technology	Docking
Host interface	USB 3.2 Gen 1 (3.1 Gen 1) Type-C
USB 2.0 ports quantity	2
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity	3
USB 3.2 Gen 1 (3.1 Gen 1) Type-C ports quantity	3
Line-out	N
USB Power Delivery	Y
USB Power Delivery up to	60 W
HDMI ports quantity	1
HDMI version	1.4
VGA (D-Sub) ports quantity	1
DisplayPorts quantity	1
Combo headphone/mic port	Y
Line-in	N
Network
Ethernet LAN	Y
Ethernet LAN (RJ-45) ports	1
Copper ethernet cabling technology	1000BASE-TX
Networking standards	IEEE 802.3
Performance
Product colour	Black
Card reader integrated	Y
Compatible memory cards	MicroSD (TransFlash), MicroSDHC, SD, SDHC
Built-in speaker(s)	N
HD type	4K Ultra HD
Maximum digital resolution	3840 x 2160 Pixels
Maximum analog resolution	1920 x 1200 Pixels
Number of displays supported	3
Cable lock slot	N
On/off switch	Y
LED indicators	Power
Charging function	Y
Plug and Play	Y
Country of origin	China
Certification	FCC, CE EMI
Power
Power source type	AC, USB
Power connector	USB Type-C
AC input voltage	110 to 240 V
AC input frequency	60 Hz
Power supply	360 W
Input current	1.5 A
Output current	3 A
Output voltage	5/9/12 V
Power consumption (max)	60 W
Compatible power plug types	EU
Software
Windows operating systems supported	Windows 10, Windows 10 Education, Windows 10 Education x64, Windows 10 Enterprise, Windows 10 Enterprise x64, Windows 10 Home
Mac operating systems supported	Mac OS X 10.10 Yosemite, Mac OS X 10.14 Mojave, Mac OS X 10.2 Jaguar, Mac OS X 10.6 Snow Leopard, Mac OS X 10.7 Lion
Weight & dimensions
Width	350 mm
Depth	750 mm
Height	20 mm
Weight	266 g
Packaging data
Quantity per pack	1 stuk(s)
Package width	370 mm
Package depth	790 mm
Package height	109 mm
Package weight	239 g
Packaging content
Manual	Y
AC adapter included	Y
Cables included	USB Type-C
Technical details
Sustainability certificates	RoHS
