Thunderbolt 4 Certified 12-in-1 DockingStation - With 2xHDMI 1xDP and 2.5Gb Ethernet



Club 3D
Limited stock
€ 168,58
€ 203,98 incl 21% VAT
The Club 3D CSV- 1582 is a Certified Thunderbolt™ 4 12-in-1 Docking Station which provides the most advanced, efficient, and versatile I/O solution available with up to 40Gb/s for data and video. Combining the TB4 features with the ease of an integrated dock, allowing you to output 3 Streams to 3 displays simultaneously with extended desktop displays on a TB4/USB4 Windows PC. Ethernet RJ45 supports max 2.5G bandwidth. USB ports support max 10G data transmission. The dock supports the smart power function which enables to distribute power according to the power consumption of the connected device, making full use of external power supply. It is designed for Thunderbolt™ 4 based PCs and Thunderbolt™ 3 based Macs utilizing MacOS 11 and later versions

Specification

Product
Product id 951976
Brand Club 3D
Partnr CSV-1582
EAN/UPC code 8719214472955
Performance
Basic device type Universal
Product colour Black
USB Type-C DisplayPort Alternate Mode Y

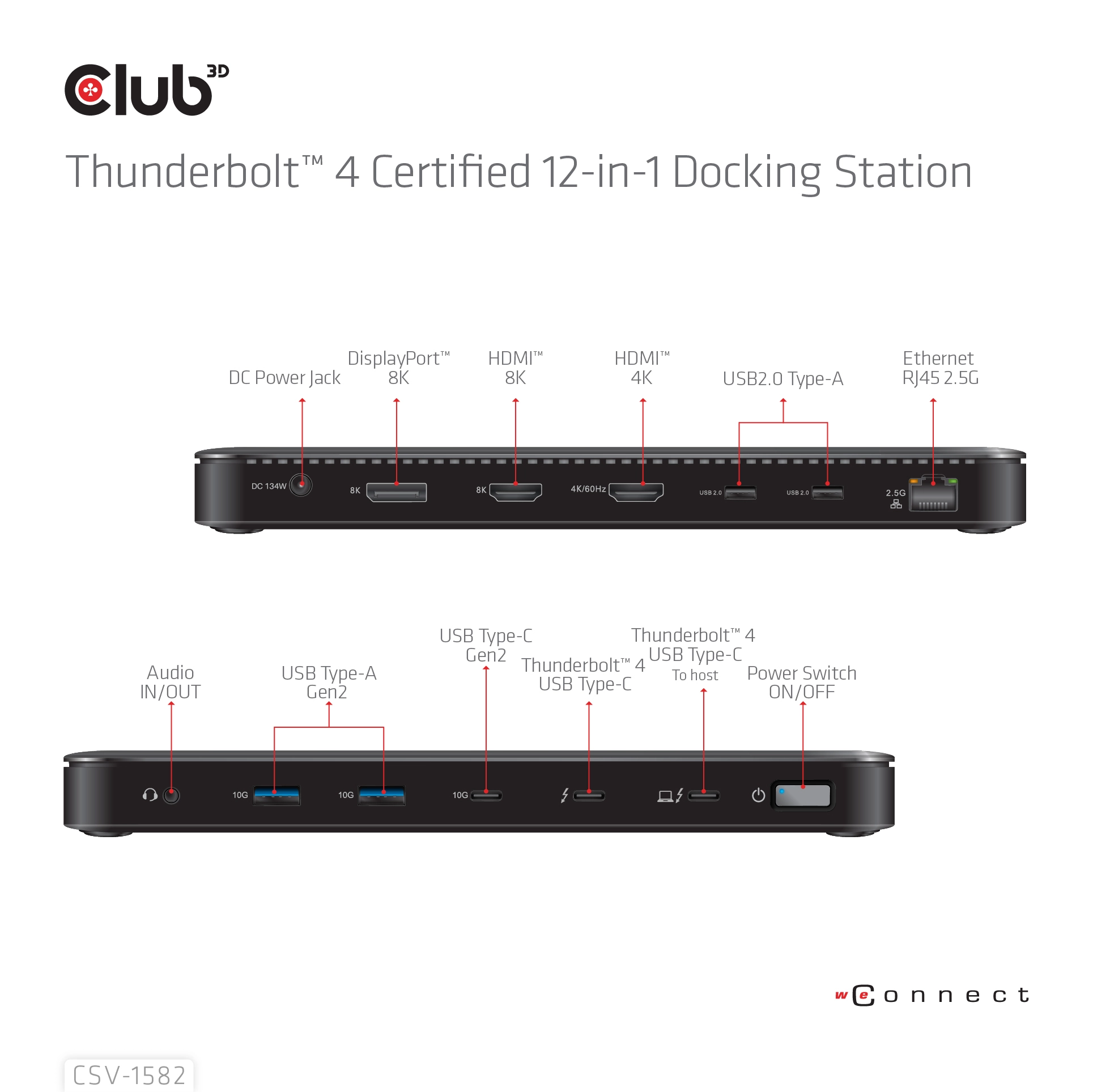

Ports & interfaces
Docking connector type USB Type-C
Bluetooth N
USB hub Y
USB 2.0 ports quantity 2
USB Type-C ports quantity 3
Audio output N
HDMI Y
HDMI connector type Full-size
HDMI ports quantity 2
HDMI version 2.0
DisplayPorts quantity 1
Ethernet LAN Y
Ethernet LAN data rates 2500 Mbit/s
Ethernet LAN (RJ-45) ports 1
DC-in jack Y
Power
Power consumption (max) 134 W
DC input voltage 21 V

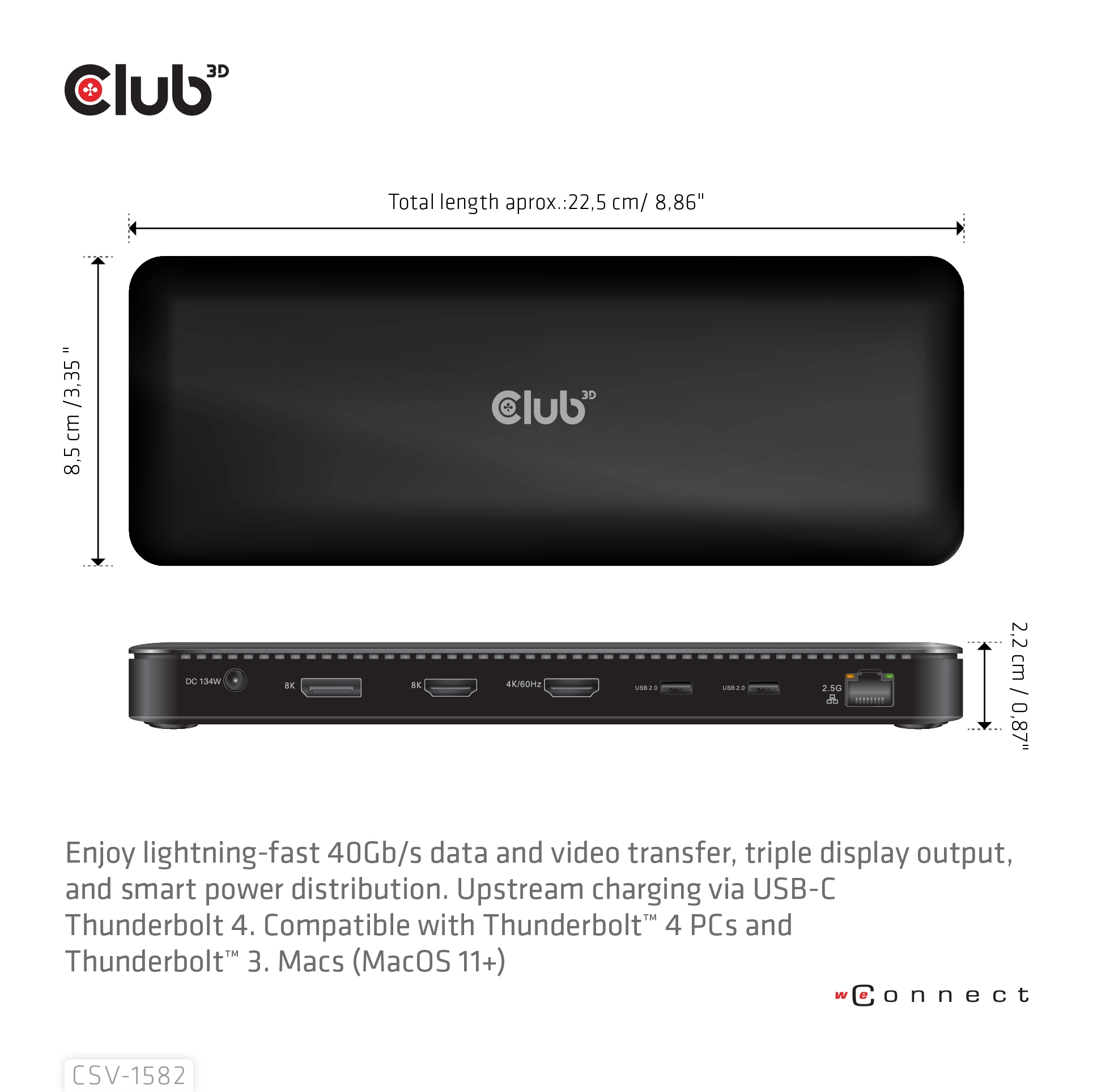

Weight & dimensions
Width 225 mm
Depth 85 mm
Height 22 mm
Weight 392 g
Cable length 0.8 m
Packaging data
Quantity 1
Package width 275 mm
Package type Box
Package depth 125 mm
Package height 77 mm
Package weight 1172 g

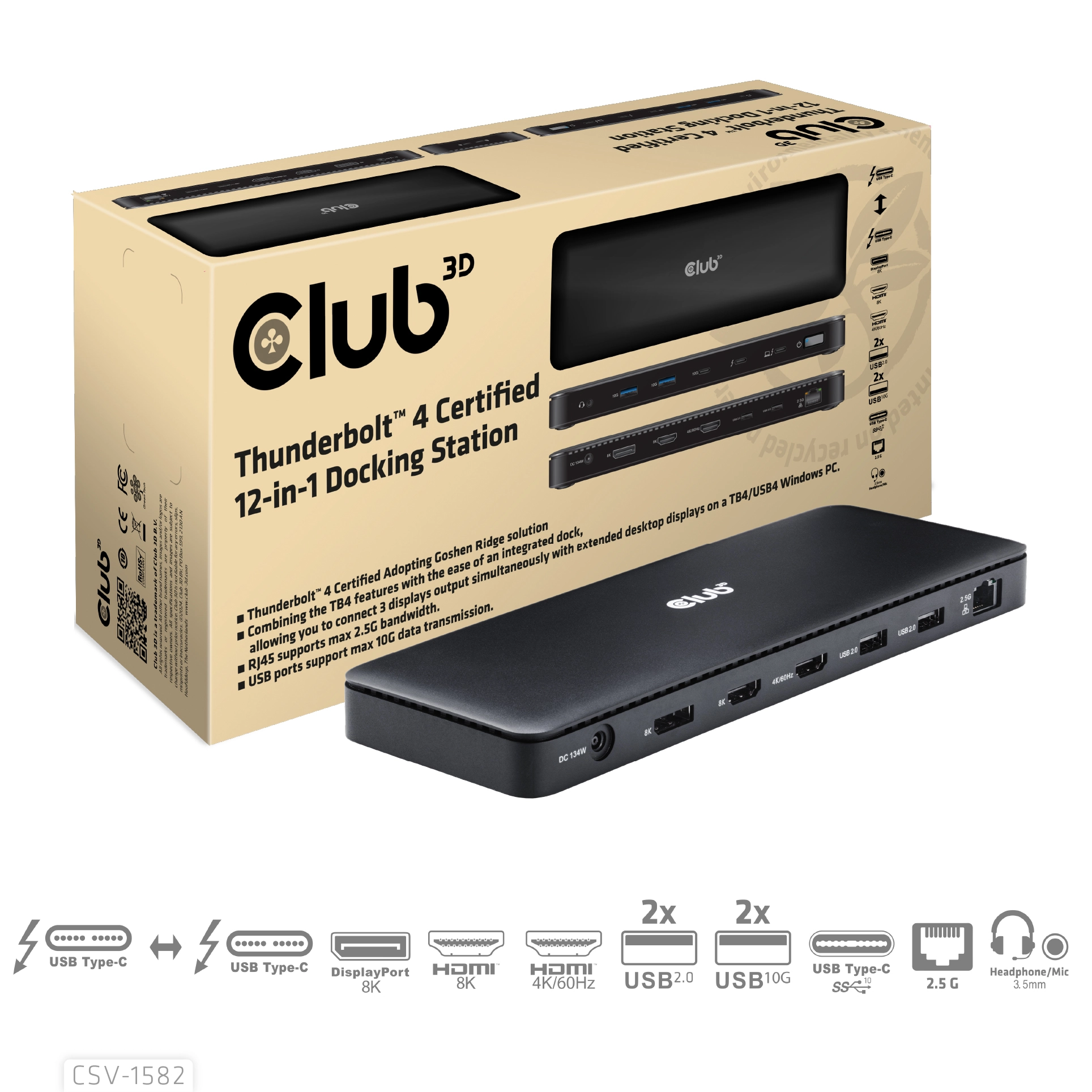

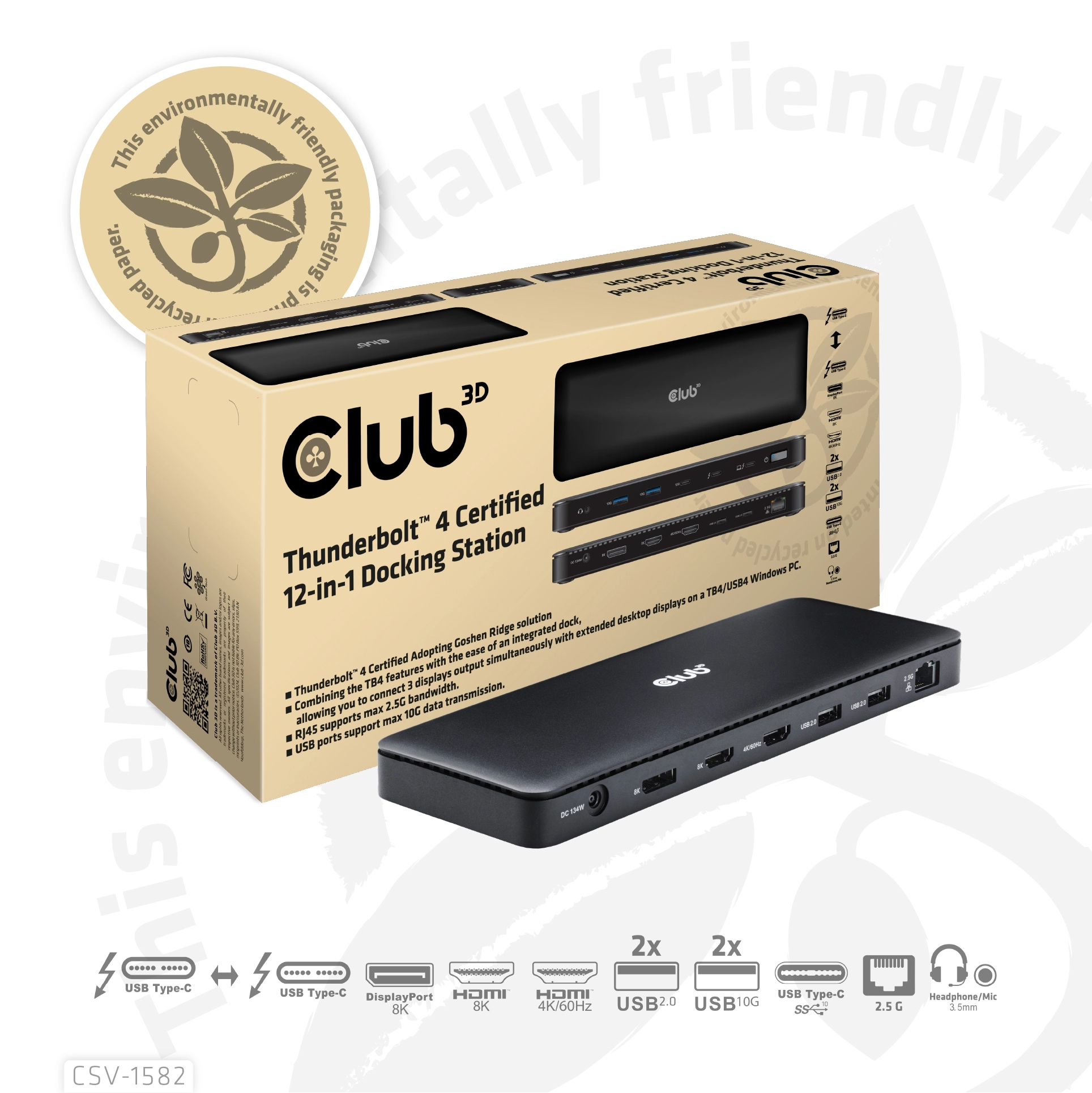

Packaging content
Cables included Thunderbolt
Adapter included Y
