USB TYPE C 7 IN 1 HUB TO HDMI 4K60HZ+SDTF CARD SLOT+2XUSBA + USB C PD +RJ45

Club 3D

In stock

€ 56,59

€ 68,47 incl 21% VAT

Would you like to ask us a question about this product?

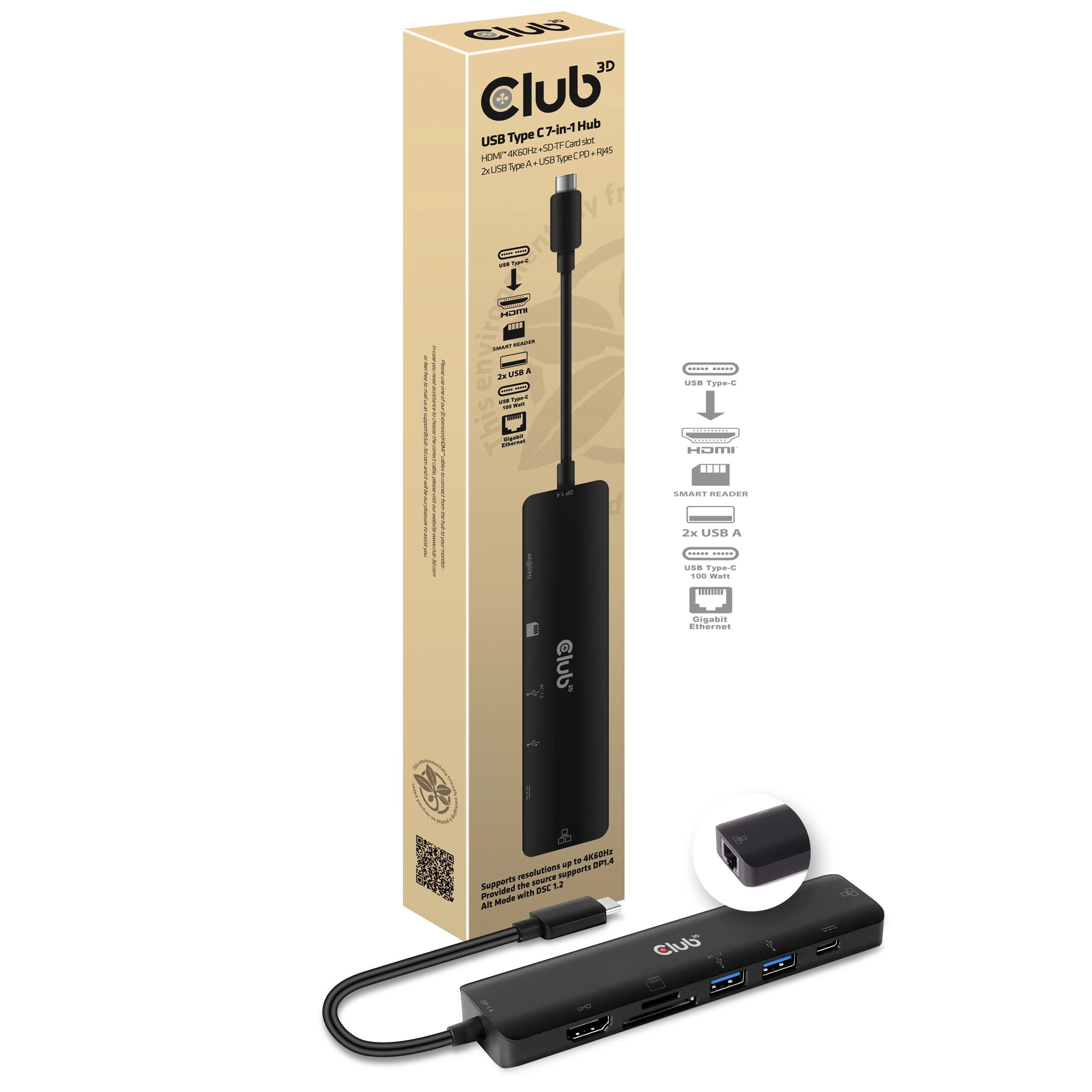

CSV-1592 - The Club 3D Hub is a USB Type C 7-in-1 Hub to HDMI™ 4K60Hz /SD-TF Card slot / 2x USB Type A / USB Type C PD / RJ45, providing an ideal solution for extending the port of USB Type C or Thunderbolt™ 3 host (PC/Laptop/tablet/Mobile phone, etc.), especially for the host with a single USB Type C port. This hub adopts the latest DP 1.4 Alt mode technology available today, enabling to output HDMI™ video with max 4k/60Hz and at the meanwhile transfer USB 3.1 data with max 5Gbps. 2x USB Type A ports allow you to connect 2 USB devices simultaneously.

SD/Micro SD allow to insert 2 card slots simultaneously for data transmission or for reading/writing information on the host. RJ45 ports allows the host to get access to Gigabit Ethernet. Besides, the USB Type C female supports PD 3.0 with max 100W PD Charging. It can work on all USB Type C and Thunderbolt™3 host that supports DP Alt mode(including DP1.2 and DP1.4 Alt mode). When working on Thunderbolt™3 host, this product transmits DP signal.

Specification

Product
Product id	669861
Brand	Club 3D
Partnr	CSV-1592
EAN/UPC code	8719214471477
Warranty (months)	2 years of warranty
Ports & interfaces
Connectivity technology	Docking
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity	2
USB 3.2 Gen 1 (3.1 Gen 1) Type-C ports quantity	1
USB Power Delivery	Y
USB Power Delivery up to	100 W
HDMI ports quantity	1
HDMI version	2.0
Microphone in	N
Network
Ethernet LAN	Y
Ethernet LAN (RJ-45) ports	1
Ethernet LAN data rates	10,100,1000 Mbit/s
Performance
Product colour	Black
Card reader integrated	Y
Compatible memory cards	MicroSD (TransFlash), MicroSDHC, MicroSDXC, MiniSD, SD, SDHC
HD type	4K Ultra HD
Maximum digital resolution	3840 x 2160 Pixels
Charging function	Y
Plug and Play	Y
Country of origin	China
Certification	FCC, CE EMI
Power
Power source type	USB
Power connector	USB Type-C
Software
Windows operating systems supported	Y
Mac operating systems supported	Y
Linux operating systems supported	Y
Weight & dimensions
Width	136 mm
Depth	34 mm
Height	14 mm
Weight	69 g
Packaging data
Quantity per pack	1 stuk(s)
Package width	320 mm
Package depth	60 mm
Package height	30 mm
Package weight	110 g
Packaging content
Manual	Y
Technical details
Sustainability certificates	RoHS
