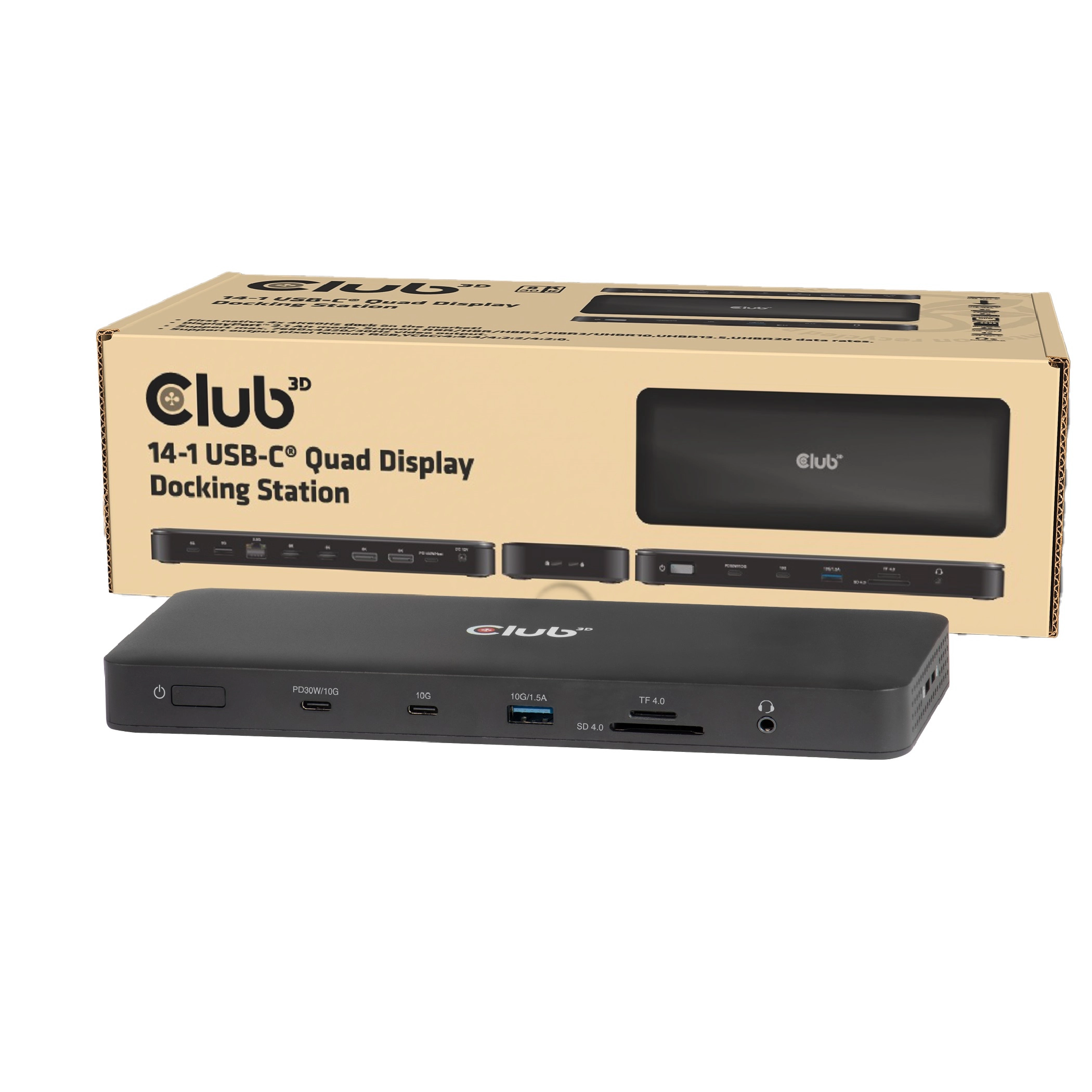

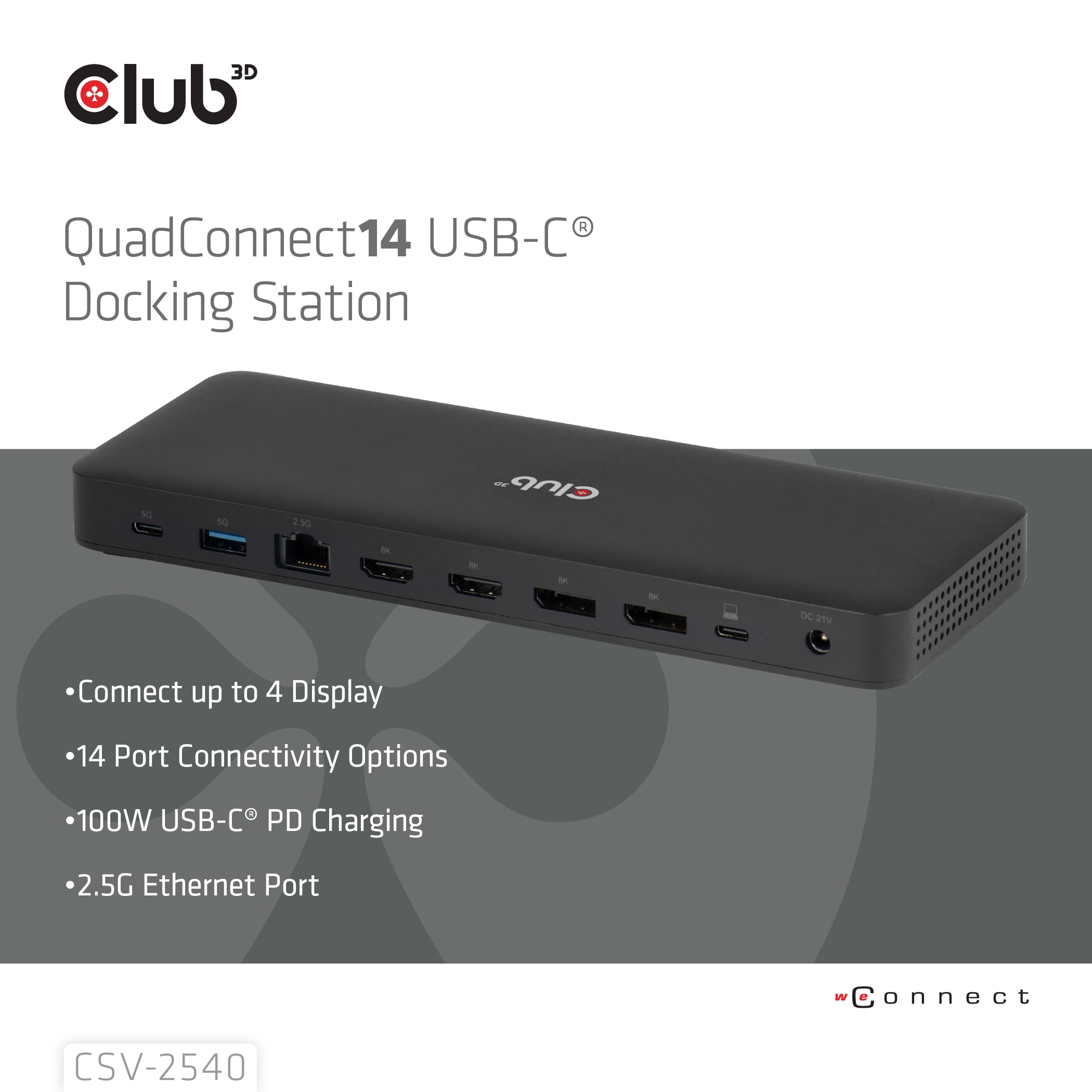

14-1 USB-C Quad Display Docking Station



Club 3D
Limited stock
€ 126,44
€ 152,99 incl 21% VAT
- First native 4x 4K60Hz dock on the market!
- DisplayPort™ 2.1 Alt mode. Support RBR/HBR/HBR2/HBR3/UHBR10, UHBR13.5, UHBR20 data rates.
- Support max. 7680x4320/30Hz video output. Pixel format RGB, YCbCr4:4:4/4:2:2/4:2:0. HDR10+ and HDCP V1.4/V2.3.
- The USB-C® port close to the power switch supports max PD 30W(5V@3A, 9V@3A, 15@2A, 20V@1.5A) charging for USB-C® mobile phone and other devices.
- USB-A 5Gbps has 900mA. The rest of the USB ports supports 1.5A downstream charging.
- DisplayPort™ supports DP++ which enables to use a DP™ to HDMI™ adapters.
- Power Switch & Power indicator LED.

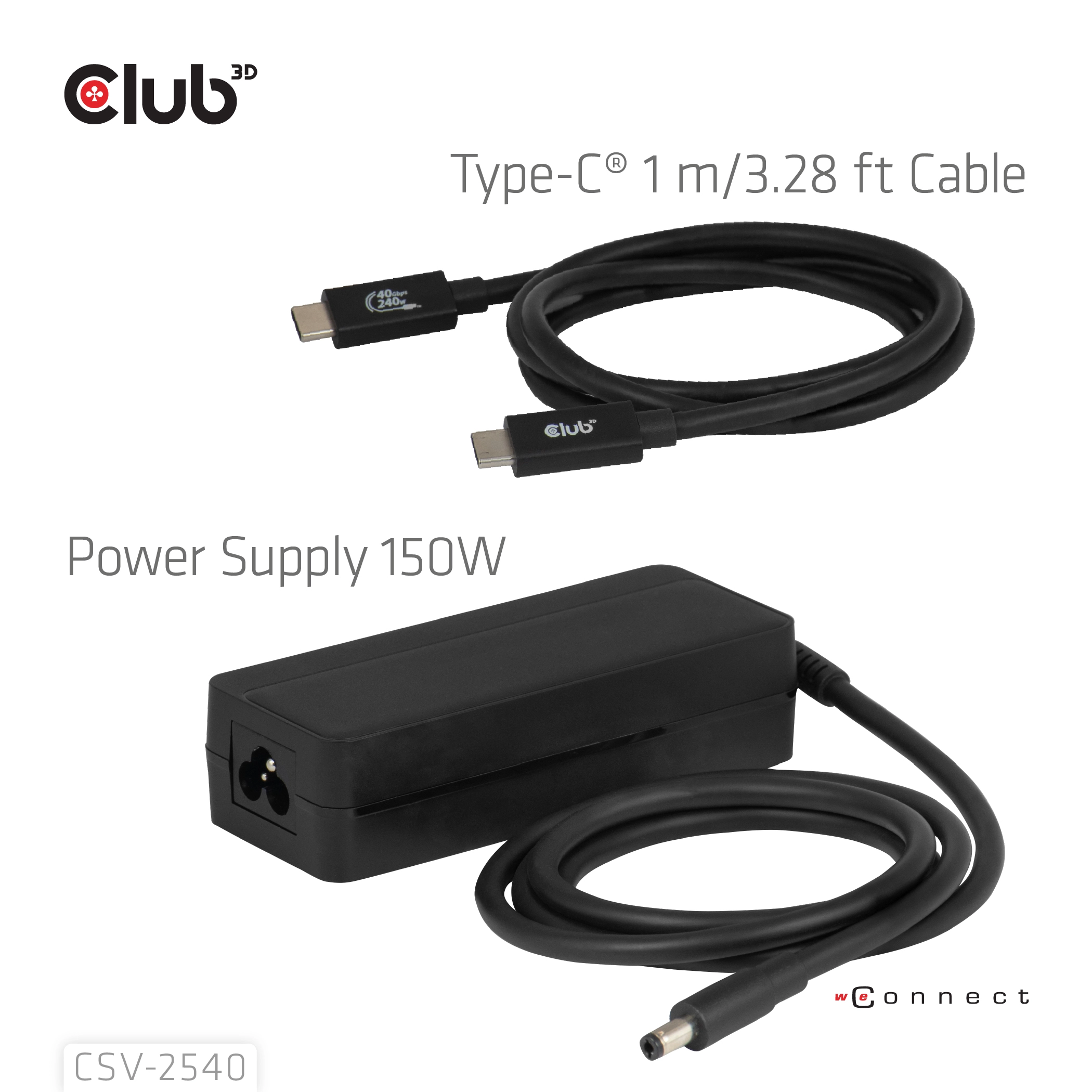

- Making full use of external 150W power, offering max 100W for connected PC/Laptop as well as max 30W downstream charging for connected USB-C® mobile devices.
- Ultra-fast 2.5G speed supported, offering an even more seamless and responsive internet experience.
- Widely Compatibility: compatible with all Thunderbolt™ and full-featured USB-C® laptops.

Specification

Product
Product id 995355
Brand Club 3D
Partnr CSV-2540
EAN/UPC code 8719214473501

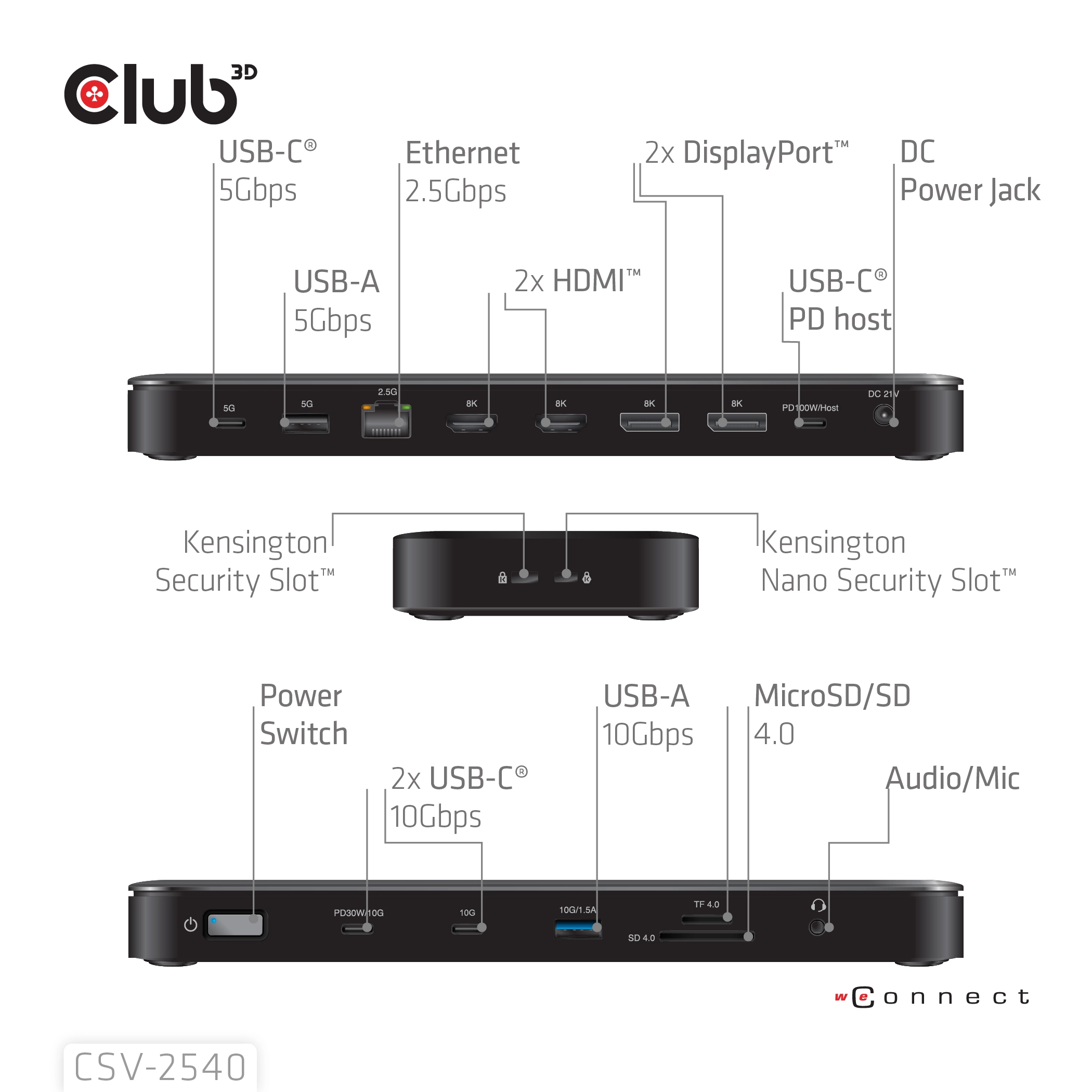

Ports & interfaces
Connectivity technology Docking
Host interface USB4
USB 2.0 ports quantity 2
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity 2
USB 3.2 Gen 1 (3.1 Gen 1) Type-C ports quantity 3
Number of USB ports with PowerShare support 1
USB Power Delivery Y
USB Power Delivery revision 3.0
USB Power Delivery up to 100 W
HDMI ports quantity 2
DisplayPorts quantity 2
Headphone outputs 1
Headphone connectivity 3.5 mm
HDCP Y
HDCP version 1.4/2.3
USB Type-C DisplayPort Alternate Mode Y
Network
Ethernet LAN Y
Ethernet LAN (RJ-45) ports 1
Ethernet LAN data rates 10, 100, 1000, 2500 Mbit/s
Performance
Product colour Black
Card reader integrated Y
Compatible memory cards MicroSD (TransFlash), SD
HD type 8K Ultra HD
Maximum digital resolution 7680 x 4320 Pixels
Maximum refresh rate 60 Hz
LED indicators Y
High Dynamic Range (HDR) supported Y
Power
Power source type USB
Power connector USB Type-C
USB cable length 1 m
Software
Windows operating systems supported Windows 10, Windows 11

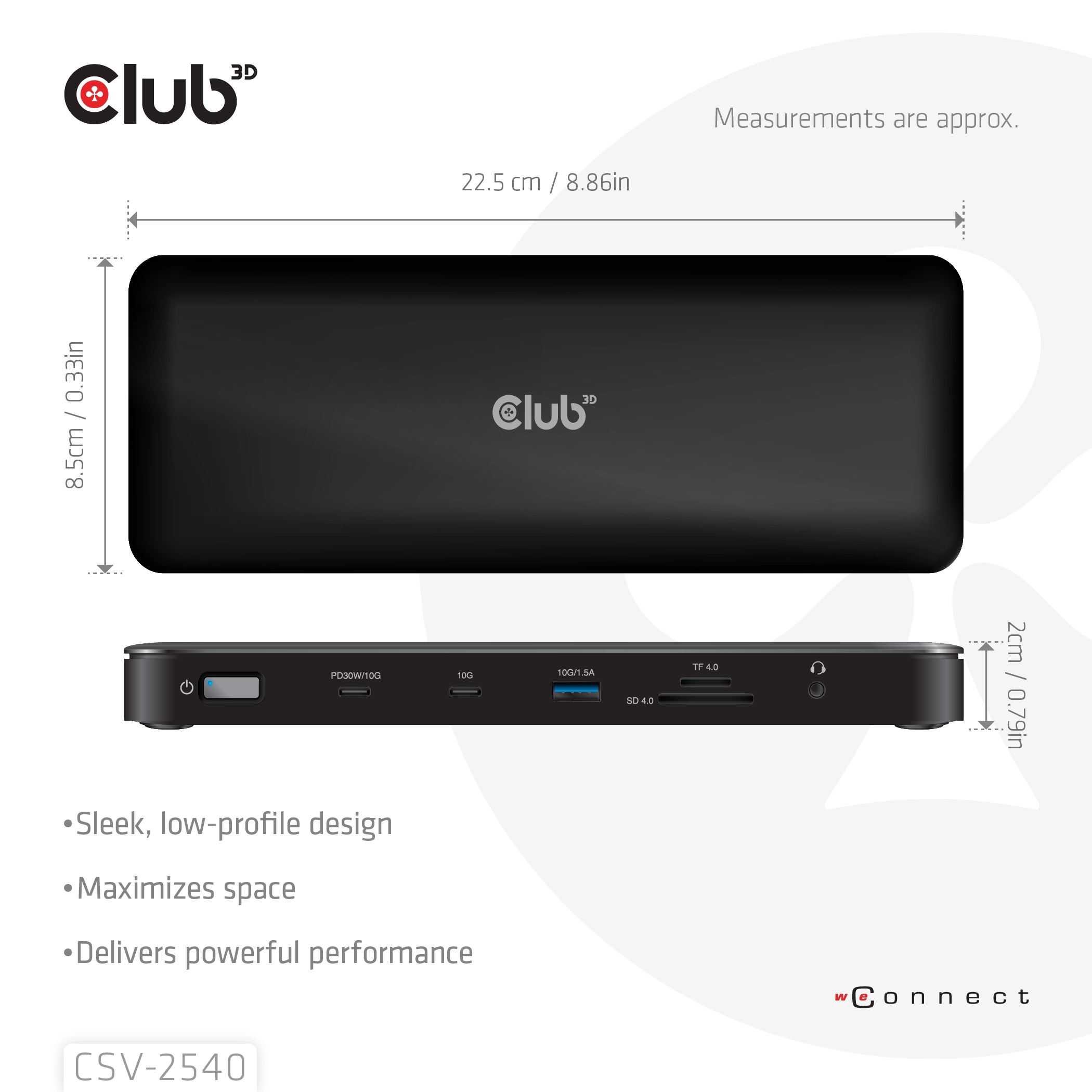

Weight & dimensions
Weight 361 g
Packaging data
Quantity per pack 1 stuk(s)
Package width 275 mm
Package depth 125 mm
Package height 770 mm
Package weight 1160 g
Technical details
Harmonized System (HS) code 8473 3020

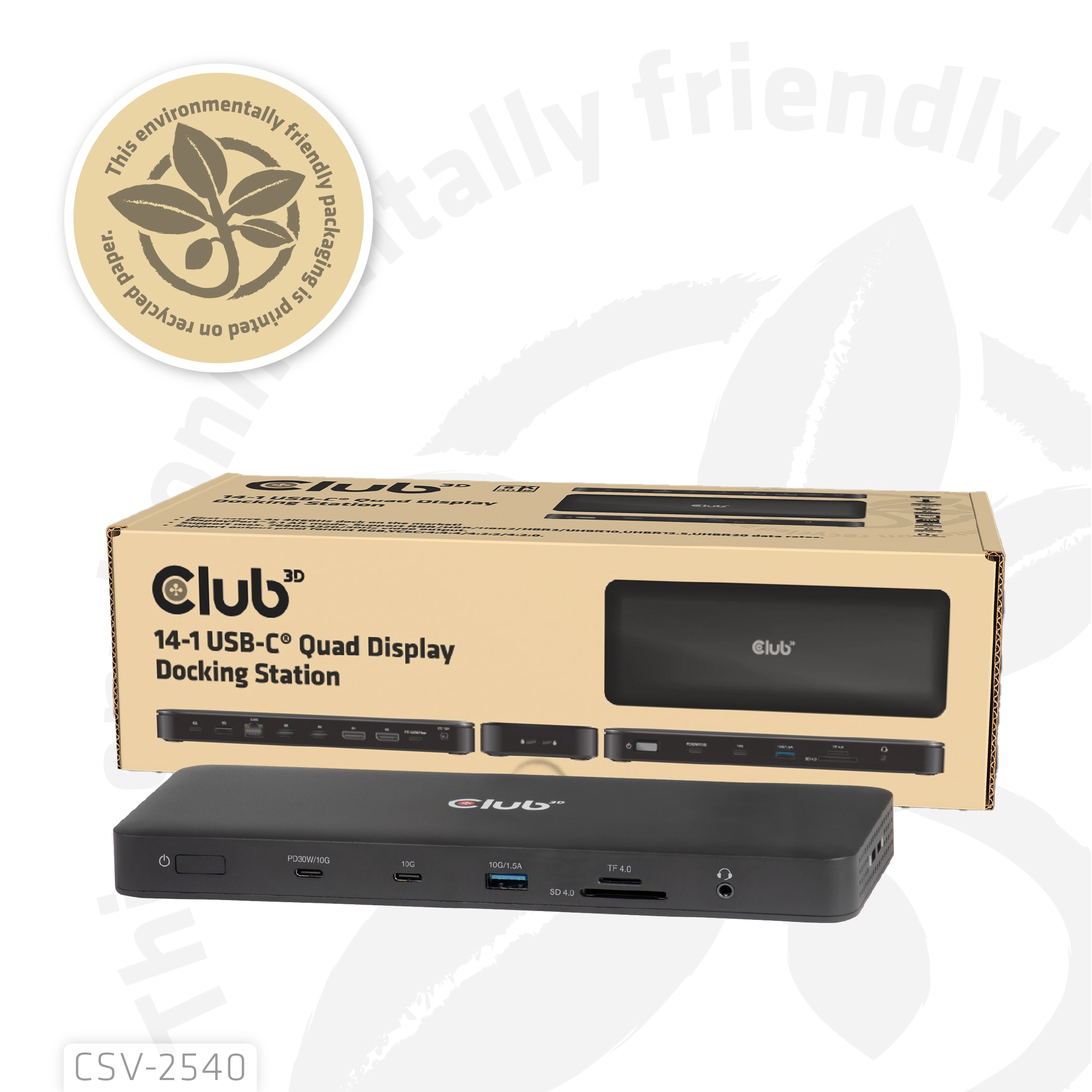

Packaging composition
Plastic packaging weight 6 g
Paper/cardboard packaging weight 239 g
