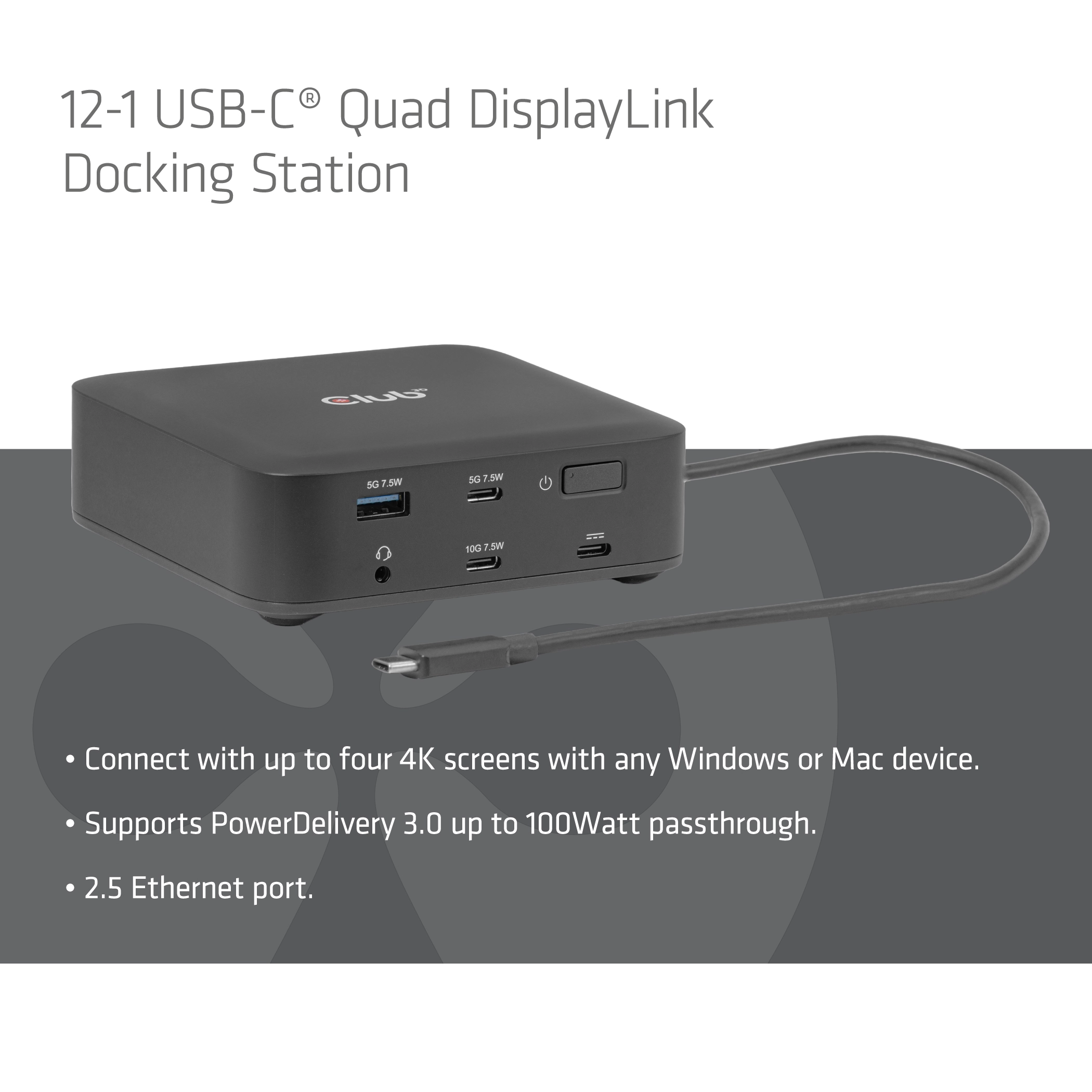

Description:

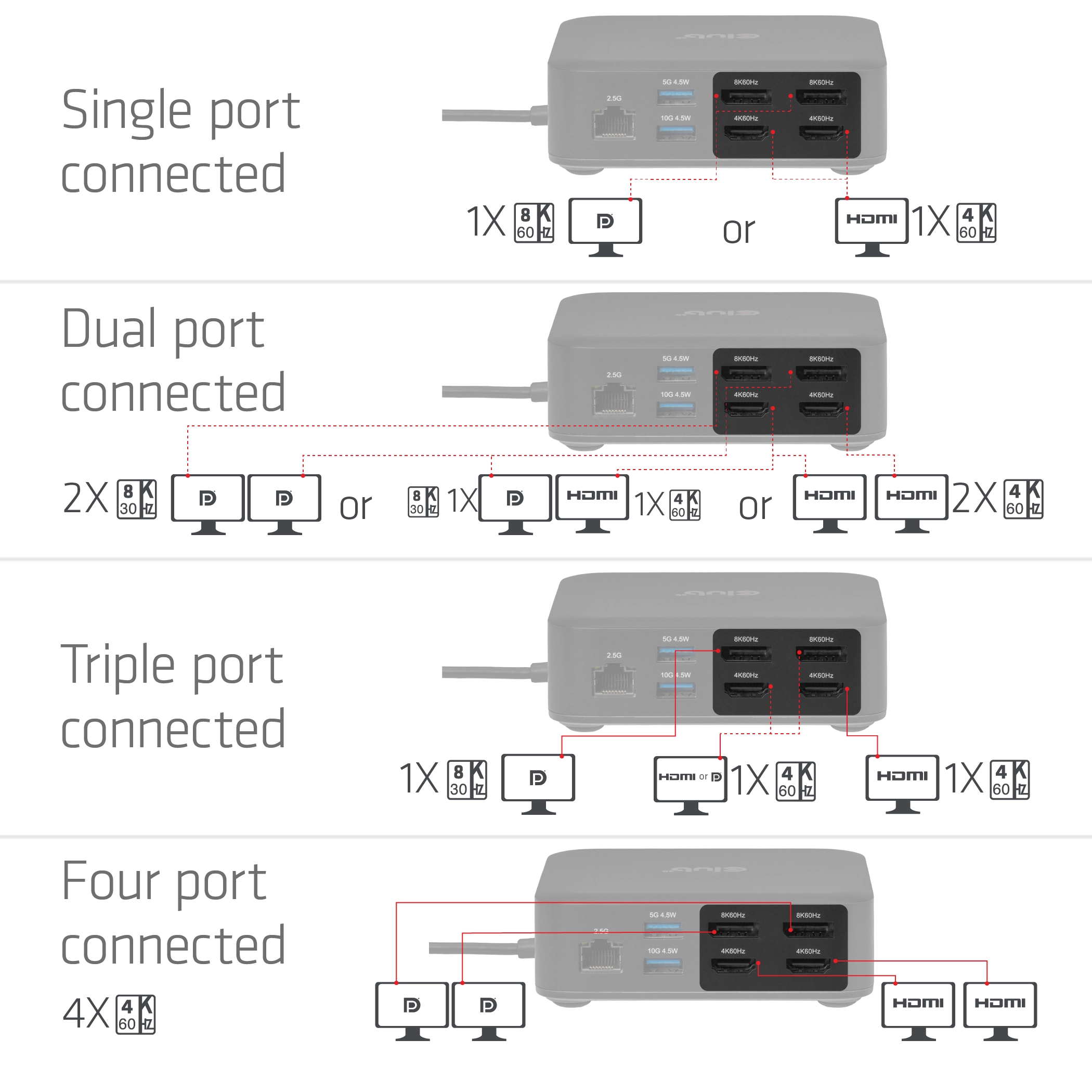

• QUAD DISPLAY DOCKING STATION: Working on any PC or MAC in 4K,
thanks to DisplayLink technology.
• RELIABLE PERFORMANCE: USB bus powered or via external USB-C®
power adapter; 100W Power Delivery 3.0 pass through.
• 2.5 GIGABIT ETHERNET: Features a 2.5Gbps network controller that
delivers speeds of 10/100/1000/2500Mbps; For laptops / devices
without an Ethernet.
• 12-PORT USB-C®: Expand the connectivity of a USB-C® computer
by adding five USB Ports (3x USB Type-A, 2x Type-C®) and a Power
Delivery 3.0 USB-C® Port Max. 100Watt.

Specification

Product
Product id	1005889
Brand	Club 3D
Partnr	CSV-2542
EAN/UPC code	8719214473648

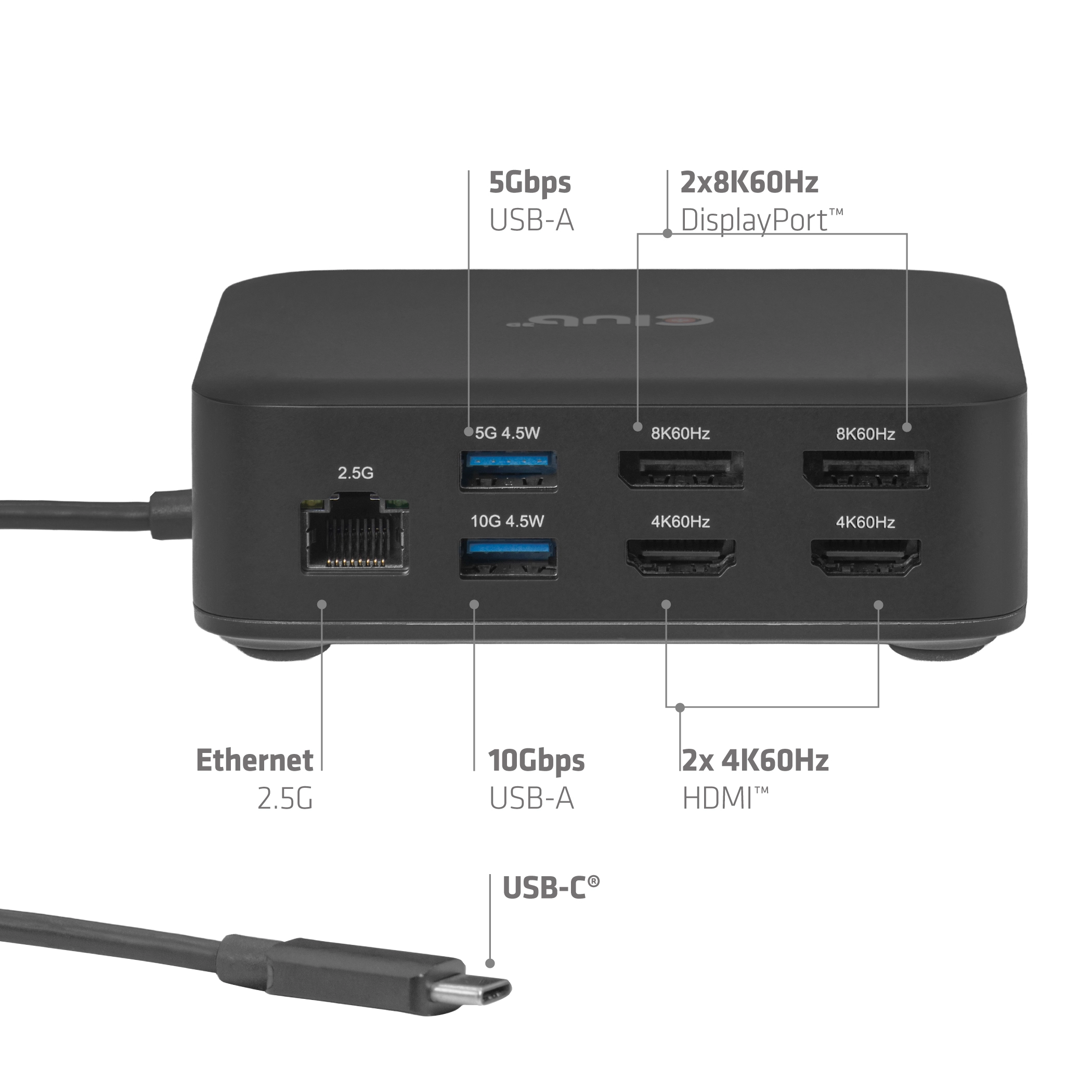

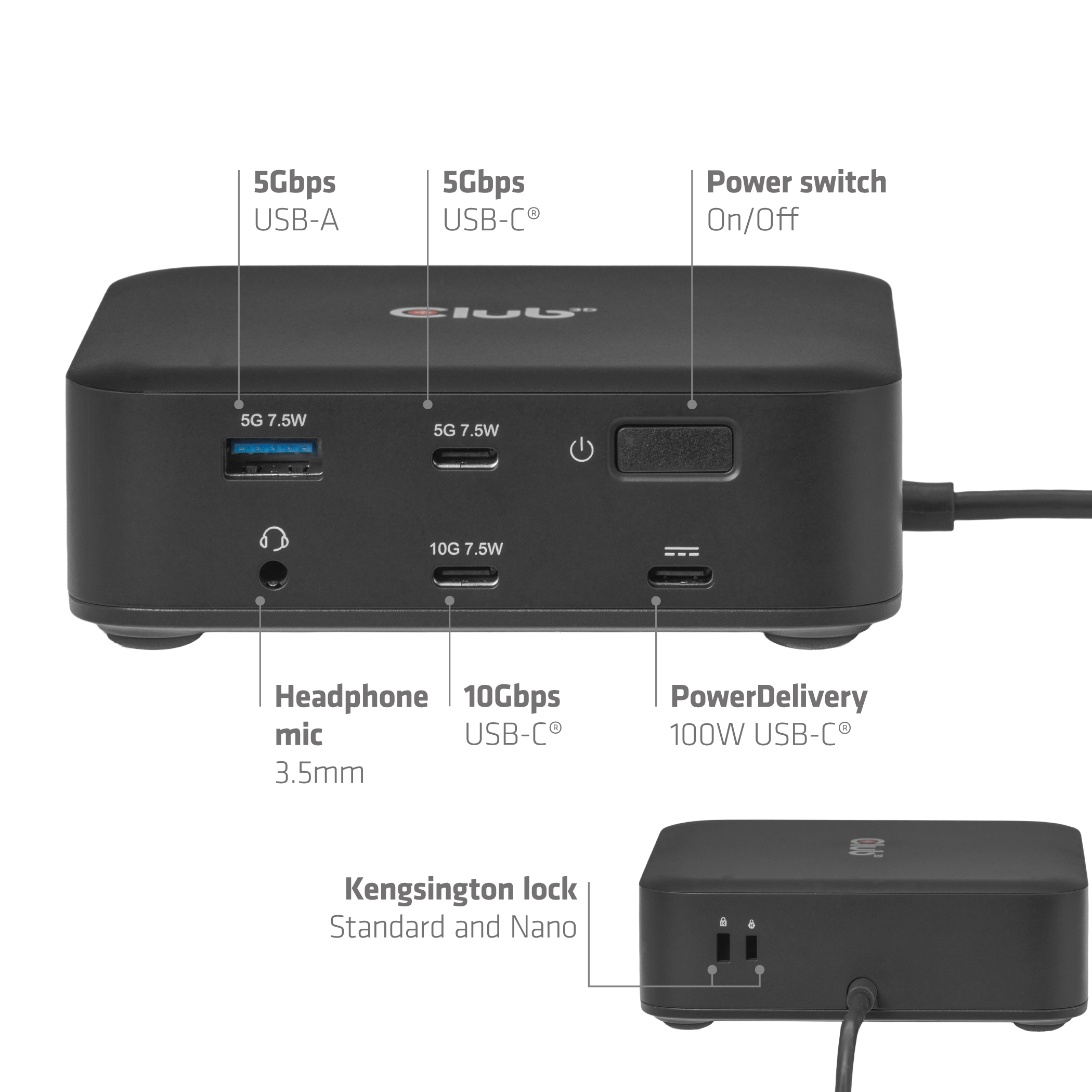

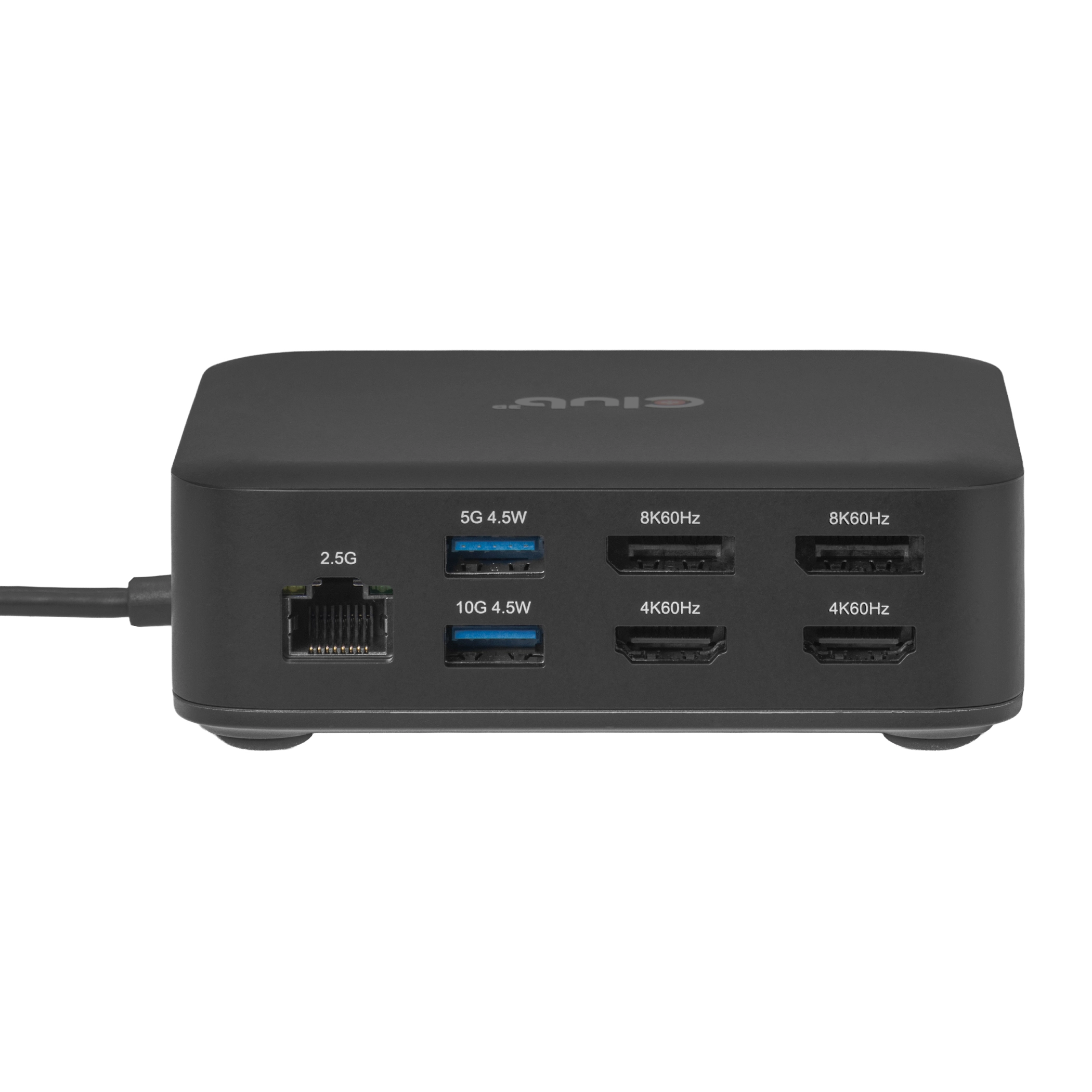

Ports & interfaces
Connectivity technology	Wired
Host interface	USB 3.2 Gen 2 (3.1 Gen 2) Type-C
USB 2.0 ports quantity	3
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity	3
USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity	2
USB Power Delivery up to	100 W
HDMI ports quantity	2
DisplayPorts quantity	2
Microphone in	N
Headphone outputs	1
Headphone connectivity	3.5 mm
Network
Ethernet LAN	Y
Ethernet LAN data rates	2500 Mbit/s
Performance
Product colour	Black
Card reader integrated	N
Certification	Meets ROHS, FCC, and CE EMI requirements

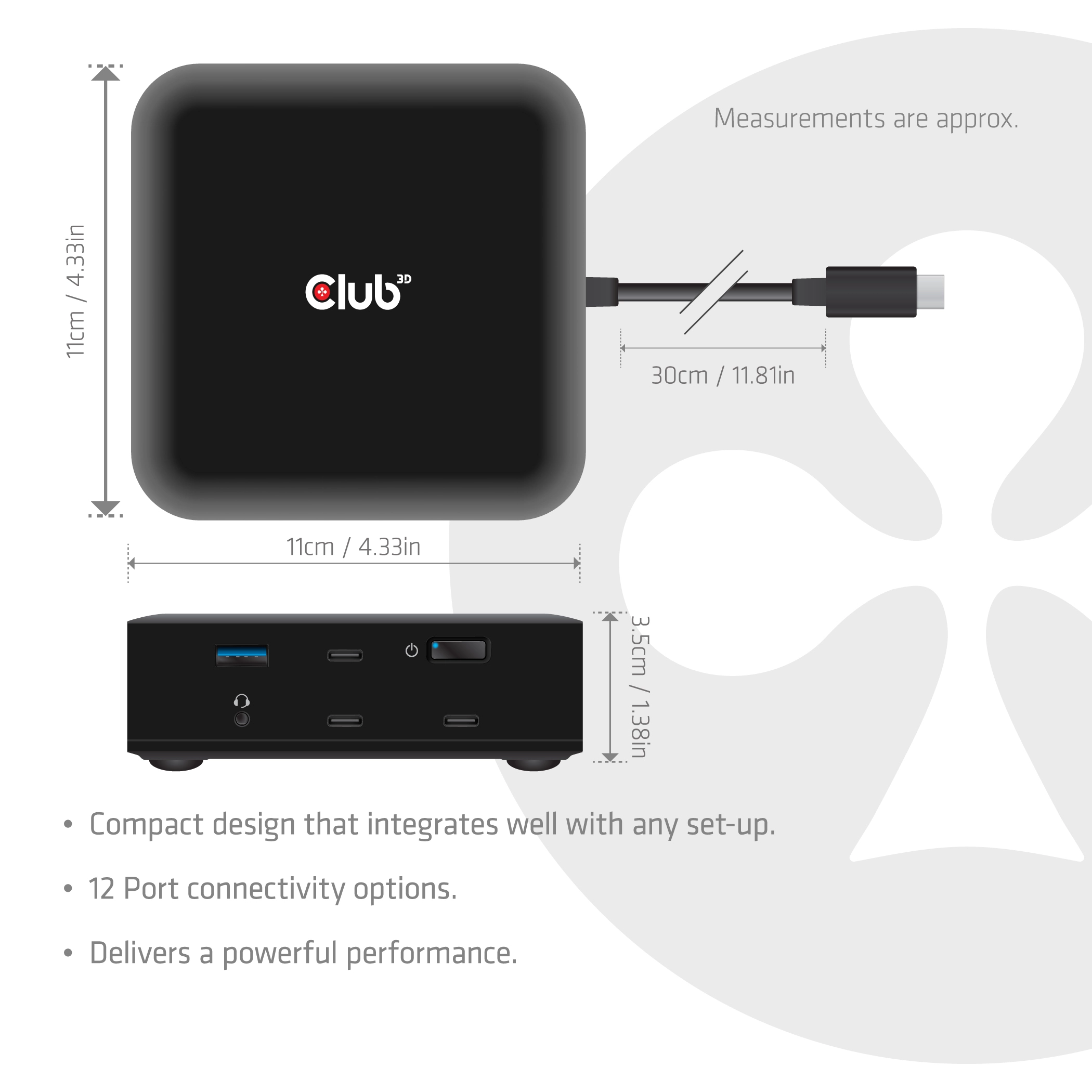

Weight & dimensions
Weight	361 g

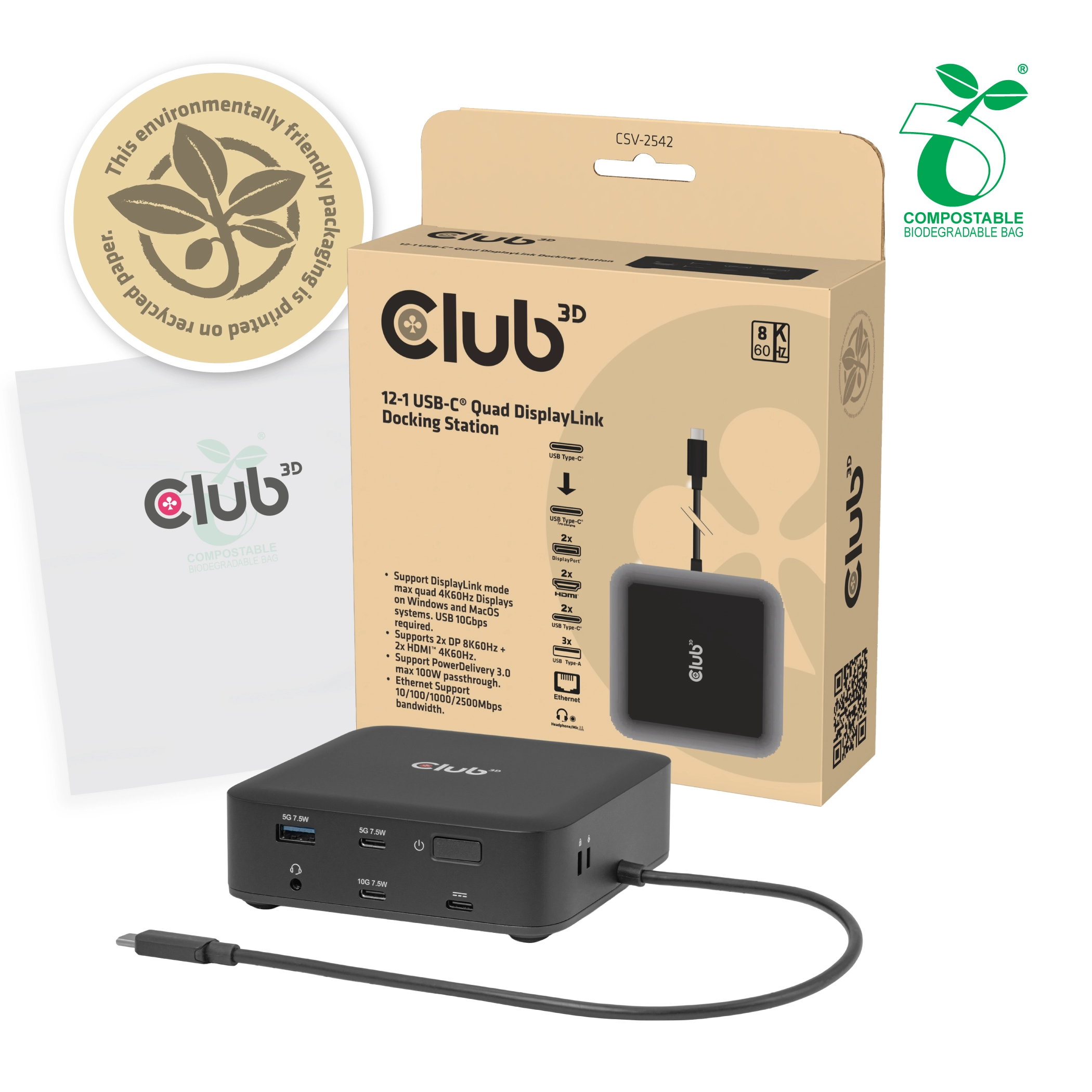

Packaging data
Quantity per pack	1 stuk(s)
Package width	145 mm
Package depth	45 mm
Package height	145 mm
Package weight	410 g
