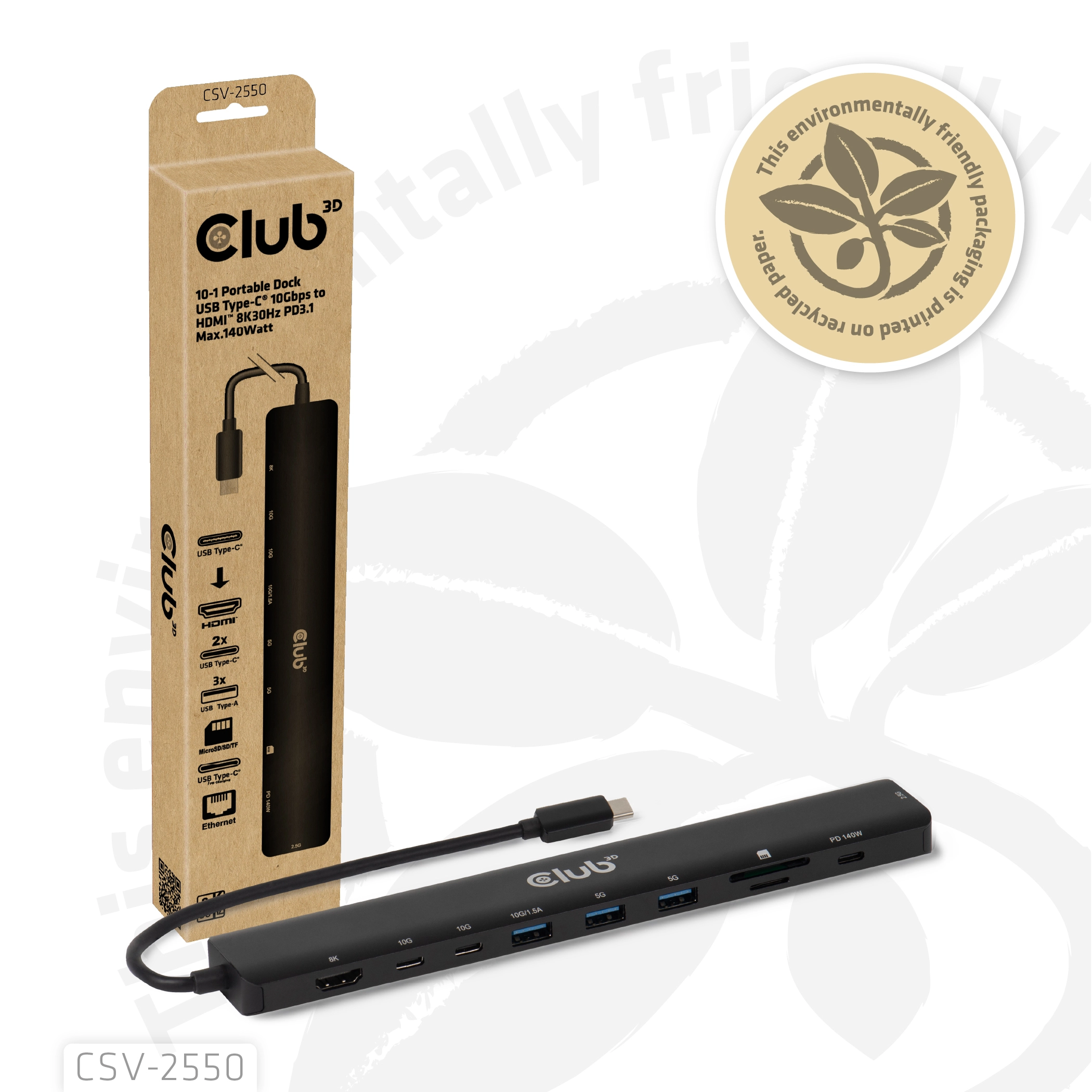

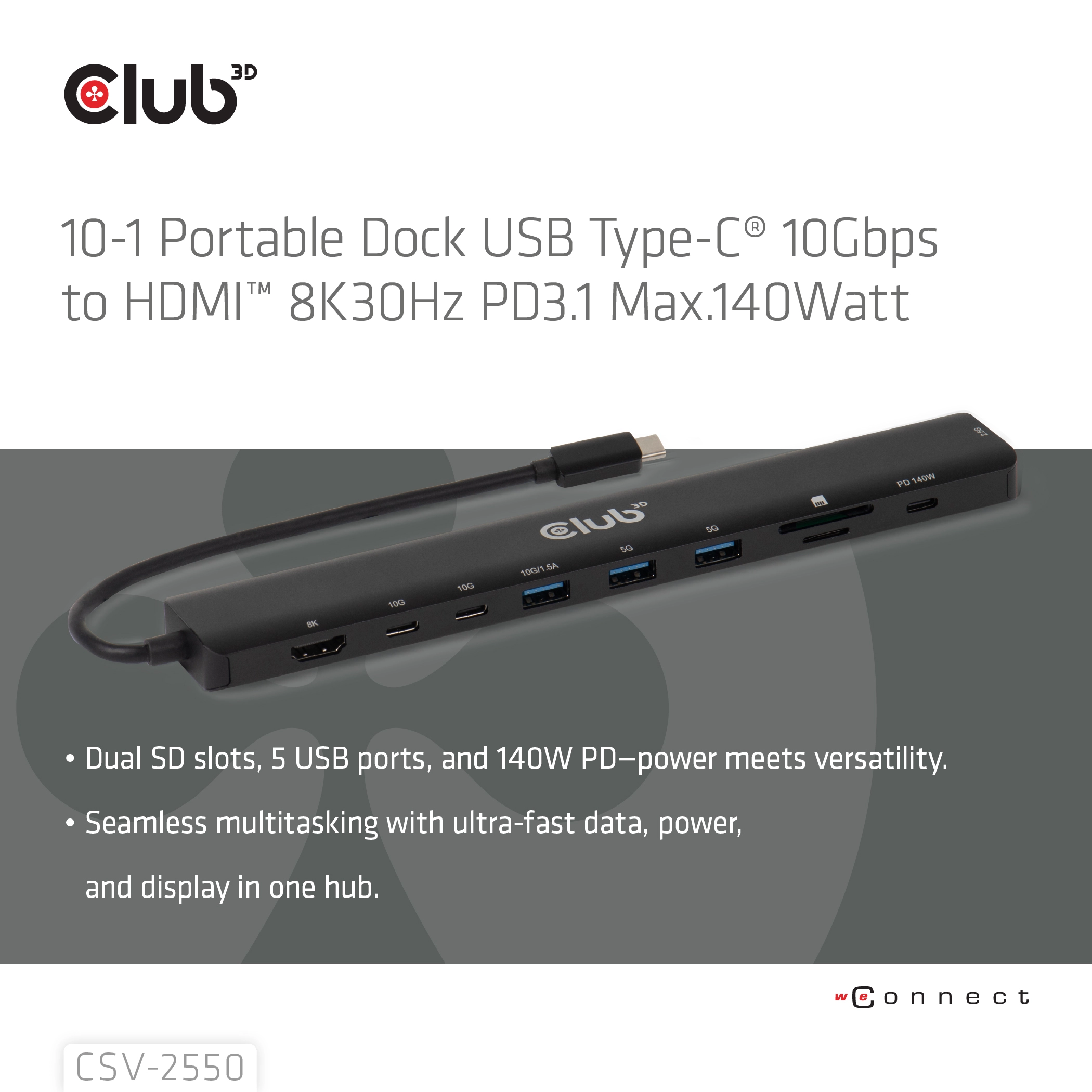

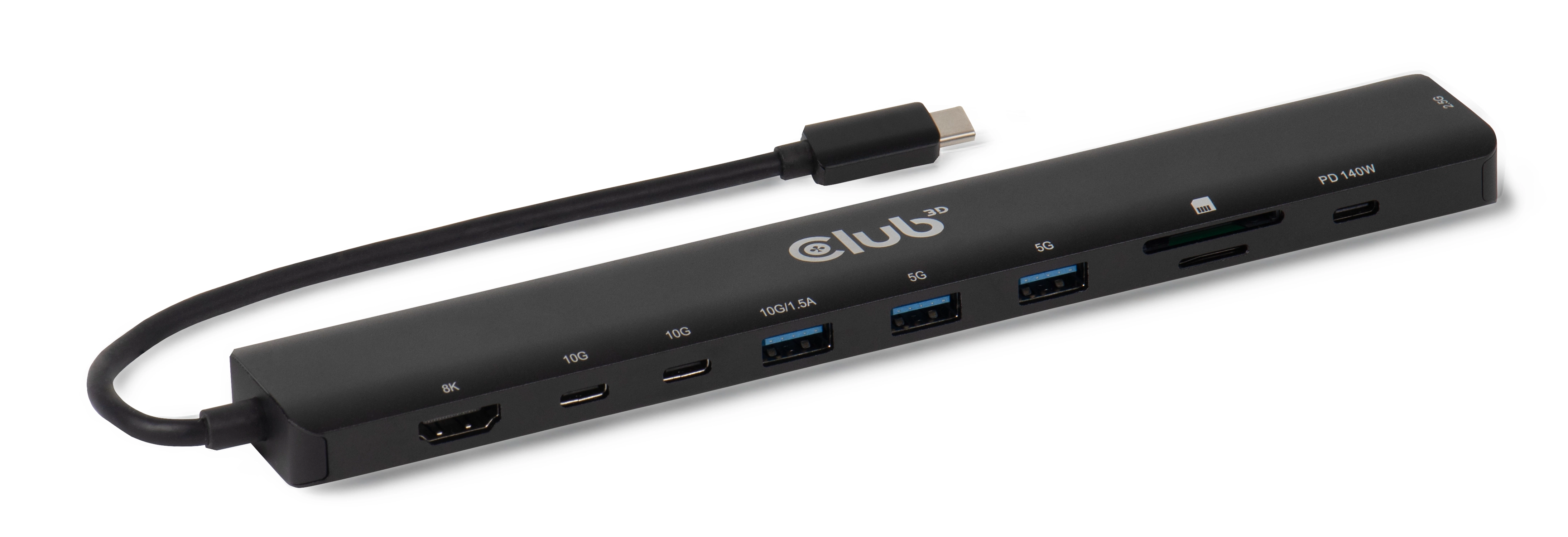

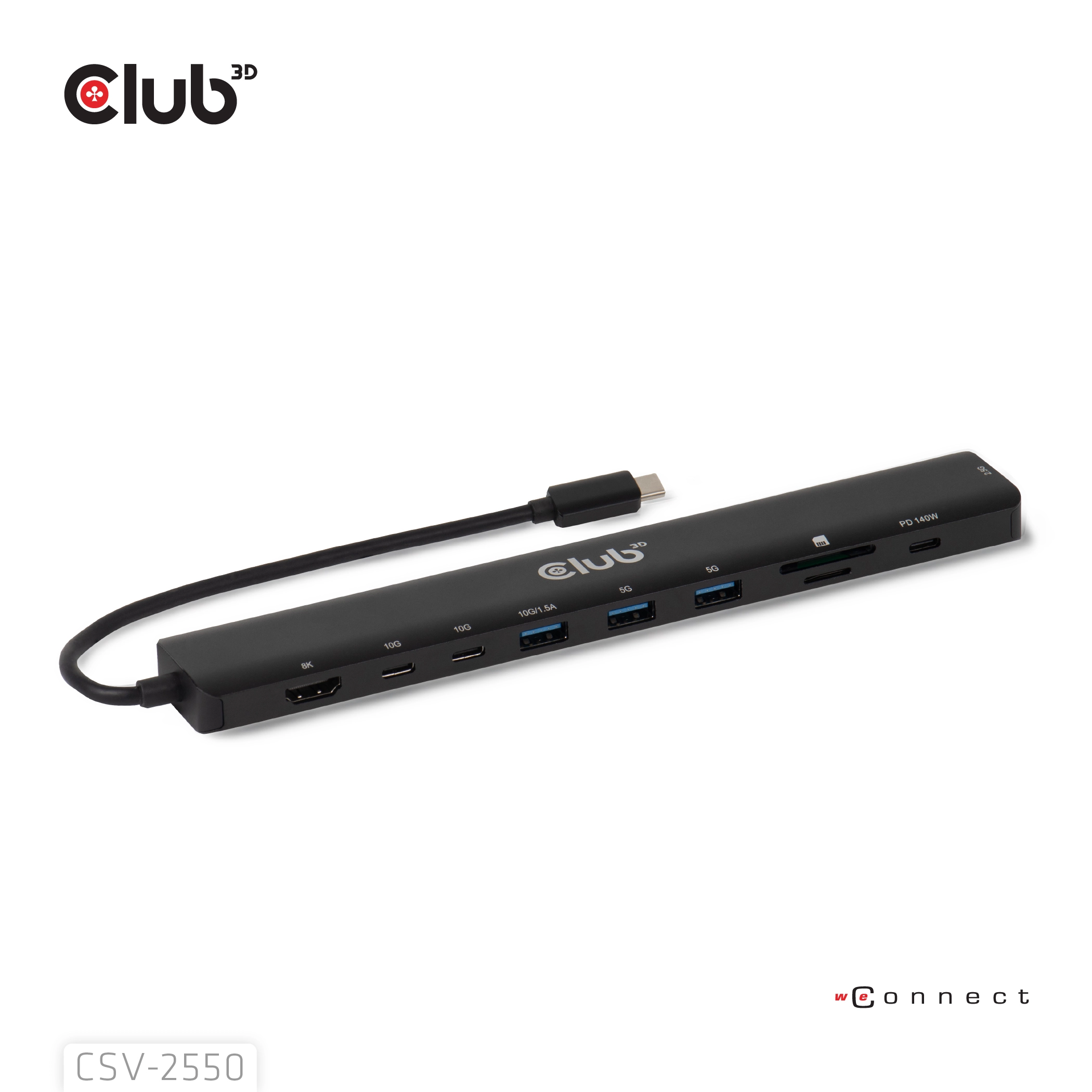

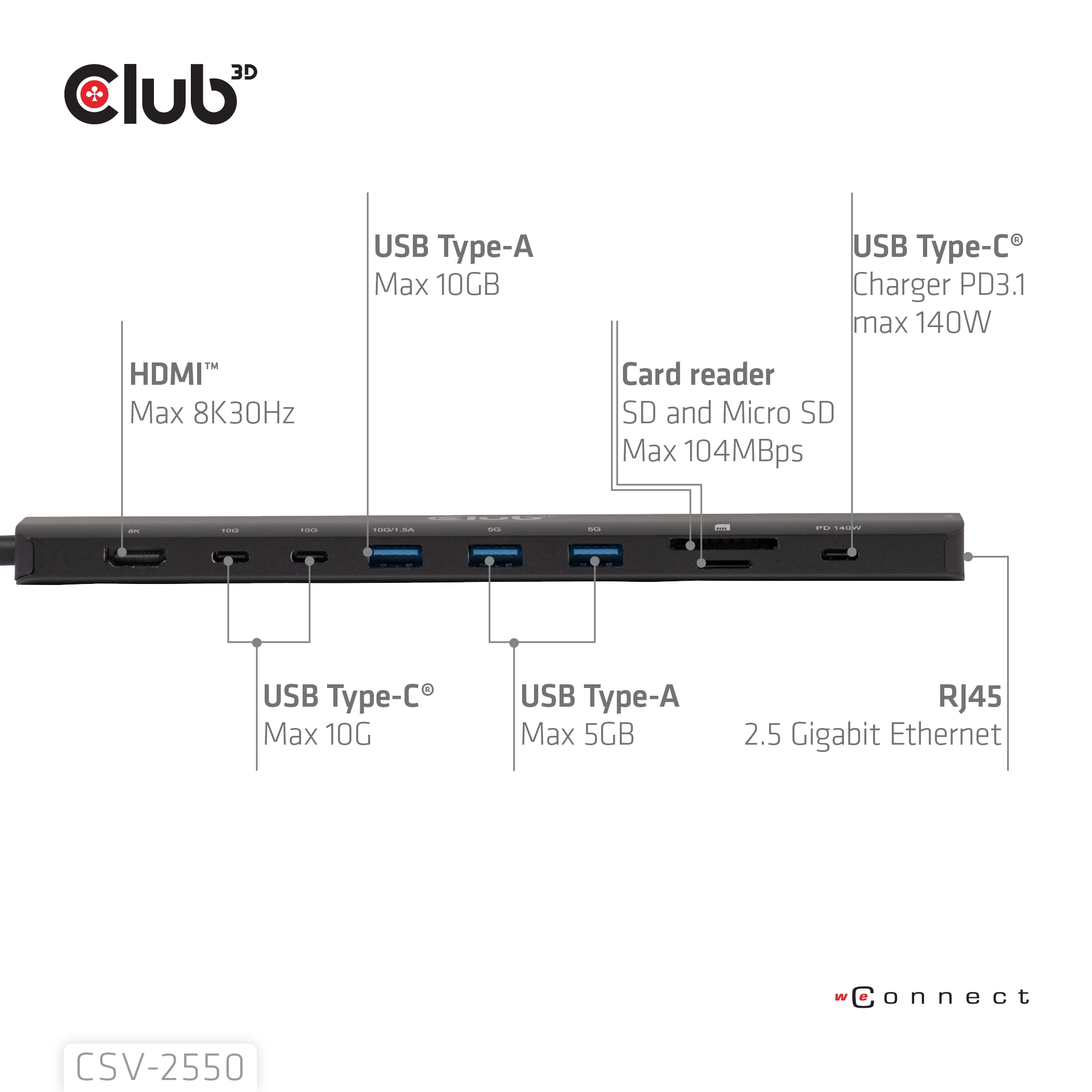

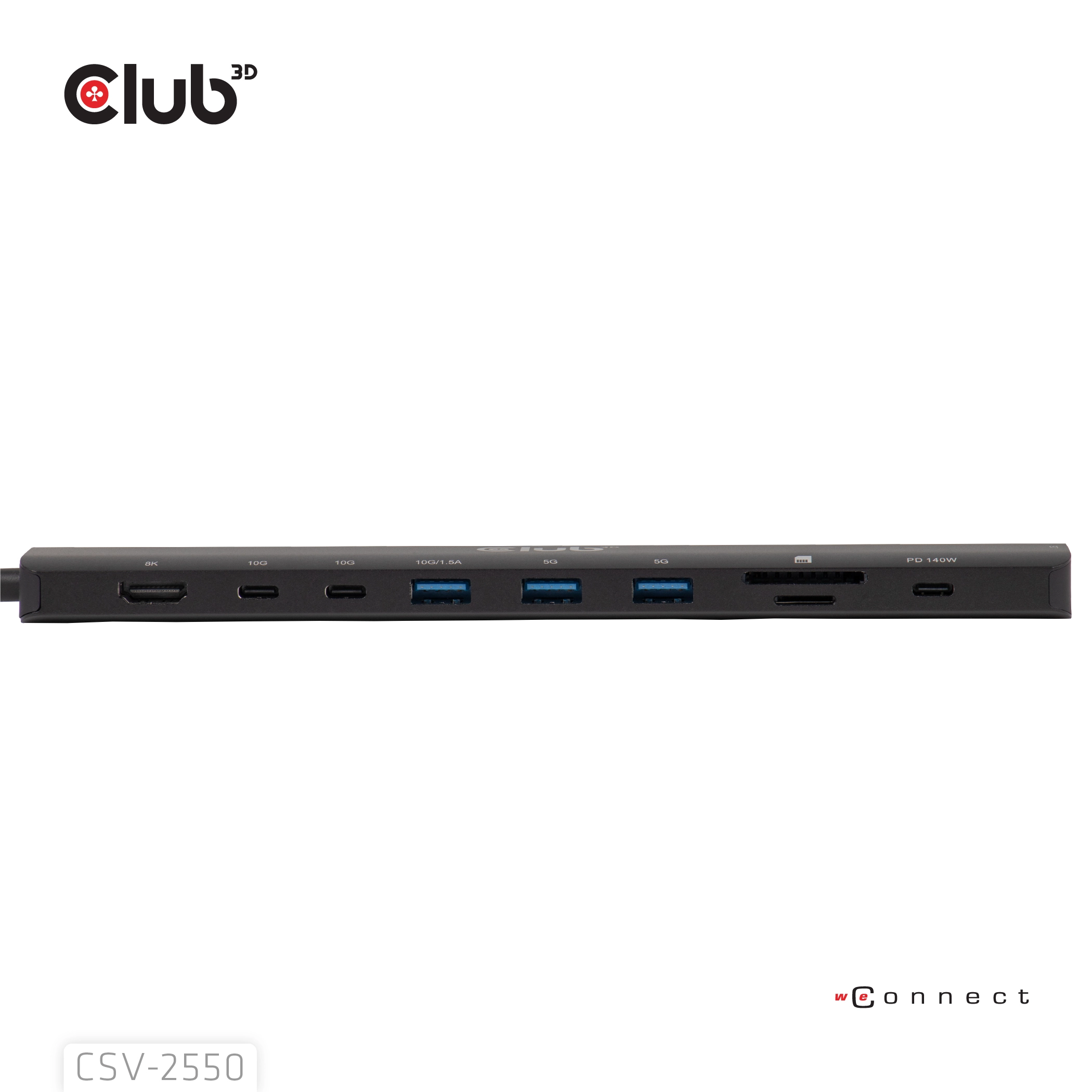

The Club 3D CSV-2550 is a 10-1 Portable Dock USB-C® 10Gbps to HDMI™ 8K30Hz PD3.1 Max.140Watt, providing an ideal solution for extending the port of USB-C® or Thunderbolt™® host (PC/Laptop/Mobile phone, etc. ), especially for those host with a single USB-C® port. This hub enables to output HDMI™ with max 8K30Hz or 4K144Hz high refresh rate for more natural and smoother visual experience at the meanwhile transfer USB 10Gbps data. 3x USB Type-A and 2x USB-C® data ports allow you to connect 5 USB devices simultaneously. SD/Micro SD allow to insert 2 card slots simultaneously for data transmission or for reading/writing information on the host. RJ45 port allows the host to get access to 2.5 Gigabit Ethernet. Besides, the USB-C® female supports PD 3.1 with max 140W PD Charging. It can work on all DP Alt mode supported USB-C® hosts.

Specification

Product
Product id	986620
Brand	Club 3D
Partnr	CSV-2550
EAN/UPC code	8719214473389
Ports & interfaces
Ports quantity	10
Host interface	USB Type-C
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity	2
USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity	1
USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity	2
HDMI ports quantity	1
HDMI version	2.1
Ethernet LAN (RJ-45) ports	1
Card reader integrated	Y
Compatible memory cards	MicroSD (TransFlash), SD
Features
Maximum refresh rate	120 Hz
Product colour	Black
USB Power Delivery up to	140 W
USB Power Delivery revision	3.1
USB Power Delivery	Y
HD type	8K Ultra HD
Network
Ethernet LAN data rates	10, 100, 1000, 2500 Mbit/s
Power
Power source type	USB
Technical details
Data transfer rate	10 Gbit/s
Compliance certificates	CE, Federal Communications Commission (FCC), RoHS
Weight & dimensions
Weight	109 g
Packaging data
Quantity per pack	1 stuk(s)
Package width	70 mm
Package depth	32 mm
Package height	35 mm
Package weight	154 g
Packaging composition
Plastic packaging weight	3 g
Paper/cardboard packaging weight	42 g
Performance
Harmonized System (HS) code	8473 3020
Ethernet LAN	Y
Connectivity technology	Wired
Microphone in	N
Maximum digital resolution	7680 x 4320 Pixels
USB cable length	0.19 m
Power connector	USB Type-C
