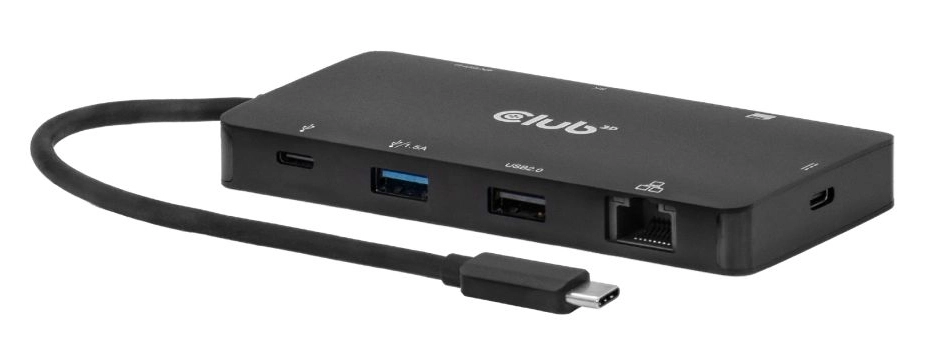

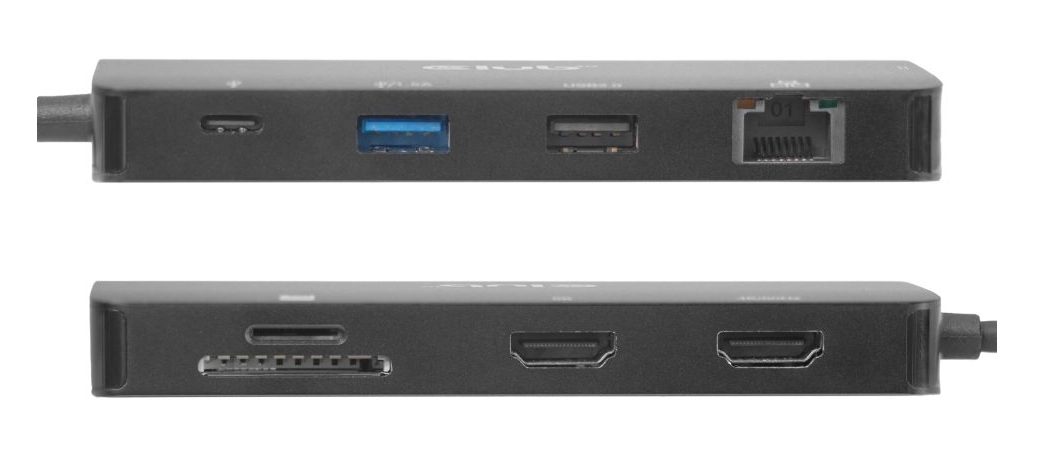

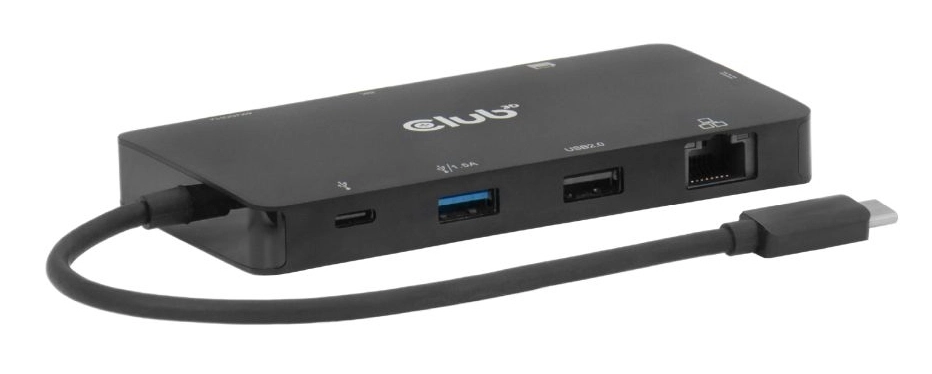

The Club 3D CSV-2552 is a USB-C® 9-1 hub with Dual HDMI™, 2x USB-A, 1x USB-C® data, RJ45, Micro SD/SD card slots and USB-C® charging female port, providing an ideal solution for extending the port of USB-C® or Thunderbolt host (PC/Laptop/Mobile phone, etc. ), especially for those host with a single USB-C® port.

Specification

Product
Product id	995356
Brand	Club 3D
Partnr	CSV-2552
EAN/UPC code	8719214473556
Ports & interfaces
Ports quantity	9
Host interface	USB Type-C
Hub interfaces	HDMI, RJ-45, USB 3.2 Gen 1 (3.1 Gen 1) Type-A, USB 3.2 Gen 1 (3.1 Gen 1) Type-C
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity	2
USB 3.2 Gen 1 (3.1 Gen 1) Type-C ports quantity	2
HDMI ports quantity	1
Ethernet LAN (RJ-45) ports	1
Card reader integrated	Y
Card reader slot	2
Compatible memory cards	MicroSD (TransFlash), SD
Features
Data transfer rate	5000 Mbit/s
Maximum refresh rate	60 Hz
Product colour	Black
Supported graphics resolutions	3840 x 2160, 7680 x 4320
USB Power Delivery up to	100 W
USB Power Delivery revision	3.0
USB Power Delivery	Y
Number of displays supported	2
HD type	8K Ultra HD
Cable length	0.17 m
Network
Ethernet interface type	Gigabit Ethernet
Ethernet LAN data rates	10, 100, 1000 Mbit/s
Power
Power supply type	USB
Output voltage	5 V
Output current	2.4 A
Technical details
Compliance certificates	CE, Federal Communications Commission (FCC), RoHS
System requirements
Windows operating systems supported	Windows 11
Mac operating systems supported	Mac OS X 15.0 Sequoia
Weight & dimensions
Width	115 mm
Depth	59 mm
Height	14 mm
Weight	121 g
Packaging data
Quantity per pack	1 stuk(s)
Package width	145 mm
Package depth	145 mm
Package height	45 mm
Package weight	169 g
Other features
Cable type	Round cable
