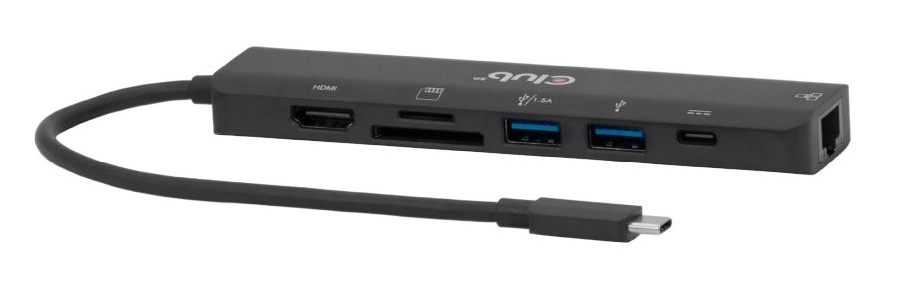

The Club 3D CSV-2553 is a USB Type-C®, 7-in-1 hub with HDMI™, 2x USB Type A, RJ45, microSD/SD card slots and Type-C® female port, providing an ideal solution for extending the port of USB Type-C® or Thunderbolt™ 3 host (PC/Laptop/tablet/Mobile phone, etc. )specially for the host with a single USB Type-C® port.

Specification

Product
Product id	995357
Brand	Club 3D
Partnr	CSV-2553
EAN/UPC code	8719214473563
Ports & interfaces
Ports quantity	7
Host interface	USB Type-C
Hub interfaces	HDMI, RJ-45, USB 2.0 Type-A, USB Type-C
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity	2
USB 3.2 Gen 1 (3.1 Gen 1) Type-C ports quantity	1
HDMI ports quantity	1
Ethernet LAN (RJ-45) ports	1
Card reader integrated	Y
USB Type-C DisplayPort Alternate Mode	Y
Compatible memory cards	MicroSD (TransFlash), SD
Features
Data transfer rate	5000 Mbit/s
Maximum refresh rate	60 Hz
Product colour	Black
Supported graphics resolutions	3840 x 2160
High Dynamic Range (HDR) supported	Y
USB Power Delivery up to	100 W
USB Power Delivery revision	3.0
USB Power Delivery	Y
HDCP	Y
HDCP version	1.4/2.2
HD type	4K Ultra HD
Cable length	0.17 m
Network
Ethernet interface type	Gigabit Ethernet
Ethernet LAN data rates	10, 100, 1000 Mbit/s
Power
Power supply type	USB
System requirements
Windows operating systems supported	Windows 11
Mac operating systems supported	Mac OS X 15.0 Sequoia
Weight & dimensions
Width	136.1 mm
Depth	34 mm
Height	14 mm
Weight	71 g
Packaging data
Quantity per pack	1 stuk(s)
Package width	60 mm
Package depth	182 mm
Package height	35 mm
Package weight	95 g
