AIRFLOW SHOWS ITS TRUE COLOR

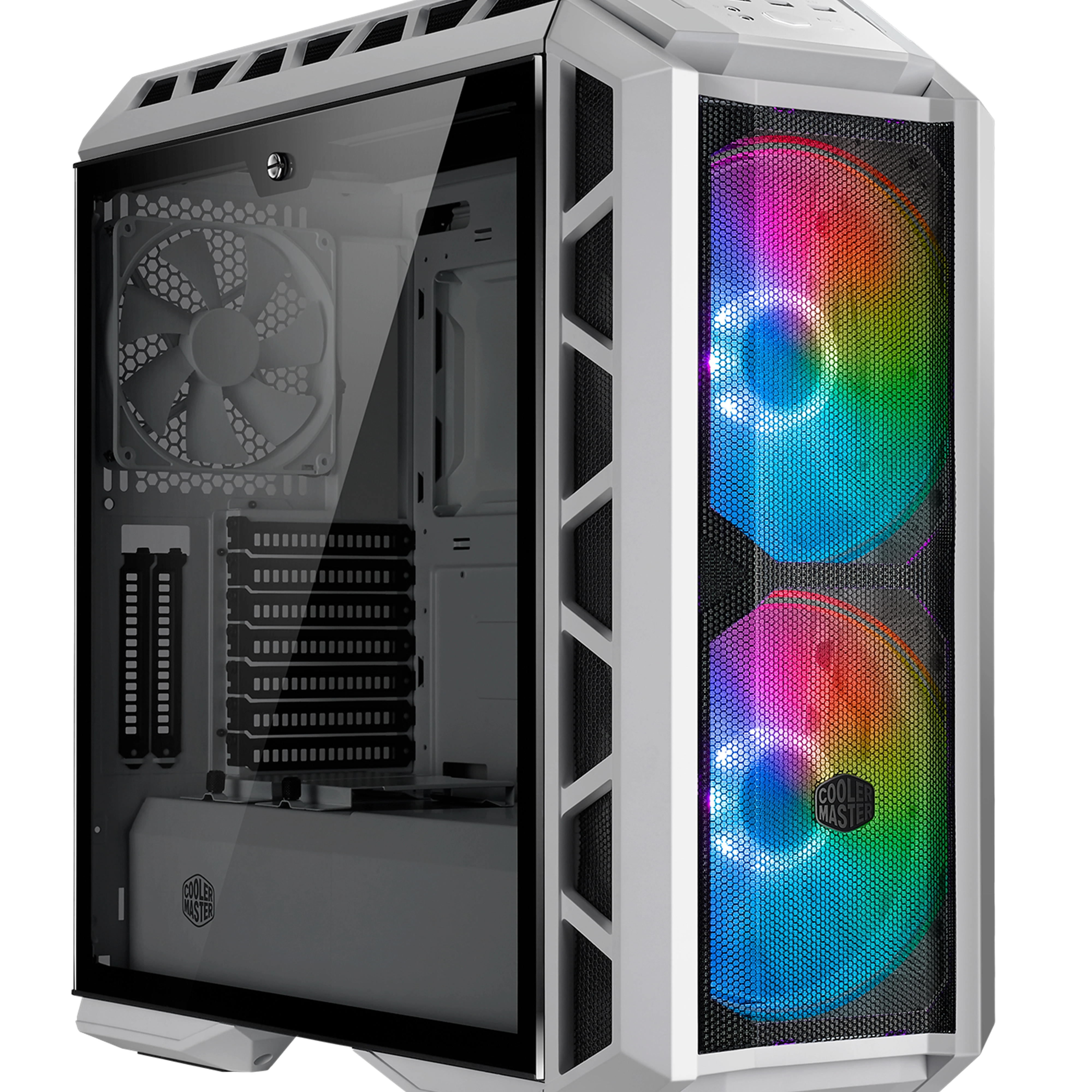

Appearing in arctic white, the H Series embraces the golden rule of PC building: to never stop upgrading. The MasterCase H500P Mesh White is no exception, now with two pre-installed 200mm ARGB fans. Addressable RGB fans were previously only available with the MasterCase H500M, the lineup’s premium flagship model.

The same premium lighting is now present in the Mesh White variant, without having to separately purchase the highly sought-after 200mm ARGB fans. The MasterCase H500P Mesh White ARGB preserves all of its award-winning advantages of airflow performance, component versatility, and trademark aesthetics of the H Series, while improving the customization potential of ARGB fans out of the box.

DUAL 200MM ARGB FANS
The iconic, addressable RGB fans are the core of the H-Series in design and function, capable of operating quietly while moving high volumes of air due to their size.

MESH FRONT PANEL
Two layers of mesh make up the entire front panel to maximize airflow. A finer layer filters out dust while the steel mesh reinforces its structure.

BUILD BY DESIGN
Transparent panels and a tempered glass side panel flaunt the hardware & fans, while the cable covers, PSU shroud, and cable management space hide the clutter.

ARGB LIGHTING SYSTEM
The pre-installed ARGB fans can be managed by either the motherboard or an included controller, connected by the included splitter, to create a comprehensive ARGB lighting system.

TEMPERED GLASS SIDE PANEL
Gaming hardware, custom-loop cooling, and the pure pride of the builder is shown in panoramic view through an edge-to-edge tempered glass side panel.

ARGB Controller​

​The small ARGB Controller is a mini-sized controller that allows your Addressable RGB such as fans and LED strips to be powered and controlled even in PC systems without an A-RGB capable motherboard. ​

The controller comes with 14 lighting presets to make full use of the Addressable LEDs in the system and also allows to be completely switched off by long pressing its button. ​

It is also possible to attach any external 2pin button to it to be able to switch presets without having to open the system. For ease of use, Cooler Master allows the RESET button to be optionally connected to the controller and used as an external ARGB preset switch button.

Specification

Product
Product id	671845
Brand	Cooler Master
Partnr	MCM-H500P-WGNN-S01
EAN/UPC code	4719512095232
Warranty (months)	2 Years
Design
Form factor	Midi Tower
Type	PC
Material	Mesh, Plastic, Steel, Tempered glass
Product colour	White
Supported motherboard form factors	ATX, EATX, Micro ATX, Mini-ITX
Number of 3.5" bays	2
Number of 2.5" bays	4
Number of expansion slots	9
Side window	Y
Illumination	Y
Illumination colour	Multi
Illumination location	Case fans
On/off button	Y
LED indicators	Y
Maximum CPU cooler height	190 mm
Maximum graphics card length	412 mm
Maximum PSU length	220 mm
Power supply
Power supply included	N
Power supply location	Bottom
Supported power supply form factors	ATX
Ports & interfaces
USB 2.0 ports quantity	2
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity	2
Audio input	Y
Audio output	Y
Cooling
Front fans installed	2x 200 mm
Number of front fans supported (max)	3
Front fans diameters supported	120, 140, 200 mm
Front fans supported description	3x 120/140mm, 2x 200mm
Rear fans installed	1x 140 mm
Number of rear fans supported (max)	1
Rear fans diameters supported	120, 140 mm
Number of top fans supported (max)	3
Top fans diameters supported	120, 140, 200 mm
Top fans supported description	3x 120/140mm, 2x 200mm
Front radiator fan sizes supported	120, 140, 240, 280, 360 mm
Rear radiator fan sizes supported	120, 140 mm
Top radiator fan sizes supported	120, 140, 240, 280, 360 mm
Storage
Supported HDD sizes	2.5, 3.5 "
Weight & dimensions
Width	242 mm
Depth	544 mm
Height	542 mm
Weight	11300 g
Packaging data
Package weight	14700 g
