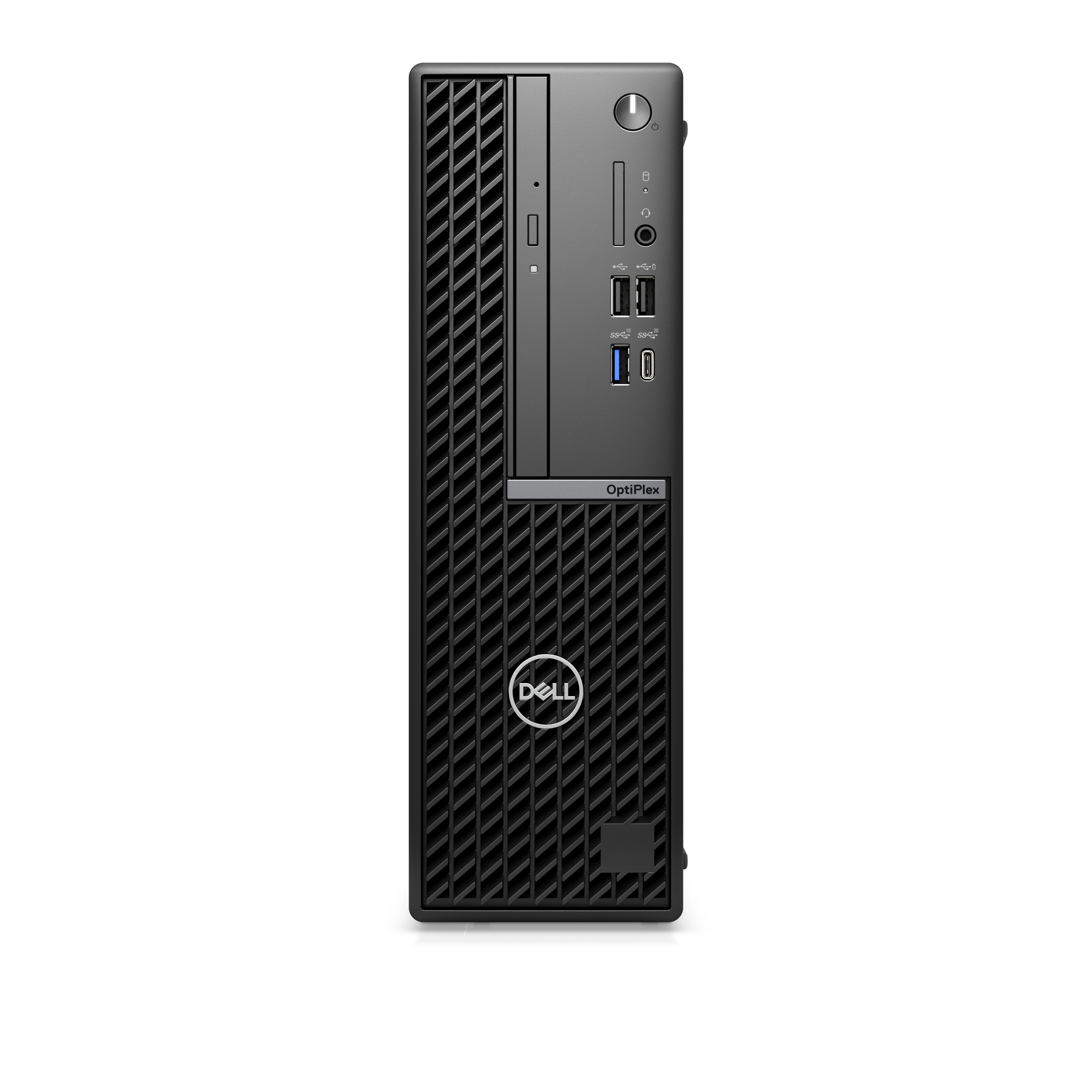

Small form factor desktop with highly expandable performance. Up to 128GB of DDR5 memory and 13th Gen Intel® Core™ processors.

Specification

Product
Product id	950470
Brand	Dell
Partnr	0403X
EAN/UPC code	5397184800386
Warranty (months)	3 Years Basic Onsite
Processor
Processor manufacturer	Intel
Processor family	Intel Core i7
Processor generation	Intel Core i7-13xxx
Processor model	i7-13700
Processor cores	16
Processor boost frequency	5.1 GHz
Processor cache	30 MB
Processor cache type	Smart Cache
Performance-core base frequency	2.1 GHz
Efficient-core base frequency	1.5 GHz
Performance-core Max Turbo Frequency	5.2 GHz
Bus type	DMI4
Number of processors installed	1
Number of processors supported	1
Memory
Internal memory	16 GB
Internal memory type	DDR5-SDRAM
Maximum internal memory	128 GB
Memory layout (slots x size)	2 x 8 GB
Memory slots	4x DIMM
Memory clock speed	4400 MHz
Memory channels	Dual-channel
Storage
Total storage capacity	512 GB
Optical drive type	N
Storage media	SSD
Number of storage drives installed	1
Total SSDs capacity	512 GB
Number of SSDs installed	1
SSD capacity	512 GB
SSD interface	PCI Express
NVMe	Y
SSD form factor	M.2
Compatible memory cards	Not supported
SSD performance class	35
RAID support	N
Graphics
Discrete graphics adapter	N
On-board graphics adapter	Y
Discrete graphics adapter model	Not available
On-board GPU manufacturer	Intel
On-board graphics adapter model	Intel UHD Graphics 770
Maximum on-board graphics card resolution	7680 x 4320 Pixels
Network
Ethernet LAN	Y
Ethernet LAN data rates	10, 100, 1000 Mbit/s
Cabling technology	10/100/1000Base-T(X)
Wi-Fi	N
Bluetooth	N
Ports & interfaces
USB 2.0 ports quantity	4
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity	3
USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity	2
USB 3.2 Gen 2x2 Type-C ports quantity	1
Number of USB ports with PowerShare support	1
PowerShare	Y
DisplayPorts quantity	3
DisplayPort version	1.4a
Ethernet LAN (RJ-45) ports	1
Line-in	Y
Line-out	Y
Combo headphone/mic port	Y
Number of SATA III connectors	3
Number of front audio ports	1
Number of front USB ports	4
Number of rear USB ports	6
Number of rear audio ports	1
Expansion slots
PCI Express x4 (Gen 3. x) slots	1
PCI Express x16 (Gen 4. x) slots	1
Design
Chassis type	SFF
Placement supported	Horizontal/Vertical
Water cooling system	N
Cable lock slot	Y
Cable lock slot type	Kensington
Product colour	Black
Performance
Product type	PC
Market positioning	Business
Motherboard chipset	Intel Q670
Audio chip	Realtek ALC3246-CG
Audio system	High Definition Audio
Built-in speaker(s)	N
Trusted Platform Module (TPM)	Y
Software
Operating system installed	Windows 11 Pro
Operating system architecture	64-bit
Operating system language	DEU, DUT, ENG, FRE, ITA
Trial software	No Microsoft Office License Included 30 day Trial Offer Only
Processor special features
Intel® vPro™ Platform Eligibility	Y
CPU configuration (max)	1
Power
Power supply	260 W
Power supply input voltage	90 - 264
Power supply input frequency	47/63 Hz
Operational conditions
Operating temperature (T-T)	10 - 35 °C
Storage temperature (T-T)	-40 - 65 °C
Operating relative humidity (H-H)	20 - 80 procent
Storage relative humidity (H-H)	5 - 95 procent
Operating altitude	-15.2 - 3048 m
Non-operating altitude	-15.2 - 10668 m
Operating vibration	0.26 G
Non-operating vibration	1.37 G
Non-operating shock	105 G
Weight & dimensions
Width	92.6 mm
Depth	292.8 mm
Height	290 mm
Weight	11214 g
Packaging content
Display included	N
Mouse included on selected markets only	Y
Mouse connectivity	Wireless
Keyboard included on selected markets only	Y
Keyboard connectivity	Wireless
Cables included	AC
Carbon footprint
Total carbon footprint	350 kilogram CO2e
Total carbon emissions (Standard deviation)	89 kilogram CO2e
Carbon emissions (Manufacturing)	229 kilogram CO2e
Carbon emissions (Logistics)	15 kilogram CO2e
Carbon emissions (Use)	102 kilogram CO2e
Carbon emissions (End-of-Life)	4 kilogram CO2e
Total carbon emissions (w/o Use phase)	248 kilogram CO2e
PAIA version	1.3.2
