Deliver the value of data

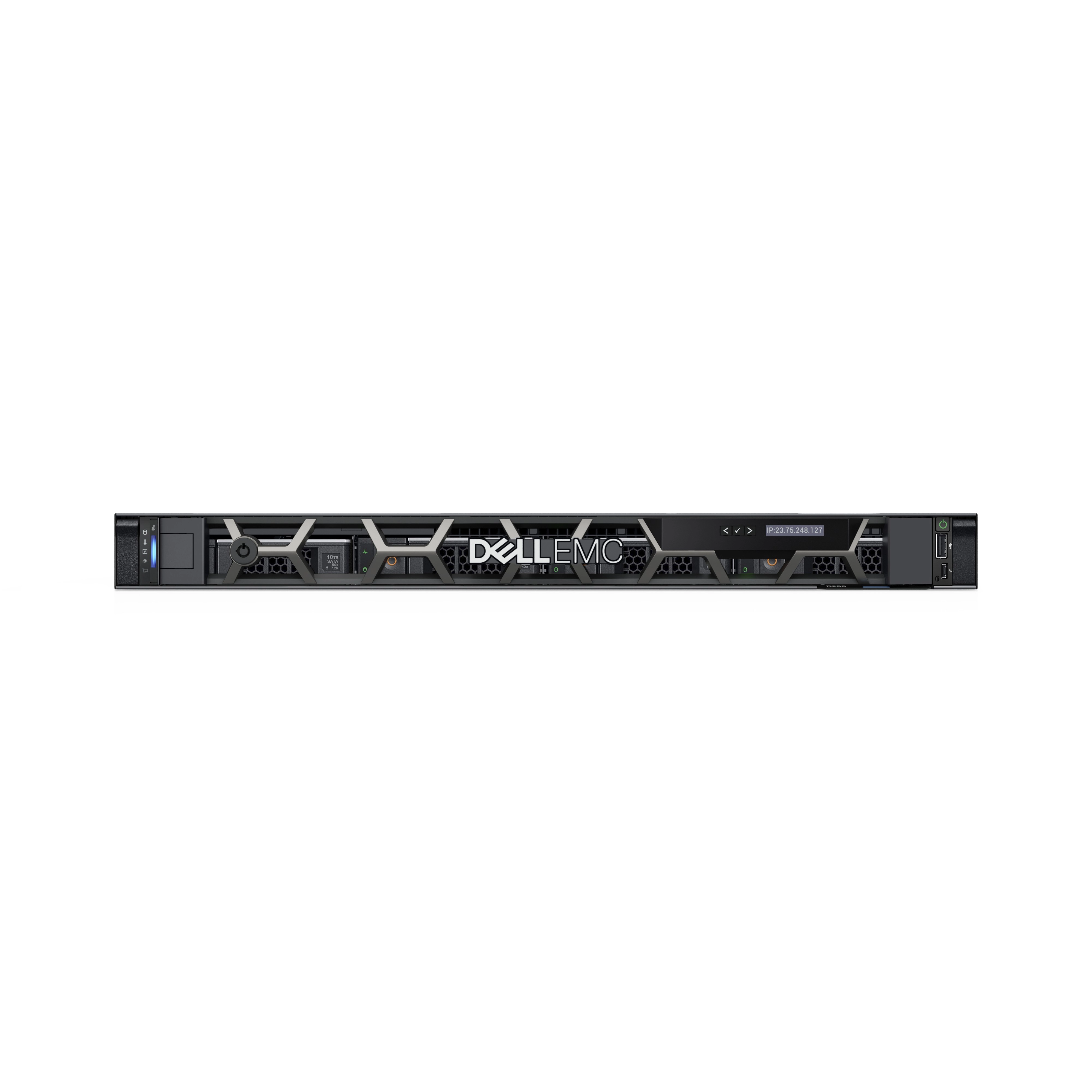

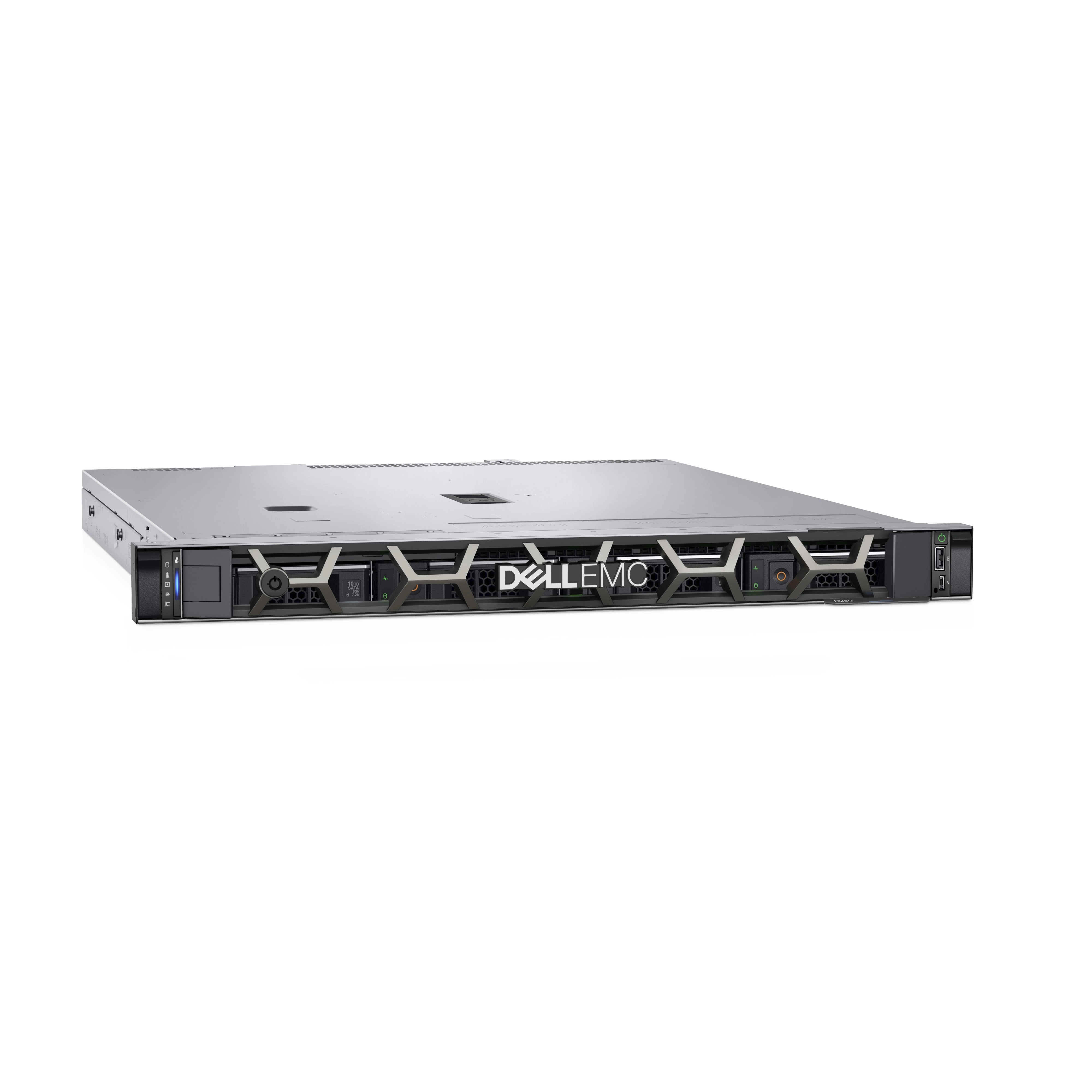

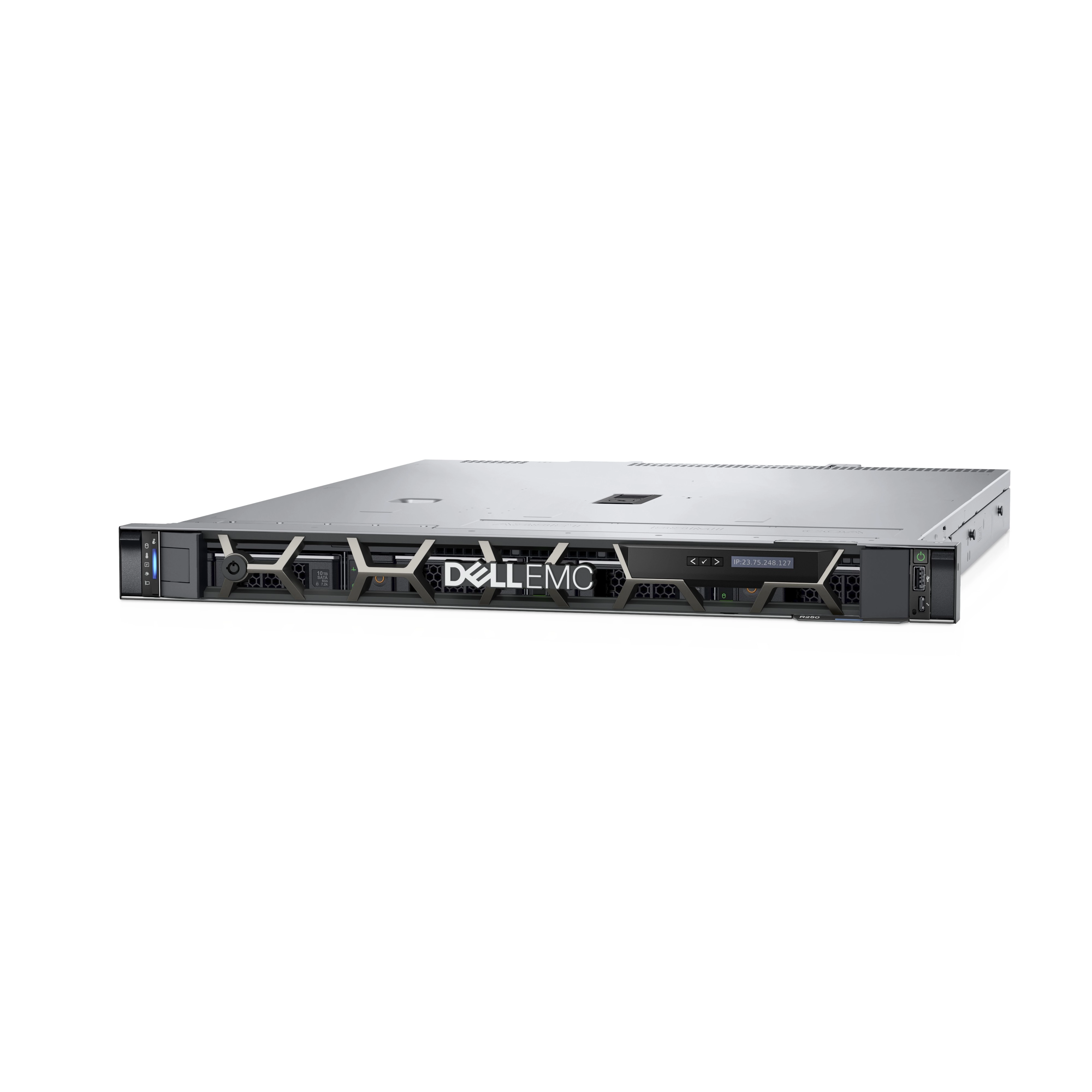

Affordably address common business workloads while delivering powerful compute with an entry-level 1U rack server.

Specification

Product
Product id	822742
Brand	Dell
Partnr	6V2CT
EAN/UPC code	5397184745762
Warranty (months)	3 Years Basic Onsite
Processor
Processor manufacturer	Intel
Processor family	Intel Xeon E
Processor model	E-2314
Processor frequency	2.8 GHz
Processor boost frequency	4.5 GHz
Processor cache	8 MB
Number of processors installed	1
Idle States	Y
Execute Disable Bit	Y
Memory
Internal memory	8 GB
Internal memory type	DDR4-SDRAM
Buffered memory type	Unregistered (unbuffered)
ECC	Y
Memory slots	4x DIMM
Memory layout (slots x size)	1 x 8 GB
Memory data transfer rate	3200 MT/s
Maximum internal memory	128 GB
Storage
Total storage capacity	2000 GB
Number of HDDs installed	1
HDD capacity	2000 GB
HDD interface	SATA III
HDD speed	7200 RPM
HDD size	3.5
Number of HDDs supported	4
Supported HDD sizes	3.5 "
RAID support	N
Hot-Plug support	Y
Optical drive type	N
Network
LAN controller	Broadcom 5720
Ethernet LAN	Y
Cabling technology	10/100/1000Base-T(X)
Ethernet interface type	Gigabit Ethernet
Ports & interfaces
Ethernet LAN (RJ-45) ports	2
USB 2.0 ports quantity	2
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity	1
VGA (D-Sub) ports quantity	1
Design
Chassis type	Rack (1U)
Product colour	Black
Rack mounting	Y
Performance
Remote administration	iDRAC9, Express 15G
Harmonized System (HS) code	84714100
Software
Operating system installed	N
Compatible operating systems	Canonical® Ubuntu® Server LTS Citrix® Hypervisor Microsoft® Windows Server® with Hyper-V RedHat® Enterprise Linux SUSE® Linux Enterprise Server VMware® ESXi®
Processor special features
Intel Software Guard Extensions (Intel SGX)	Y
Intel 64	Y
Intel Virtualization Technology (VT-x)	Y
Intel VT-x with Extended Page Tables (EPT)	Y
CPU configuration (max)	1
Enhanced Intel SpeedStep Technology	Y
Intel Virtualization Technology for Directed I/O (VT-d)	Y
Intel Trusted Execution Technology	Y
Power
Redundant power supply (RPS) support	N
Power supply	450 W
Number of main power supplies	1
Power cable length	2 m
Power cable connector 1	C13 coupler
Power cable connector 2	C14 coupler
Power cable current	10 A
Weight & dimensions
Width	482 mm
Height	42.8 mm
Other features
Bytes per sector	512n
Data transfer rate	6 Gbit/s
