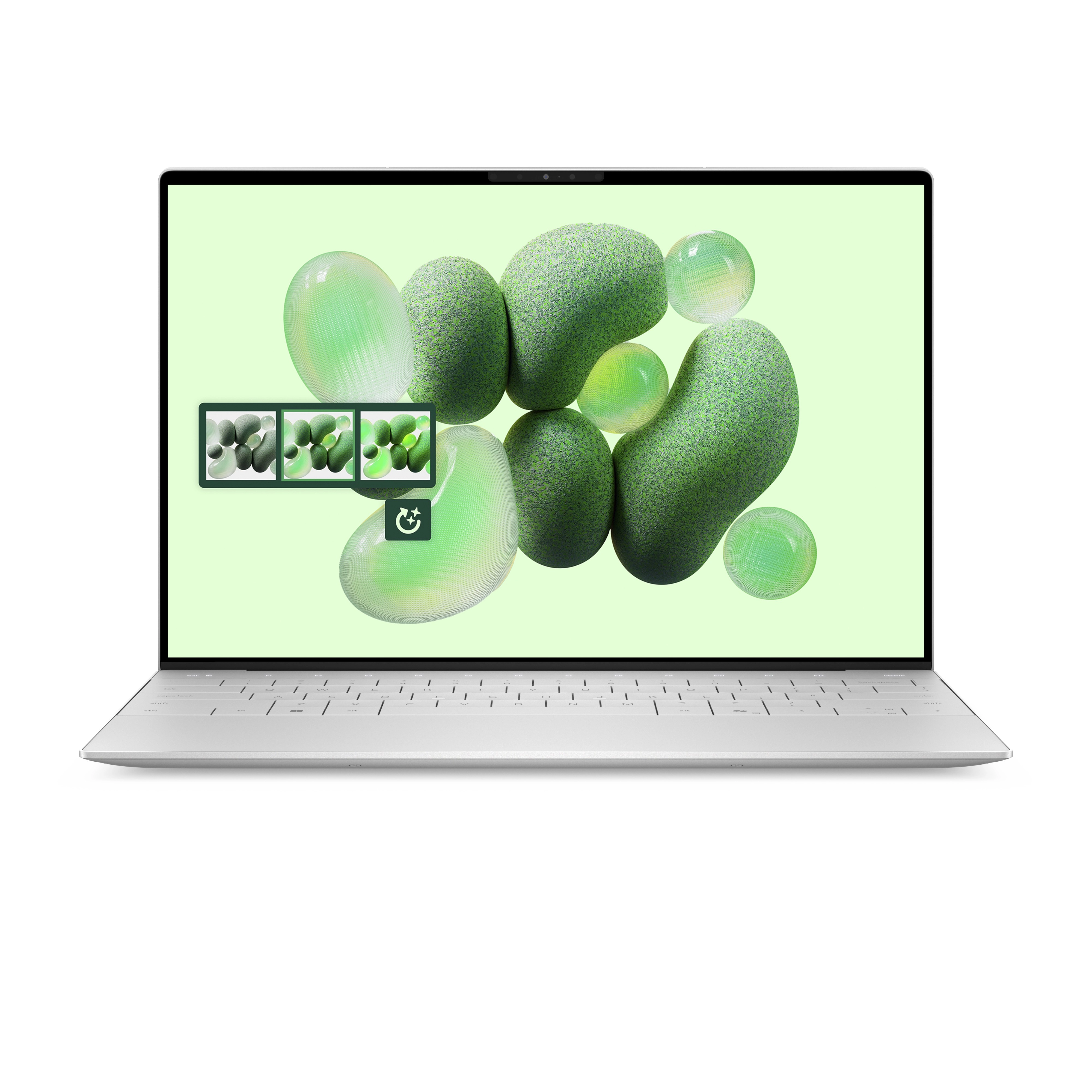

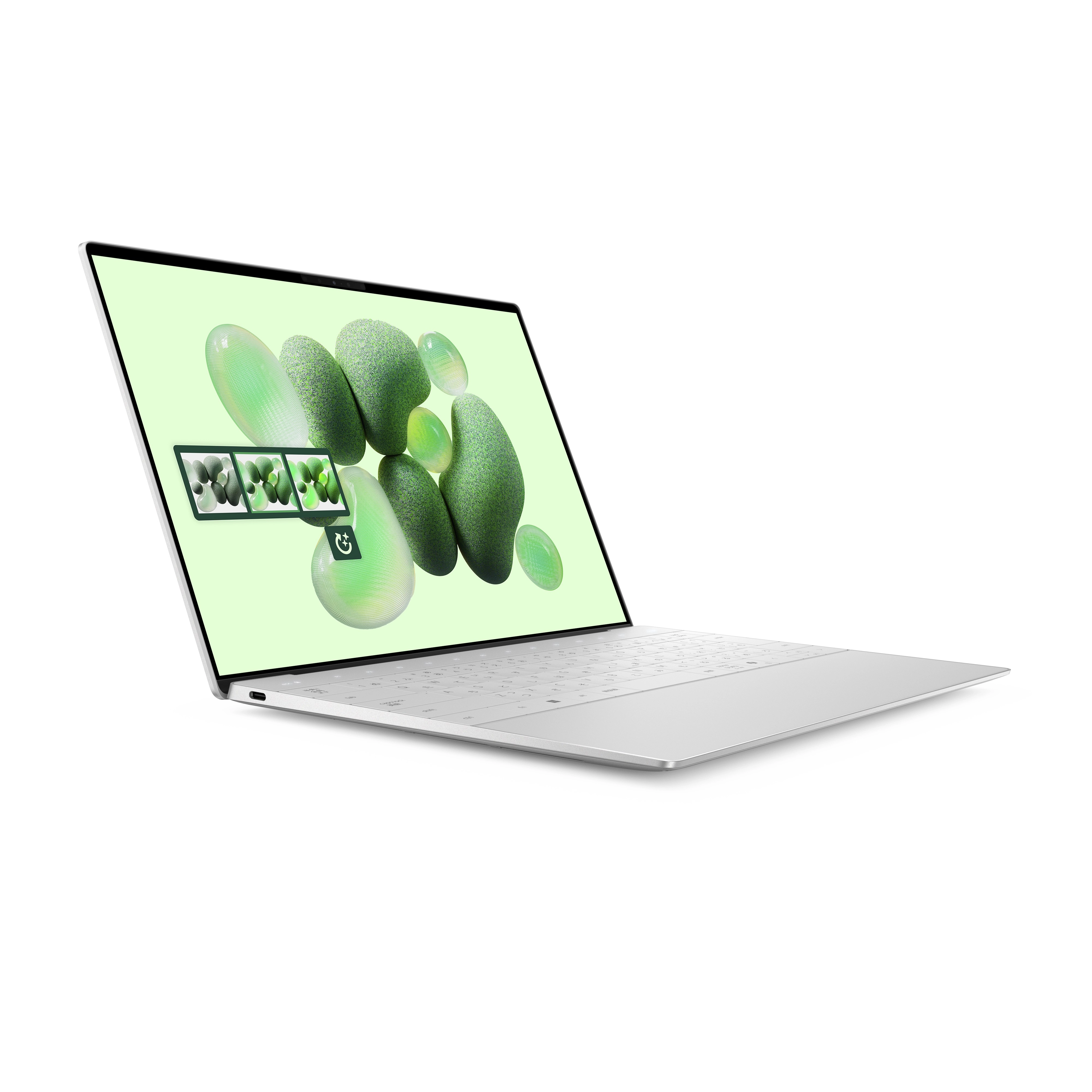

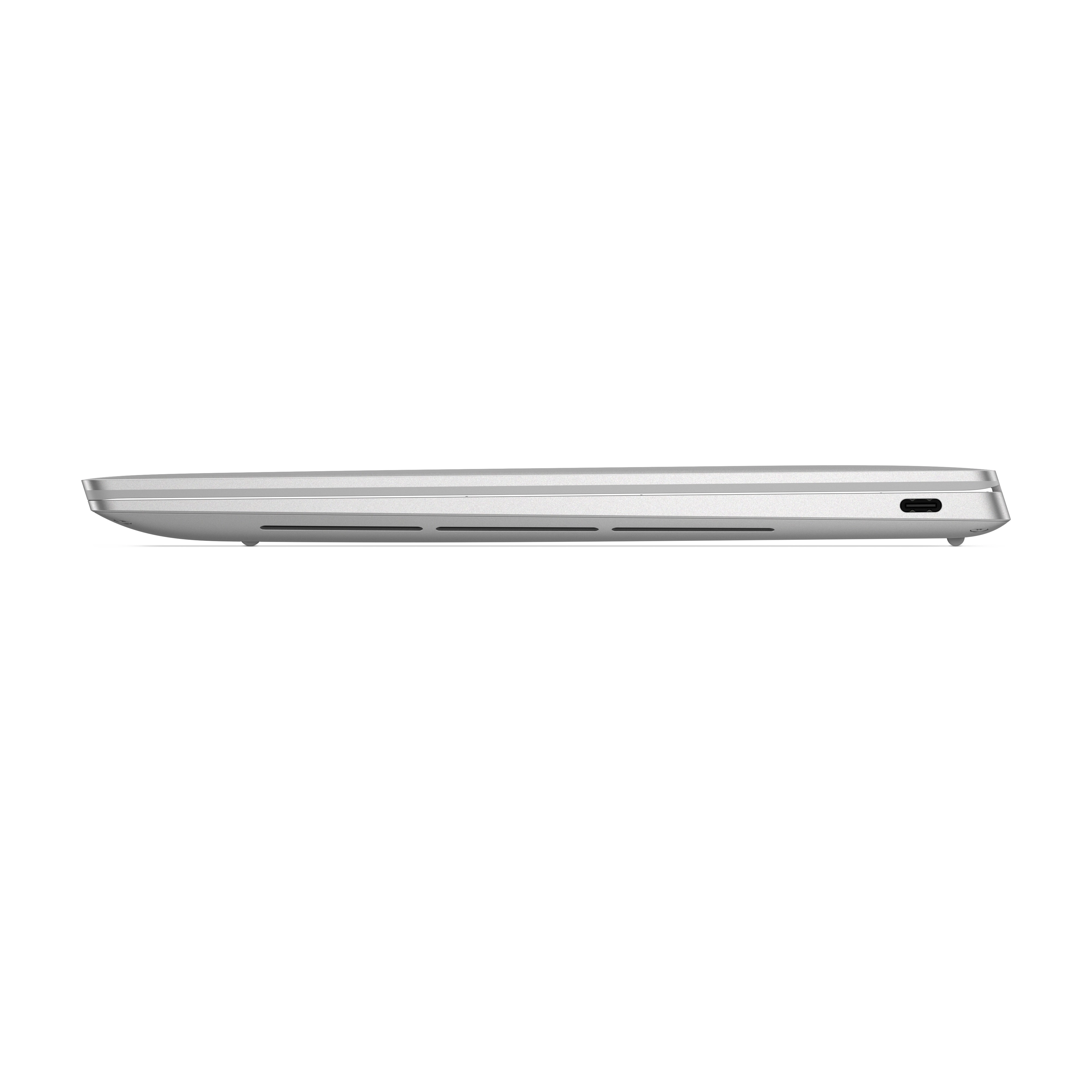

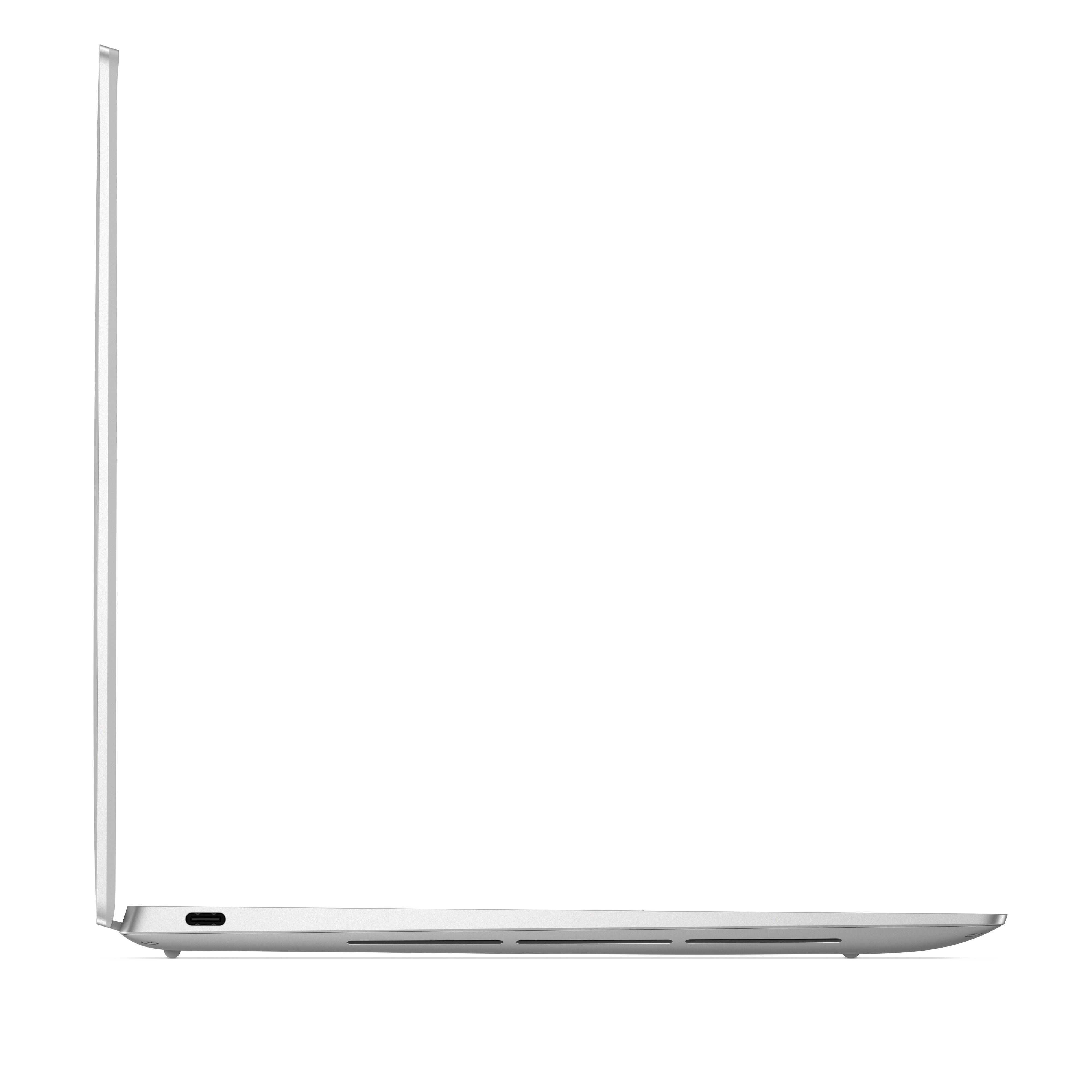

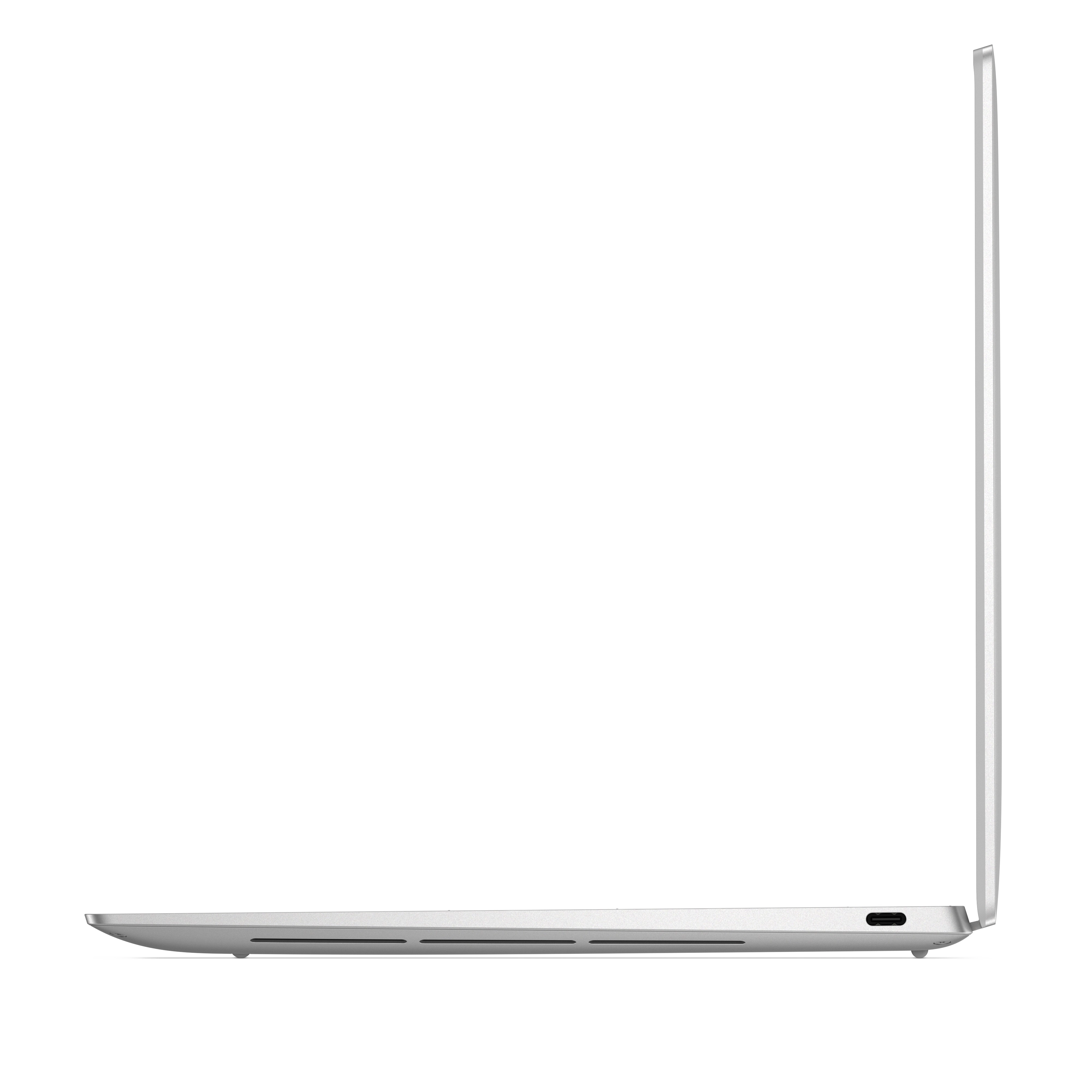

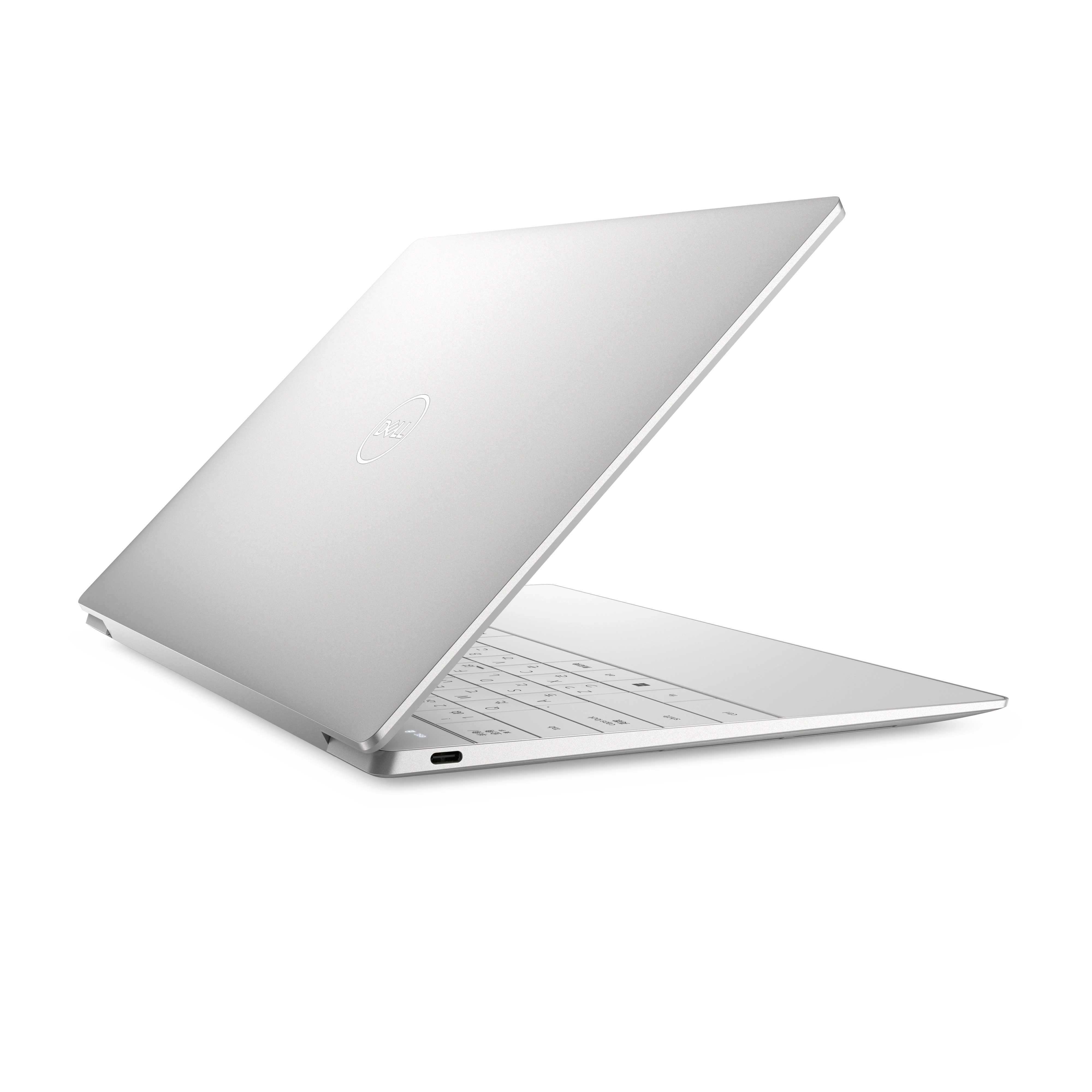

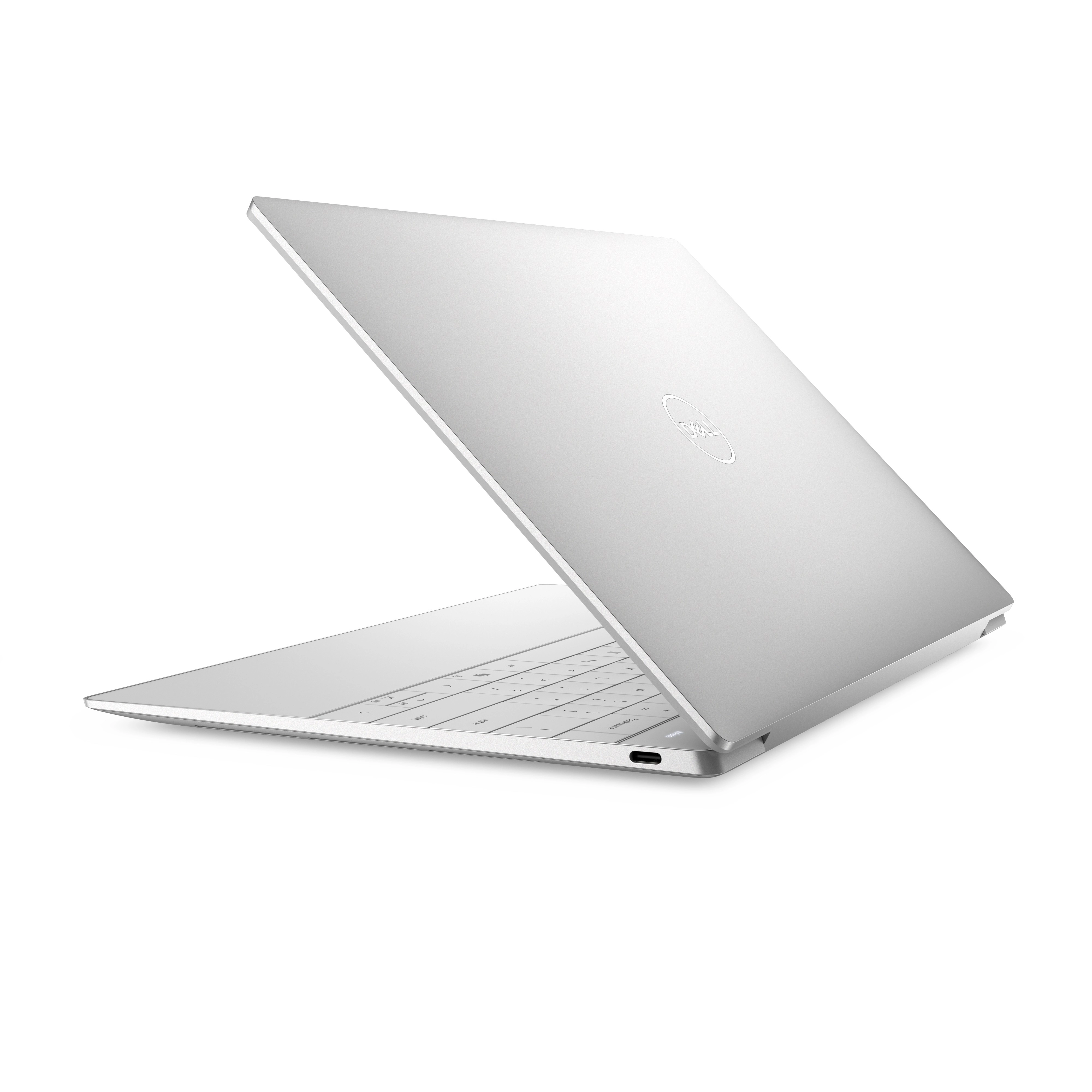

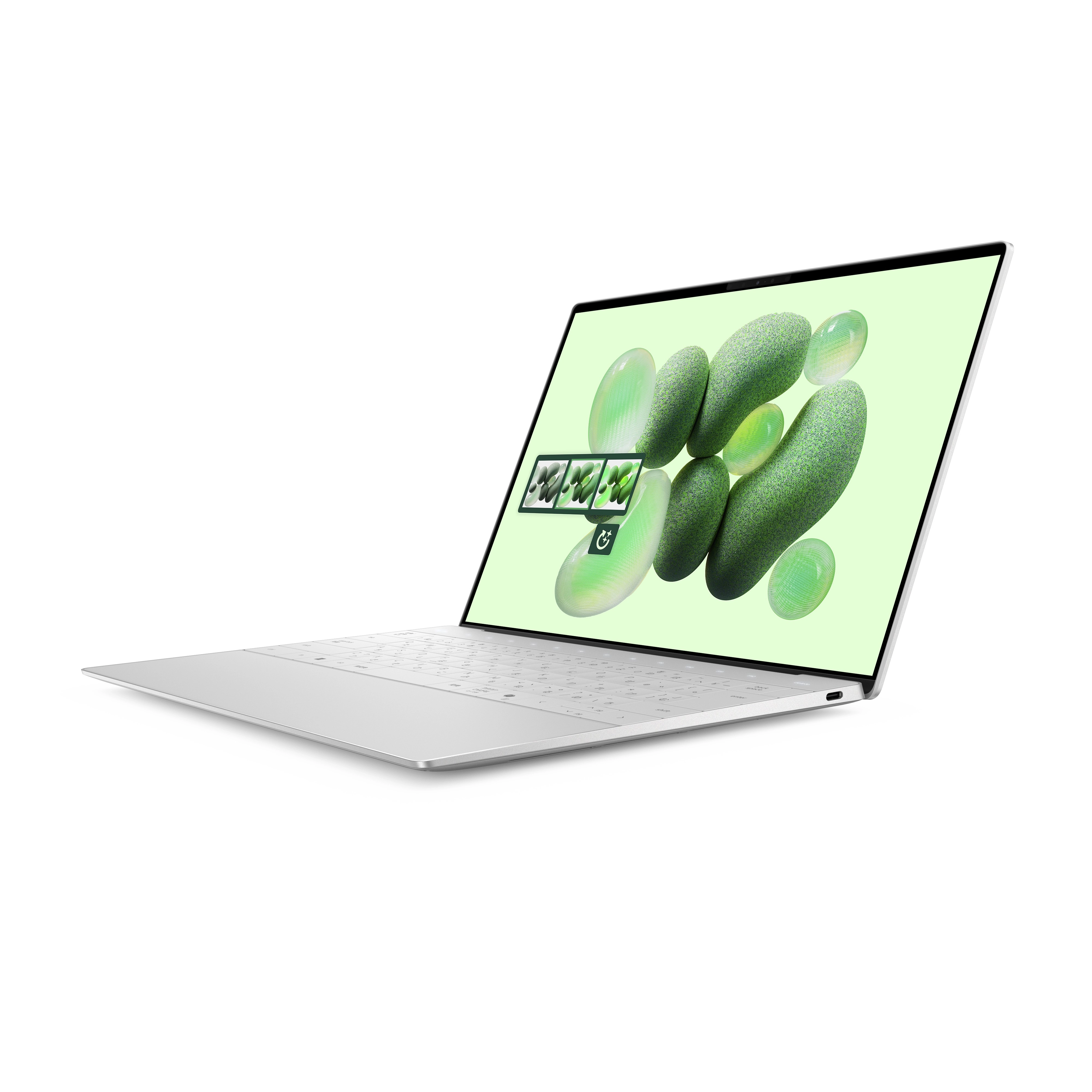

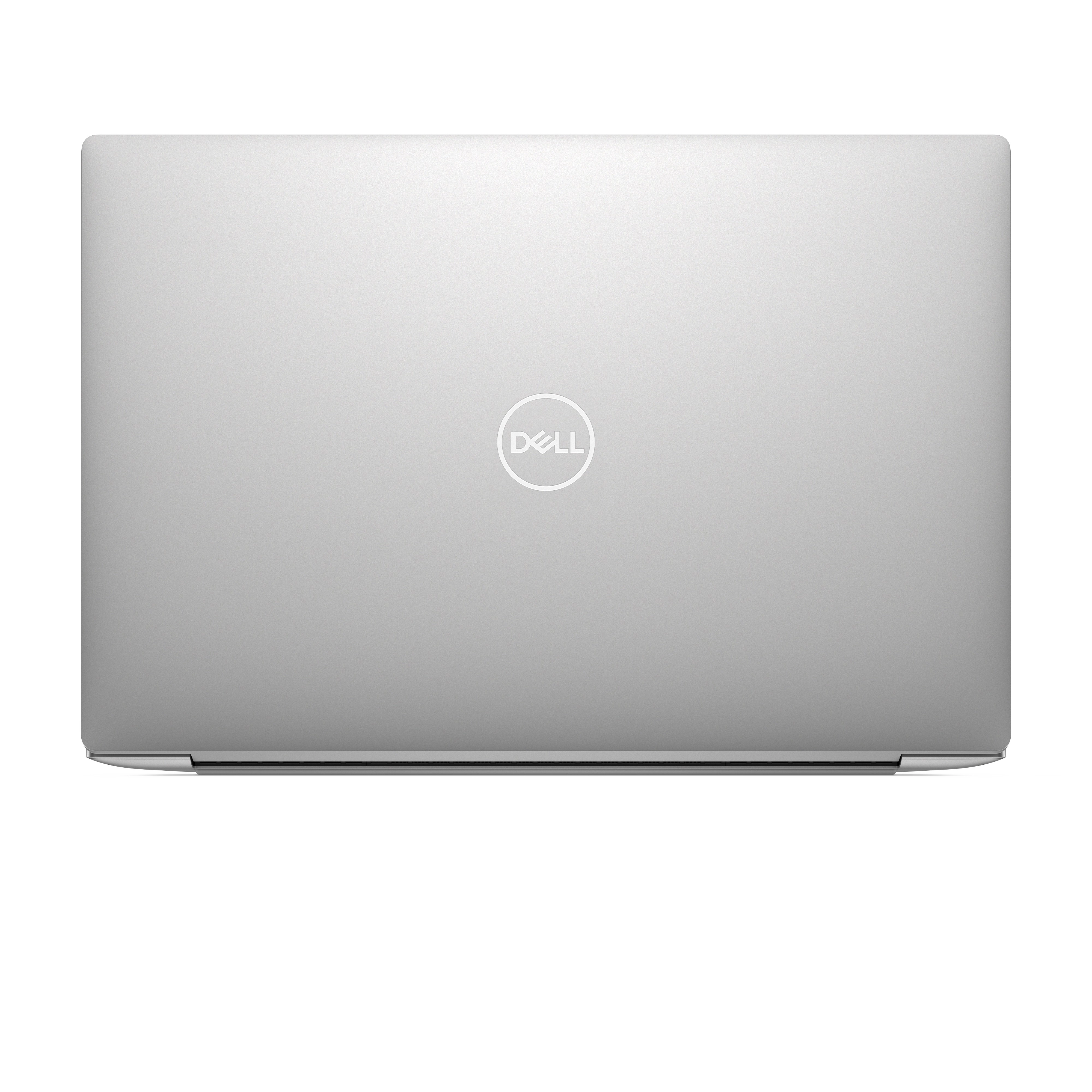

DELL XPS 13 9345. Product type: Laptop, Form factor: Clamshell. Processor family: Qualcomm Snapdragon, Processor model: X1E-80-100, Processor frequency: 3.4 GHz. Display diagonal: 34 cm (13.4"), HD type: Full HD+, Display resolution: 1920 x 1200 pixels. Internal memory: 32 GB, Internal memory type: LPDDR5x-SDRAM. Total storage capacity: 1 TB, Storage media: SSD. On-board graphics card model: Qualcomm Adreno GPU. Operating system installed: Windows 11 Pro. Product colour: Grey

Specification

Product
Product id	977660
Brand	Dell
Partnr	8RFR7
EAN/UPC code	5397184928851
Design
Product type	Notebook
Product colour	Grey
Form factor	Clamshell
Housing material	Aluminium
Introduction year	2024
Market positioning	Premium
Display
Display diagonal	13.37 inch
Display resolution	1920 x 1200 Pixels
Touchscreen	N
Panel type	WVA
HD type	Full HD+
LED backlight	Y
Native aspect ratio	16:10
Anti-glare screen	Y
Display brightness	500 cd/m²
Pixel density	169.3 ppi
Colour gamut	100 procent
RGB colour space	sRGB
Display diagonal (metric)	33.96 cm
Maximum refresh rate	120 Hz
Low Blue Light technology	Y
Contrast ratio (typical)	2000:1
Processor
Processor manufacturer	Qualcomm
Processor family	Qualcomm Snapdragon
Processor model	X1E-80-100
Processor generation	Snapdragon X Elite (X1E)
Processor frequency	3.4 GHz
Processor boost frequency	4 GHz
Processor cores	12
Processor cache	42 MB
Performance cores	8
Efficient cores	4
Memory
Internal memory	32 GB
Internal memory type	LPDDR5x-SDRAM
Memory form factor	On-board
Maximum internal memory	32 GB
Memory channels	Dual-channel
Memory data transfer rate	8448 MT/s
Neural processor unit (NPU)
Neural processor unit (NPU)	Qualcomm Hexagon
NPU performance up to	45 TOPs
Storage
Total storage capacity	1000 GB
Storage media	SSD
Total SSDs capacity	1000 GB
Number of SSDs installed	1
SSD capacity	1000 GB
SSD interface	PCI Express 4.0
NVMe	Y
SSD form factor	M.2
Optical drive type	N
Graphics
On-board graphics adapter	Y
Discrete graphics adapter	N
Discrete graphics adapter model	Not available
On-board graphics adapter model	Qualcomm Adreno GPU
Audio
Audio chip	Qualcomm WSA8845
Number of built-in speakers	4
Speaker power	2 W
Built-in microphone	Y
Camera
Front camera	Y
Front camera resolution (numeric)	2.07 MP
Front camera resolution	1920 x 1080 Pixels
Front camera HD type	Full HD
Video capturing speed	30 fps
Infrared (IR) camera	Y
Network
Bluetooth	Y
Mobile network connection	N
Top Wi-Fi standard	Wi-Fi 7 (802.11be)
Wi-Fi standards	802.11a, 802.11b, 802.11g, Wi-Fi 4 (802.11n), Wi-Fi 5 (802.11ac), Wi-Fi 6E (802.11ax), Wi-Fi 7 (802.11be)
Wi-Fi data rate (max)	5760 Mbit/s
Antenna type	2x2
Wi-Fi band	Tri-band (2.4 GHz / 5 GHz / 6 GHz)
WLAN controller manufacturer	Qualcomm
WLAN controller model	Qualcomm FastConnect 7800
Ports & interfaces
USB4 Gen 3x2 ports quantity	2
Charging port type	USB Type-C
USB Type-C DisplayPort Alternate Mode	Y
USB Power Delivery	Y
Performance
Ambient light sensor	Y
Hall sensor	Y
Keyboard
Pointing device	Touchpad
Keyboard language	US International
Keyboard backlit	Y
Numeric keypad	N
Touch Bar	Y
Copilot key	Y
Software
Operating system installed	Windows 11 Pro
Operating system architecture	64-bit
Operating system language	DEU, DUT, ENG, FRE, ITA
Trial software	McAfee Business Protection 1-year, Activate Your Microsoft 365 For A 30 Day Trial
Bundled software	Windows System Driver
Battery
Battery technology	Lithium-Ion (Li-Ion)
Number of battery cells	3
Battery voltage	11.55 V
Battery capacity (Watt-hours)	55 Wh
Battery weight	219 g
Power
AC adapter power	60 W
AC adapter frequency	50/60 Hz
AC adapter input voltage	100 - 240 V
AC adapter output current	3 A
USB charging voltage	5, 9, 15, 20 V
USB Type-C charging port	Y
Security
Fingerprint reader	Y
Trusted Platform Module (TPM)	Y
Trusted Platform Module (TPM) version	2.0
Password protection	Y
Operational conditions
Operating temperature (T-T)	0 - 35 °C
Storage temperature (T-T)	-30 - 65 °C
Operating relative humidity (H-H)	10 - 90 procent
Storage relative humidity (H-H)	0 - 95 procent
Operating altitude	-15.2 - 3048 m
Non-operating altitude	-15.2 - 10668 m
Operating shock	110 G
Non-operating shock	160 G
Operating vibration	0.66 G
Non-operating vibration	1.3 G
Weight & dimensions
Weight	1240 g
Width	295.3 mm
Depth	199.06 mm
Height	15.95 mm
Other features
AC adapter included	Y
Technical details
Sustainability certificates	ENERGY STAR, EPEAT Climate +, EPEAT Gold
