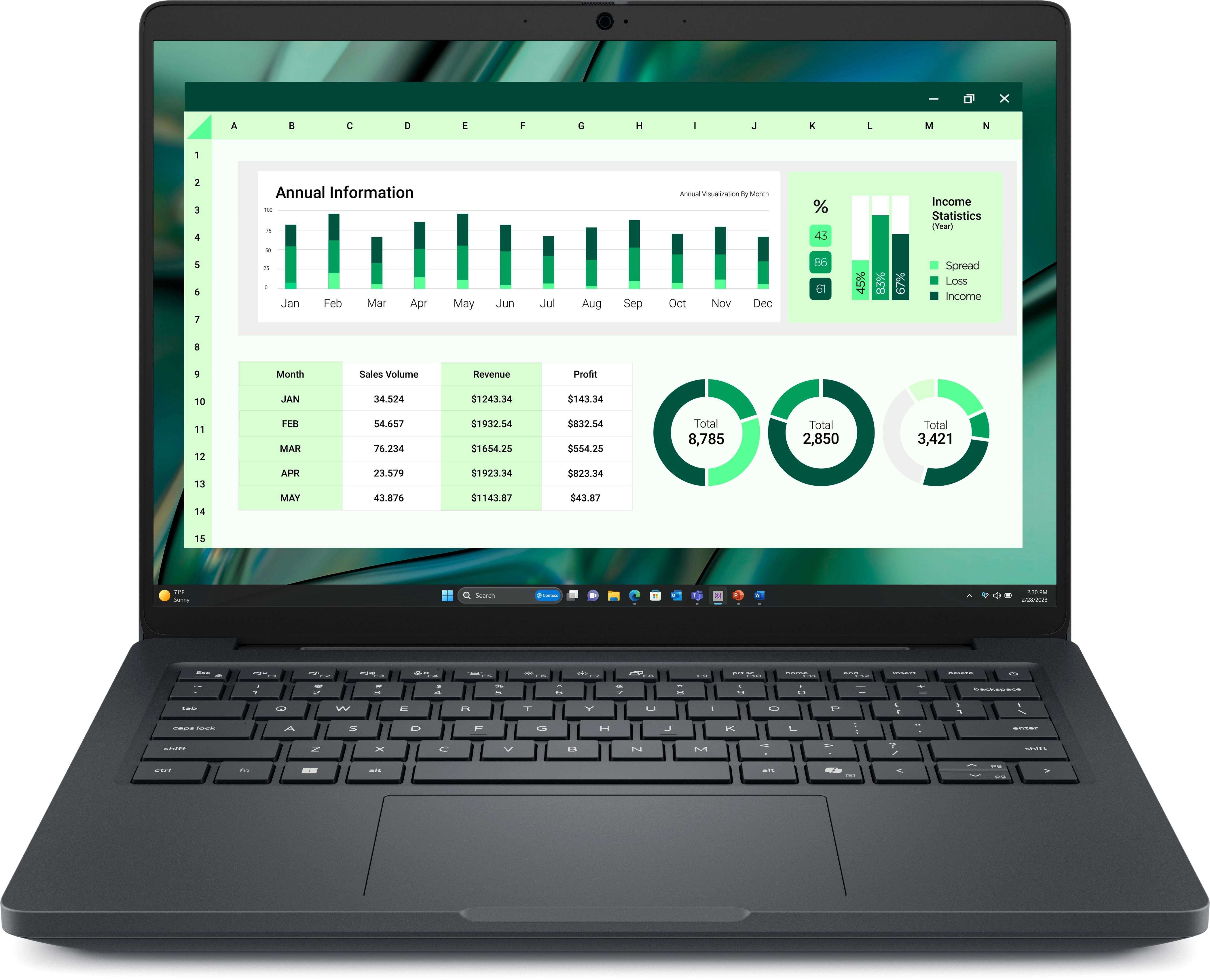

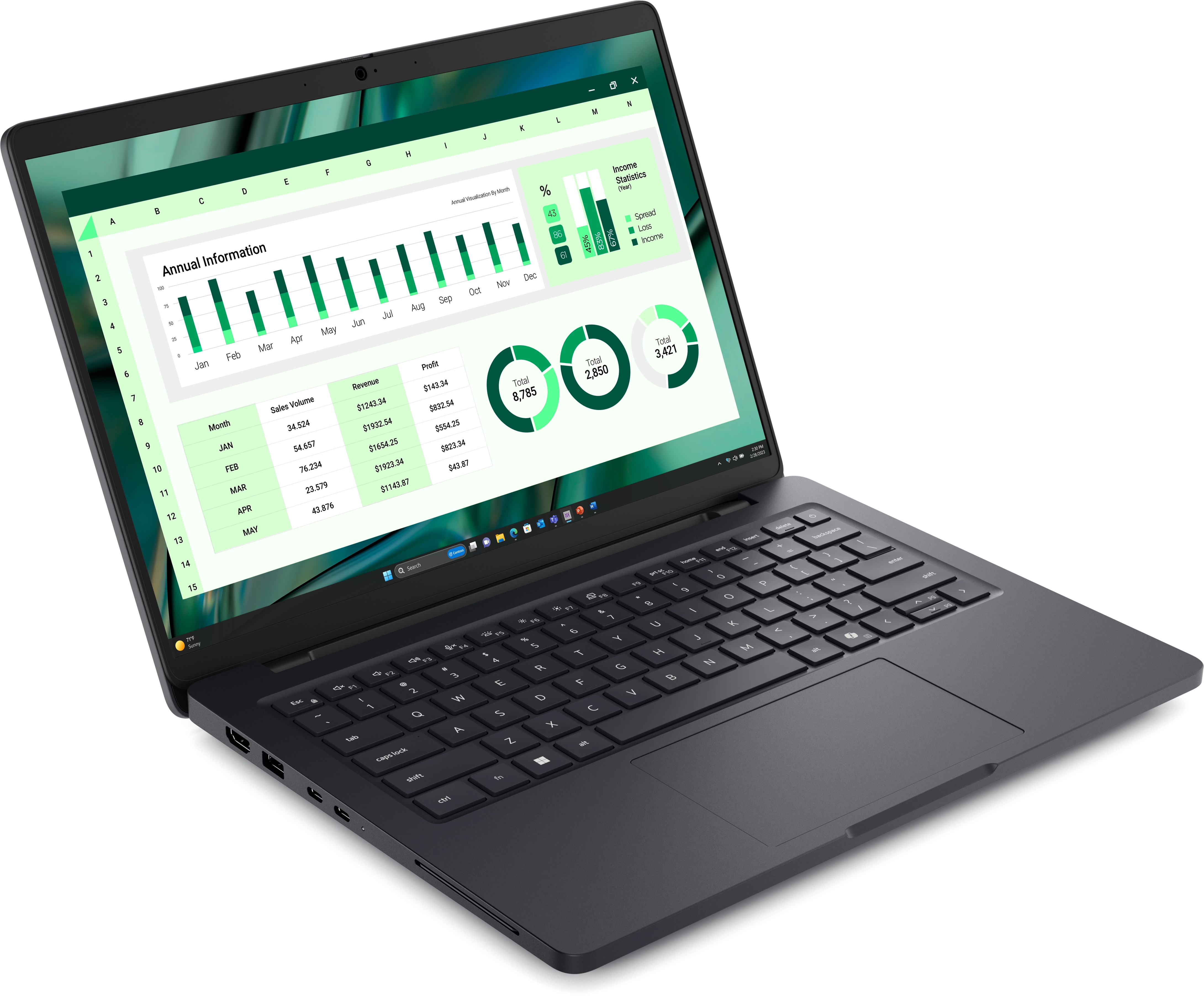

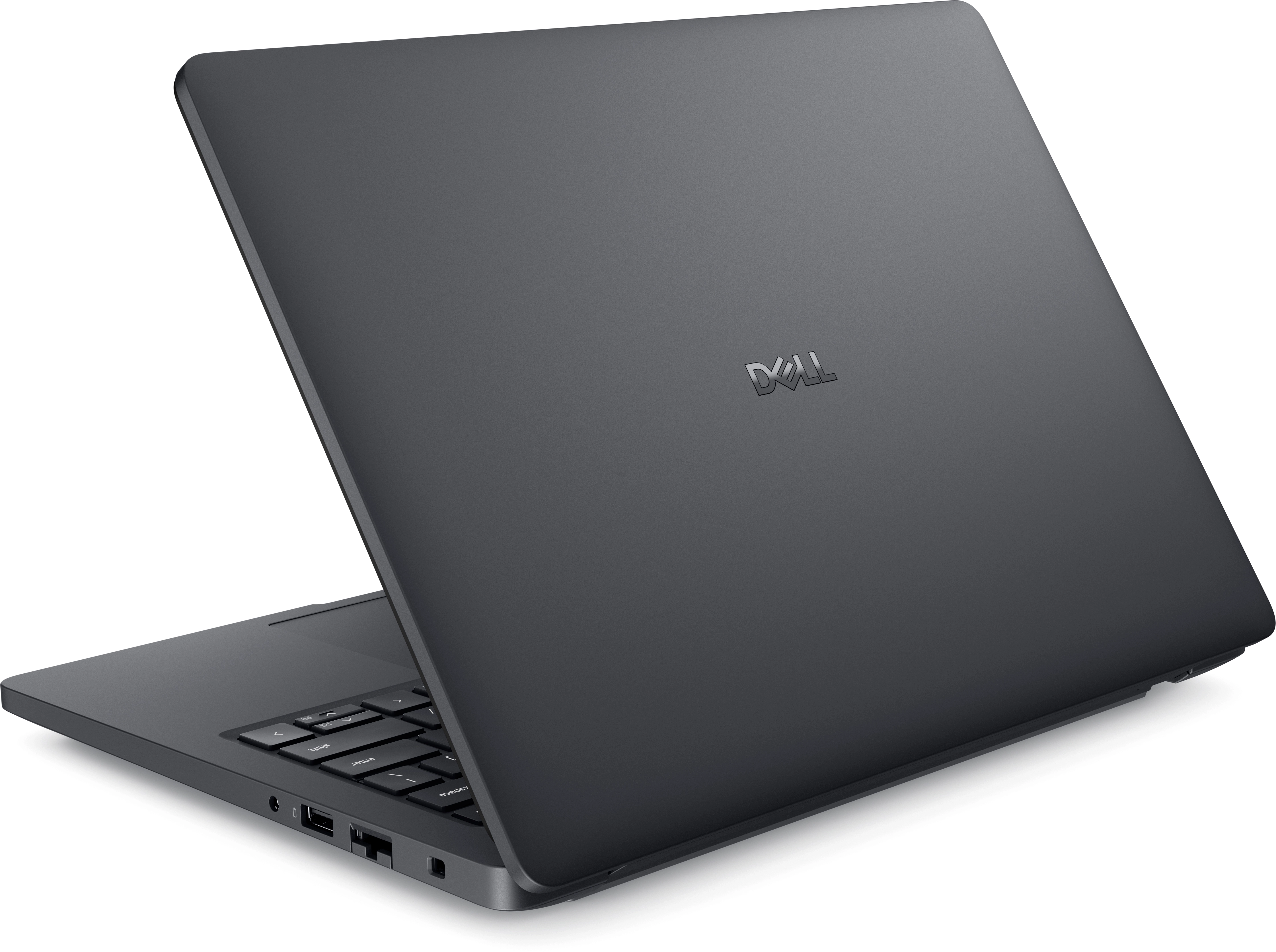

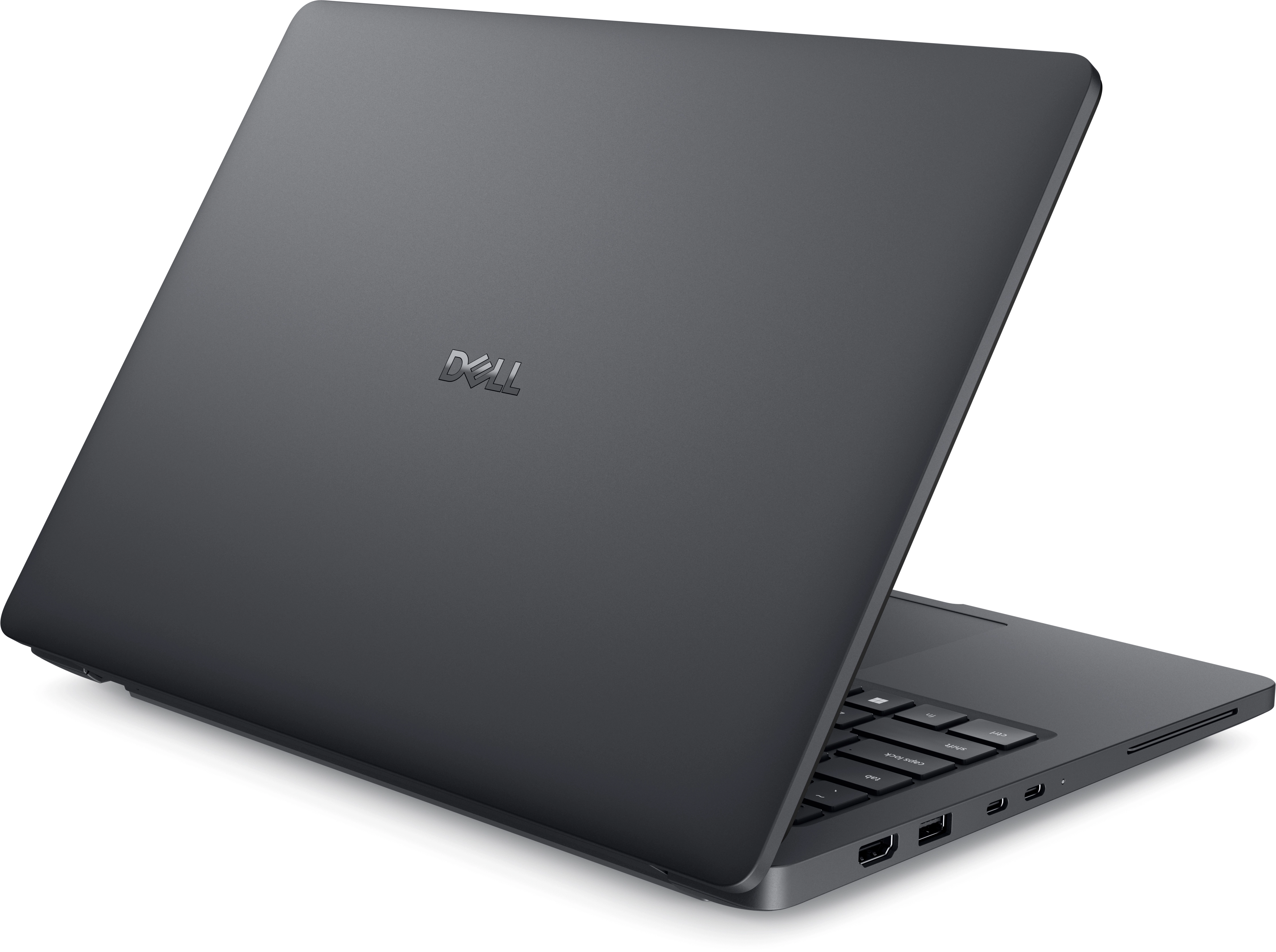

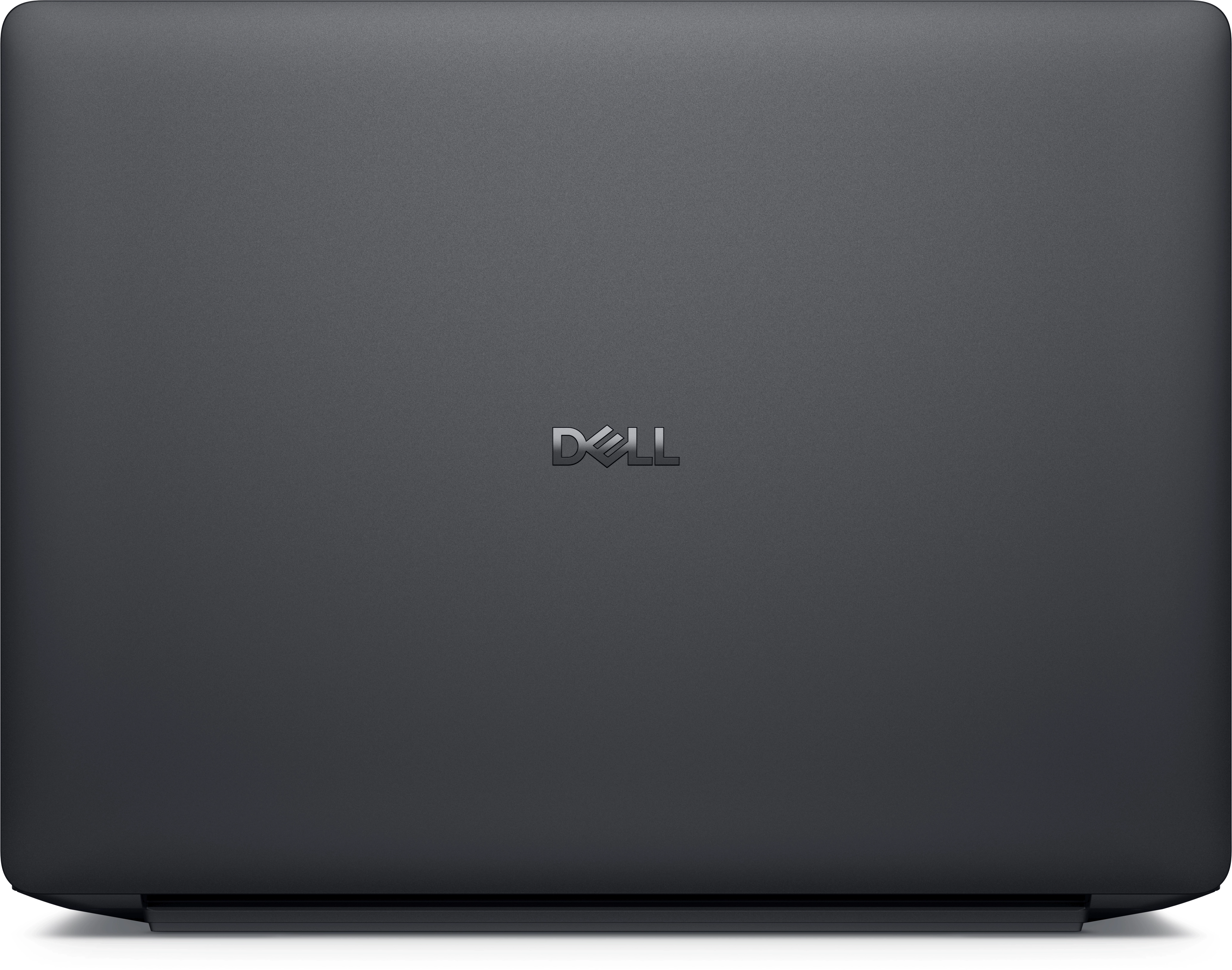

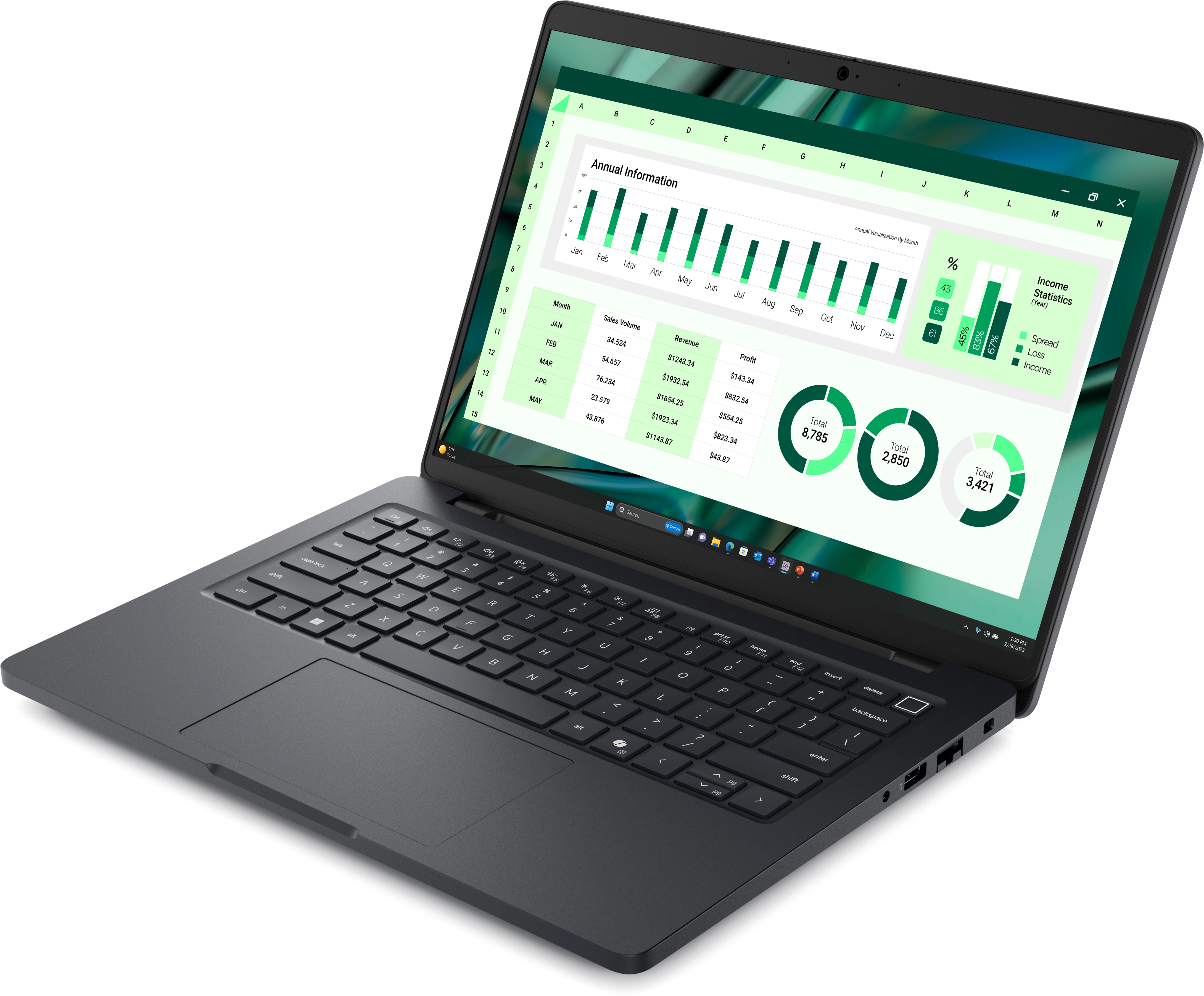

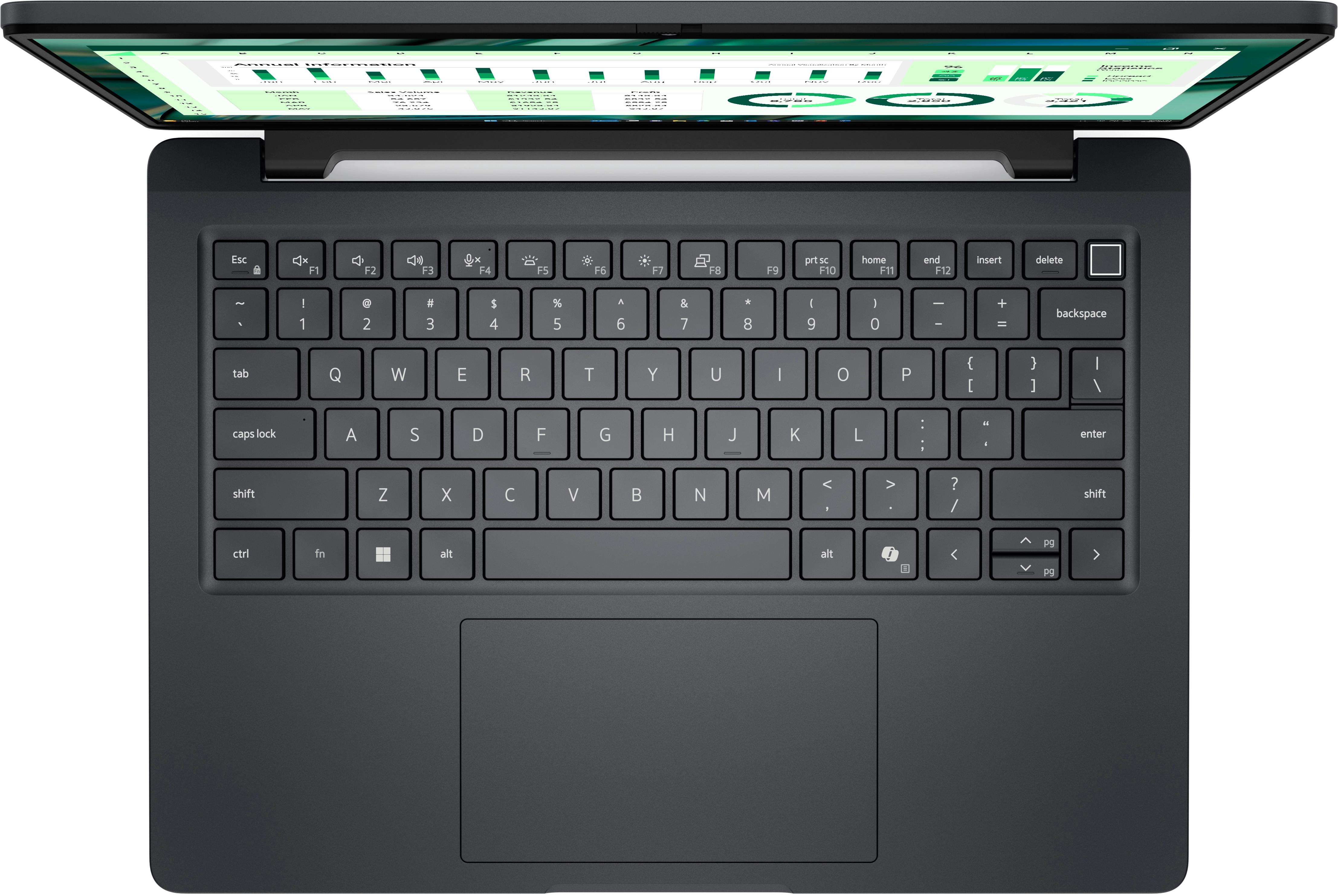

DELL Pro Max 14 MC14250. Product type: Mobile workstation, Form factor: Clamshell. Processor family: Intel Core Ultra 7, Processor model: 265H. Display diagonal: 35.6 cm (14"), HD type: Full HD+, Display resolution: 1920 x 1200 pixels, Touchscreen. Internal memory: 32 GB, Internal memory type: LPDDR5x-SDRAM. Total storage capacity: 1 TB, Storage media: SSD. On-board graphics card model: Intel Arc 140T. Operating system installed: Windows 11 Pro. Product colour: Black

Specification

Product
Product id	999029
Brand	Dell
Partnr	VY0JM
EAN/UPC code	5397184959930
Design
Product type	Mobile workstation
Product colour	Black
Colour name	Magnetite
Form factor	Clamshell
Display
Display diagonal	14 inch
Display resolution	1920 x 1200 Pixels
Touchscreen	Y
Panel type	WVA
HD type	Full HD+
LED backlight	Y
Native aspect ratio	16:10
Anti-glare screen	Y
Display brightness	300 cd/m²
Pixel density	162 ppi
Colour gamut	100 procent
RGB colour space	sRGB
Maximum refresh rate	60 Hz
Display response rise/fall	35 ms
Contrast ratio (typical)	800:1
Processor
Processor manufacturer	Intel
Processor family	Intel Core Ultra 7
Processor model	265H
Processor generation	Intel Core Ultra (Series 2)
Processor boost frequency	5.3 GHz
Processor cores	16
Processor threads	16
Low Power Efficient-cores	2
Efficient-core base frequency	1.7 GHz
Efficient-core Max Turbo Frequency	4.5 GHz
Low Power Efficient-core Max Turbo Frequency	2.5 GHz
Processor cache	24 MB
Performance-core base frequency	2.2 GHz
Performance-core Max Turbo Frequency	5.3 GHz
Low Power Efficient-core Base Frequency	700 MHz
Motherboard chipset	Intel SoC
Processor base power	28 W
Maximum turbo power	115 W
Performance cores	6
Efficient cores	8
Memory
Internal memory	32 GB
Internal memory type	LPDDR5x-SDRAM
Memory layout (slots x size)	1 x 32 GB
Maximum internal memory	64 GB
Memory channels	Dual-channel
Memory data transfer rate	7467 MT/s
Neural processor unit (NPU)
Neural processor unit (NPU)	Intel AI Boost
Sparsity support	Y
Windows Studio effects support	Y
AI software frameworks supported by NPU	DirectML, OpenVINO, Windows ML, ONNX RT, WebNN
Total processor performance (up to)	97 TOPs
NPU performance up to	13 TOPs
GPU performance up to	75 TOPs
Storage
Total storage capacity	1000 GB
Storage media	SSD
Total SSDs capacity	1000 GB
Number of SSDs installed	1
SSD capacity	1000 GB
SSD interface	PCI Express 4.0
NVMe	Y
SSD form factor	M.2
Self-Encrypting Drive (SED)	Y
Optical drive type	N
Graphics
On-board graphics adapter	Y
Discrete graphics adapter	Y
Discrete GPU manufacturer	NVIDIA
Discrete graphics adapter model	NVIDIA RTX PRO 500 Blackwell
On-board graphics adapter family	Intel Arc Graphics
On-board GPU manufacturer	Intel
On-board graphics adapter model	Intel Arc 140T
Discrete graphics adapter memory	6 GB
Discrete graphics memory type	GDDR7
Audio
Audio chip	Realtek ALC3329
Audio system	MaxxAudio Pro
Number of built-in speakers	2
Speakers manufacturer	Waves
Speaker power	2 W
Built-in microphone	Y
Number of microphones	2
Camera
Front camera	Y
Front camera resolution (numeric)	2.07 MP
Front camera resolution	1920 x 1080 Pixels
Front camera HD type	Full HD
Video capturing speed	30 fps
Infrared (IR) camera	Y
Privacy camera	Y
Privacy type	Privacy shutter
Network
Bluetooth	Y
Mobile network connection	N
Top Wi-Fi standard	Wi-Fi 7 (802.11be)
Wi-Fi standards	802.11a, 802.11b, 802.11g, Wi-Fi 4 (802.11n), Wi-Fi 5 (802.11ac), Wi-Fi 6E (802.11ax), Wi-Fi 7 (802.11be)
Antenna type	2x2
Wi-Fi band	Tri-band (2.4 GHz / 5 GHz / 6 GHz)
WLAN controller manufacturer	Intel
WLAN controller model	Intel Wi-Fi 7 BE201
Ethernet LAN	Y
Ethernet LAN data rates	10, 100, 1000 Mbit/s

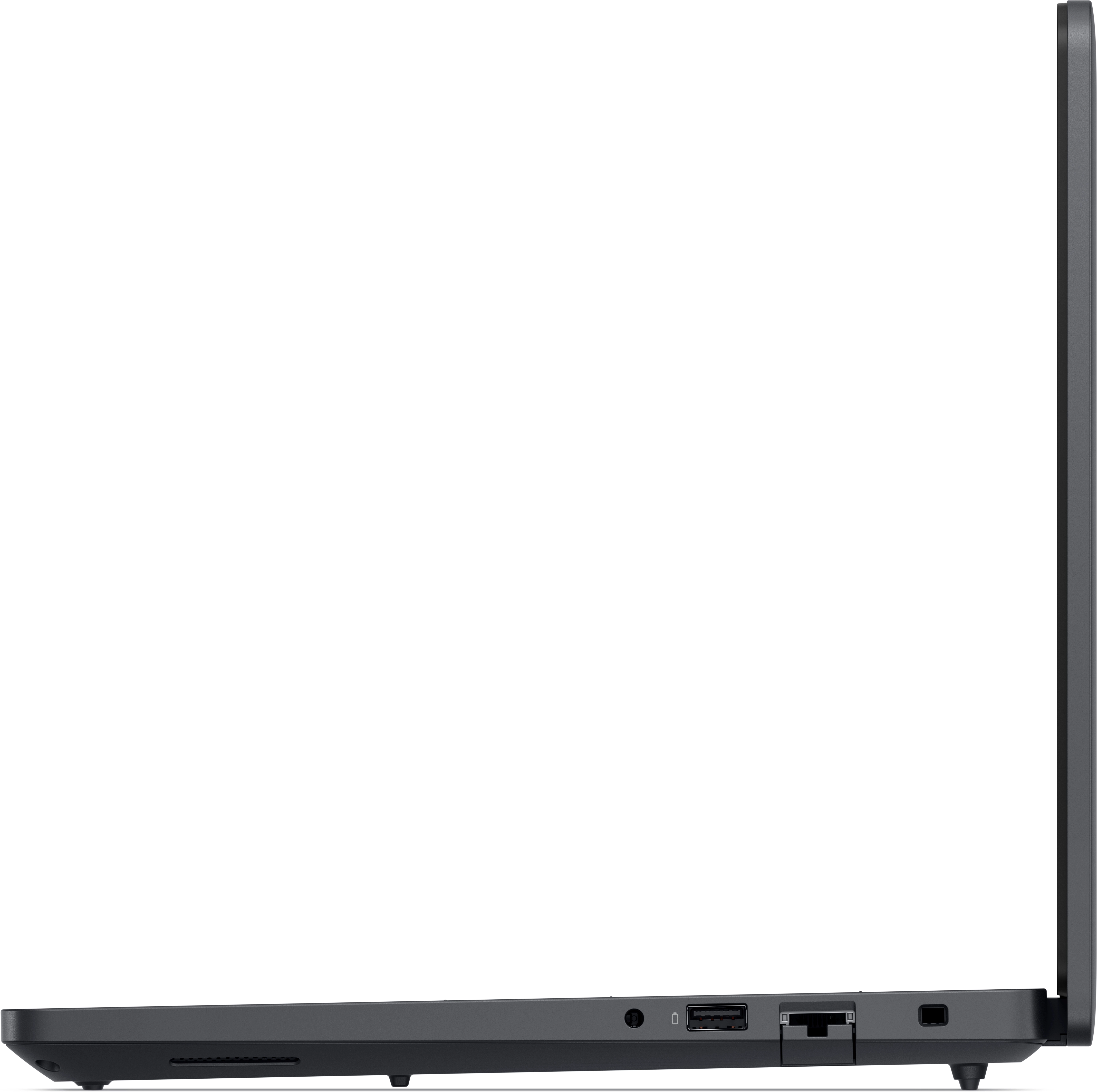

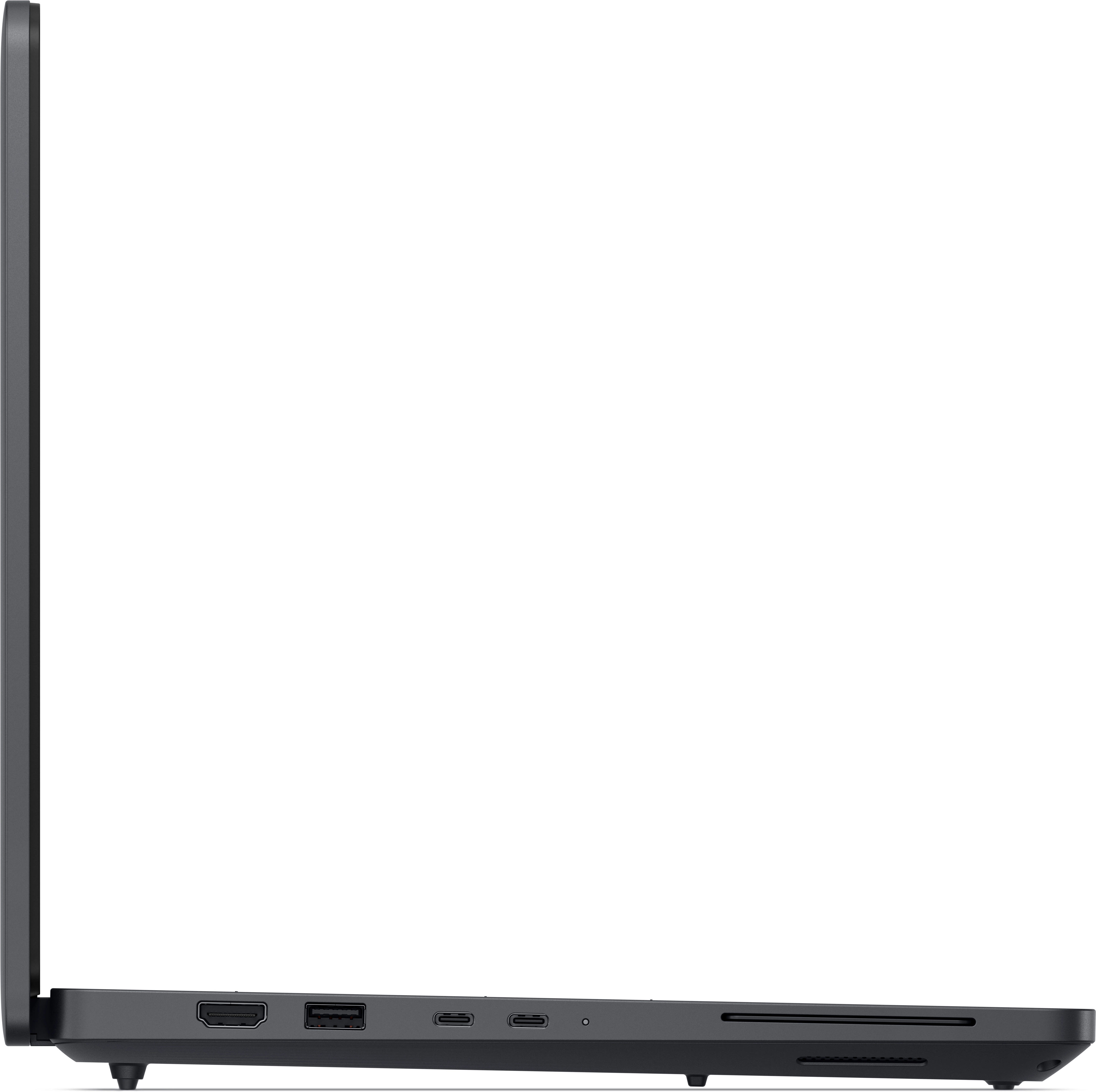

Ports & interfaces
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity	2
Ethernet LAN (RJ-45) ports	1
HDMI ports quantity	1
HDMI version	2.1
Intel® Thunderbolt 4	Y
Combo headphone/mic port	Y
Thunderbolt 4 ports quantity	2
USB Type-C DisplayPort Alternate Mode	Y
USB Power Delivery	Y
PowerShare	Y
Performance
Accelerometer	Y
Hall sensor	Y
Keyboard
Pointing device	Touchpad
Keyboard language	US International
Keyboard backlit	Y
Numeric keypad	N
Copilot key	Y
Software
Operating system installed	Windows 11 Pro
Operating system architecture	64-bit
Trial software	Activate Your Microsoft 365 For A 30 Day Trial
Processor special features
Intel® vPro™ Platform Eligibility	Y
Brand-specific features
Brand specific technologies	Control Vault 3+, Express Charge Boost capable, HDR Camera
Battery
Battery technology	Lithium Polymer (LiPo)
Number of battery cells	4
Battery voltage	15.6 V
Battery capacity (Watt-hours)	72 Wh
Battery recharge time	3 uur
Quick charge	Y
Battery weight	270 g
Power
AC adapter power	130 W
AC adapter frequency	50/60 Hz
AC adapter input voltage	100 - 240 V
USB Type-C charging port	Y
Required charging power (min)	27 W
Required charging power (max)	65 W
Security
Cable lock slot	Y
Cable lock slot type	Wedge
Fingerprint reader	Y
Smart card reader	Y
Trusted Platform Module (TPM)	Y
Trusted Platform Module (TPM) version	2.0
Operational conditions
Operating temperature (T-T)	0 - 35 °C
Storage temperature (T-T)	-40 - 65 °C
Operating relative humidity (H-H)	10 - 90 procent
Storage relative humidity (H-H)	0 - 95 procent
Operating altitude	-15.2 - 3048 m
Non-operating altitude	-15.2 - 10668 m
Operating shock	110 G
Non-operating shock	160 G
Operating vibration	0.66 G
Non-operating vibration	1.3 G
Weight & dimensions
Weight	1790 g
Width	313 mm
Depth	227.3 mm
Height (front)	14.79 mm
Height (rear)	18.9 mm
Packaging content
Cables included	AC
Other features
AC adapter included	Y
Technical details
Sustainability certificates	ENERGY STAR, EPEAT Climate +, EPEAT Gold
