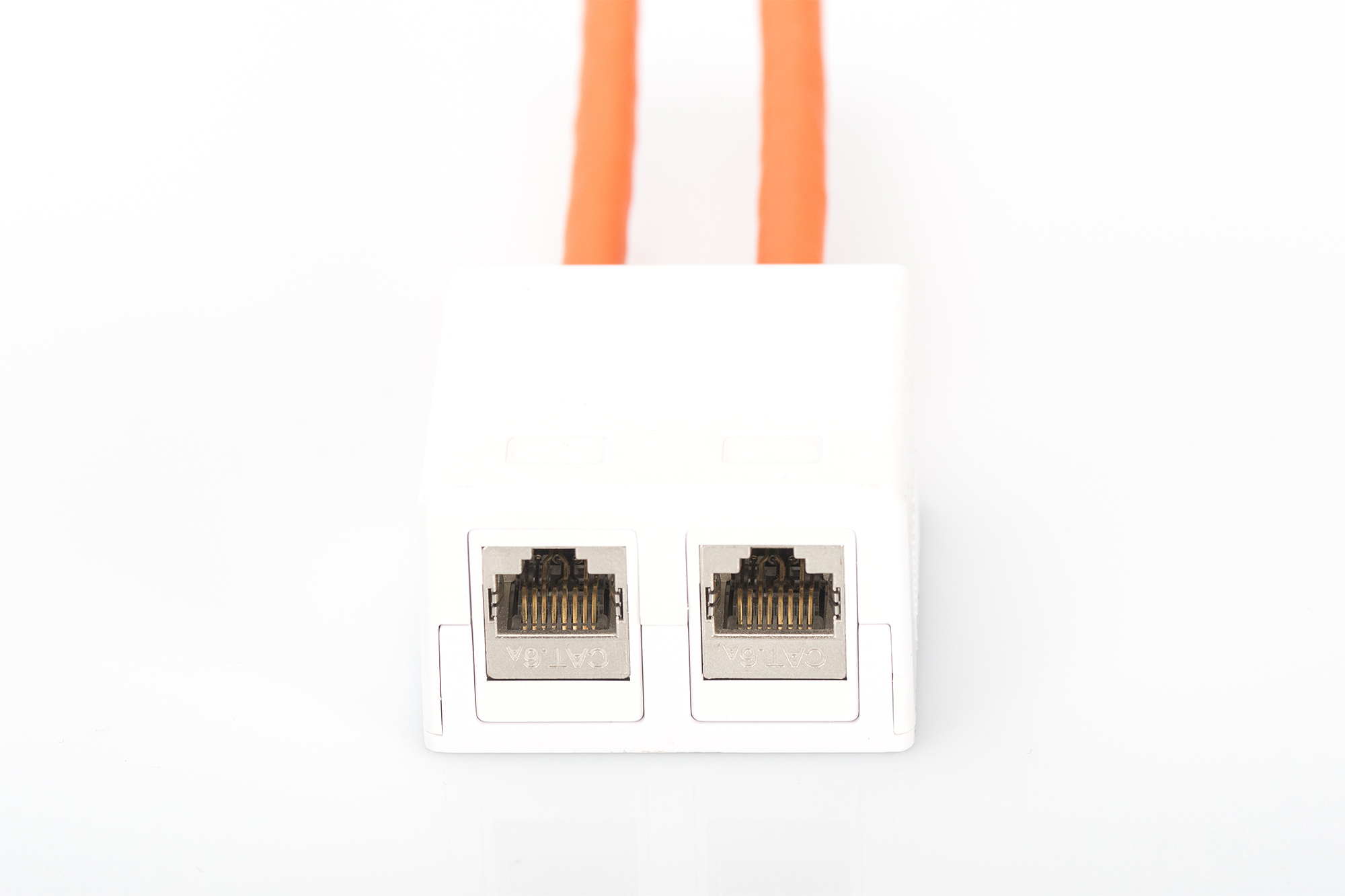

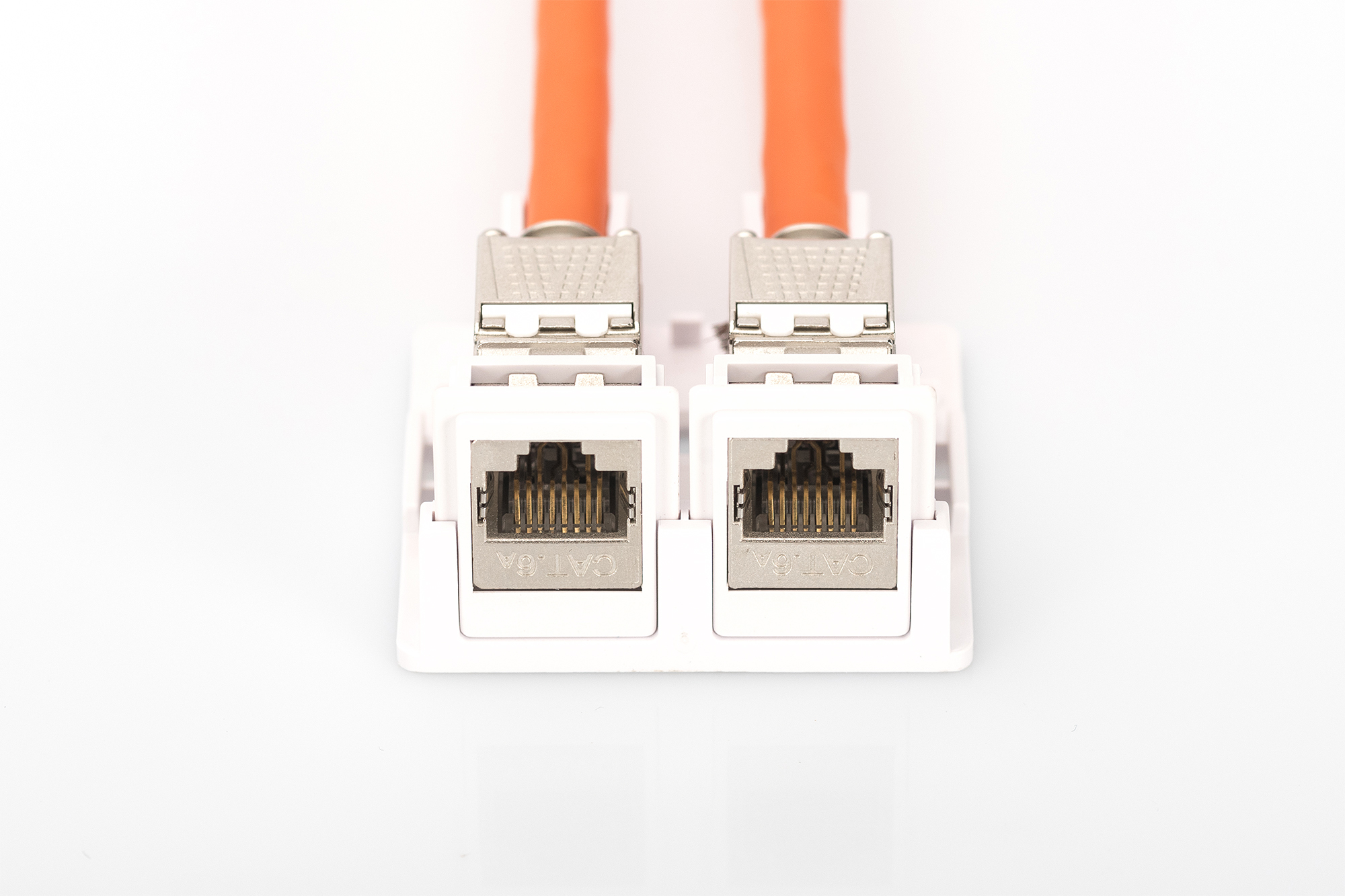

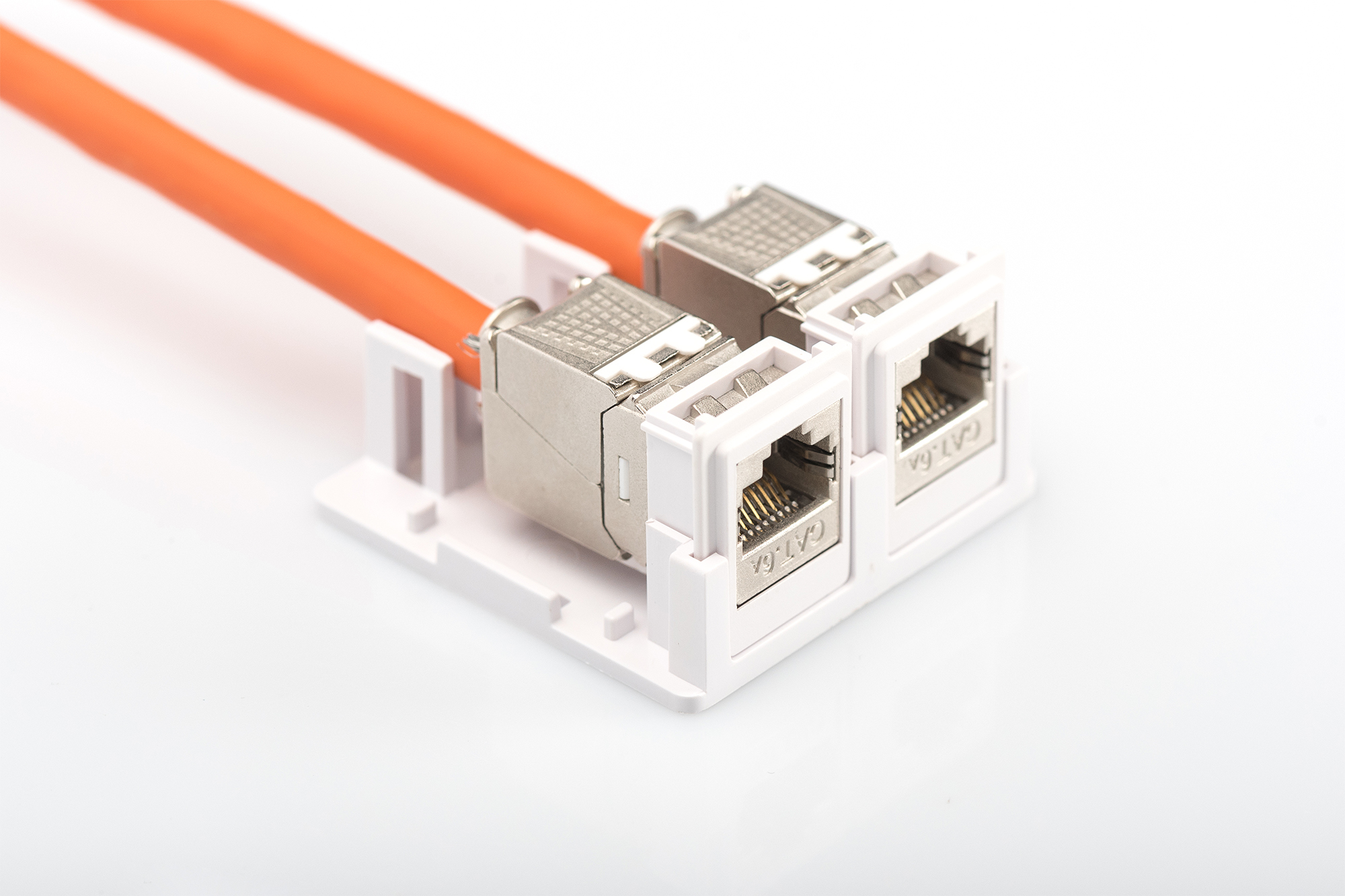

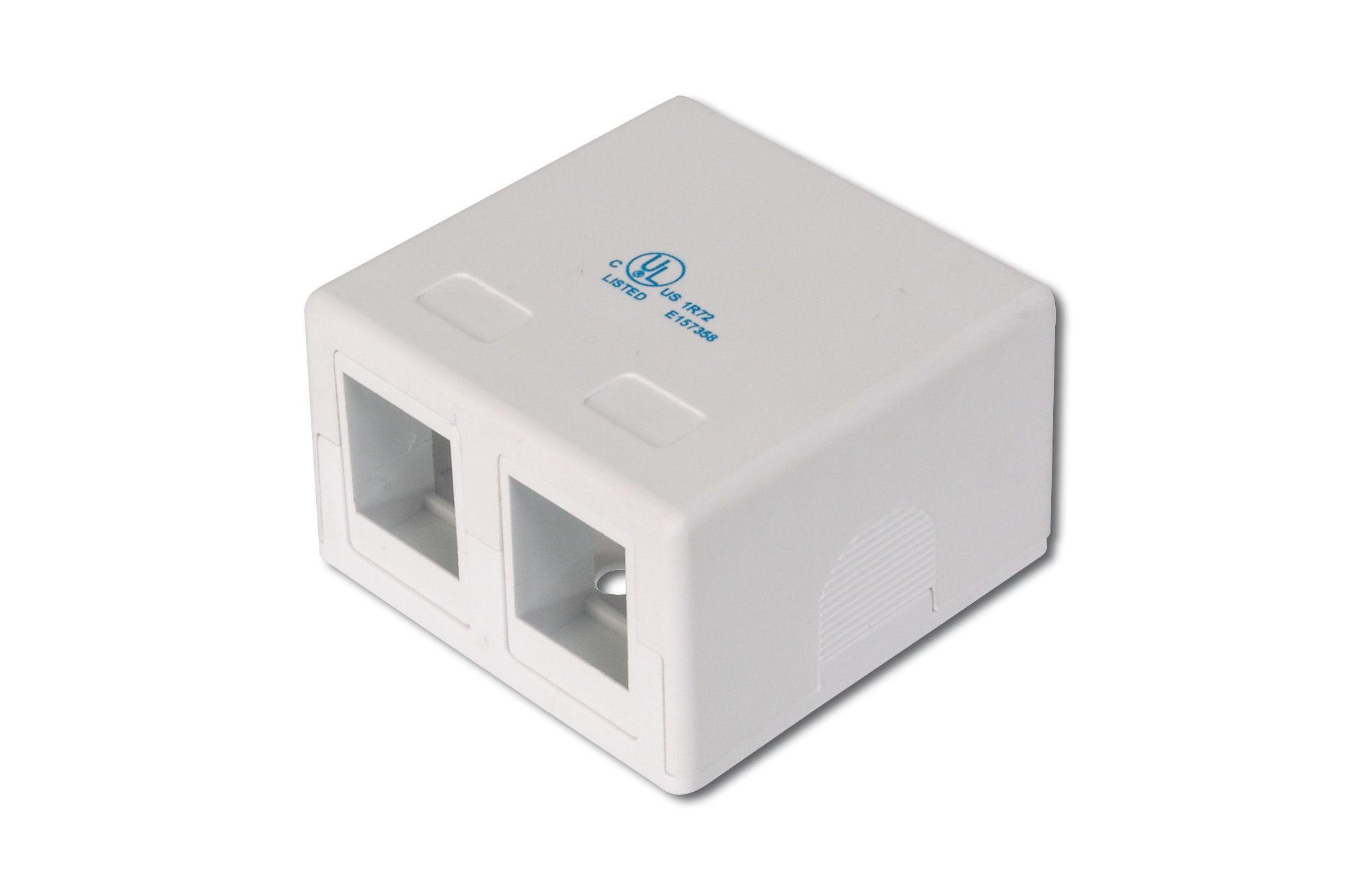

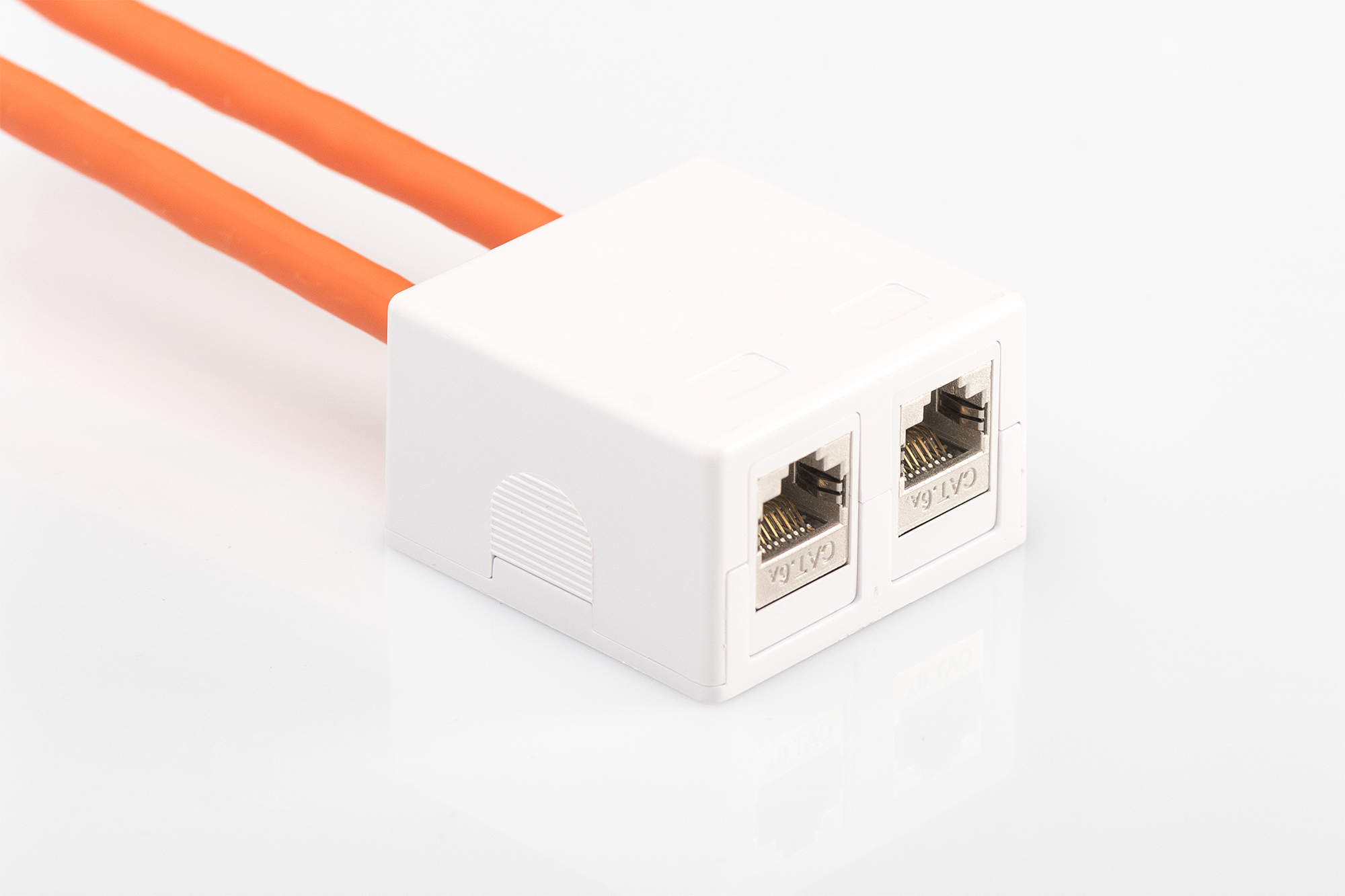

Consolidation-Point Box for 2x DIGITUS® Keystone Jacks

The box is a part of the DIGITUS® modular connection system and is used for installation of consolidation points at desks, in intermediate ceilings or in underfloor systems. The housing is suitable for DIGITUS® Keystone Jacks.

[Data Network Technology][Copper Cabling]

Specification

Product
Product id	966520
Brand	Digitus
Partnr	AT-AG 302A-WH
EAN/UPC code	4016032180135
Product information sheet(s)
Class	Data communication connection box copper (twisted pair)
Surface mounting	true
Flush-mounted installation	false
Duct installation	false
Floor box/subfloor mounted	true
Type of fastening	Screwing
Assembly arrangement	Basic element with complete housing
Type of connector	2x RJ45 8(8)
With buses/couplings	false
Colour	White
RAL-number	9010
Connection type	Other
Shielded buses	false
Shielded housing	false
Separate earthing connection	false
With label space	false
Compatible with third-party covers	true
Separate strain relief	false
Mounting method shielding connection	None
Outlet direction	Straight
With dust cover	false
With terminal resistor	false
Mechanical coding	false
Colour coding	false
Device width	50 mm
Device height	30 mm
Device depth	50 mm
