CAT 8.2 S/FTP data cable - installation cable, 1000 m, simplex, Dca-s2, d1, a1

Future-oriented standards and high-end quality for your network

- 40 GBit Ethernet
- 2000 MHz transmission frequency
- 4PPoE Power over Ethernet support
- BauPVO class Dca-s2, d1, a1

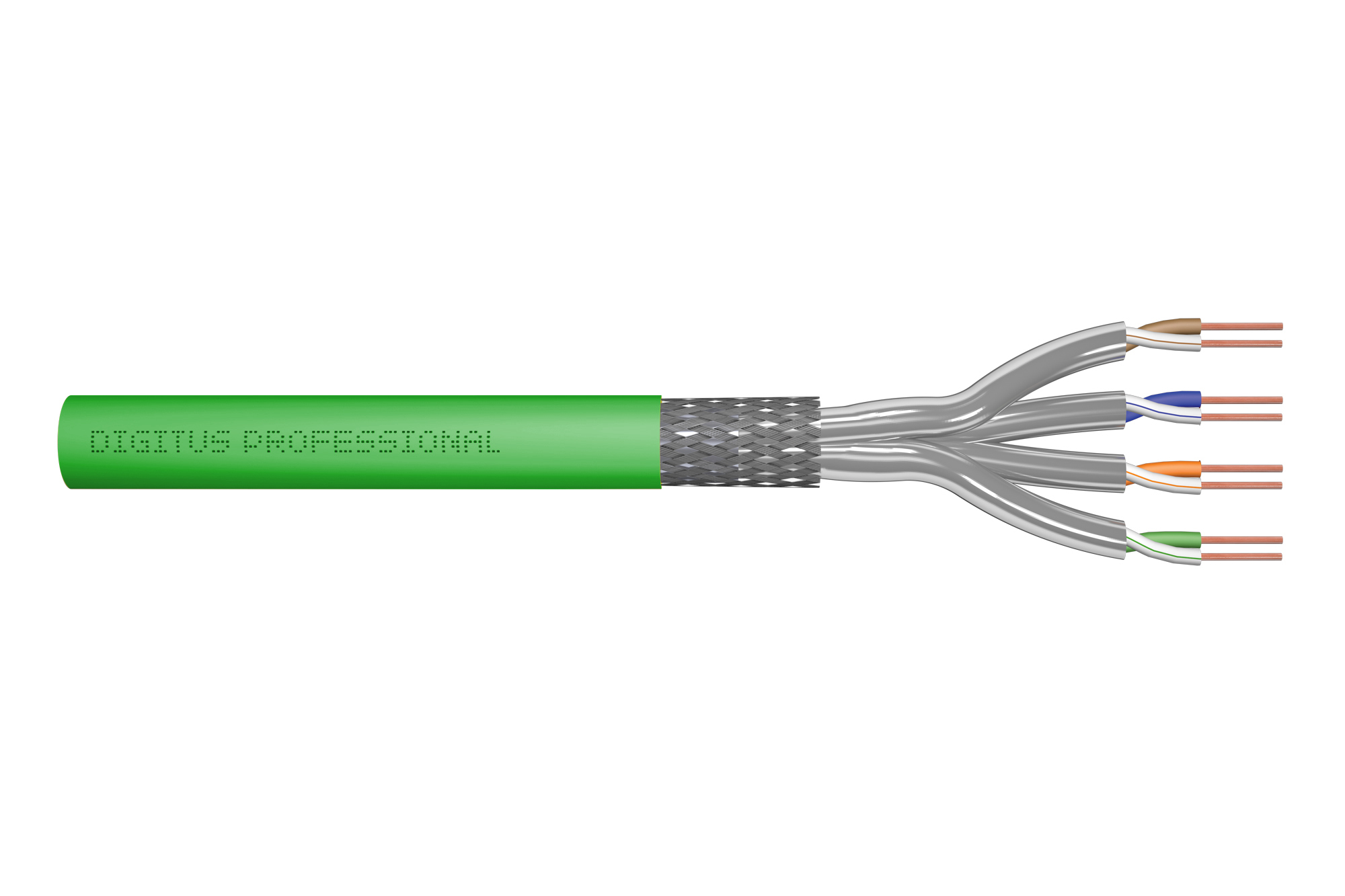

The Digitus Cat 8.2 S/FTP installation cable is designed for use in structured data centers and building cabling in accordance with ISO/IEC 11801, DIN EN 50288-12-1, DIN EN 50173, IEC 60332-3-24. The cable is ideal for the transmission of analog and digital data and supports POE. The shield structure consists of individually shielded pairs with a tinned copper braid, which ensures excellent shielding and electrical values.

[Data Network Technology][Copper Cabling]

Specification

Product
Product id	1011017
Brand	Digitus
Partnr	DK-1843-VH-10
EAN/UPC code	4016032380535
Product information sheet(s)
Class	Data and communication cable
Cable type	S/FTP
Duplex	false
Conductor material	Copper
Conductor surface	Other
Diameter conductor	0.62 mm
Nominal cross section conductor	0.3019 mm²
AWG size	22
Conductor category	Class 1 = solid
Number of cores	8
Number of stranding elements	4
Stranding element	Pairs
Material core insulation	Other
Specification core insulation	Other
Core identification according to HD 308 S2	false
Core identification	Colour
Screen over stranding element	Foil
Stranding	Other
Screen over stranding	Braiding
Longitudinal water blocking cable	false
Radial water blocking cable	false
Suitable for underground installation	false
Approved type of underground installation	Other
Protective sheath	Other
Material outer sheath	Polyolefin
Specification material outer sheath	Other
Colour outer sheath	Green
Armouring/reinforcement	None
Material armouring	Aluminium
Cable geometry	Round
Flame retardant according to IEC 60332-1-2	false
Flame retardant according to IEC 60332-3-21 (Cat A F/R)	false
Flame retardant according to IEC 60332-3-22 (Cat A)	false
Flame retardant according to IEC 60332-3-23 (Cat B)	false
Flame retardant according to IEC 60332-3-24 (Cat C)	false
Flame retardant according to IEC 60332-3-25 (Cat D)	false
Low smoke according to EN IEC 61034-2	false
Halogen free according to EN IEC 60754-1	false
Halogen free according to EN IEC 60754-2	false
Halogen free according to EN IEC 60754-3	false
Reaction-to-fire according to EN 13501-6: Class	Dca
Reaction-to-fire according to EN 13501-6: Smoke production	s2
Reaction-to-fire according to EN 13501-6: Flaming droplets/particles	d1
Reaction-to-fire according to EN 13501-6: Acidity	a1
Circuit integrity according to IEC 60331-23	false
Oil resistant according to EN IEC 60811-404	false
Outer diameter approximate	7.8 mm
Min. permitted bending radius, moving application with forced guidance	4 mm
Min. permitted bending radius, moving application/free movement	4 mm
Min. permitted bending radius, stationary application/permanent installation	4 mm
Permitted cable outer temperature during assembling/handling	50 °C
Permitted cable outer temperature after assembling without vibration	-20 - 75 °C
Category	8.2 (IEC)
NVP value	74 %
Certified for shipboard application	false
Segregation class according to EN 50174-2	D
Suitable as telephone cable	false
Suitable as computer data cable	false
Suitable as signalling cable	false
Suitable for use as security alarm cable	false
Drain wire	false
With rip cord	false
Weight	67.5 kg/km
Max. tensile strength during installation	150 kN
Nominal voltage U	72 V
With rodent protection	false
Compatible with Grade2TV according to XP-C 90-483	false
Compatible with Grade3TV according to XP-C 90-483	false
