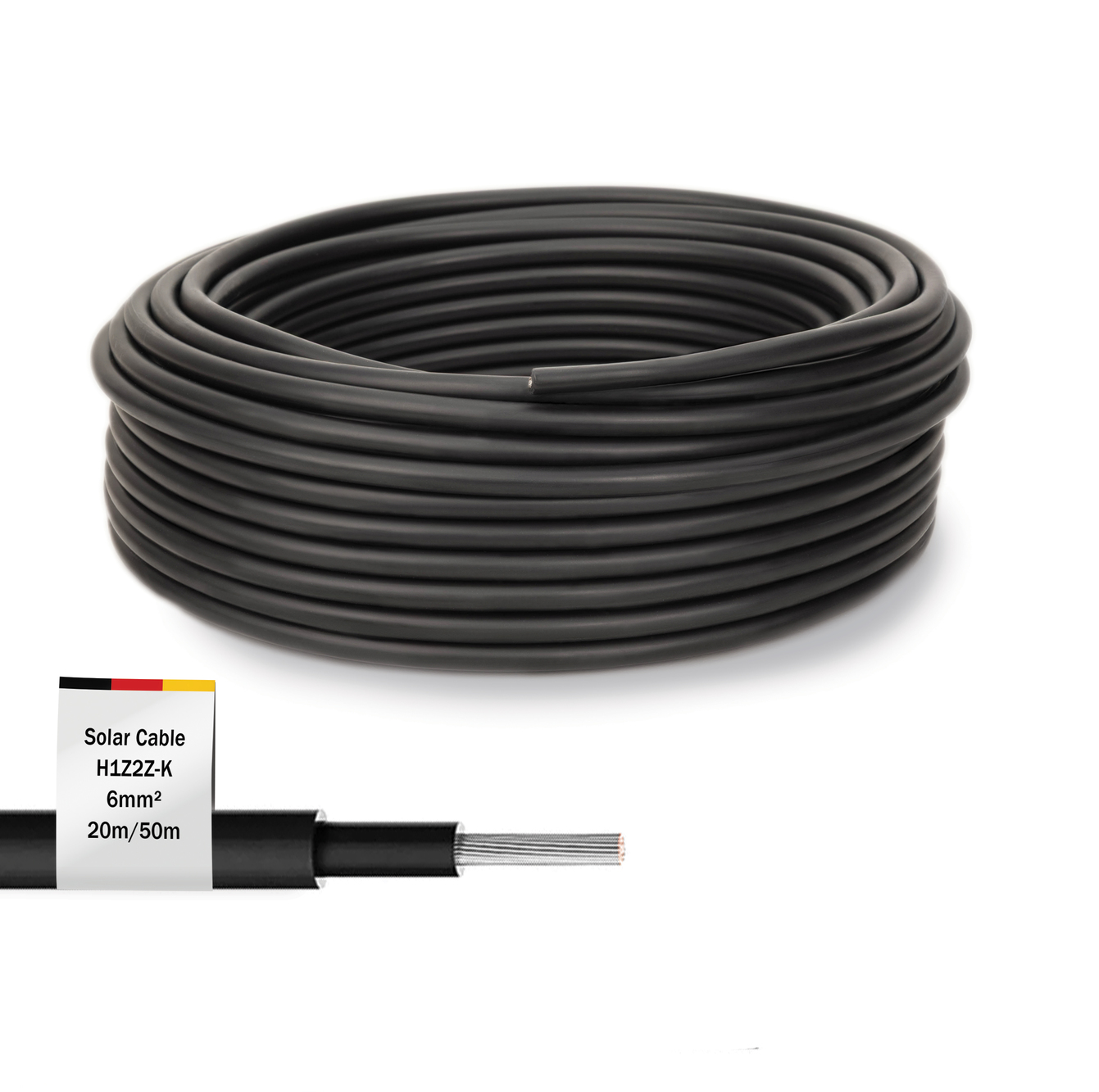

Solar Cable, 20 m, 6 mm², Black, PV Cable, 1500 V DC, UV-Resistant & Weatherproof

Safe, efficient, and versatile—this solar cable is the ideal solution for all indoor and outdoor photovoltaic projects.

- High-Quality Solar Cable, 20 m, 6 mm² – Ideal for Photovoltaic Systems and Solar Systems
- 1, 500 V DC / 1 kV AC – Perfect for high-power applications in PV systems
- Enhanced Safety – The cable for PV systems is flame-retardant in accordance with EN 50618:2014
- High temperature resistance – Suitable for temperatures ranging from -40°C to +90°C
- Weatherproof & UV-resistant – Ideal for long-term outdoor use
- Extremely durable – Weather- and UV-resistant thanks to XLPO insulation and jacket
- Flexible & easy to install – Perfect for professional and DIY solar installations
- Up to 25 years of service life – Designed for maximum durability and efficiency

This high-quality solar cable, with a cross-sectional area of 6 mm² and a length of 20 m, is the ideal connection solution for photovoltaic installations and solar systems. It is ideally suited for use between solar modules, inverters, and other components, thanks to its high voltage resistance of DC 1500 V / AC 1 kV. The tinned copper conductor provides optimal conductivity and excellent corrosion protection. The robust XLPO insulation provides reliable protection against UV radiation, heat, ozone, and moisture. The cable is flexible, abrasion-resistant, and temperature-resistant from -40°C to +90°C. It meets the requirements of the EN 50618:2014 standard and is flame-retardant, ensuring additional safety. With a conductor resistance of ≤3.39 Ω/k and an insulation resistance of ≥500 MΩ·km, it ensures low power losses and high operational reliability. The solar cable is weather-resistant and durable—ideal for long-term outdoor use in professional and residential PV projects.

[Cables and Peripherals][Solar Cables and Accessories]

Specification

Product
Product id	1011087
Brand	Digitus
Partnr	DK-SCIC6B-0200
EAN/UPC code	4016032490746
Product information sheet(s)
Class	Power cord
Connection 1	Other
Connection type according to IEC 60320, connection 1	Other
Cable entry connection 1	Straight
Connection 2	Other
Connection type according to IEC 60320, connection 2	Other
Cable entry connection 2	Straight
System-oriented connector system	false
Number of cores	1
Nominal cross section conductor	6 mm²
Length	20 m
Material outer sheath	Other
Temperature resistance	-40 - 90 °C
Colour outer sheath	Black
Spiralized cable	false
With protective conductor	false
With personal protection PRCD	false
Degree of protection (IP)	Other
With cord switch	false
Outer diameter approximate	6.1 mm
Oil resistant according to EN IEC 60811-404	false
