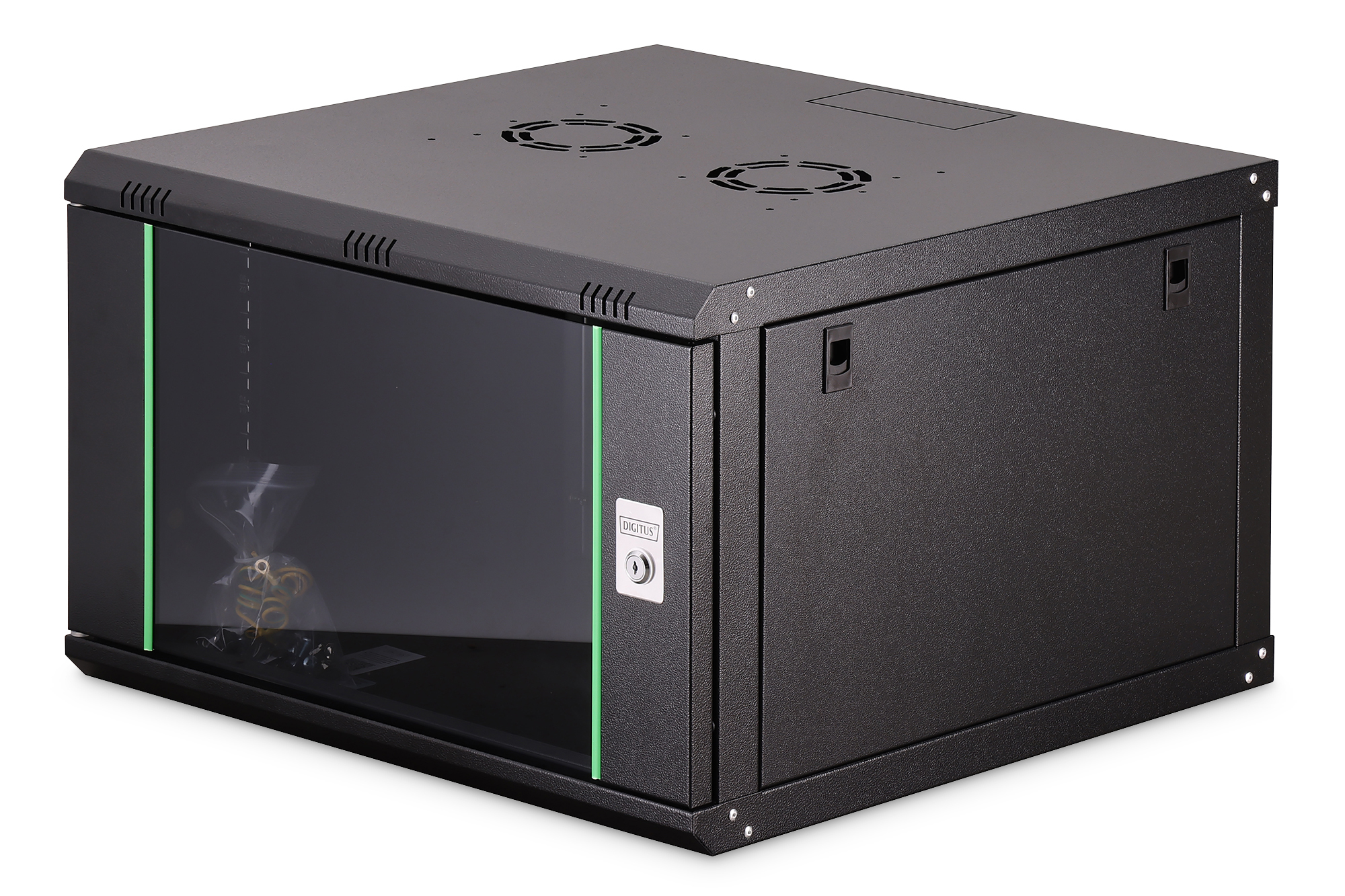

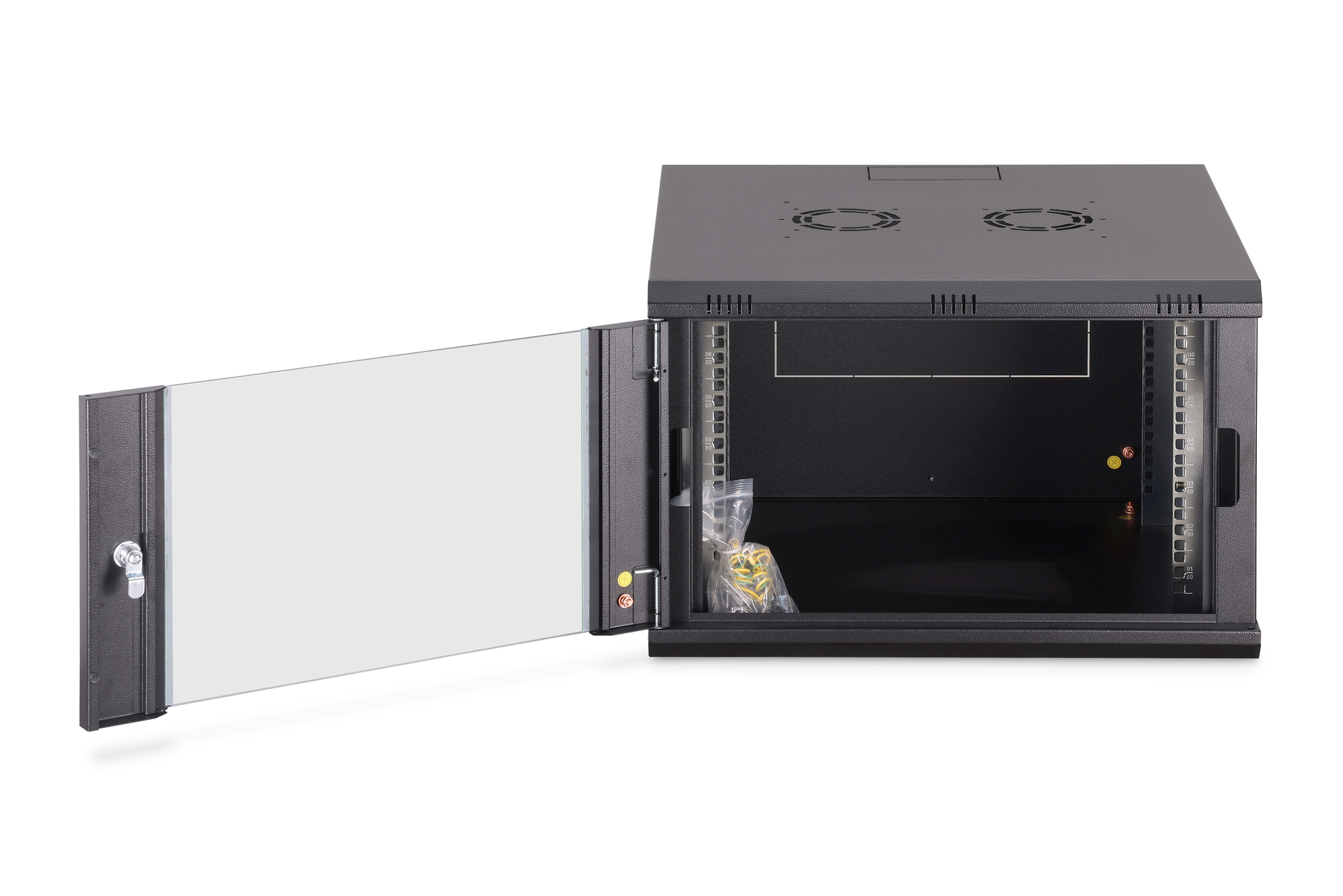

Wall-mounted enclosure Dynamic Basic series - 600x600 mm (WxD)

- Optimum ventilation and air extraction

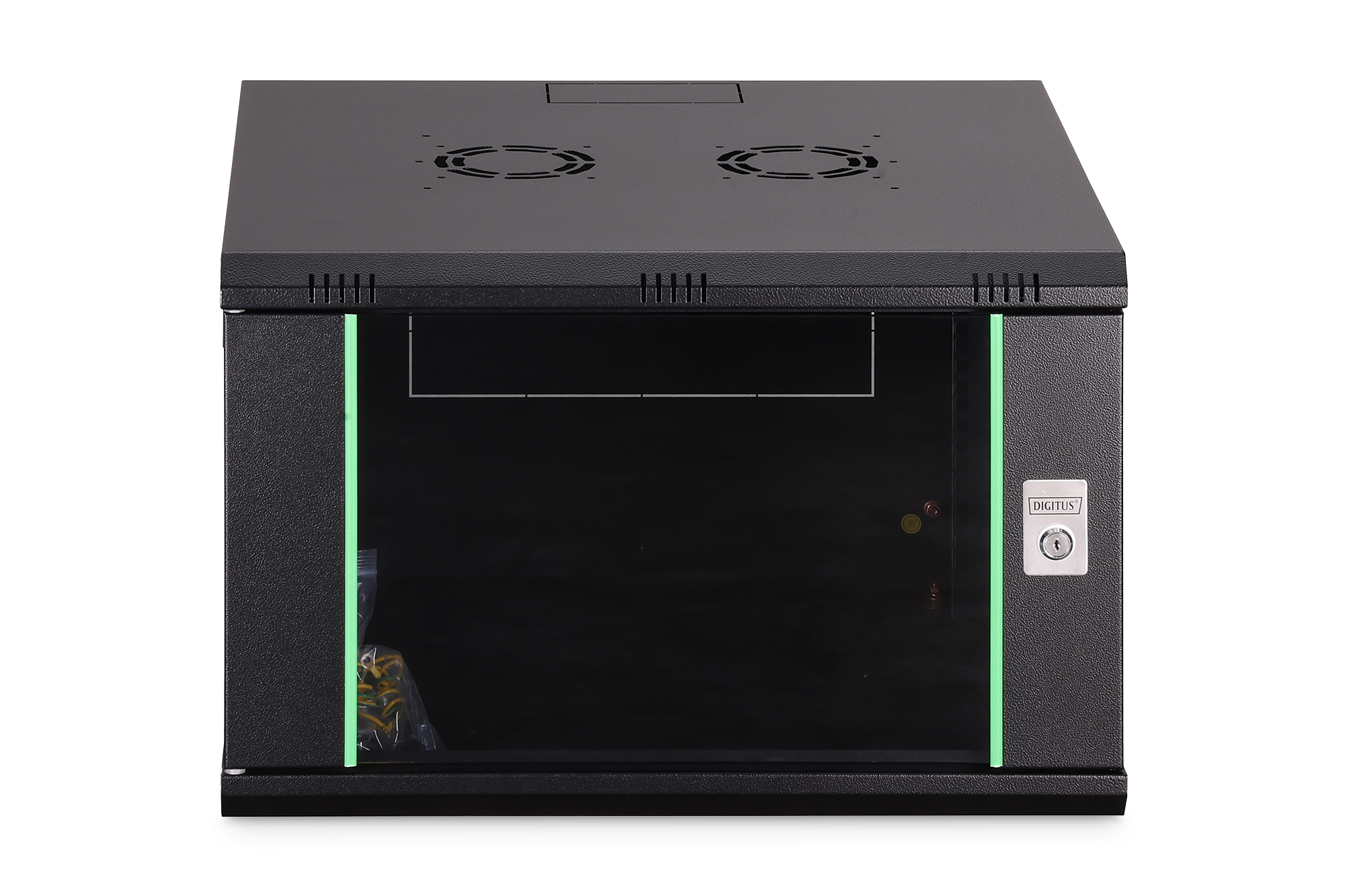

- Lockable glass door guarantees security

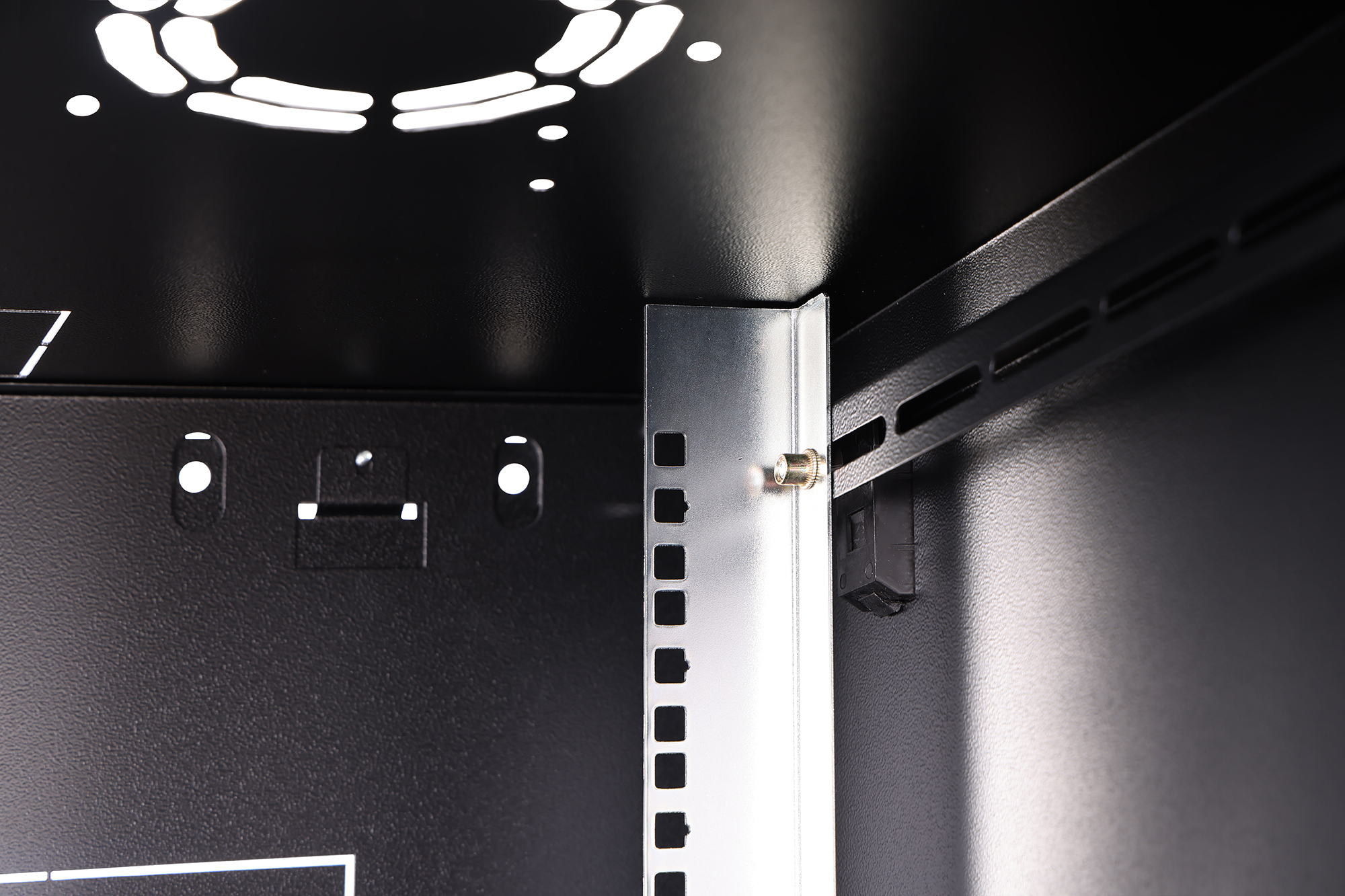

- 483 mm (19") profile rails mounted at the front and rear inside the enclosure, galvanized

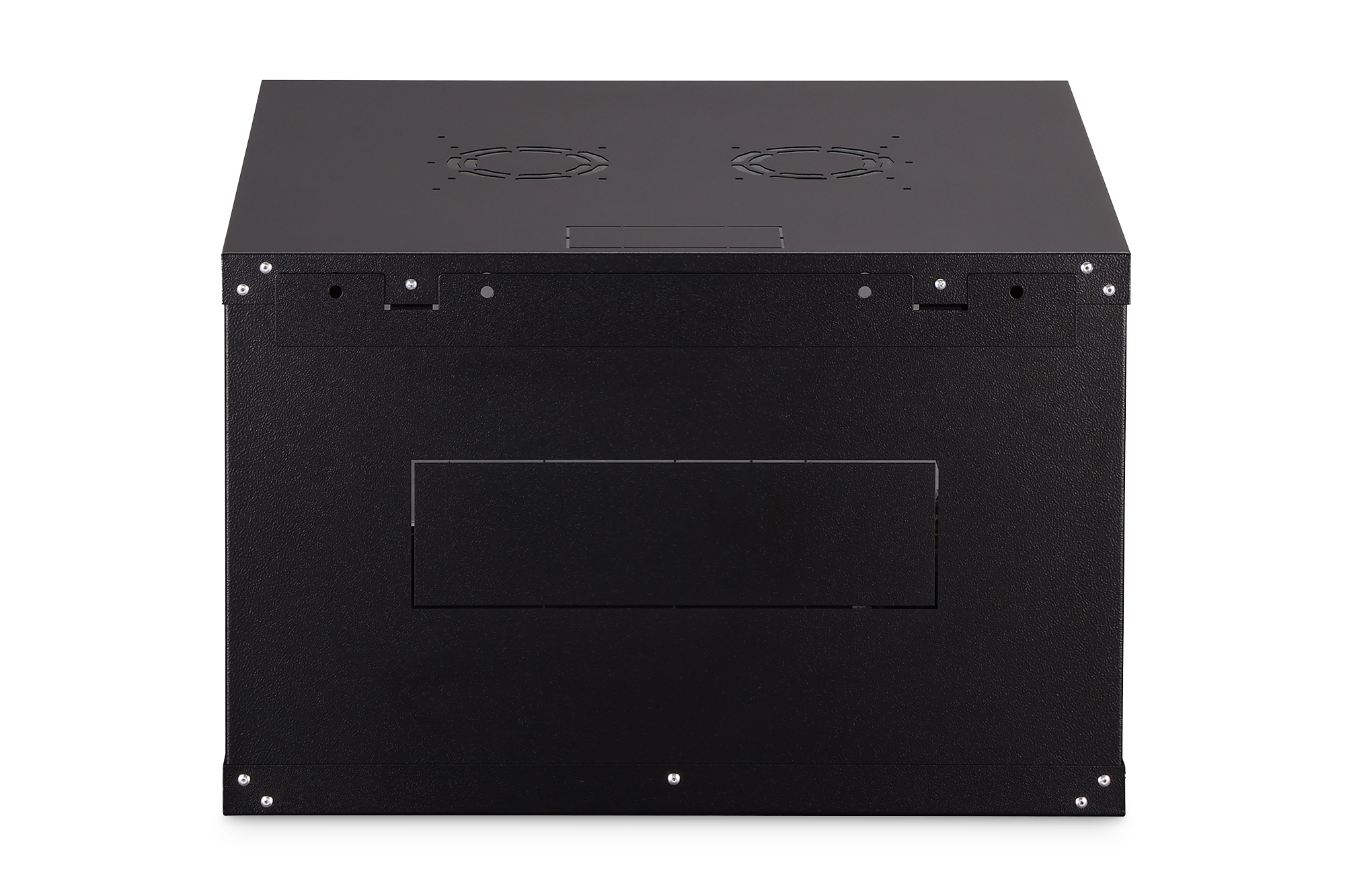

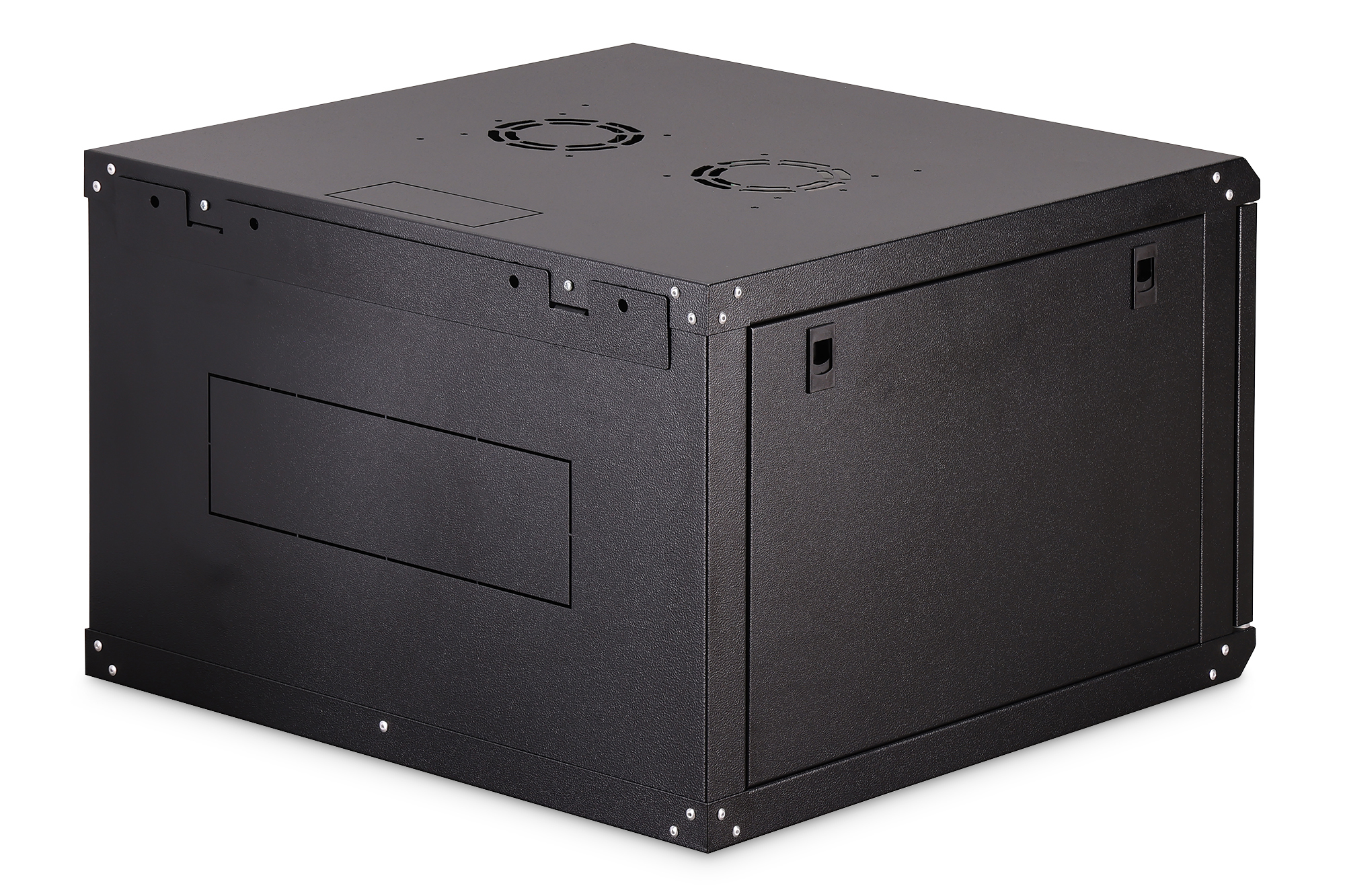

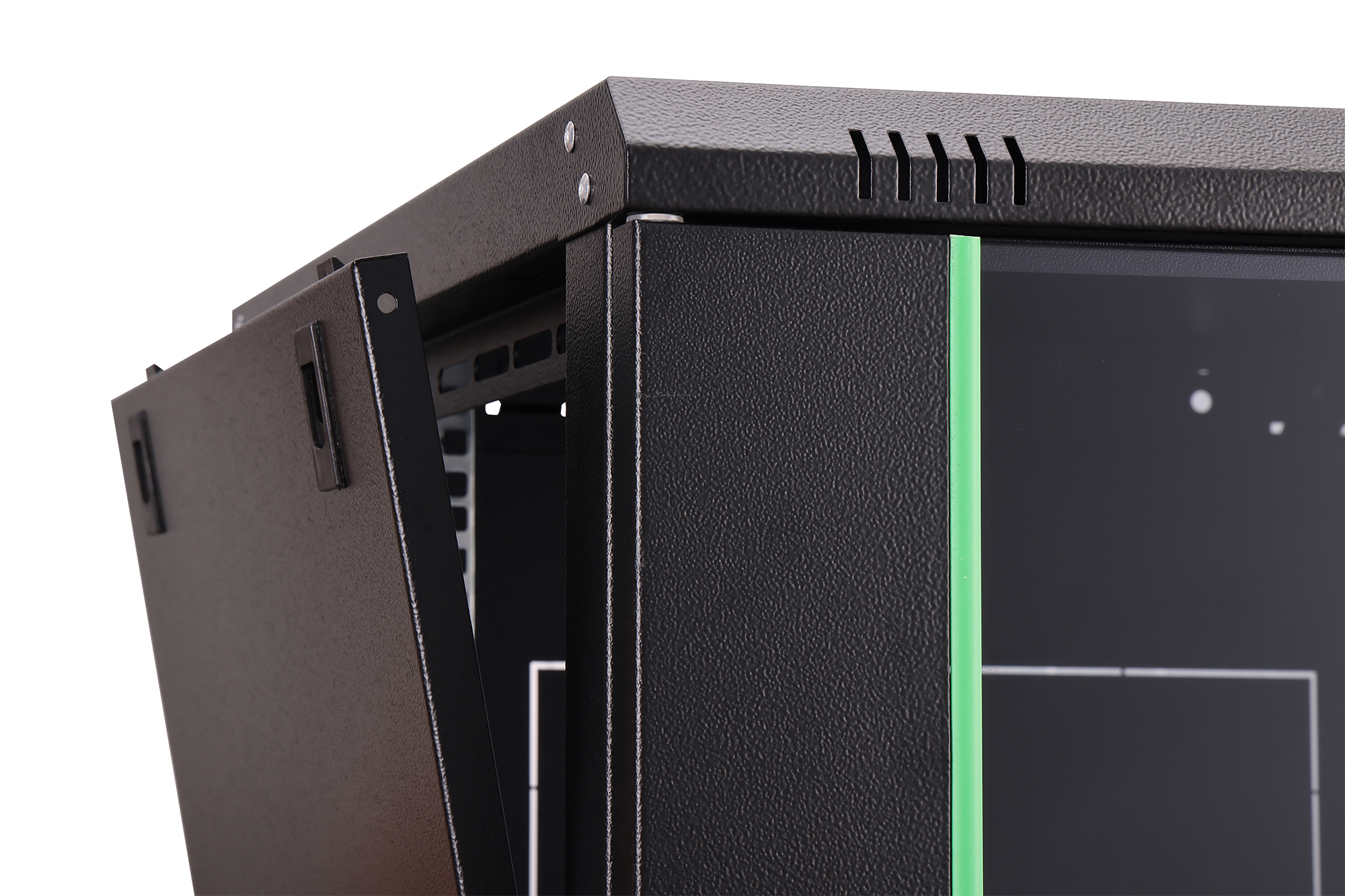

The Dynamic series wall-mounted network cabinets have been developed for simple and particularly cost-optimized network expansion. The roof, base and rear panel of each cabinet are equipped with a pre-punched cable inlet. The roof chassis is also provided with a punched-out area to accommodate a fan module. Two pairs of galvanized 483 mm (19") profile rails, labelled with height units that can be read in both directions, are installed inside. These can be adjusted in depth. Each cabinet is a robust steel construction made of up to 1.2 mm thick sheet steel. The coloring takes the form of electrostatic powder coating in the standard colors grey (RAL 7035) and black (RAL 9005). Removable side panels and the lockable and removable front door improve accessibility. The door hinges can be changed. Wall mounting is carried out in two simple steps: The supplied mounting plate is screwed to the wall and then connected to the housing.

[Network and Server Cabinets][Network Cabinets - Wall Mounting]

Specification

Product
Product id	863405
Brand	Digitus
Partnr	DN-19 07U-6/6-EC-SW
EAN/UPC code	4016032257790
Product information sheet(s)
Class	Network/server enclosure
Mounting level	Front and rear
Type of profile rail	L-shape
Number of doors	1
Type of ventilation	Passive
Width	600 mm
Height	385 mm
Depth	600 mm
Modular spacing	482.6 mm (19 inch)
Number of height units	7
Max. load capacity	60 kg
With roof plate	true
With earthing	false
With front door	true
Material front door	Glass

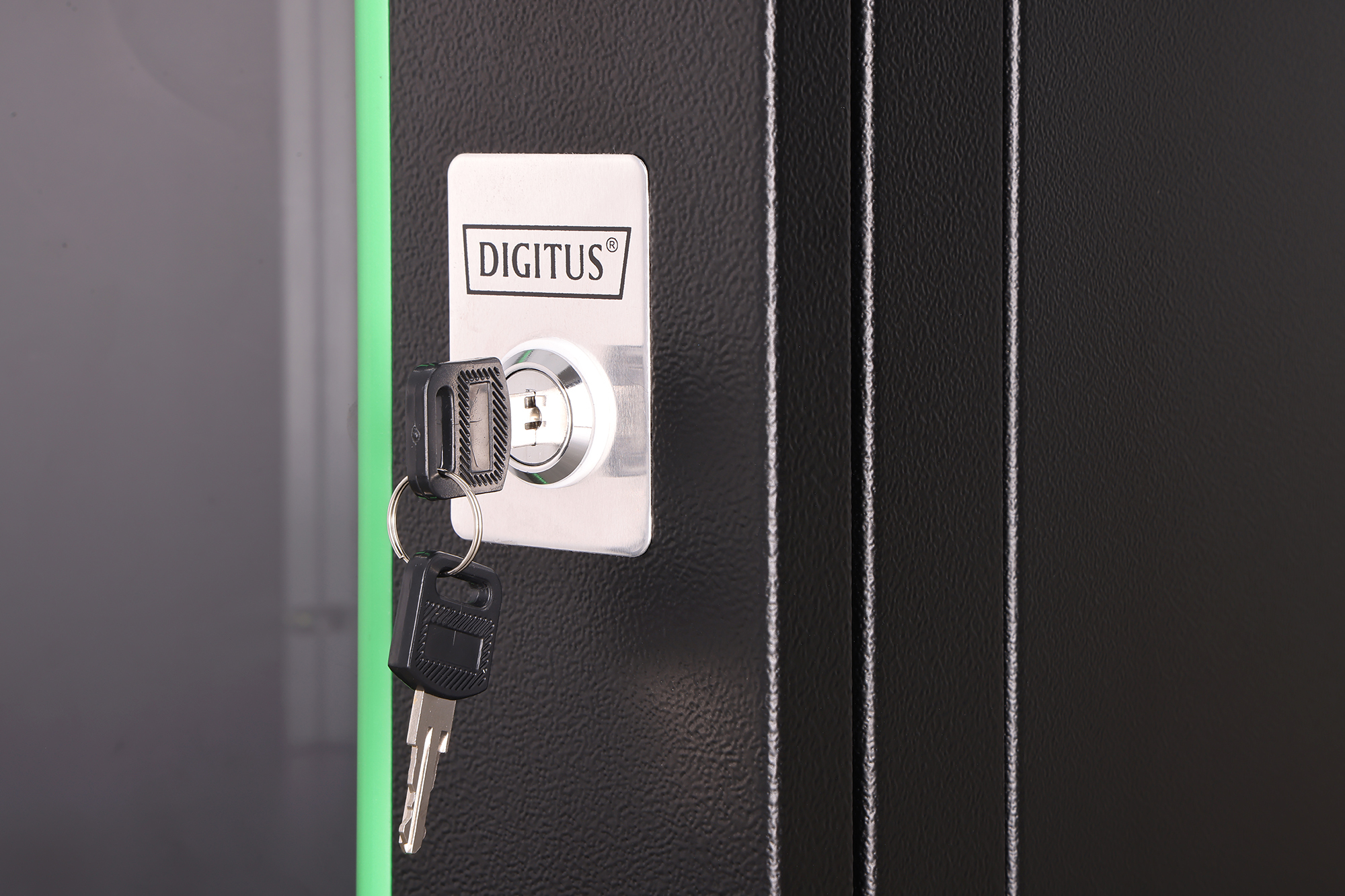

Front door locking system	1-point
With rear door	false
Material rear door	Steel
Rear door locking system	Other
With glazed door	true
With sidewall	true
With base	false
With vertical cable management	false
Material	Steel
Surface finishing	Powder coating
Colour	Black
Model	With permanent frame
RAL-number	9005
Demountable	false
Degree of protection (IP)	IP20
Degree of protection (NEMA)	Other
