Wall Mounting Cabinet, SOHO, unmounted - 540x400 mm (WxD)

The DIGITUS® Wall Mounting Cabinets are made for high demand IT-Infrastructure Solutions - designed and developed on highest standard in Germany

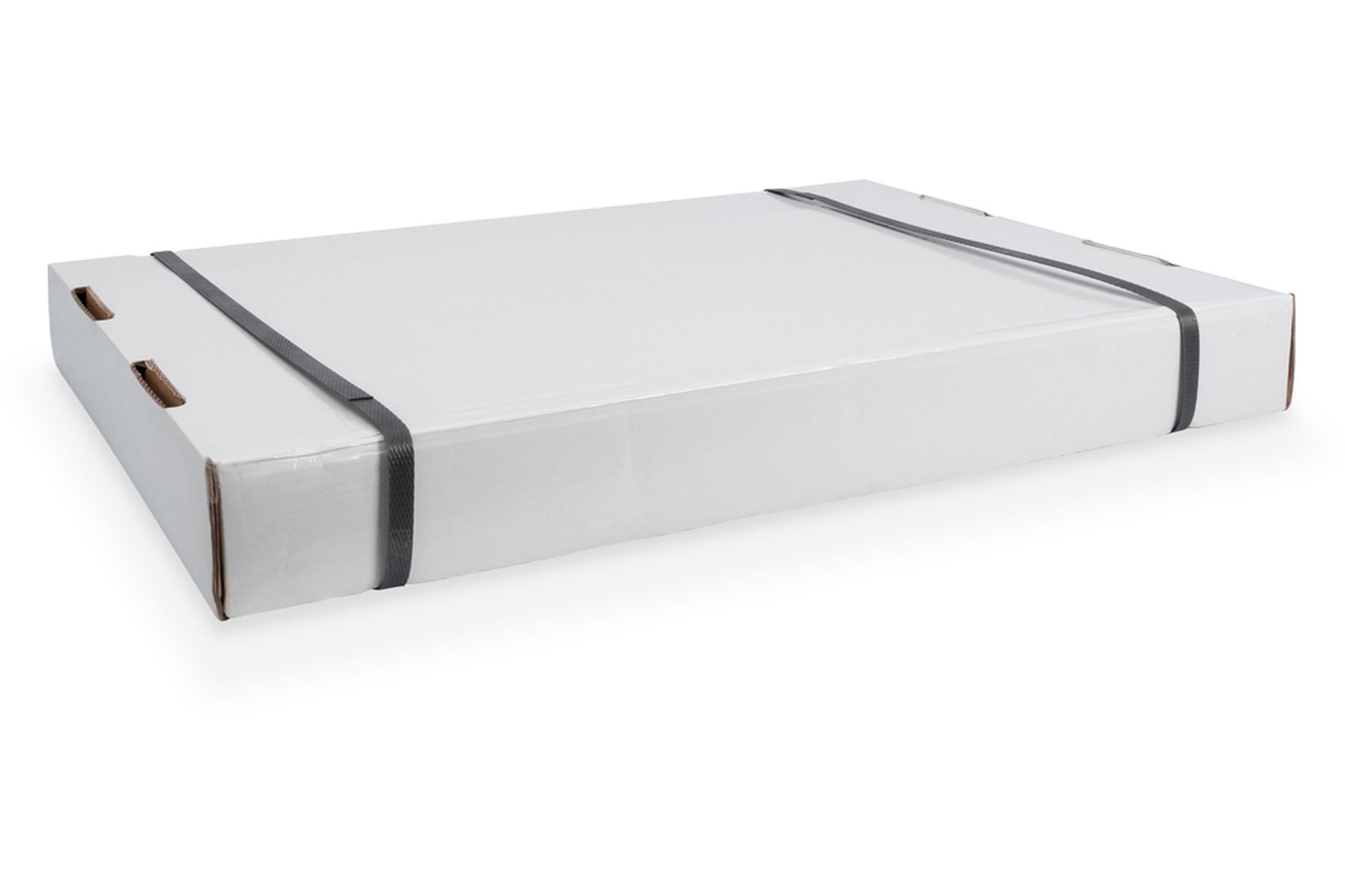

- Unmounted flat package delivery for cost- and space effciency
- Optimized air ventilation and exhaustion
- Lockable perforated steel front door ensures safety

The 483 mm (19”) network cabinets for wall installation from the SOHO series are delivered unassembled using a flat pack to optimize costs. Available in four rack units and equipped with a full glass door as well as a cable entry with brushes in the roof and floor, this is the perfect product for subdividing or building up a small to medium-sized network. Two pairs of galvanized 483 mm (19”) profile rails labeled with easy-to-read rack units are installed on the inside. Their depth can be adjusted. Each cabinet is made of up to 1.5 mm thick sheet steel. Coloring is done with electrostatic powder coating in the standard colors gray (RAL 7035) or jet black (RAL 9005). The door hinges can be switched. Installation takes just a few steps and is extremely easy thanks to the step-by-step instructions included.

[Network and Server Cabinets][Network Cabinets - Wall Mounting]

Specification

Product
Product id	966212
Brand	Digitus
Partnr	DN-19-09U-S-PD
EAN/UPC code	4016032432548
Product information sheet(s)
Class	Network/server enclosure
Mounting level	Front side
Type of profile rail	L-shape
Number of doors	1
Type of ventilation	Passive
Width	540 mm
Height	460 mm
Depth	400 mm
Modular spacing	482.6 mm (19 inch)
Number of height units	9
Max. load capacity	60 kg
With roof plate	true
With earthing	false
With front door	true
Material front door	Glass
Front door locking system	1-point
With rear door	false
Material rear door	Steel
Rear door locking system	Other
With glazed door	false
With sidewall	true
With base	false
With vertical cable management	false
Material	Steel
Surface finishing	Powder coating
Colour	Grey
Model	With permanent frame
RAL-number	7035
Demountable	true
Degree of protection (IP)	IP20
Degree of protection (NEMA)	Other
