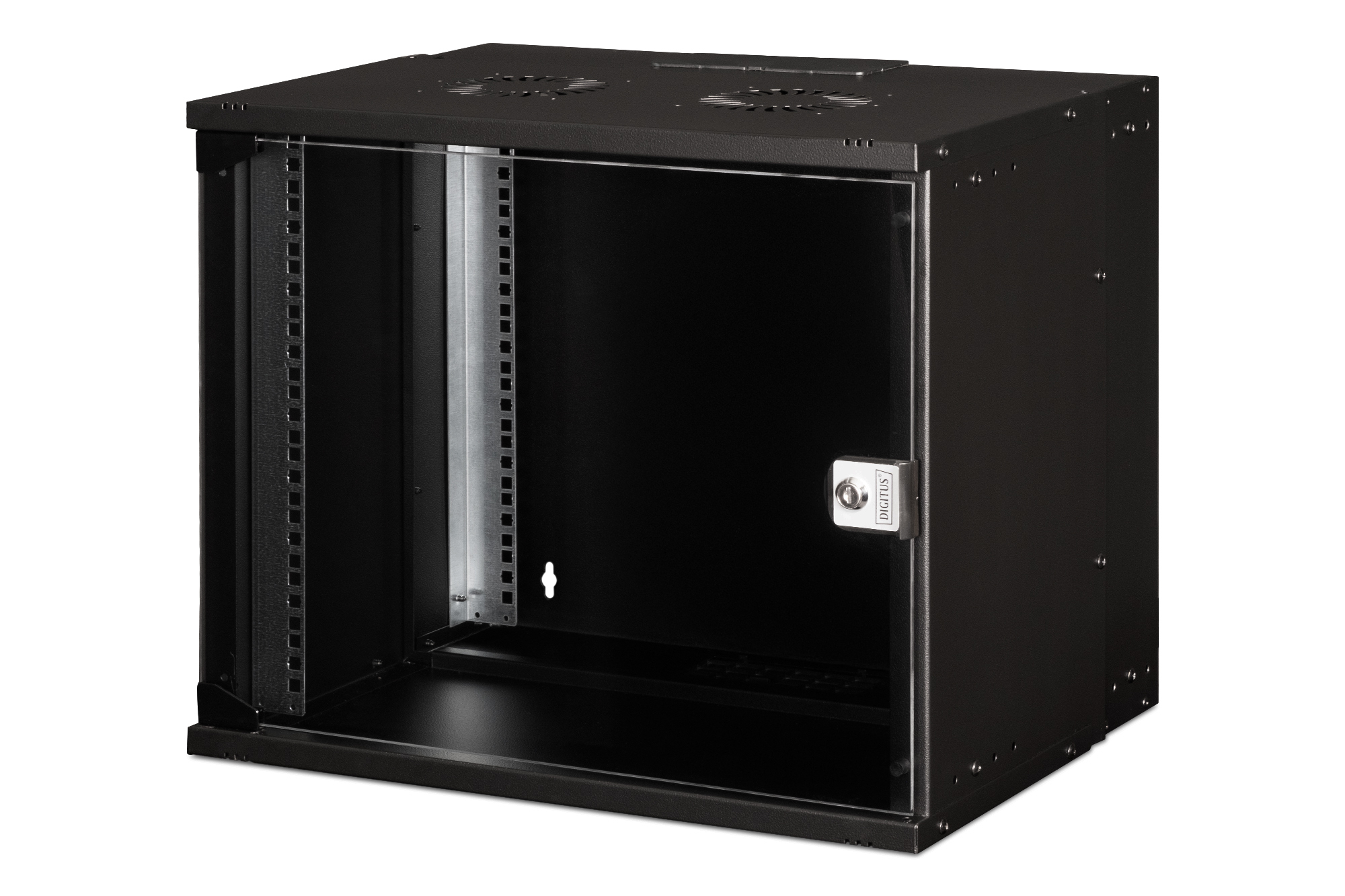

Wall-mounted enclosure SOHO Pro - 483 mm (19") - 540x400 mm (WxD)

- Compact housing for 483 mm (19") installations
- Simplified logistics: delivered unassembled in an optimized flat pack
- Quickly ready for use: Particularly user-friendly, quick installation with just a few screws
- Flexible cable routing options thanks to protected openings in the roof and floor

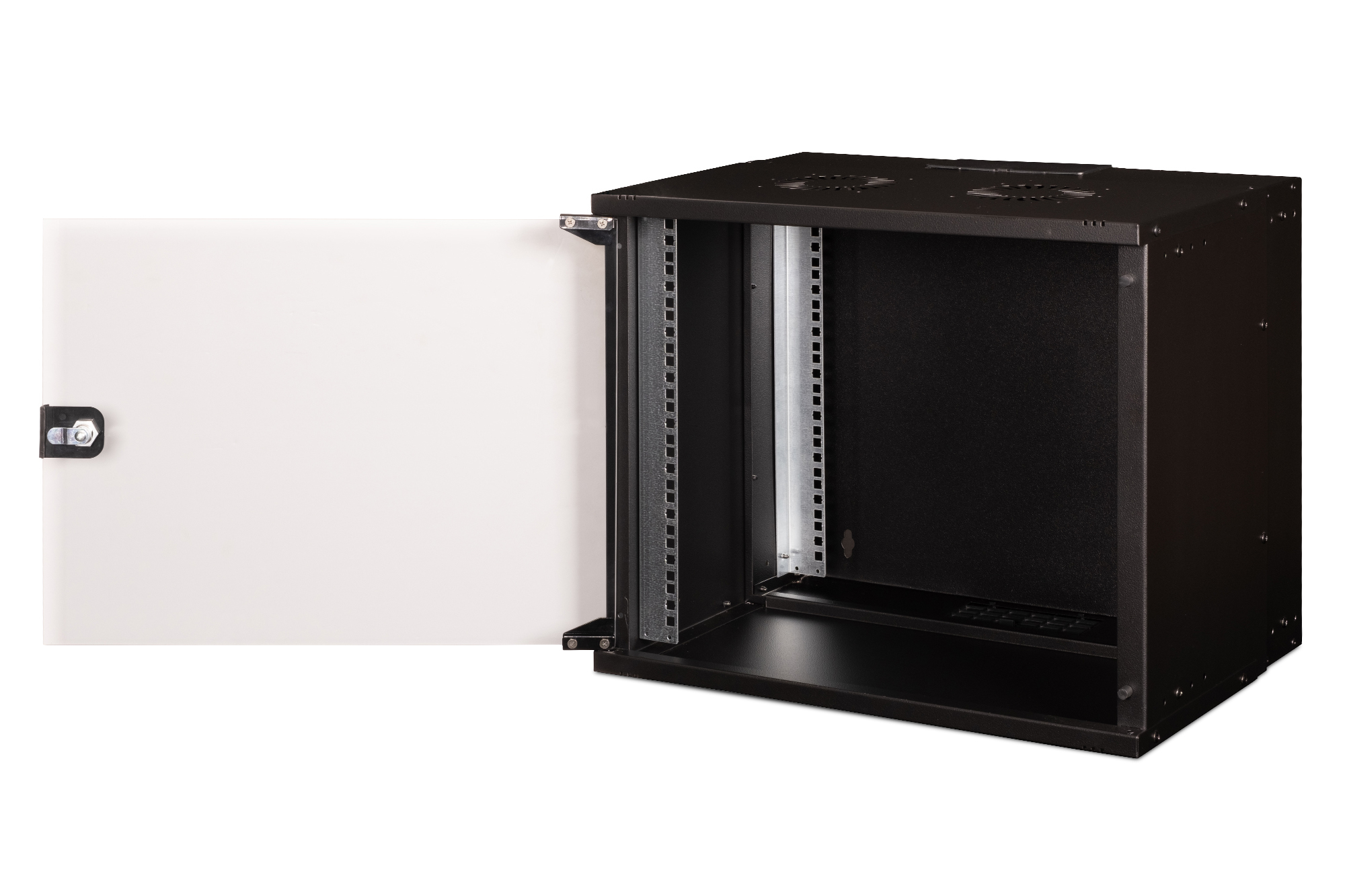

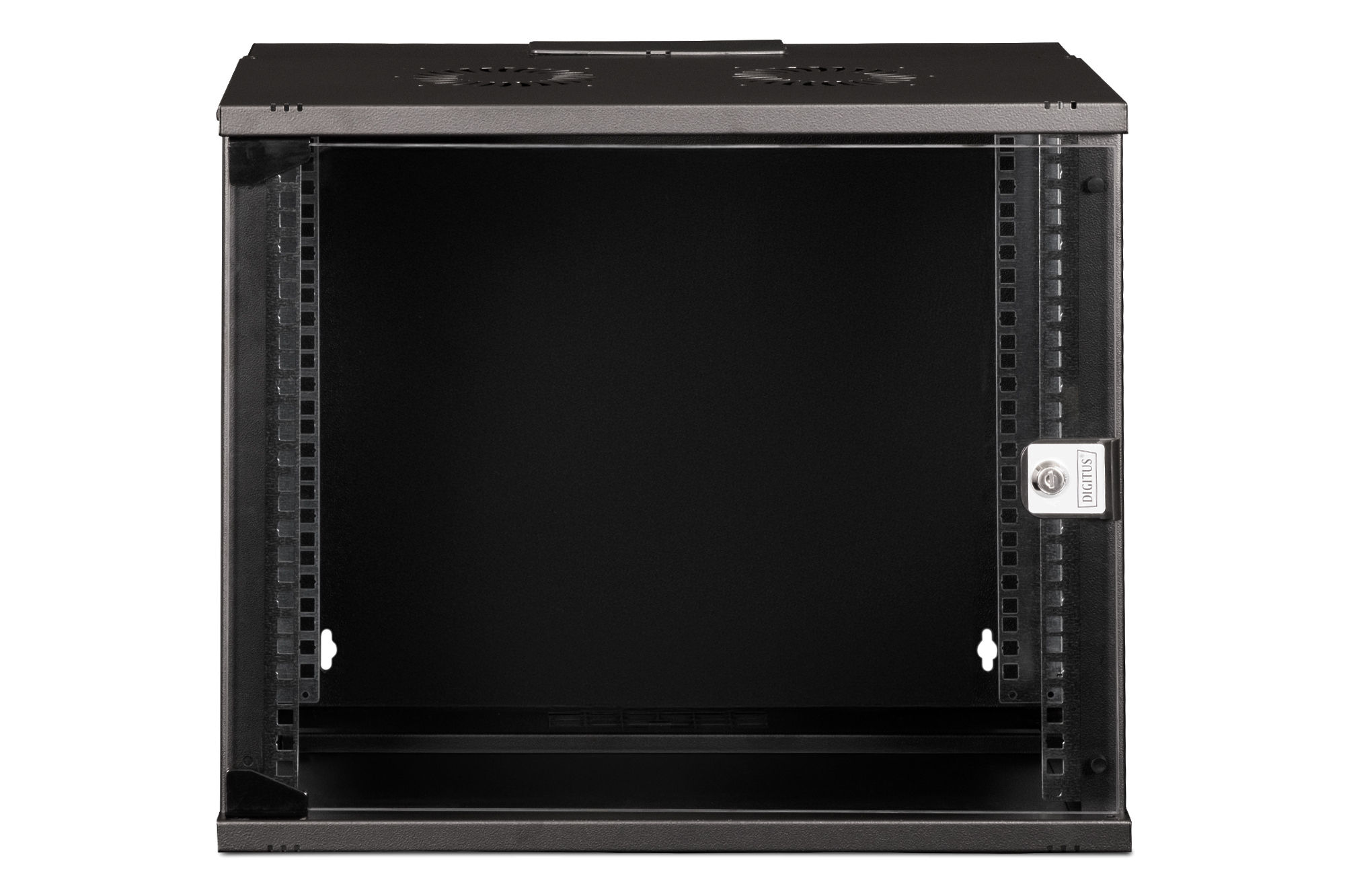

- Lockable safety glass door with 200° door opening angle

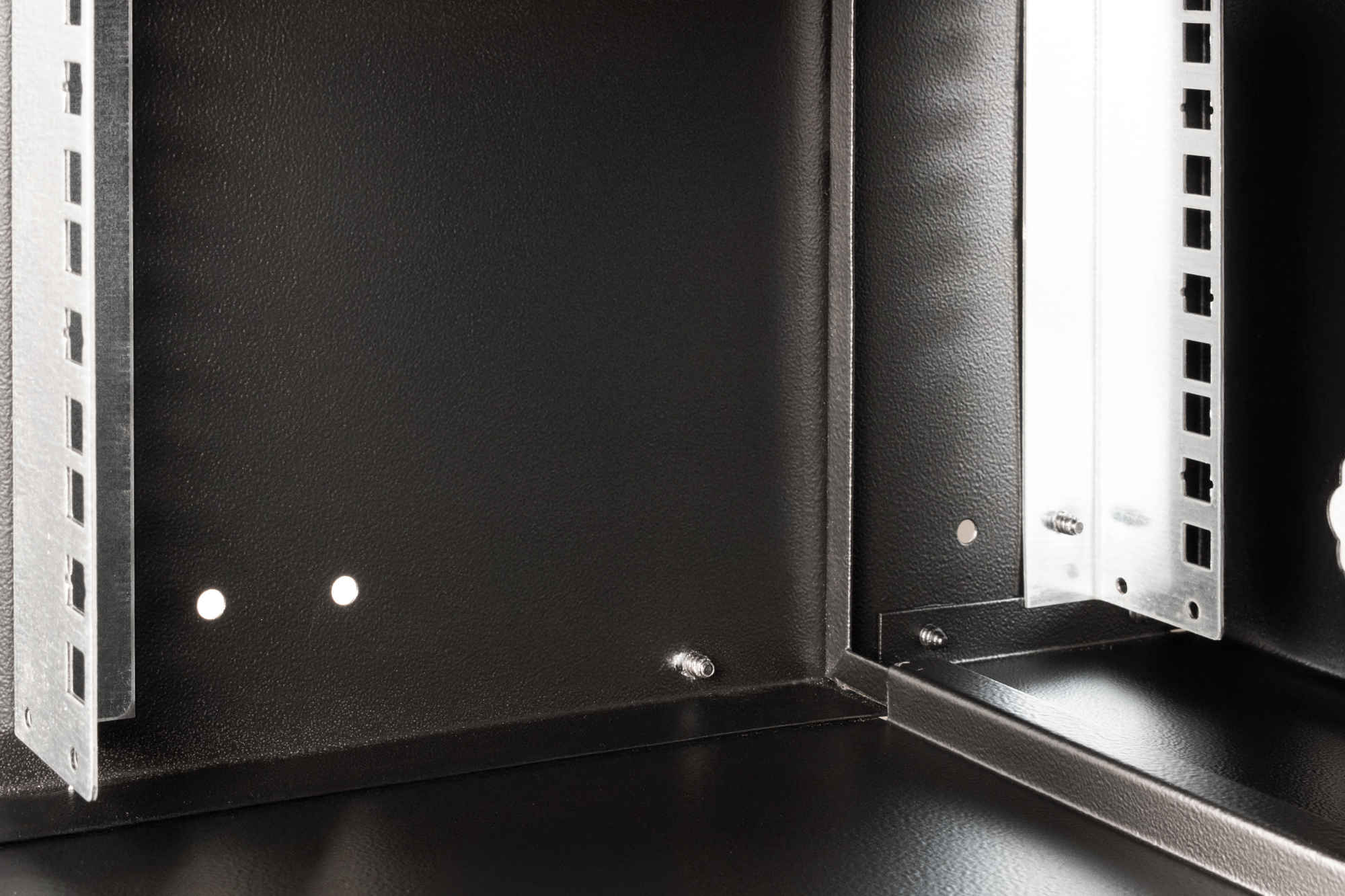

- Depth-adjustable 483 mm (19") profile rails
- Load capacity for the installation of components: 60 kg

Whether in the home, office or for sub-distribution boards with limited space: With the compact 483 mm (19") solutions from the SOHO Pro series, you can install your network wherever you want. Available in four height units (4U, 7U, 9U, 12U), the wall-mounted enclosures are equipped with a full glass door and a cable entry in the top and bottom. Two pairs of galvanized 483 mm (19") profile rails, labelled with legible height units, are installed inside. These can be adjusted in depth. Each cabinet is a robust steel construction made of up to 1.5 mm thick sheet steel. The coloring takes the form of electrostatic powder coating in the standard colors grey (RAL 7035) and black (RAL 9005). The door hinges can be changed. The network enclosures are supplied unassembled in an optimized flat pack. Assembly takes place in just a few steps and is child's play thanks to the enclosed step-by-step instructions.

[Network and Server Cabinets][Network Cabinets - Wall Mounting]

Specification

Product
Product id	966492
Brand	Digitus
Partnr	DN-49205
EAN/UPC code	4016032493747
Product information sheet(s)
Class	Network/server enclosure
Mounting level	Front side
Type of profile rail	L-shape
Number of doors	1
Type of ventilation	Passive
Width	540 mm
Height	460 mm
Depth	400 mm
Modular spacing	482.6 mm (19 inch)
Number of height units	9
Max. load capacity	60 kg
With roof plate	true
With earthing	true
With front door	true
Material front door	Glass
Front door locking system	1-point
With rear door	true
Material rear door	Steel
Rear door locking system	None
With glazed door	true
With sidewall	true
With base	false
With vertical cable management	false
Material	Steel
Surface finishing	Powder coating
Colour	Black
Model	With permanent frame
RAL-number	9005
Demountable	true
Degree of protection (IP)	IP20
Degree of protection (NEMA)	Other
